A9506117 Wall suspension element
Scroll

A9506117

Wall suspension element

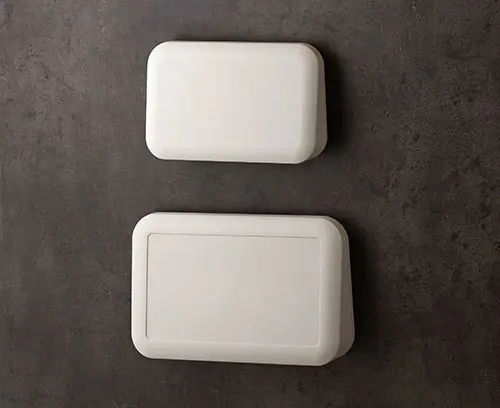

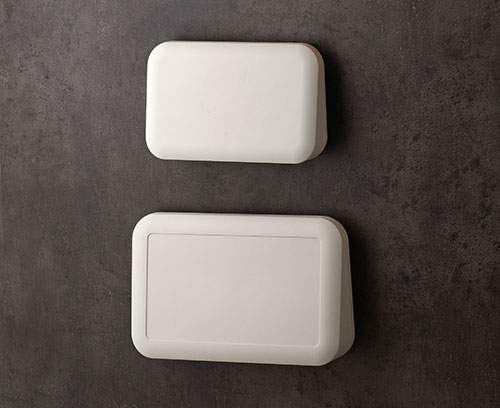

Universal wall suspension element suitable for small plastic enclosures with a flat base.

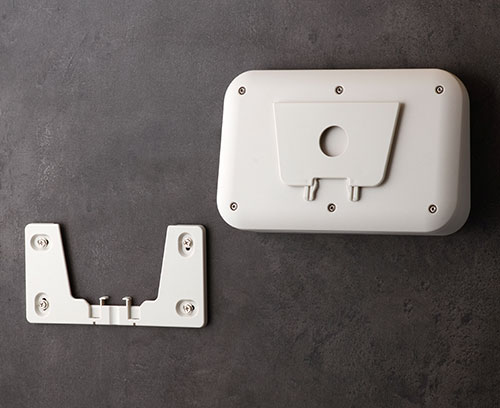

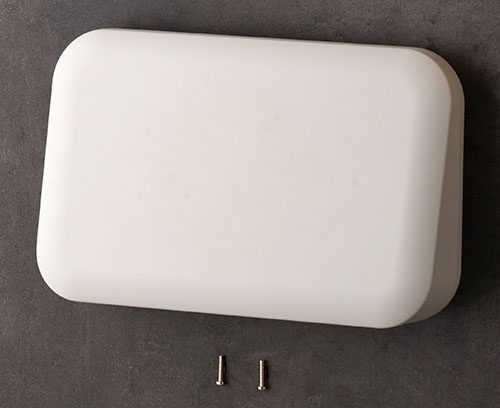

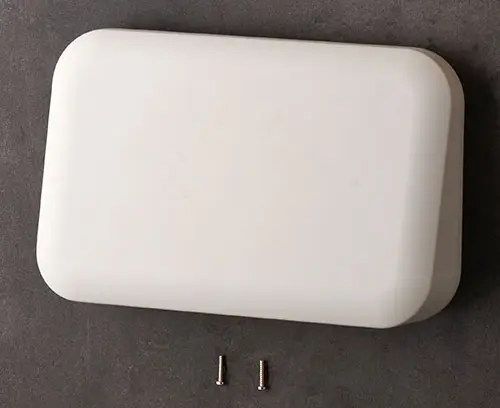

The adapter (106 x 75 mm) is attached to the bottom part of the enclosure by 4 screws. 4 boreholes ø 3.5 mm are required. The adapter makes it possible to clip the enclosure quickly and easily into the holder mounted on the wall. Optionally, the parts can be secured with 2 screws, thus offering additional protection against removal.

Supply

1 adapter, 1 holder, 4 Torx stainless steel screws, 2 securing screws

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9506117

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
  • Modificaciones específicas del cliente
A9461107 EVOTEC 200, Vers. I

A9461107

EVOTEC 200, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9461107

EVOTEC 200, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9465107 EVOTEC 200, Vers. II

A9465107

EVOTEC 200, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9465107

EVOTEC 200, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9466107 EVOTEC 200, Vers. III

A9466107

EVOTEC 200, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9466107

EVOTEC 200, Vers. III
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
200x124x45mm
IP 65 opt., IP 40
A9481107 EVOTEC 250, Vers. I

A9481107

EVOTEC 250, Vers. I 2-part plastic enclosure with flat top part. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Flat"

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9481107

EVOTEC 250, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40
A9485107 EVOTEC 250, Vers. II

A9485107

EVOTEC 250, Vers. II 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop" without recess

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9485107

EVOTEC 250, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40
A9486107 EVOTEC 250, Vers. III

A9486107

EVOTEC 250, Vers. III 2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.

Version Top part "Desktop", operating area recessed by 1 mm

Supply Top and bottom parts, assembly kit incl. 6 self-adhesive rubber feet

Cerrar

A9486107

EVOTEC 250, Vers. III
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
250x155x54mm
IP 65 opt., IP 40

Customising options for A9506117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
49 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
