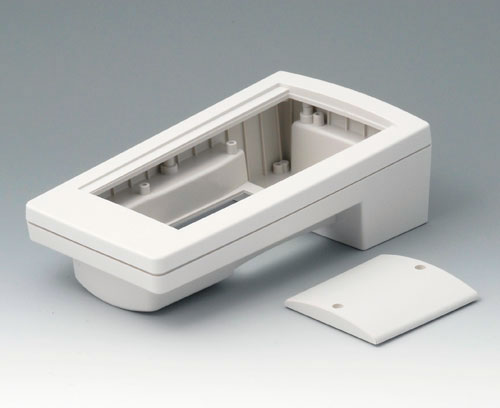

A9046207 HAND-TERMINAL M, Vers. II
Scroll

A9046207

HAND-TERMINAL M, Vers. II

Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version

With frame cover for the use of an aluminium-front panel (accessories)

Supply

Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9046207

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory to complete

A9146101 Front panel M

A9146101

Front panel M For HAND-TERMINAL version II. Front panel installation at the top part from the rear.

Supply 1 front panel (srews supplied with the case)

Cerrar

A9146101

Front panel M
Producto añadido a su lista
Aluminium
matt anodised
179x88x2mm

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Cerrar

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Producto añadido a su lista
Steel
tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174002

Battery compartment, 2 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174003

Battery compartment, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Cerrar

A9250250

Battery spacer
Producto añadido a su lista
PE foam
50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Cerrar

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

Accessory "protection"

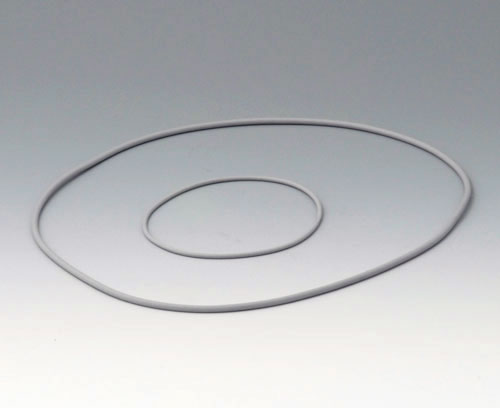

A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

Cerrar

A9146106

Sealing kit M
Producto añadido a su lista
A9146206 Sealing M

A9146206

Sealing M For the front panel of HAND-TERMINAL version II. For a higher protection class.

Supply 1 sealing

Cerrar

A9146206

Sealing M
Producto añadido a su lista

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista
Stainless steel

Customising options for A9046207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
PC+ABS (UL 94 V-0)
Protection class
IP 65 opt.
Necessary accessories: sealing kit for the enclosure, front panel & sealing for the front panel
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
220 mm
Width
120 mm
Height
65 mm
PCB length, base
206 mm
PCB width, base
93 mm
PCB length, top
206 mm
PCB width, top
93 mm
Display length, base
170 mm
Display width, base
70 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
260 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
