B4042407 Cover S

B4042407

Cover S

Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply

1 cover, assembly kit

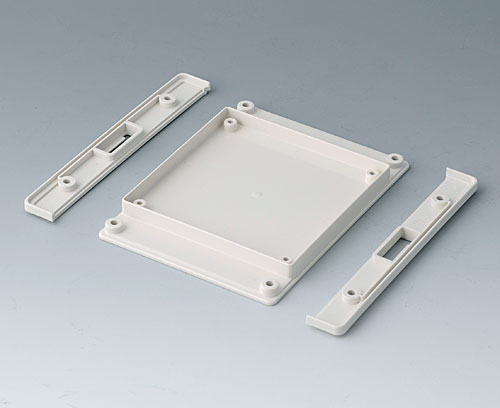

  • Componentes adecuados
  • Modificaciones específicas del cliente

Móvil con compartimiento para pilas

Móvil sin compartimiento para pilas

Móvil con estación de carga

Móvil / a pared

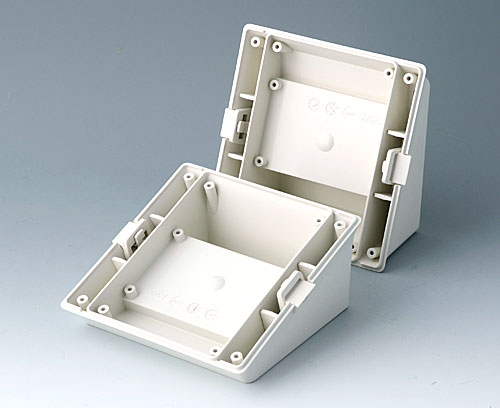

Atril (atornillado)

Atril / a pared

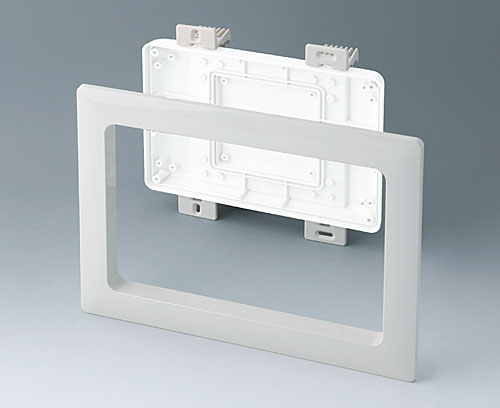

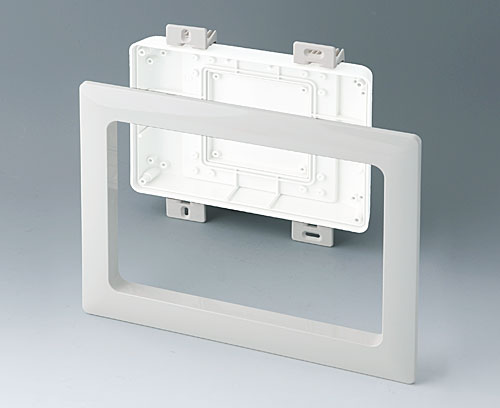

Para encastrar

Customising options for B4042407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Modelos 3D & Planos / Documentos

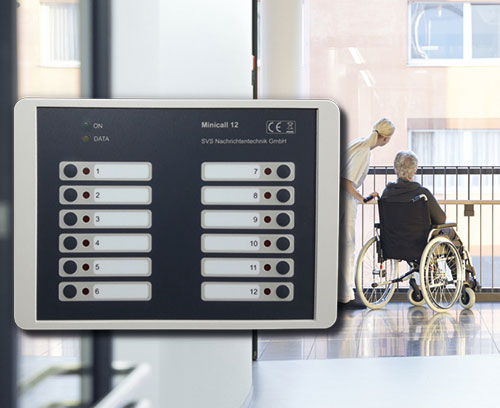

  • Aplicaciones
  • Purchasing Data
Color
off-white RAL 9002
Anchura
190 mm
Profundidad
135 mm
Altura
14 mm
Keypad length
123 mm
Keypad width
162 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
118 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
