Elementos mínimos (para componentes individuales)
1 parte inferior, modelo I.
1 diseño frontal (tapa superior o panel frontal de aluminio).
1 compartimiento para pilas y su tapa.
o
1 parte inferior, modelo II.
1 diseño frontal (panel frontal de ABS o panel frontal de vidrio).
1 compartimiento para pilas y su tapa.
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Cerrar
Cover S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x14mm

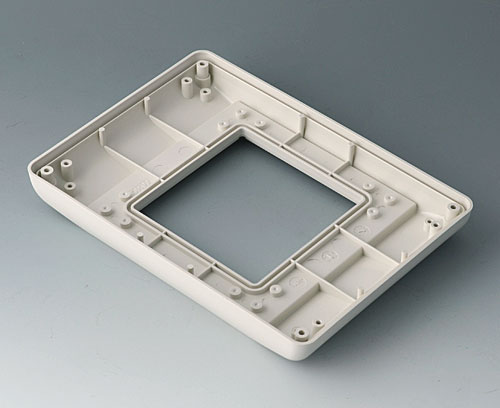

B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.

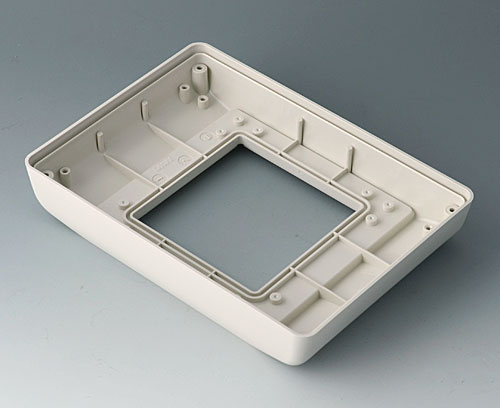

B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
Aluminium
matt anodised
186,5x131,5x2mm

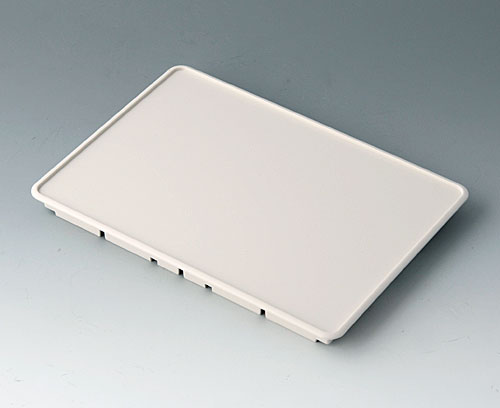

B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190,6x135,6x14,5mm
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Cerrar
Glass panel S
Producto añadido a su lista
Glass
clear
190,6x135,6x16,7mm
Accessory "protection"

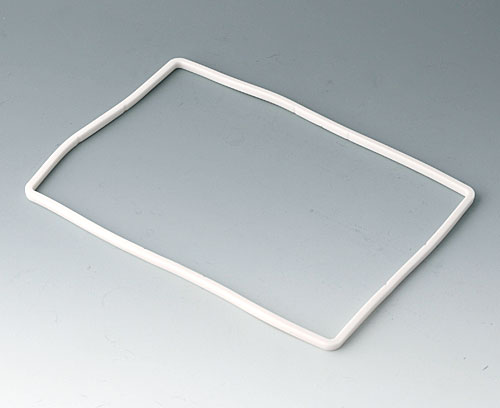

B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Cerrar
Sealing S (bottom part - front design)
Producto añadido a su lista
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Cerrar
Sealing S (bottom part - base/bot. panel/bat. comp...)
Producto añadido a su lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, male
Producto añadido a su lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, female
Producto añadido a su lista
gold-plated
Elementos mínimos (para componentes individuales)
1 parte inferior, modelo I.
1 diseño frontal (tapa superior o panel frontal de aluminio).
1 compartimiento para pilas y su tapa o panel posterior con receso para agarre.
1 base – estación de carga, apoyo para caja –
o
1 parte inferior, modelo II.
1 diseño frontal (panel frontal de ABS o panel frontal de vidrio).
1 compartimento para pilas y su tapa o panel posterior con receso para agarre.
1 base – estación de carga, apoyo para caja –
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Cerrar
Cover S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x14mm
B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.

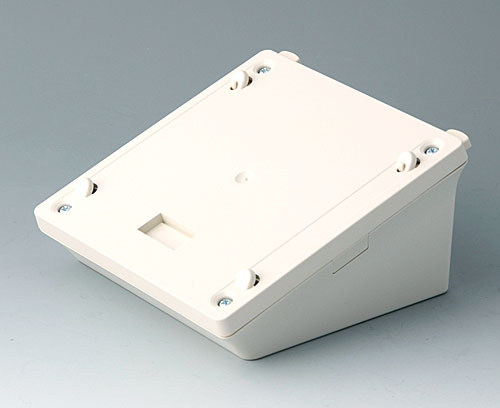

B4042837
Base S - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Cerrar
Base S - charging station, case deposit mobile
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
123x123x60mm
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
Aluminium
matt anodised
186,5x131,5x2mm
B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190,6x135,6x14,5mm
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Cerrar
Glass panel S
Producto añadido a su lista
Glass
clear
190,6x135,6x16,7mm
Accessory "protection"
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Cerrar
Sealing S (bottom part - front design)
Producto añadido a su lista
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Cerrar
Sealing S (bottom part - base/bot. panel/bat. comp...)
Producto añadido a su lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, male
Producto añadido a su lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, female
Producto añadido a su lista
gold-plated
Elementos mínimos
1 parte inferior, modelo I.
1 diseño frontal (tapa superior o panel frontal de aluminio).
1 compartimiento para pilas y su tapa o panel posterior con receso para agarre.
1 soporte de pared.
o
1 parte inferior, modelo II.
1 diseño frontal (panel frontal de ABS o panel frontal de vidrio).
1 compartimiento para pilas y su tapa o panel posterior con receso para agarre.
1 soporte de pared.
System components to complete
B4042407
Cover S
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Cerrar
Cover S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x14mm
B4042707
Bottom part S flat, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042717
Bottom part S flat, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Cerrar
Bottom part S flat, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x24,5mm
IP 54 opt.
B4042757
Bottom part S high, version I
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version I
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4042767
Bottom part S high, version II
Assembly unit: unique variety of applications -mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Cerrar
Bottom part S high, version II
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190x135x34,5mm
IP 54 opt.
B4142106
Front panel S
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
Aluminium
matt anodised
186,5x131,5x2mm
B4142107
Front panel S
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Cerrar
Front panel S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
190,6x135,6x14,5mm
B4142203
Glass panel S
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Cerrar
Glass panel S
Producto añadido a su lista
Glass
clear
190,6x135,6x16,7mm
B4142247
Wall suspension element S
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Cerrar
Wall suspension element S
Producto añadido a su lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4142005
Sealing S (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Cerrar
Sealing S (bottom part - front design)
Producto añadido a su lista
SEBS (TPE)
B4142006
Sealing S (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Cerrar
Sealing S (bottom part - base/bot. panel/bat. comp...)
Producto añadido a su lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, male
Producto añadido a su lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Cerrar
Contacts, female
Producto añadido a su lista
gold-plated
Customising options for B4142047
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Accesorios para cajas
Añadir a la cesta de la compra
