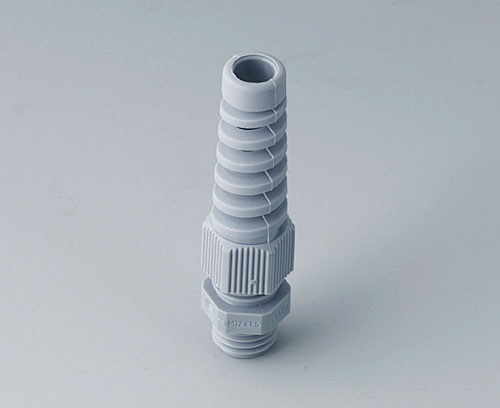

C2312518 Cable gland M12x1.5, bending protection

C2312518

Cable gland M12x1.5, bending protection

Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply

1 cable gland

  • Componentes adecuados

Accessory

C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Cerrar

C2312117

Counternut M12x1.5
Producto añadido a su lista
PA
light grey RAL 7035
C2312126 Sealing ring for external thread M12x1.5

C2312126

Sealing ring for external thread M12x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Cerrar

C2312126

Sealing ring for external thread M12x1.5
Producto añadido a su lista
PE
natural-coloured
  • Datos técnicos
  • Purchasing Data
Material
Protection class
Color
silver grey RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
