B6515112 RAILTEC B, 9 modules, Vers. XII
Scroll

B6515112

RAILTEC B, 9 modules, Vers. XII

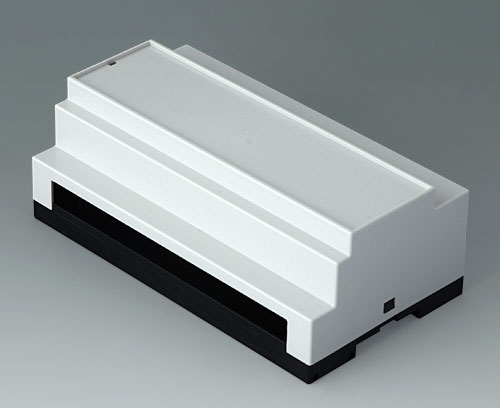

Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version

For plug header (2 x 13-poles) blocks 5.0 / 5.08

Supply

1 base part with locking clip, 1 top part

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B6515112

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "wall/holder"

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

Cerrar

B6600334

Wall suspension elements
Producto añadido a su lista
PPO (UL 94 V-0)
black

Accessory "terminals"

B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

Cerrar

B6605222

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)
B6605223 Plug header, block 5.08

B6605223

Plug header, block 5.08 Female terminal block, 5.08. 13-pin.

Supply 1 piece

Cerrar

B6605223

Plug header, block 5.08
Producto añadido a su lista
PA 6 (UL 94 V-0)

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista

Accessory

B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

Cerrar

B6605100

Lid, 9 modules
Producto añadido a su lista
PC (UL 94 V-0)
transparent

Customising options for B6515112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
PC (UL 94 V-0)
Top part
PPO (UL 94 V-0)
Bottom part
Color
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
Standards
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
157 mm
Height
86 mm
Depth
59 mm
PCB length, base
82,4 mm
PCB width, base
151,2 mm
Poles
≤ 26
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
106 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
