B6724443 RAILTEC SUP. 107, intermediate p. + foot
Scroll

B6724443

RAILTEC SUP. 107, intermediate p. + foot

Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply

1 intermediate part with foot

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B6724443

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

System components to complete

B6724444 RAILTEC SUP. 107, end section

B6724444

RAILTEC SUP. 107, end section Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 end section

Cerrar

B6724444

RAILTEC SUP. 107, end section
Producto añadido a su lista
PA 6 (30) (UL 94 V-0)
light grey
118x11,5x17,5mm

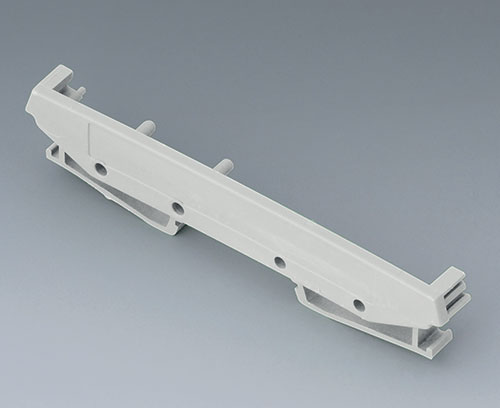

B6724445 RAILTEC SUP. 107, end section with foot

B6724445

RAILTEC SUP. 107, end section with foot Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).

Supply 1 end section with foot

Cerrar

B6724445

RAILTEC SUP. 107, end section with foot
Producto añadido a su lista
PA 6 (30) (UL 94 V-0)
light grey
118x11,5x27,5mm

Customising options for B6724443

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
PA 6 (30) (UL 94 V-0)
Color
light grey
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
DIN EN 60715 TH15
REACH compliant
Length
118 mm
Width
35 mm
Height
27,5 mm
PCB length, base
107 mm
PCB width, base
35 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
27 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
