B6802111 Terminal guards, closed
Scroll

B6802111

Terminal guards, closed

Easy assembly through snap-in installation of the case parts.

Version

Closed

Supply

1 piece

Plano 2D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B6802111

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
  • Modificaciones específicas del cliente

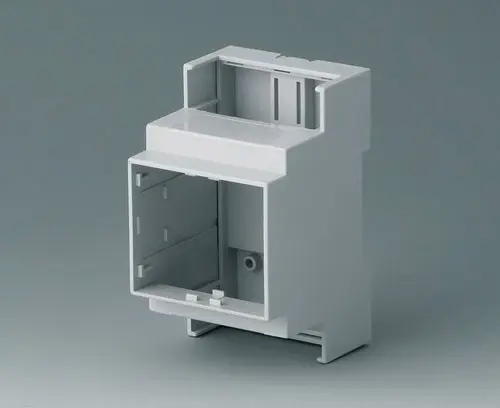

B6702100 RAILTEC C, 3 modules, Vers. I

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Cerrar

B6702100

RAILTEC C, 3 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702102 RAILTEC C, 3 modules, Vers. II

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Cerrar

B6702102

RAILTEC C, 3 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
53x90x58mm

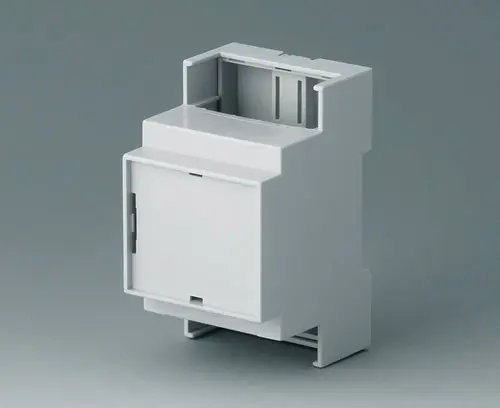

B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Cerrar

B6702106

RAILTEC C, 3 modules, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
53x90x58mm

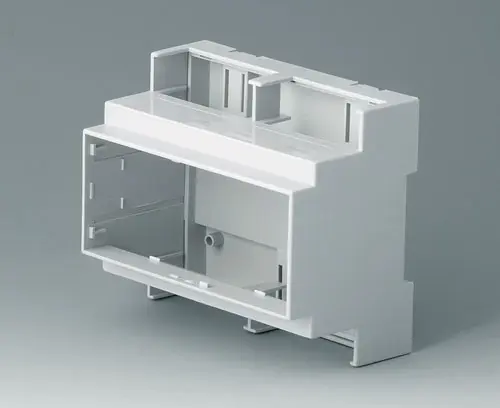

B6705100 RAILTEC C, 6 modules, Vers. I

B6705100

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705100

RAILTEC C, 6 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705101 RAILTEC C, 6 modules, Vers. I

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705101

RAILTEC C, 6 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm

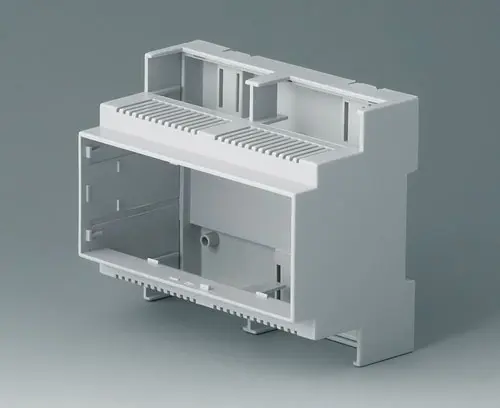

B6705102 RAILTEC C, 6 modules, Vers. II

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705102

RAILTEC C, 6 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm

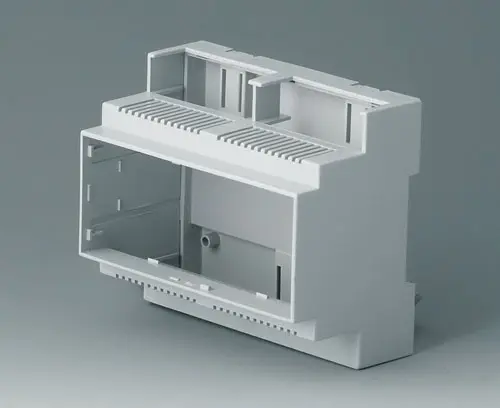

B6705103 RAILTEC C, 6 modules, Vers. II

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705103

RAILTEC C, 6 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm

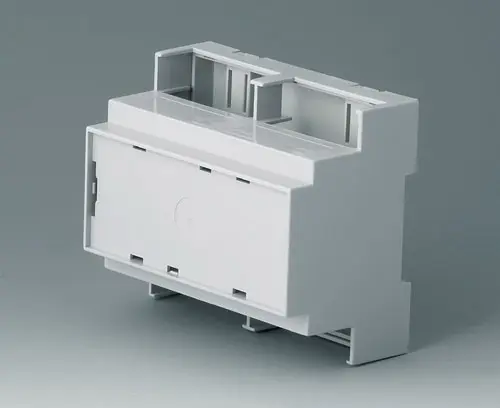

B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705106

RAILTEC C, 6 modules, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705107 RAILTEC C, 6 modules, Vers. IV

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version front closed, connection side with free through passage.

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705107

RAILTEC C, 6 modules, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705700 RAILTEC C, 6 modules, high

B6705700

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705700

RAILTEC C, 6 modules, high
Producto añadido a su lista
PC (UL 94 V-0)
light grey
107x90x114mm
B6705706 RAILTEC C, 6 modules, high

B6705706

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705706

RAILTEC C, 6 modules, high
Producto añadido a su lista
PC (UL 94 V-0)
light grey
107x90x114mm

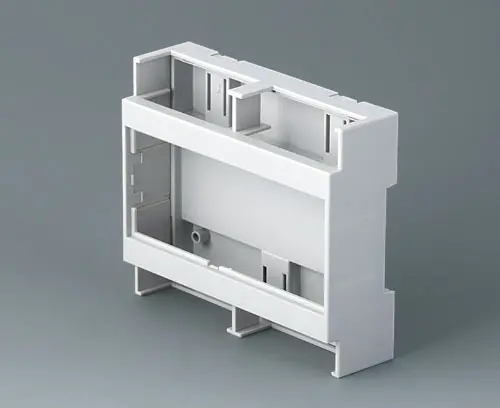

B6705800 RAILTEC C, 6 modules, flat, Vers. I

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705800

RAILTEC C, 6 modules, flat, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106,2x90x32mm

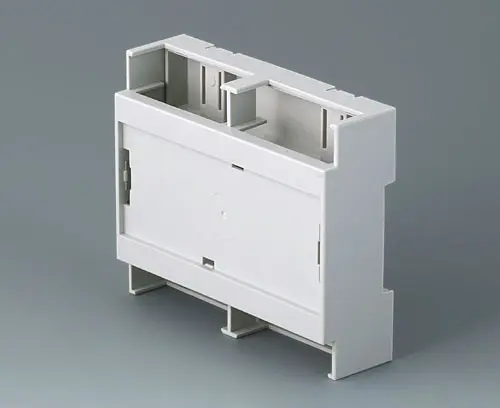

B6705806 RAILTEC C, 6 modules, flat, Vers. IV

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
106,2x90x32mm
B6706100 RAILTEC C, 9 modules, Vers. I

B6706100

RAILTEC C, 9 modules, Vers. I Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706100

RAILTEC C, 9 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706101 RAILTEC C, 9 modules, Vers. I

B6706101

RAILTEC C, 9 modules, Vers. I Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706101

RAILTEC C, 9 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm

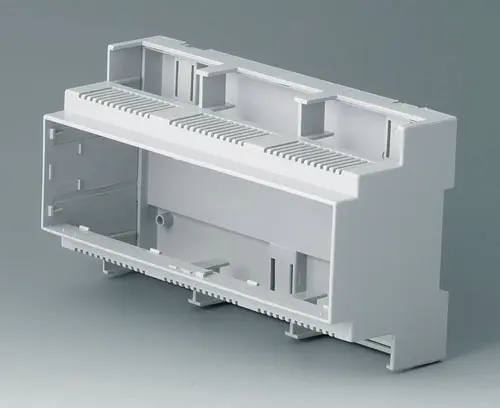

B6706102 RAILTEC C, 9 modules, Vers. II

B6706102

RAILTEC C, 9 modules, Vers. II Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706102

RAILTEC C, 9 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706103 RAILTEC C, 9 modules, Vers. II

B6706103

RAILTEC C, 9 modules, Vers. II Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706103

RAILTEC C, 9 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706106 RAILTEC C, 9 modules, Vers. IV

B6706106

RAILTEC C, 9 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706106

RAILTEC C, 9 modules, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm

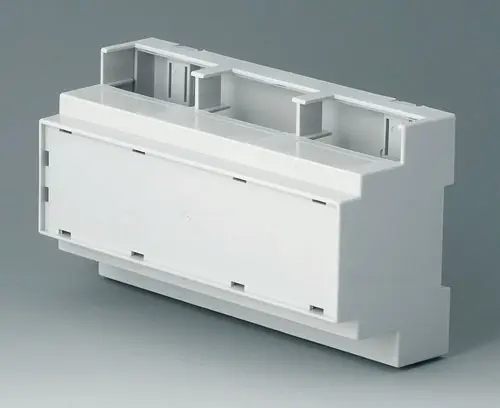

B6706107 RAILTEC C, 9 modules, Vers. IV

B6706107

RAILTEC C, 9 modules, Vers. IV Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6706107

RAILTEC C, 9 modules, Vers. IV
Producto añadido a su lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6707100 RAILTEC C, 12 modules, Vers. I

B6707100

RAILTEC C, 12 modules, Vers. I Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6707100

RAILTEC C, 12 modules, Vers. I
Producto añadido a su lista
PC (UL 94 V-0)
light grey
210x90x58mm

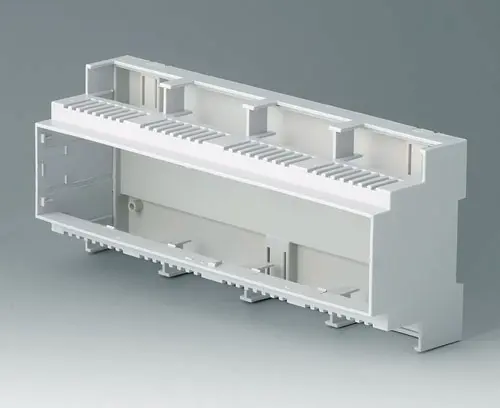

B6707102 RAILTEC C, 12 modules, Vers. II

B6707102

RAILTEC C, 12 modules, Vers. II Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Cerrar

B6707102

RAILTEC C, 12 modules, Vers. II
Producto añadido a su lista
PC (UL 94 V-0)
light grey
210x90x58mm

Customising options for B6802111

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
PC (UL 94 V-0)
Color
light grey
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
