C1243601 Case shell 240, with tongue
Scroll

C1243601

Case shell 240, with tongue

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with tongue

Plano 2D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para C1243601

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

System components to complete

C2243601 Case shell 240, with groove

C2243601

Case shell 240, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Cerrar

C2243601

Case shell 240, with groove
Producto añadido a su lista
ABS (UL 94 HB)
light grey RAL 7035
360x240x40mm
C2299002 Assembly kit

C2299002

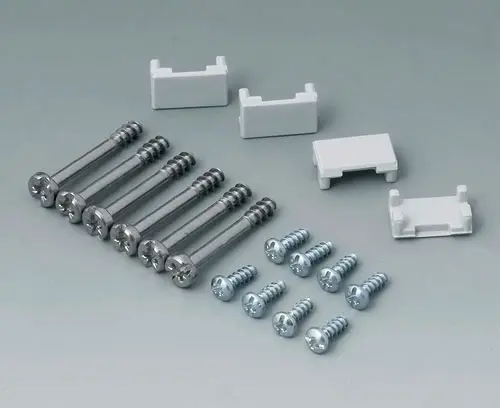

Assembly kit 6 screws for case assembly, 8 screws for mounting PCBs, center cover.

Supply 1 assembly kit

Cerrar

C2299002

Assembly kit
Producto añadido a su lista
C5243601 Case shell 240, with groove

C5243601

Case shell 240, with groove Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with groove

Cerrar

C5243601

Case shell 240, with groove
Producto añadido a su lista
ABS (UL 94 HB)
light grey RAL 7035
360x240x80mm

Accessory to complete

C2202401 Cover strips 240, without holes

C2202401

Cover strips 240, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Cerrar

C2202401

Cover strips 240, without holes
Producto añadido a su lista
PC (UL 94 HB)
light grey RAL 7035
C2212401 Cover strips 240, with holes

C2212401

Cover strips 240, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Cerrar

C2212401

Cover strips 240, with holes
Producto añadido a su lista
PC (UL 94 HB)
light grey RAL 7035

Accessory "protection"

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2306917

Pressure equalisation element M6x0.75
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2310917

Pressure equalisation element M10x1
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

Accessory "wall/holder"

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Cerrar

C2299028

Wall mounting brackets
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Cerrar

C2299088

Hinge
Producto añadido a su lista
PA 6
light grey RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista
Stainless steel

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Cerrar

C2299018

Case feet
Producto añadido a su lista
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Cerrar

C2299068

PCB support
Producto añadido a su lista
PC (UL 94 HB)
light grey RAL 7035

Customising options for C1243601

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ABS (UL 94 HB)
Color
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
Length
360 mm
Width
240 mm
Height
40 mm
PCB length, base
327 mm
PCB width, base
207 mm
Keypad length
322,9 mm
Keypad width
211,55 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
552 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
