A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)
Scroll

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)

Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply

1 self-tapping screw

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A0325080

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
B1704807 Station M (Mountable)

B1704807

Station M (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE M when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

Cerrar

B1704807

Station M (Mountable)
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
B1706807 Station L (Mountable)

B1706807

Station L (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE L when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

Cerrar

B1706807

Station L (Mountable)
Producto añadido a su lista
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
B4208107 CARRYTEC S

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4208107

CARRYTEC S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
222x205x80mm
IP 54 opt.
B4210107 CARRYTEC M

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4210107

CARRYTEC M
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x91mm
IP 54 opt.
B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4210127

CARRYTEC M slim version
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x42mm
IP 54 opt.
B4210208 CARRYTEC M

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4210208

CARRYTEC M
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.

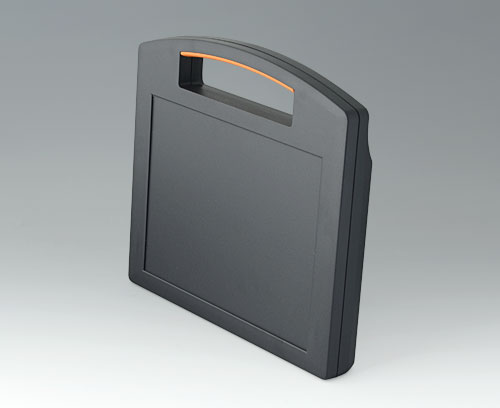

B4210228 CARRYTEC M slim version

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4210228

CARRYTEC M slim version
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
B4213107 CARRYTEC L

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4213107

CARRYTEC L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
348x303x117mm
IP 54 opt.
B4213208 CARRYTEC L

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Cerrar

B4213208

CARRYTEC L
Producto añadido a su lista
ASA+PC (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.
  • Datos técnicos
  • Purchasing Data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1,5 g
Customs tariff number
(OKW product)
73181499
Country of manufacture
Germany
