Carrytec

Contenitori in plastica con impugnatura funzionale

La particolare prerogativa di CARRYTEC è l'impugnatura funzionale, perfetta per i compiti e le situazioni più diverse sia in interni che in esterni.

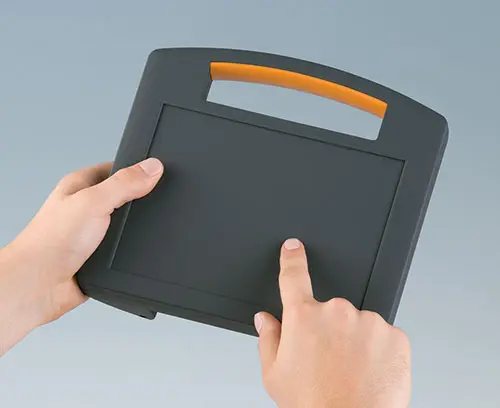

  • Non scivola di mano grazie all'impugnatura al di sopra del baricentro del contenitore

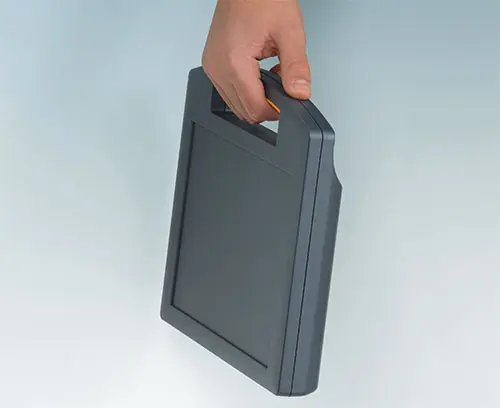

  • CARRYTEC M in versione sottile per l'installazione di tablet e apparecchi simili

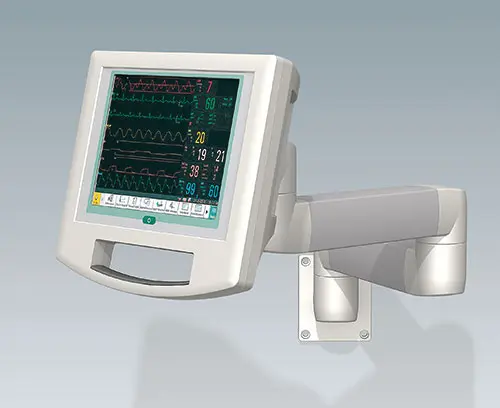

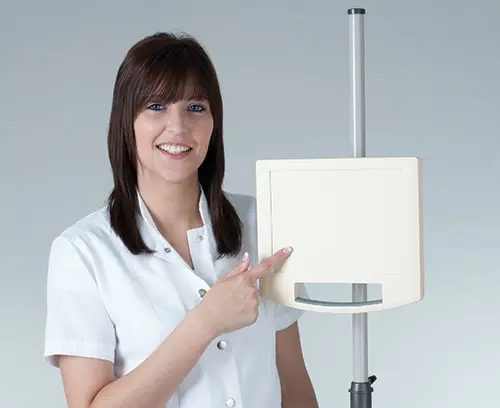

  • Montaggio posteriore su sistemi a stativo o a braccio di supporto; posizionamento/allineamento rapido della superficie di visualizzazione e di comando, conduzione dei cavi ordinata
  • Superficie particolarmente grande utilizzabile per le interfacce utenti (S: 8,4"/21 cm; M: 10,4"/26 cm; L: 13,4"/34 cm)
  • Profondità di montaggio elevata e molto spazio per interfacce, allo stesso tempo aspetto snello

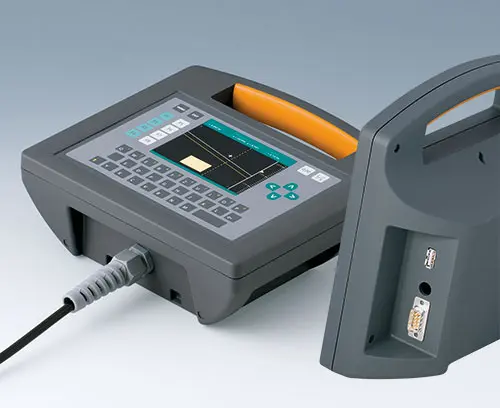

  • Montaggio protetto delle interfacce

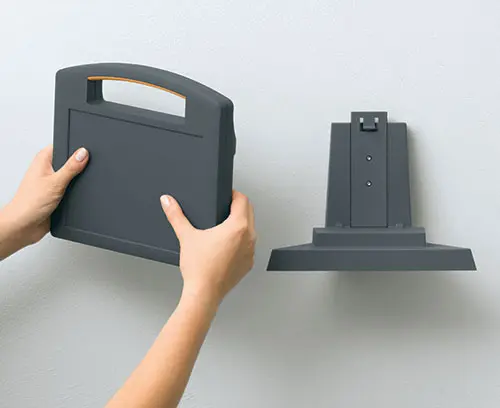

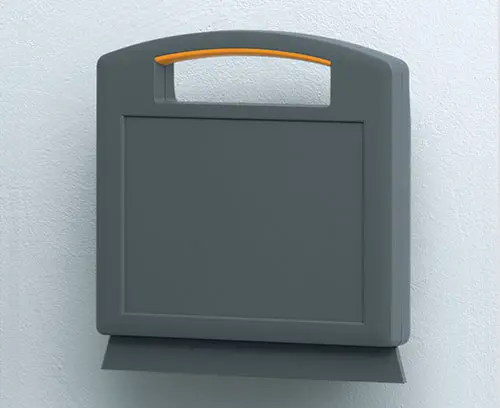

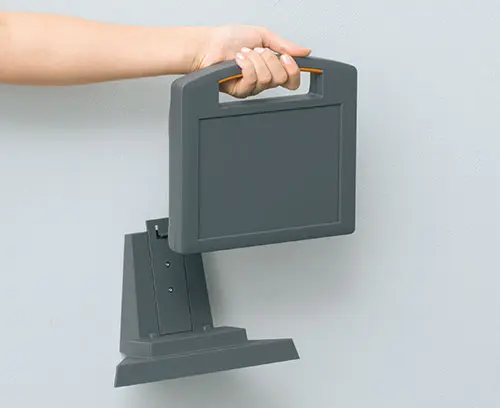

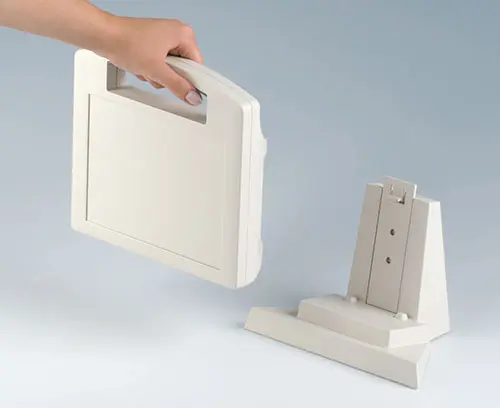

  • Custodia sicura su console da tavolo e/o su supporto a parete; semplice trasmissione di dati e di corrente di carica; contatti come accessorio (eccetto contenitori sottili)

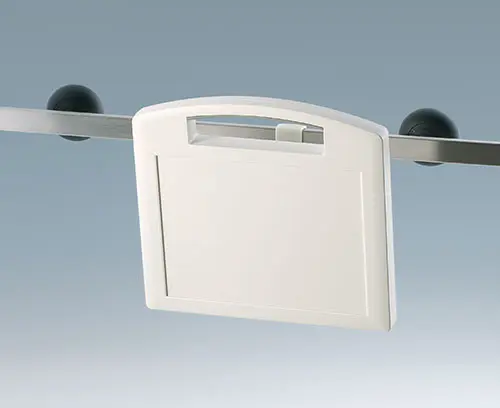

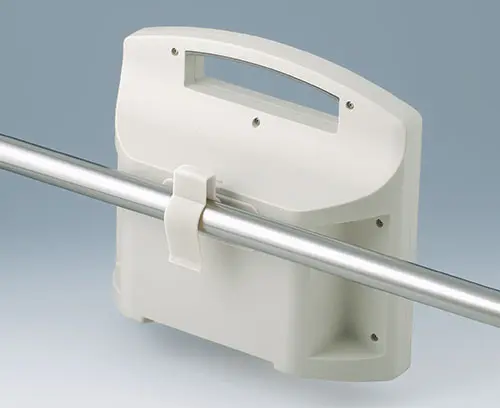

  • Clip di aggancio a tubi tondi e guide per apparecchi DIN EN ISO 19054
  • Contenitori in materiale plastico resistente agli urti anche in caso di elevate sollecitazioni
  • Con guarnizione grado di protezione IP 54 (accessorio)

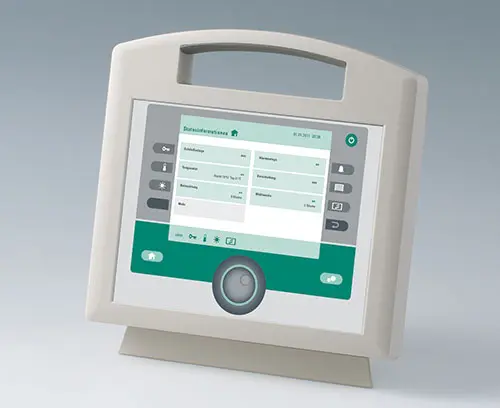

  • Superficie di comando incavata a protezione della tastiera a membrana
  • Facile pulizia dei contenitori

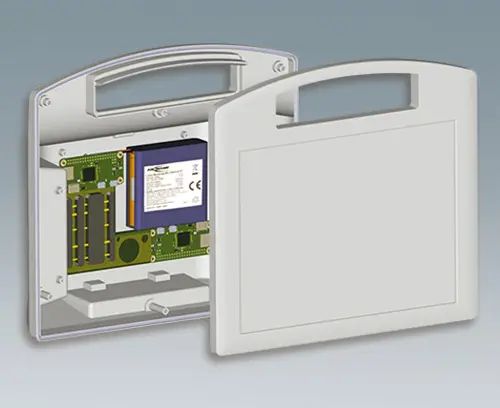

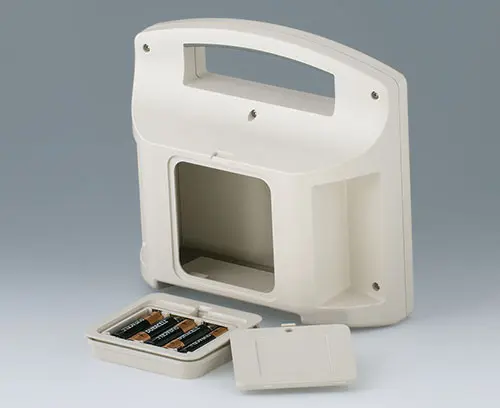

  • Vano batteria per 5 batterie AA opzionale (necessaria ulteriore lavorazione)

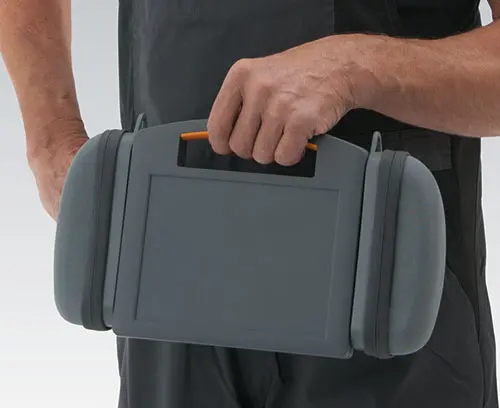

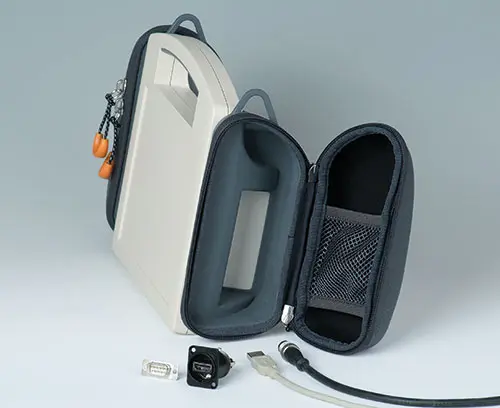

  • Tasche di protezione per conservare strumenti, sensori, accessori ecc. (misura S e M)
  • Punti di fissaggio per schede e componenti di montaggio
Crea PDF
  • Video

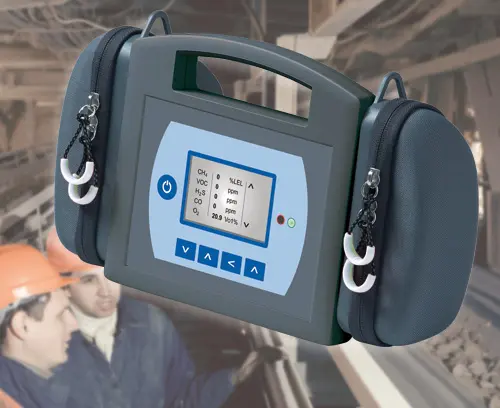

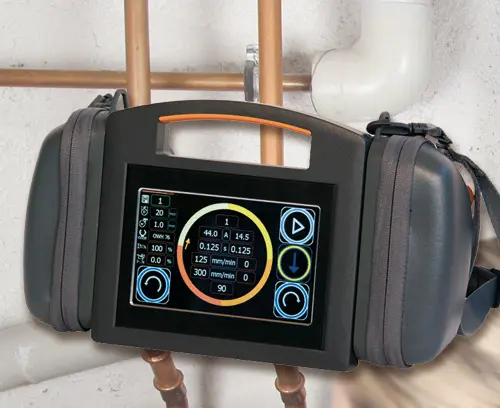

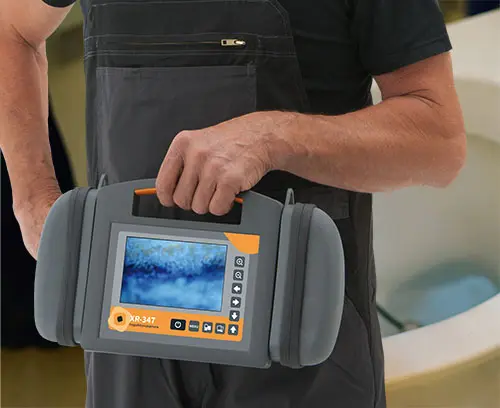

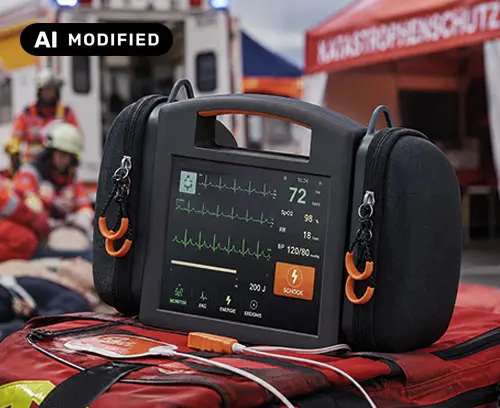

  • Esempi di applicazione

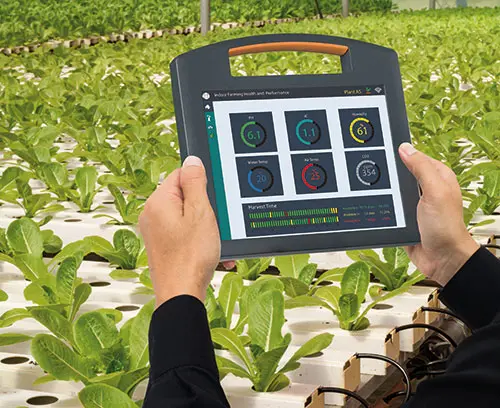

Application fields

  • Straordinaria molteplicità d'impiego: mobile – da scrivania – a muro – su guida – tubo tondo – stativo – braccio di supporto.
  • A seconda dell'utilizzo (in interni/esterni), i contenitori innovativi si presentano in materiali diversi, per esempio in plastica resistente agli urti, in colori abbinati e con diverse possibilità di combinazione.
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente
B4208107 CARRYTEC S

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4208107

CARRYTEC S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
222x205x80mm
IP 54 opt.
B4208208 CARRYTEC S

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4208208

CARRYTEC S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
222x205x80mm
IP 54 opt.
B4210107 CARRYTEC M

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210107

CARRYTEC M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x91mm
IP 54 opt.

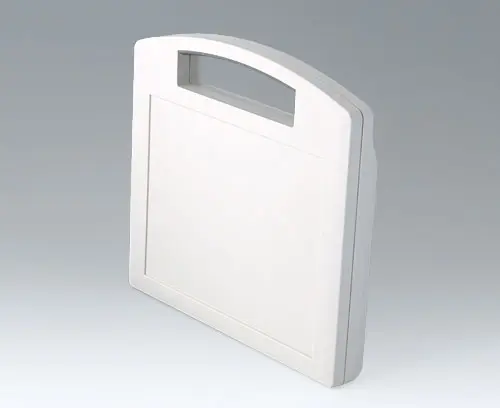

B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210127

CARRYTEC M slim version
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
270x247x42mm
IP 54 opt.
B4210208 CARRYTEC M

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210208

CARRYTEC M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.

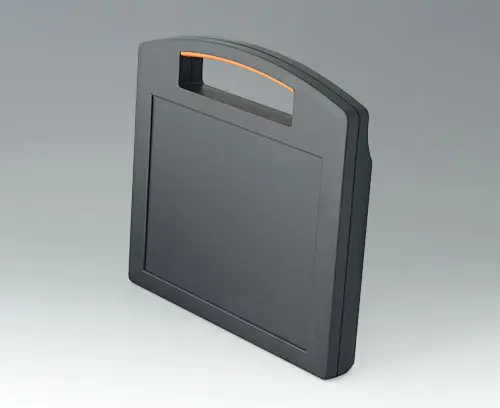

B4210228 CARRYTEC M slim version

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4210228

CARRYTEC M slim version
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
B4213107 CARRYTEC L

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4213107

CARRYTEC L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
348x303x117mm
IP 54 opt.
B4213208 CARRYTEC L

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Chiudi

B4213208

CARRYTEC L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.
A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated
A9193042 Mounting plates for contacts

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Chiudi

A9193042

Mounting plates for contacts
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

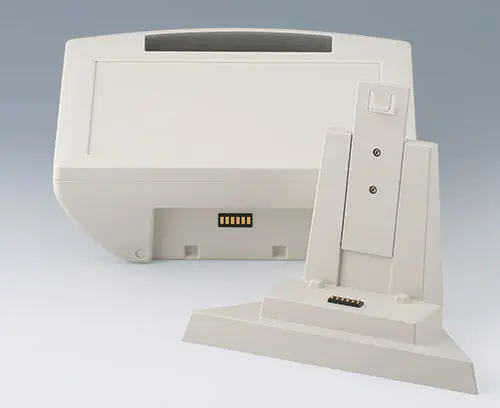

A9193044 Contacting kit, 6-pin

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Chiudi

A9193044

Contacting kit, 6-pin
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9338117 Battery compartment kit, 5 x AA

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Chiudi

A9338117

Battery compartment kit, 5 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54
A9338218 Battery compartment kit, 5 x AA

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Chiudi

A9338218

Battery compartment kit, 5 x AA
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
93x98mm
IP 54

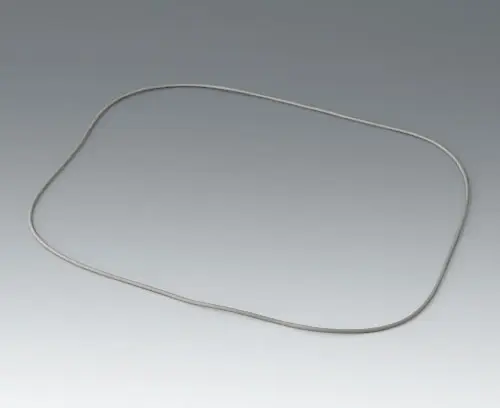

B4308001 Sealing S

B4308001

Sealing S Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.

Supply 1 sealing

Chiudi

B4308001

Sealing S
Prodotto aggiunto alla lista
B4308117 Station S/M

B4308117

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Chiudi

B4308117

Station S/M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

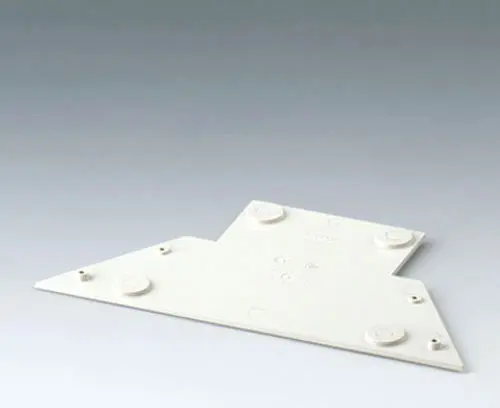

B4308127 Base plate for station

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Chiudi

B4308127

Base plate for station
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4308218 Station S/M

B4308218

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Chiudi

B4308218

Station S/M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
B4308228 Base plate for station

B4308228

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Chiudi

B4308228

Base plate for station
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Chiudi

B4308237

Holding clamps
Prodotto aggiunto alla lista
PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Chiudi

B4308238

Holding clamps
Prodotto aggiunto alla lista
PA 6
lava
B4308600 Carrying case S, right-hand side

B4308600

Carrying case S, right-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Chiudi

B4308600

Carrying case S, right-hand side
Prodotto aggiunto alla lista
grey
82x180x65mm
B4308610 Carrying case S, left-hand side

B4308610

Carrying case S, left-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Chiudi

B4308610

Carrying case S, left-hand side
Prodotto aggiunto alla lista
grey
82x180x65mm

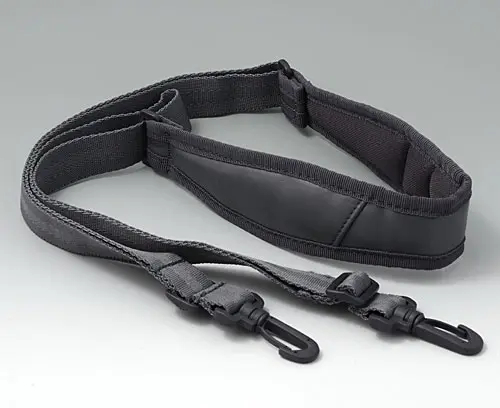

B4308650 Shoulder strap

B4308650

Shoulder strap Practical shoulder strap with shoulder padding.

Supply 1 shoulder strap

Chiudi

B4308650

Shoulder strap
Prodotto aggiunto alla lista
grey
1400mm

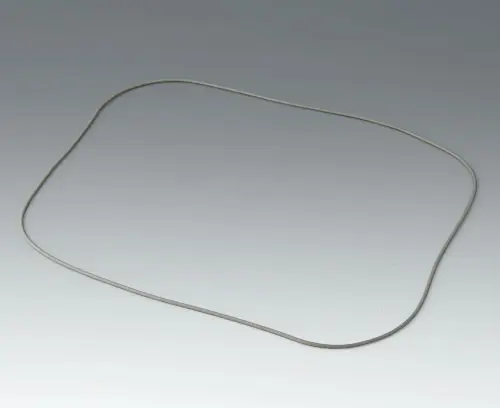

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Chiudi

B4310001

Sealing M
Prodotto aggiunto alla lista

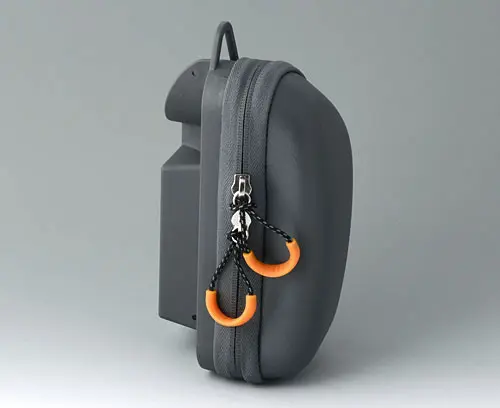

B4310600 Carrying case M, right-hand side

B4310600

Carrying case M, right-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Chiudi

B4310600

Carrying case M, right-hand side
Prodotto aggiunto alla lista
grey
99x214x64mm

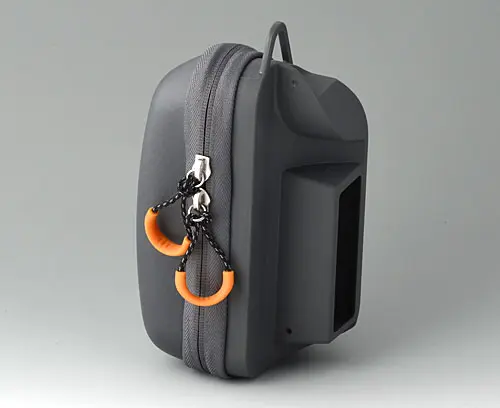

B4310610 Carrying case M, left-hand side

B4310610

Carrying case M, left-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Chiudi

B4310610

Carrying case M, left-hand side
Prodotto aggiunto alla lista
grey
99x214x64mm
B4313001 Sealing L

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

Chiudi

B4313001

Sealing L
Prodotto aggiunto alla lista
B4313117 Station L

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Chiudi

B4313117

Station L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

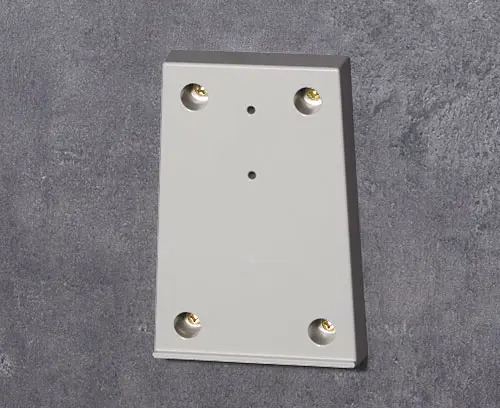

B4313147 Adapter for Station L

B4313147

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Chiudi

B4313147

Adapter for Station L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4313218 Station L

B4313218

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Chiudi

B4313218

Station L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
B4313248 Adapter for Station L

B4313248

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Chiudi

B4313248

Adapter for Station L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava

Opzioni prodotto per Carrytec

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
