EASYTEC

Easytec

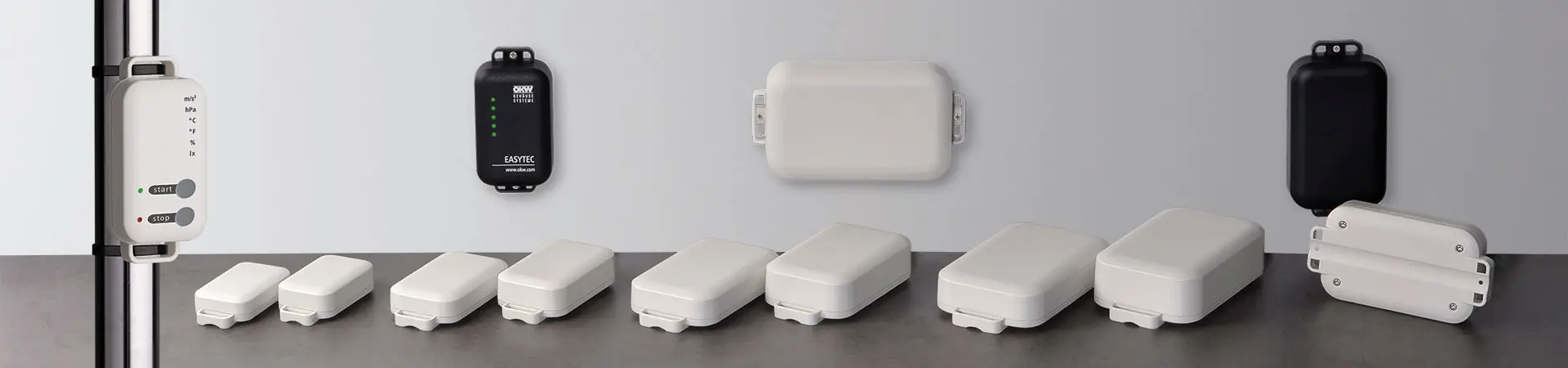

Contenitore flangiato per moderne applicazioni di sensori

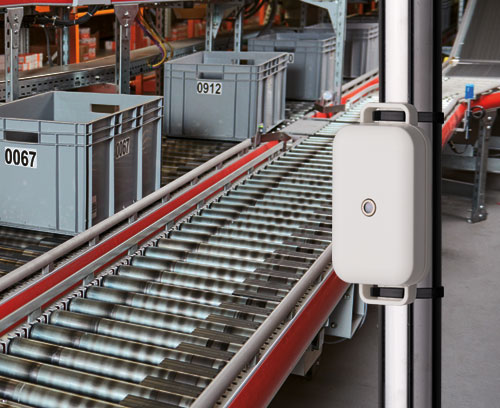

La nuova serie di contenitori EASYTEC per applicazioni a muro è stata concepita proprio per l’integrazione di sensori intelligenti per IIoT (Industrial Internet of Things) e IoT.

  • Design moderno per un contenitore di grande stabilità

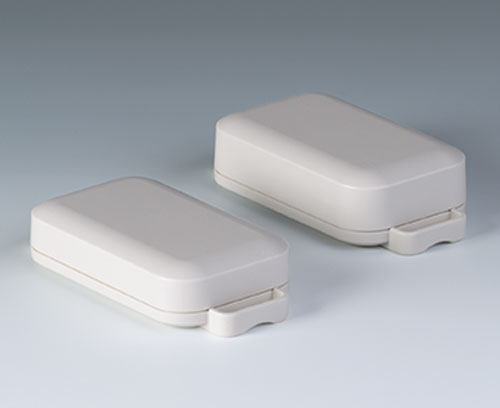

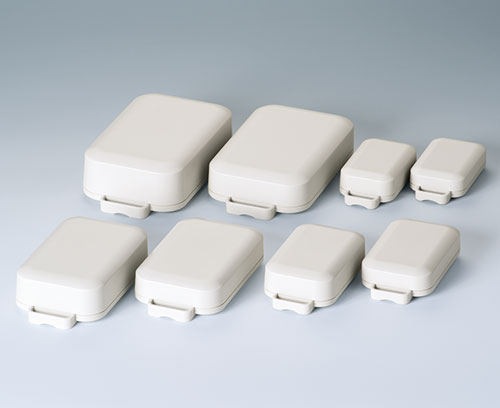

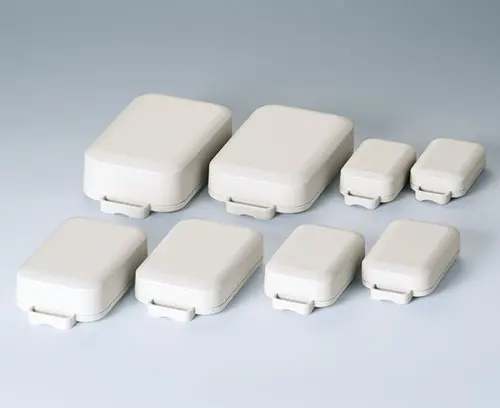

  • Quattro misure 80/100/125/150 ciascuna in 2 altezze

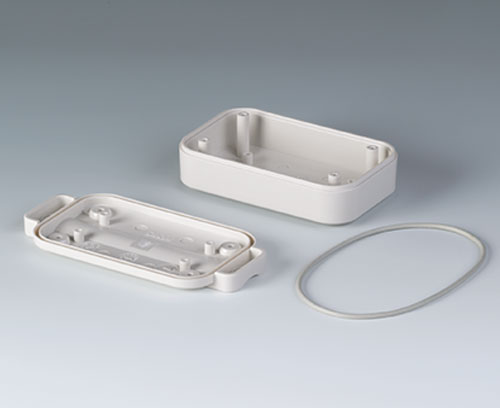

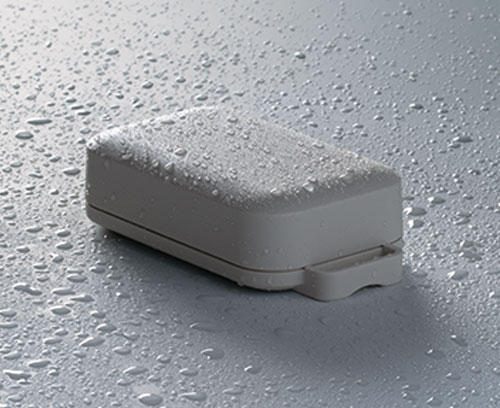

  • Materiale ignifugo ASA+PC-FR e grado di protezione opzionale IP 65 (guarnizioni come accessorio) per applicazioni robuste in interni ed esterni

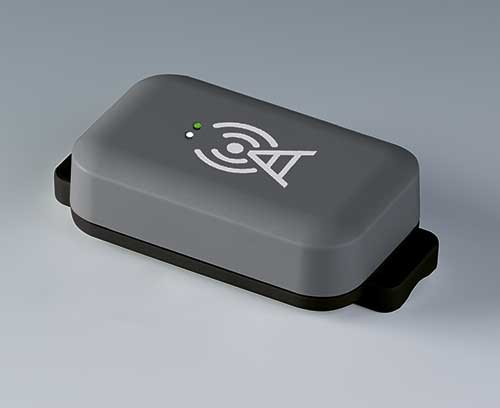

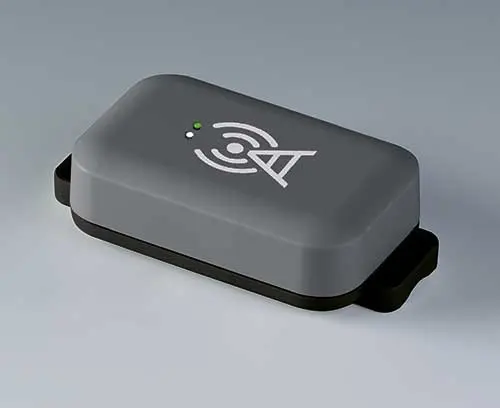

  • Il discreto colore standard bianco grigiastro (RAL 9002) è molto indicato per le svariate possibilità di impiego – su richiesta realizziamo tuttavia i contenitori anche in altri colori

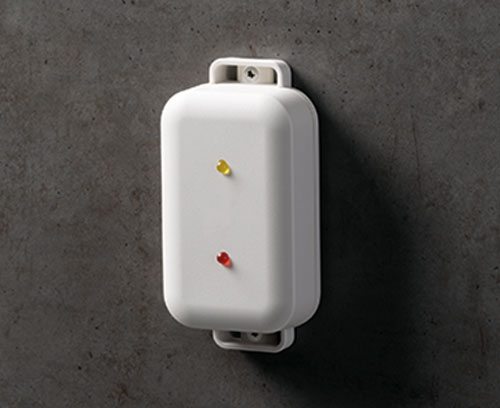

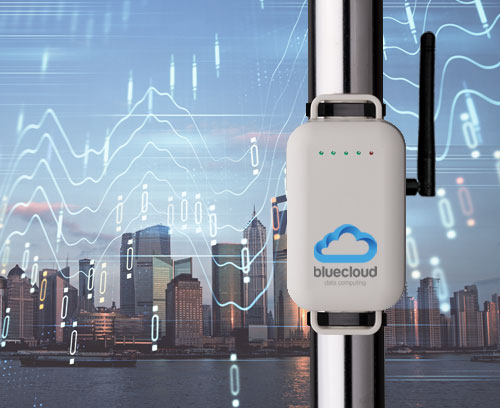

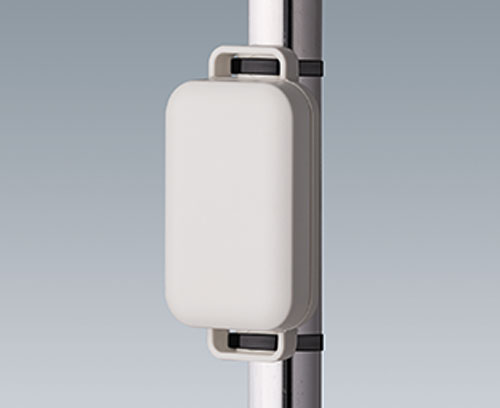

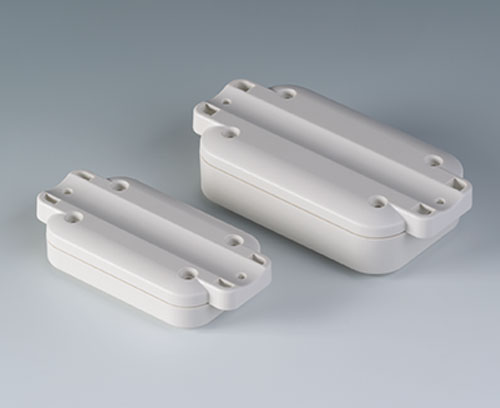

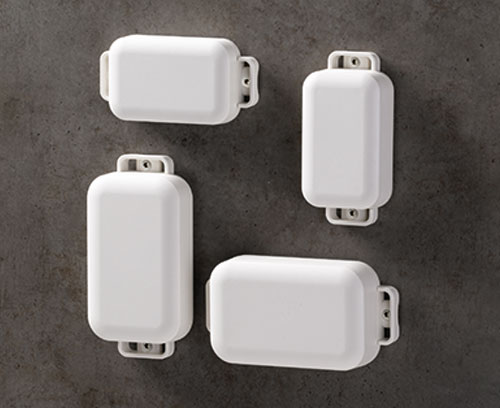

  • La parte inferiore è dotata di 2 linguette per un rapido montaggio di applicazioni a muro o per il fissaggio a tubazioni o profili cilindrici
  • Vano componenti elettronici a tenuta con due livelli per schede (nella parte superiore/inferiore)
  • Avvitamento con viti in acciaio inossidabile e azionamento Torx
  • Video

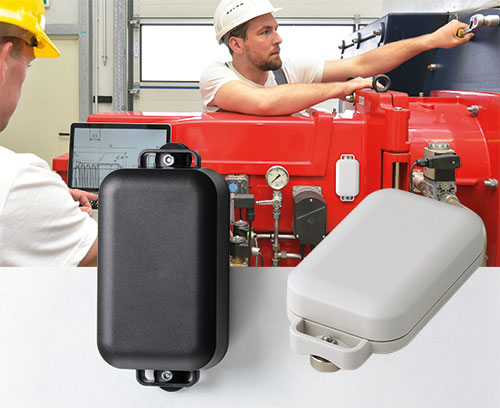

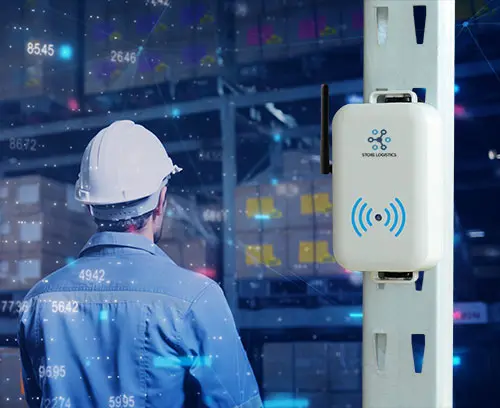

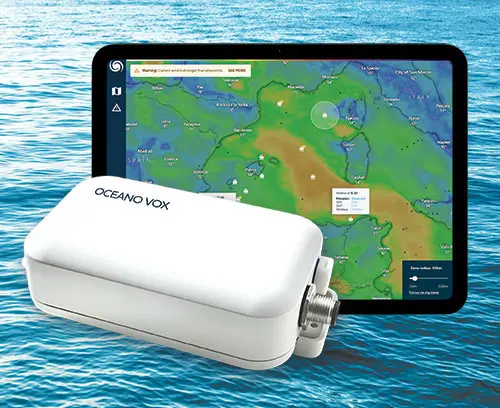

  • Esempi di applicazione

Application fields

  • IoT/IIoT
  • Sensori
  • Tecnica ambientale
  • Metrologia e tecnica di controllo
  • Tecnica di regolazione
  • Tecnica medicale e di laboratorio
  • Tecnica di sicurezza e monitoraggio
  • Tecnologia dell'informazione
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente

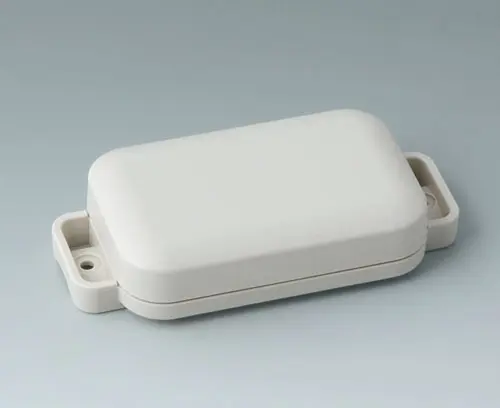

C3204107 EASYTEC 80

C3204107

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Chiudi

C3204107

EASYTEC 80
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x22mm
IP 65 opt., IP 40

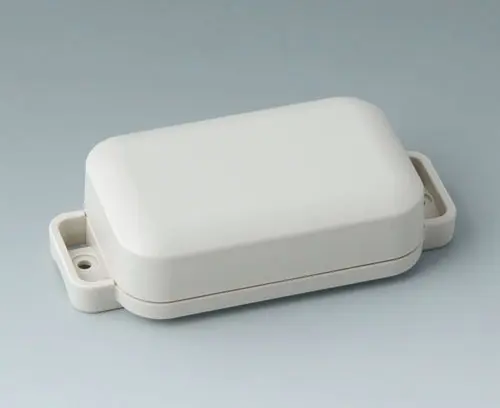

C3204207 EASYTEC 80

C3204207

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Chiudi

C3204207

EASYTEC 80
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x26mm
IP 65 opt., IP 40

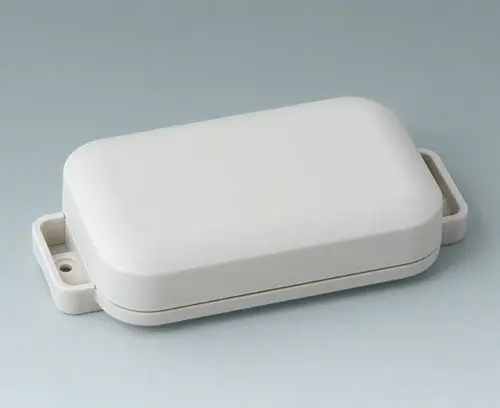

C3206107 EASYTEC 100

C3206107

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Chiudi

C3206107

EASYTEC 100
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x26mm
IP 65 opt., IP 40

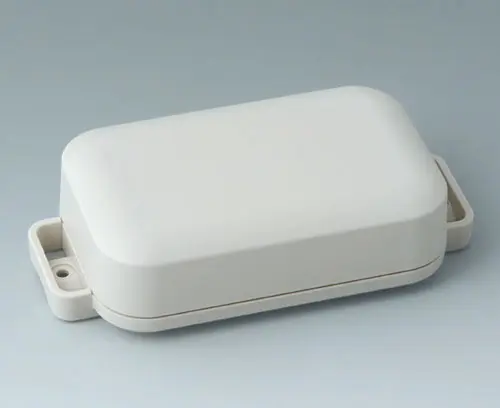

C3206207 EASYTEC 100

C3206207

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Chiudi

C3206207

EASYTEC 100
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x31mm
IP 65 opt., IP 40

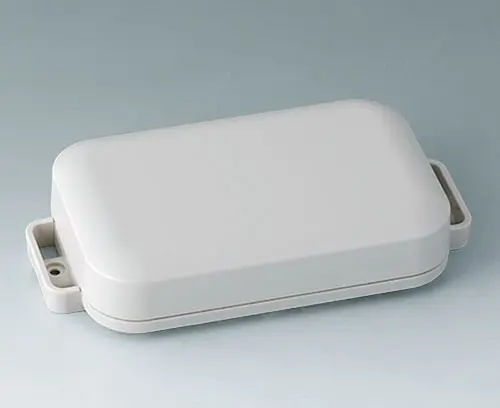

C3207107 EASYTEC 125

C3207107

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Chiudi

C3207107

EASYTEC 125
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x30mm
IP 65 opt., IP 40

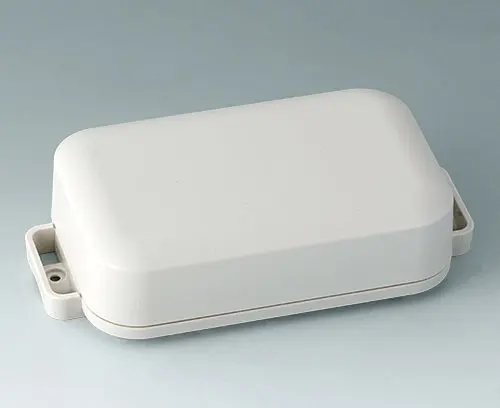

C3207207 EASYTEC 125

C3207207

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Chiudi

C3207207

EASYTEC 125
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x37mm
IP 65 opt., IP 40

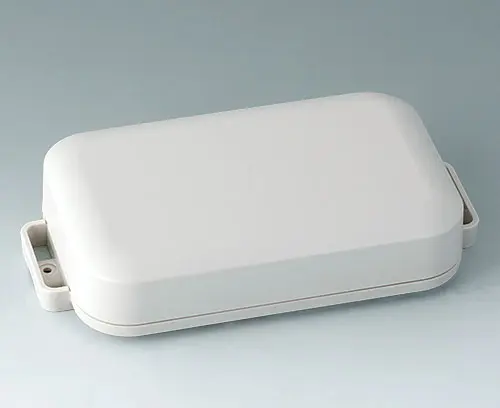

C3208107 EASYTEC 150

C3208107

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Chiudi

C3208107

EASYTEC 150
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x36mm
IP 65 opt., IP 40

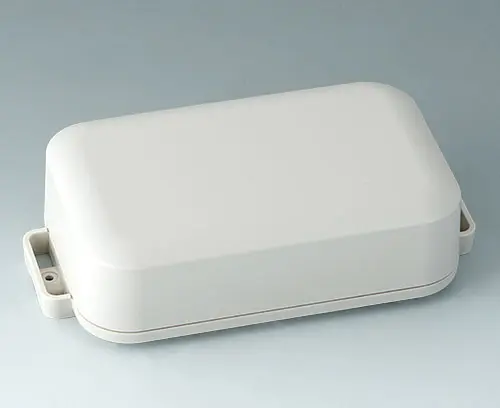

C3208207 EASYTEC 150

C3208207

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Chiudi

C3208207

EASYTEC 150
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x46mm
IP 65 opt., IP 40
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Prodotto aggiunto alla lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T08

Torx T8 screwdriver
Prodotto aggiunto alla lista

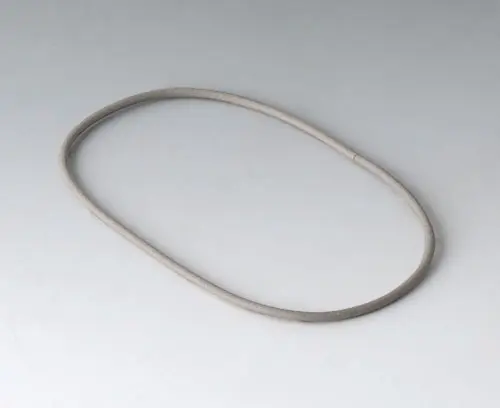

A9500030 Sealing 80

A9500030

Sealing 80 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Chiudi

A9500030

Sealing 80
Prodotto aggiunto alla lista

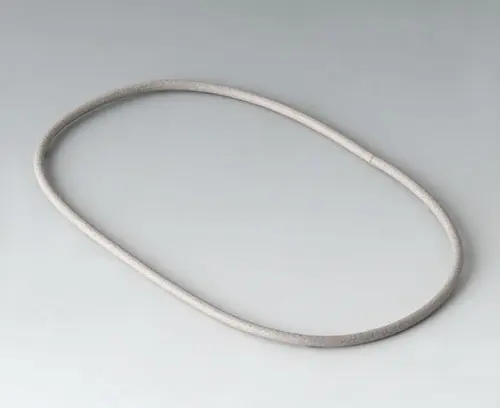

A9502030 Sealing 100

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Chiudi

A9502030

Sealing 100
Prodotto aggiunto alla lista

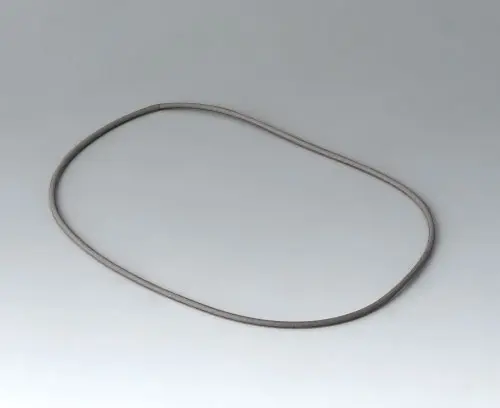

A9503030 Sealing 125

A9503030

Sealing 125 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Chiudi

A9503030

Sealing 125
Prodotto aggiunto alla lista

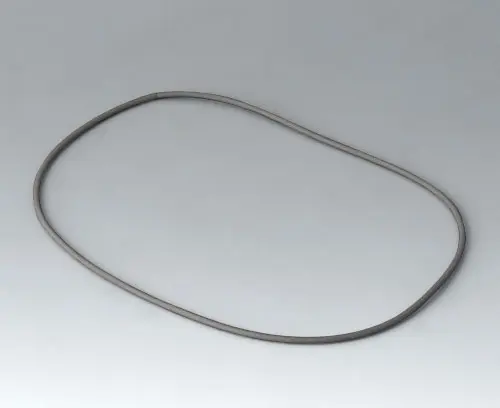

A9504030 Sealing 150

A9504030

Sealing 150 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Chiudi

A9504030

Sealing 150
Prodotto aggiunto alla lista

Opzioni prodotto per Easytec

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
