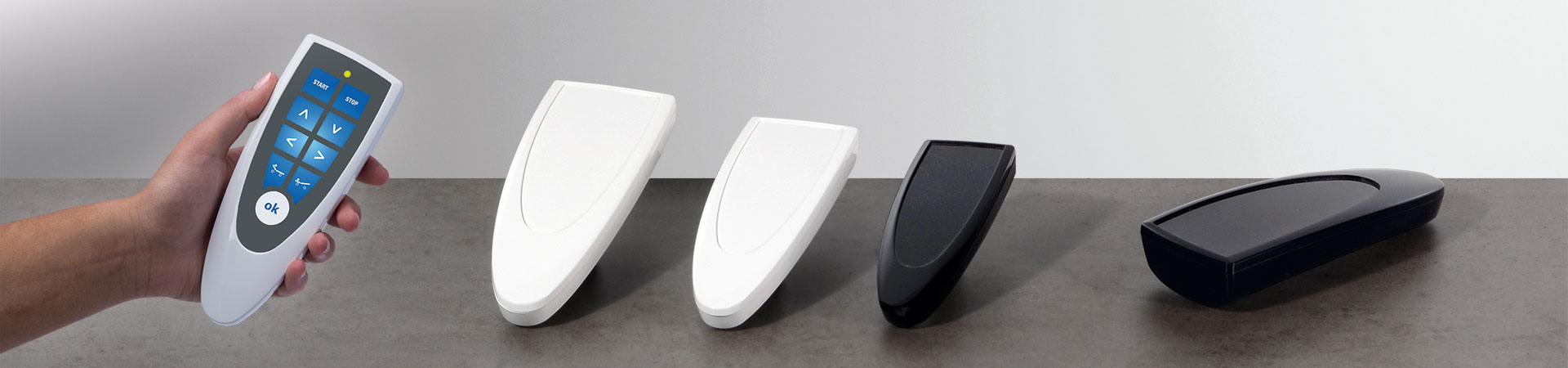

STYLE-CASE

Style-Case

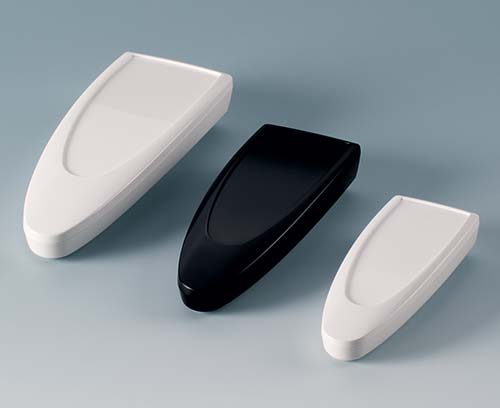

Contenitori portatili ergonomici di lucentezza brillante

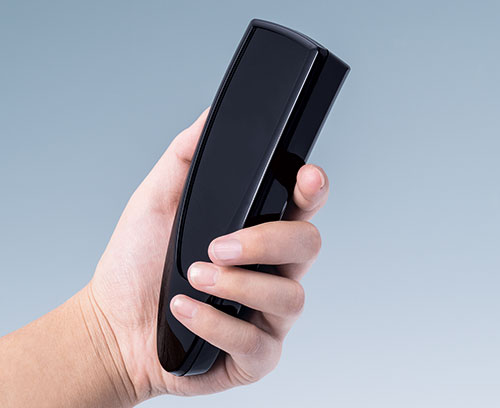

OKW presenta STYLE-CASE con superfici levigate a specchio, un ulteriore punto forte che mette in rilievo l'aspetto dei moderni comandi portatili. I contenitori dall'aspetto elegante sono così estremamente gradevoli al tatto e garantiscono un impiego sicuro e piacevole.

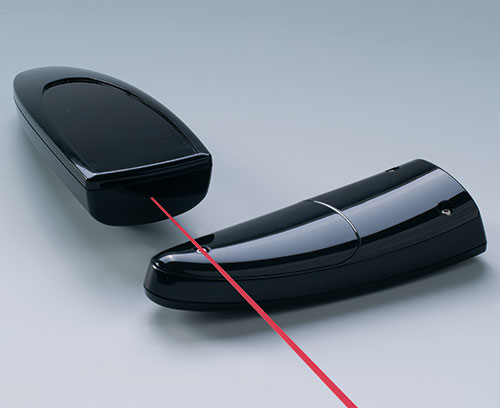

  • Materiale ASA di alta qualità con elevata protezione UV oppure PMMA (plexiglas) permeabile ai raggi infrarossi
  • Superficie lucida facile da pulire
  • Avvitamento con viti in acciaio inossidabile e azionamento Torx

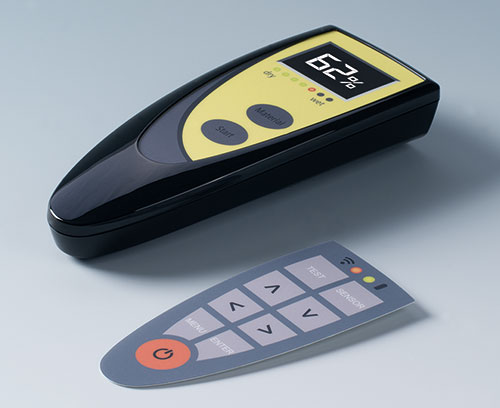

  • Superficie di comando incavata a protezione delle tastiere a membrana/pellicole decorative
  • Vani batterie S/M: 2 x AAA o L: 2 x AA, set di molle di contatto come accessori

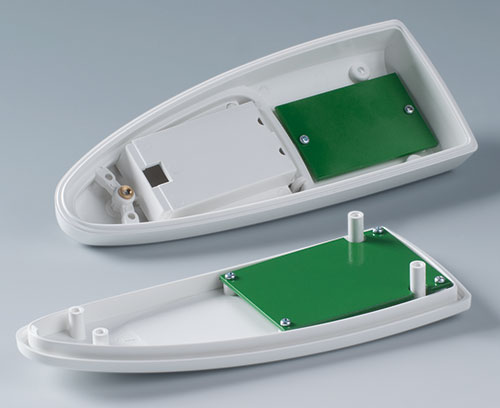

  • Punti di fissaggio integrati per schede e componenti, viti autofilettanti per il fissaggio delle schede come accessori
  • Video
  • Esempi di applicazione

Application fields

  • Predestinati per svariate tipologie di telecomandi orientate al design
  • Impiego in particolare in ambito ospedaliero e di istituti sociali, nelle abitazioni e nell'industria
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente

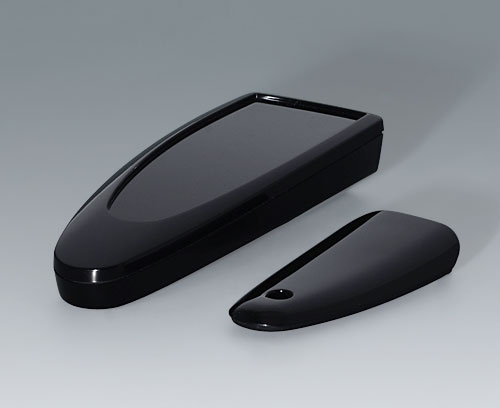

B2802016 STYLE-CASE S

B2802016

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2802016

STYLE-CASE S
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40

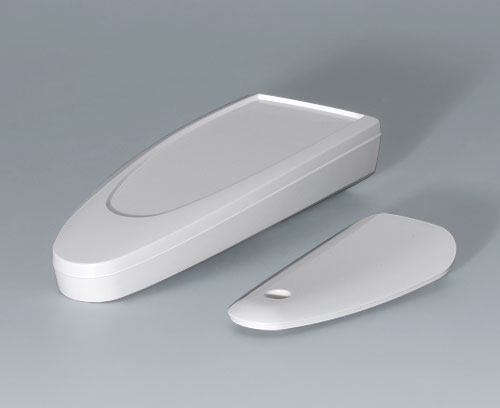

B2802017 STYLE-CASE S

B2802017

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2802017

STYLE-CASE S
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
123x48x24mm
IP 40
B2803016 STYLE-CASE M

B2803016

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2803016

STYLE-CASE M
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40
B2803017 STYLE-CASE M

B2803017

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2803017

STYLE-CASE M
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
147x56x27mm
IP 65 opt., IP 40
B2804016 STYLE-CASE L

B2804016

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2804016

STYLE-CASE L
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
166x64x31mm
IP 65 opt., IP 40
B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

B2804017

STYLE-CASE L
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
B2804027 STYLE-CASE L

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

Chiudi

B2804027

STYLE-CASE L
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista
A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Chiudi

A9190020

Set of battery clips
Prodotto aggiunto alla lista
Steel
nickel-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Chiudi

A9199005

Strain relief
Prodotto aggiunto alla lista
PA 6
volcano

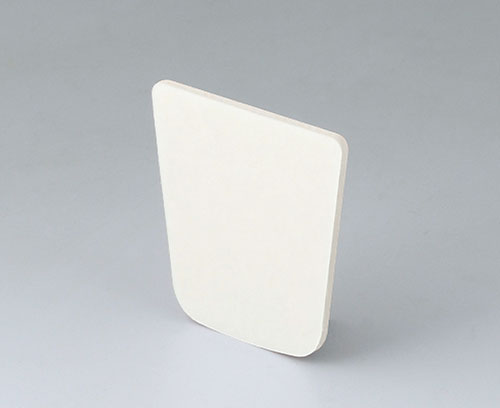

B2902031 Adhesive foil S

B2902031

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

B2902031

Adhesive foil S
Prodotto aggiunto alla lista

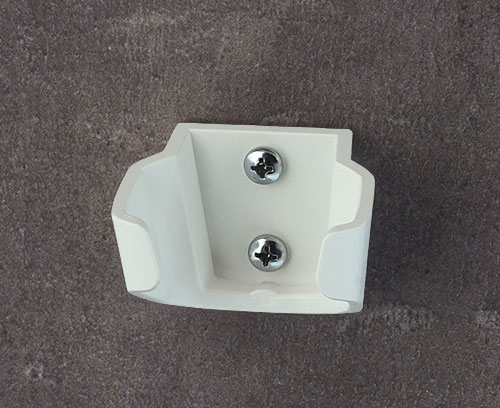

B2902037 Holder S

B2902037

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2902037

Holder S
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
B2902039 Holder S

B2902039

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2902039

Holder S
Prodotto aggiunto alla lista
ASA (UL 94 HB)
black RAL 9005

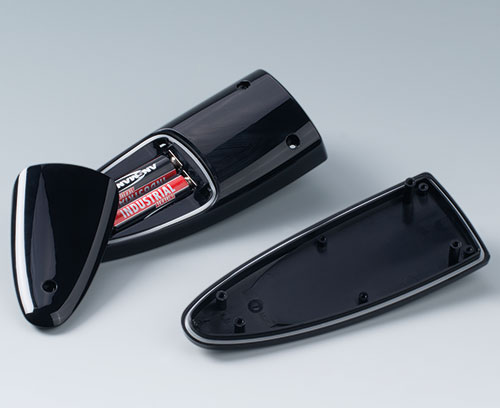

B2902111 Sealing kit S

B2902111

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.

Supply 2 sealings kit (enclosure, battery compartment)

Chiudi

B2902111

Sealing kit S
Prodotto aggiunto alla lista
TPV 50A

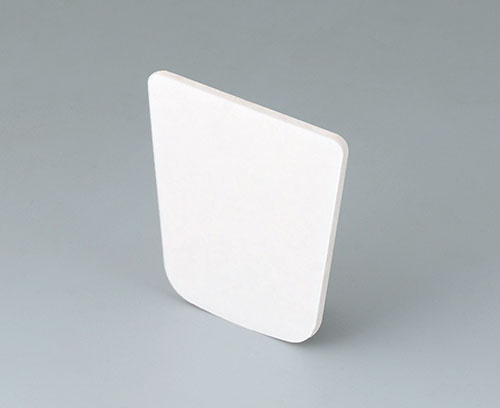

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

B2903031

Adhesive foil M
Prodotto aggiunto alla lista
B2903037 Holder M

B2903037

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2903037

Holder M
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
B2903039 Holder M

B2903039

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2903039

Holder M
Prodotto aggiunto alla lista
ASA (UL 94 HB)
black RAL 9005

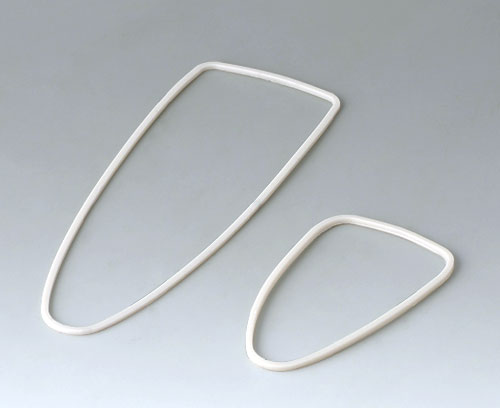

B2903111 Sealing kit M

B2903111

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Chiudi

B2903111

Sealing kit M
Prodotto aggiunto alla lista
TPV 50A

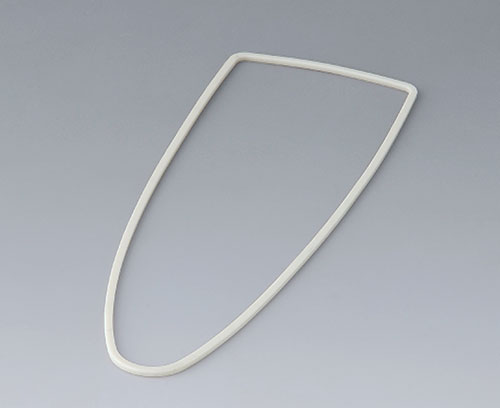

B2904011 Sealing L

B2904011

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

Chiudi

B2904011

Sealing L
Prodotto aggiunto alla lista
TPV 50A
B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

B2904031

Adhesive foil L
Prodotto aggiunto alla lista
B2904037 Holder L

B2904037

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2904037

Holder L
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
B2904039 Holder L

B2904039

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2904039

Holder L
Prodotto aggiunto alla lista
ASA (UL 94 HB)
black RAL 9005

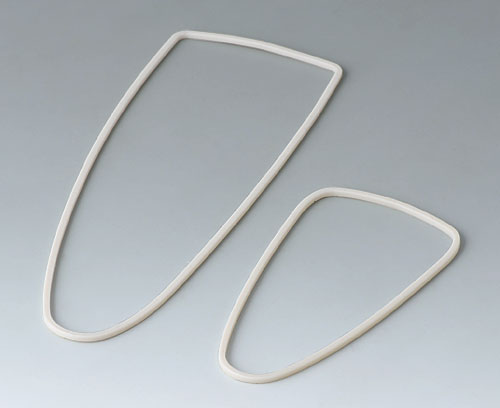

B2904111 Sealing kit L

B2904111

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.

Supply 2 sealings kit (enclosure, battery compartment)

Chiudi

B2904111

Sealing kit L
Prodotto aggiunto alla lista
TPV 50A

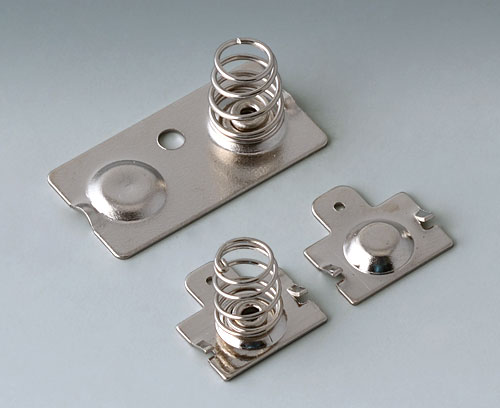

B2904210 Set of battery clips

B2904210

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Chiudi

B2904210

Set of battery clips
Prodotto aggiunto alla lista
Steel
nickel-plated
C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Chiudi

C2353849

Flexible cable grommet Ø 5,3
Prodotto aggiunto alla lista
black

Opzioni prodotto per Style-Case

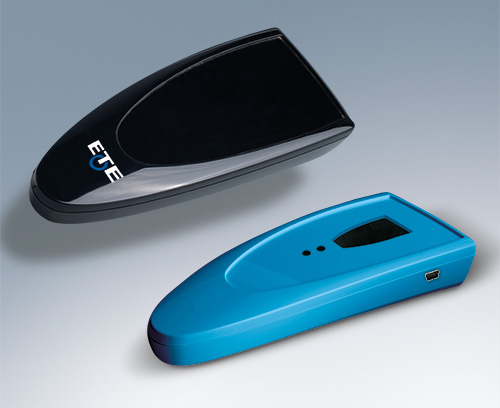

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
