B2803017 STYLE-CASE M

B2803017

STYLE-CASE M

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

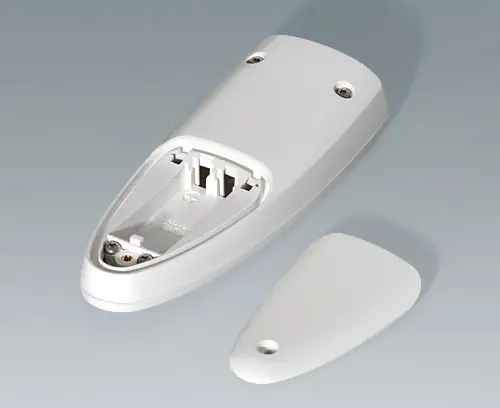

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply

Top and bottom part, battery compartment lid, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Chiudi

A9190020

Set of battery clips
Prodotto aggiunto alla lista
Steel
nickel-plated

Accessory "protection"

B2903111 Sealing kit M

B2903111

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Chiudi

B2903111

Sealing kit M
Prodotto aggiunto alla lista
TPV 50A

Accessory "wall/holder"

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

B2903031

Adhesive foil M
Prodotto aggiunto alla lista
B2903037 Holder M

B2903037

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Chiudi

B2903037

Holder M
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista

Customising options for B2803017

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing kit, IP 40
Colore
traffic white RAL 9016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
147 mm
Width
56 mm
Height
27 mm
PCB length, base
60 mm
PCB width, base
26 mm
PCB length, top
65 mm
PCB width, top
41 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 725 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
74 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
