A9076109 DATEC-CONTROL XS, Vers. I

A9076109

DATEC-CONTROL XS, Vers. I

Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Recesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down(battery compartment as accessory).

Version

With closed operating area, recess: 1.6 mm deep

Supply

Top and base part, battery compartment lid, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

Chiudi

A9176007

Set of battery clips, 2 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated
A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

Chiudi

A9176008

Set of battery clips, 3 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated
A9176128 Battery compartment XS, 2 x AA or 1 x 9V

A9176128

Battery compartment XS, 2 x AA or 1 x 9V Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Chiudi

A9176128

Battery compartment XS, 2 x AA or 1 x 9V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
A9176158 Battery compartment XS, 3 x AA

A9176158

Battery compartment XS, 3 x AA Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

Chiudi

A9176158

Battery compartment XS, 3 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Chiudi

A9250250

Battery spacer
Prodotto aggiunto alla lista
PE foam
50x25x4mm

Accessory "station"

A9176139 Station XS

A9176139

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Chiudi

A9176139

Station XS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Chiudi

A9199005

Strain relief
Prodotto aggiunto alla lista
PA 6
volcano

Accessory "protection"

A9176006 Sealing kit XS

A9176006

Sealing kit XS Application: for increasing the protection class, of DATEC-CONTROL XS.

Supply 1 sealing kit

Chiudi

A9176006

Sealing kit XS
Prodotto aggiunto alla lista
A9176108 Protector XS

A9176108

Protector XS Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Chiudi

A9176108

Protector XS
Prodotto aggiunto alla lista
SBS (TPE)
volcano

Accessory "wall/holder"

A9226339 Wall suspension element

A9226339

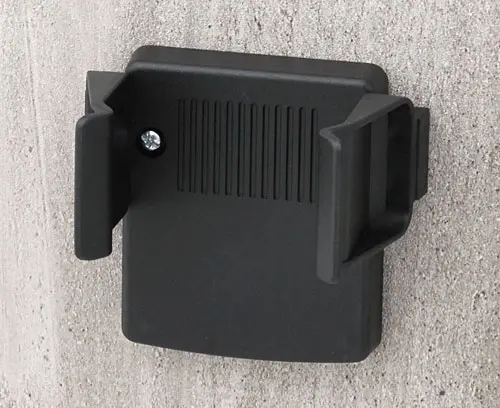

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Chiudi

A9226339

Wall suspension element
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano

Accessory

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Customising options for A9076109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Esempi di applicazione
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing kit
Colore
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
200 mm
Width
94 mm
Height
39,5 mm
PCB length, base
190 mm
PCB width, base
46 mm
PCB length, top
150 mm
PCB width, top
47 mm
Keypad length
116 mm
Keypad width
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 3.744 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
125 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
