Optymalne połączenie

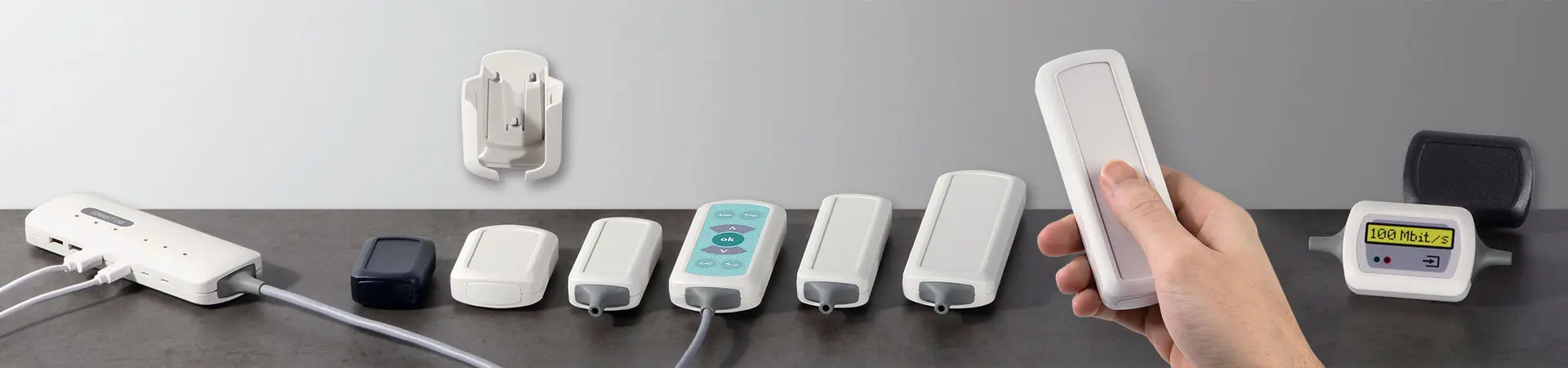

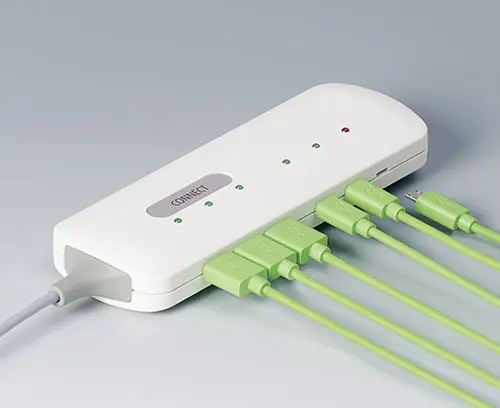

Seria obudów CONNECT idealnie nadaje się zarówno do aplikacji kablowych, jak również do zastosowań mobilnych w trybie akumulatorowym.

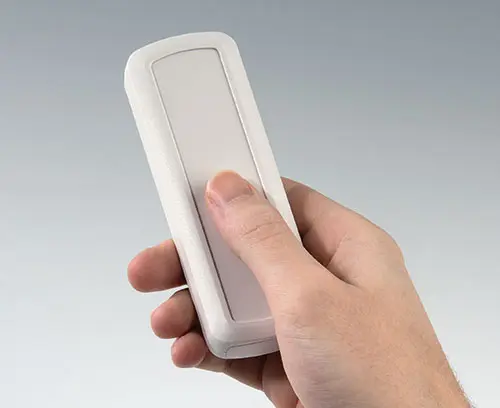

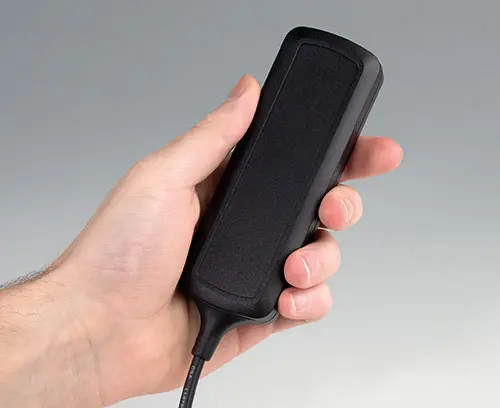

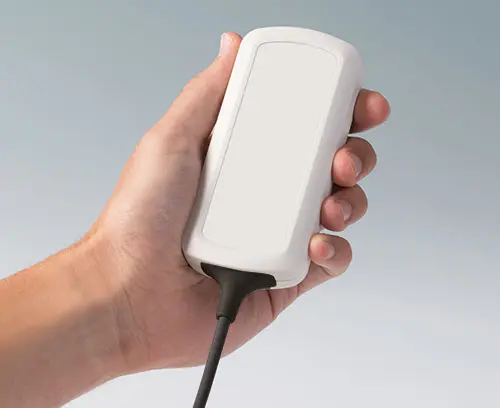

  • Nowość: Obudowa CONNECT S licząca tylko 42 mm szerokości wyjątkowo dobrze leży w ręku i doskonale nadaje się do ochrony pilotów, sprzętu kontrolno-pomiarowego, instrumentów testujących itp. lub jako obudowa interfejsowa bez/z przyłączem kablowym

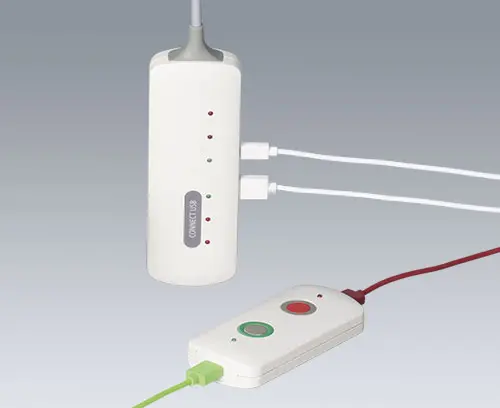

  • dwie części obudowy, wypukłe i płaskie z zagłębieniem pod klawiaturę
  • obydwie części zatrzaskują się bez śrub, co oszczędza czas podczas montażu, możesz również wybrać dowolną wersję frontu

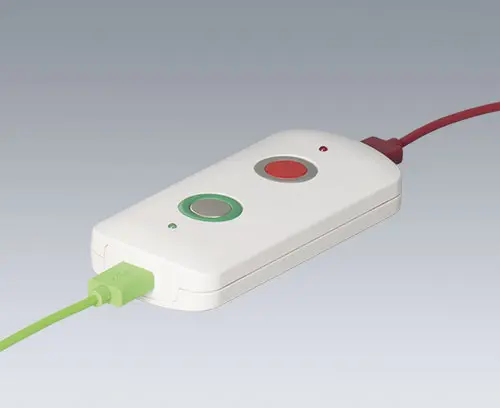

  • wycięcia na obu końcach do wykończenia obudowy, łatwy montaż kabli dzięki przystosowanym do tego przepustom
  • CONNECT S & M - każdy model dostępny w trzech długościach, co umożliwia dokładnie dopasowanie obudowy do danego zastosowania
  • obydwie części obudowy oraz przepusty boczne z materiału o klasie palności V0
  • klasa szczelności IP 40 (z przepustami)
  • zintegrowany panel z przepustem kablowym

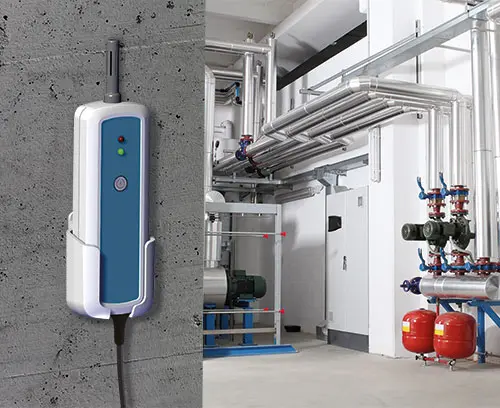

  • wystarczająco dużo miejsca do montażu kompaktowego wyświetlacza, LED lub złącz USB oraz sond pomiarowych

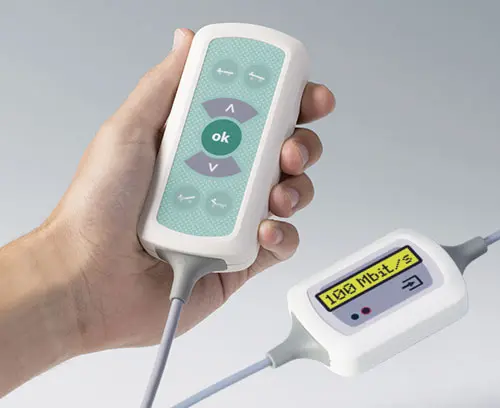

  • zagłębienie pod klawiaturę, folię lub tabliczkę opisową

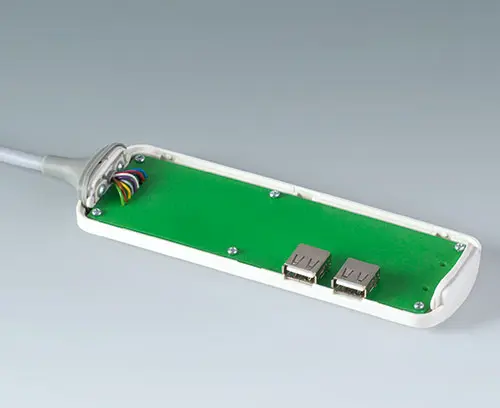

  • kołki mocujące do PCB lub innych podzespołów w płaskiej obudowie

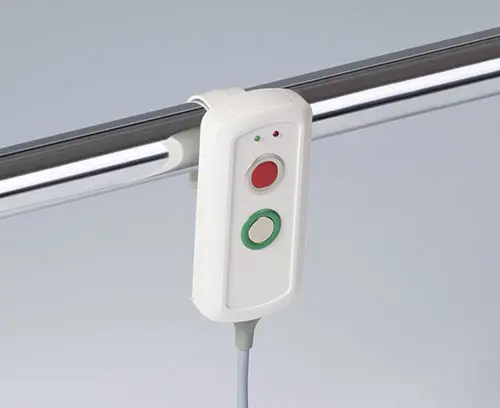

  • zaciski do rur o średnicy do 32 mm dostępne jako akcesoria (CONNECT S: do długości obudowy 90/120 mm, CONNECT M: do długości obudowy116/156 mm)
Wygeneruj PDF
  • Wideo
  • Przykłady aplikacji

Obszary zastosowań

  • Inżynieria systemów informatycznych
  • Technologia sieciowa
  • Systemy budowlane
  • Inżynieria systemów bezpieczeństwa
  • IoT/ IIoT

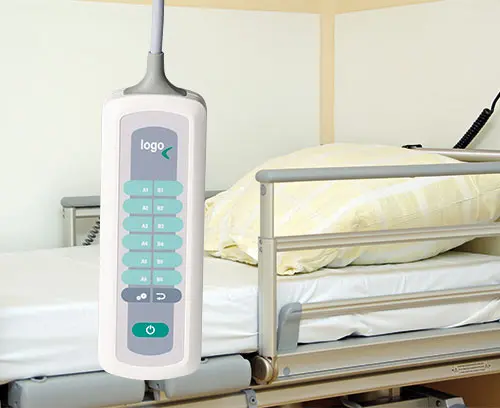

  • Zastosowania medyczne i terapeutyczne
  • Instrumenty analityczne w laboratoriach
  • Technika pomiarowa, m.in. detektory z sondą pomiarową, systemy/instrumenty testujące
  • Rejestratory danych w technologii środowiskowej
  • Czujniki
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
B2822107 CONNECT S

B2822107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2822107

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
60x42x22mm
B2822109 CONNECT S

B2822109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2822109

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
60x42x22mm
B2823107 CONNECT S

B2823107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2823107

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
90x42x22mm
B2823109 CONNECT S

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2823109

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
90x42x22mm
B2824107 CONNECT S

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2824107

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
120x42x22mm
B2824109 CONNECT S

B2824109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2824109

CONNECT S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
120x42x22mm
B2832107 CONNECT M

B2832107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2832107

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
76x54x22mm
B2832109 CONNECT M

B2832109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2832109

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
76x54x22mm
B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2833107

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
B2833109 CONNECT M

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2833109

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
116x54x22mm
B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2834107

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm
B2834109 CONNECT M

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Zamknij

B2834109

CONNECT M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
156x54x22mm
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
produkt został dodany do twojej listy
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Zamknij

A9167027

Holding clamp
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
off-white RAL 9002
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Zamknij

A9167029

Holding clamp
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
black RAL 9005
B2911308 Cable gland kit, 3.4 - 4.2

B2911308

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911308

Cable gland kit, 3.4 - 4.2
produkt został dodany do twojej listy
TPE
volcano
B2911309 Cable gland kit, 3.4 - 4.2

B2911309

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911309

Cable gland kit, 3.4 - 4.2
produkt został dodany do twojej listy
TPE
black RAL 9005
B2911318 Cable gland kit, 4.2 - 5.0

B2911318

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911318

Cable gland kit, 4.2 - 5.0
produkt został dodany do twojej listy
TPE
volcano
B2911319 Cable gland kit, 4.2 - 5.0

B2911319

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911319

Cable gland kit, 4.2 - 5.0
produkt został dodany do twojej listy
TPE
black RAL 9005
B2911328 Cable gland kit, 5.0 - 5.9

B2911328

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911328

Cable gland kit, 5.0 - 5.9
produkt został dodany do twojej listy
TPE
volcano
B2911329 Cable gland kit, 5.0 - 5.9

B2911329

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Zamknij

B2911329

Cable gland kit, 5.0 - 5.9
produkt został dodany do twojej listy
TPE
black RAL 9005
B2921507 Holder S

B2921507

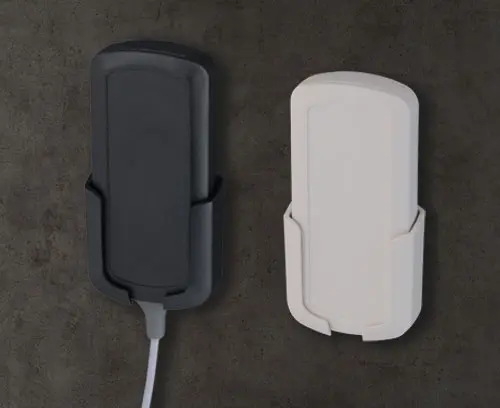

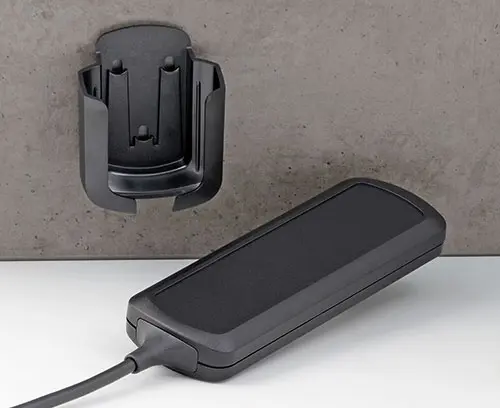

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Zamknij

B2921507

Holder S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
B2921509 Holder S

B2921509

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Zamknij

B2921509

Holder S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005
B2931507 Holder M

B2931507

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Zamknij

B2931507

Holder M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
B2931509 Holder M

B2931509

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Zamknij

B2931509

Holder M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
black RAL 9005

Opcje dostosowywania dla Connect

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
