Protec

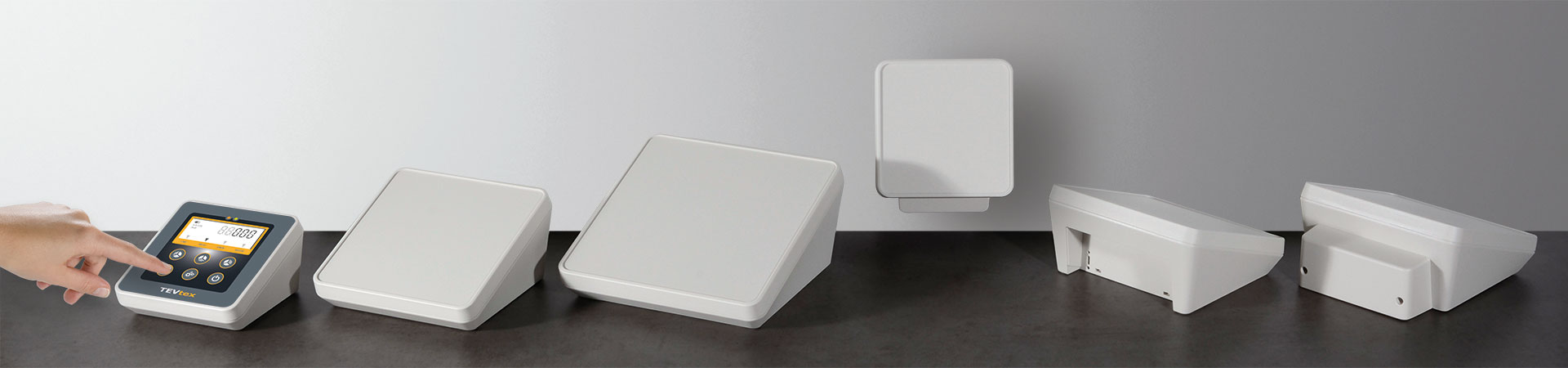

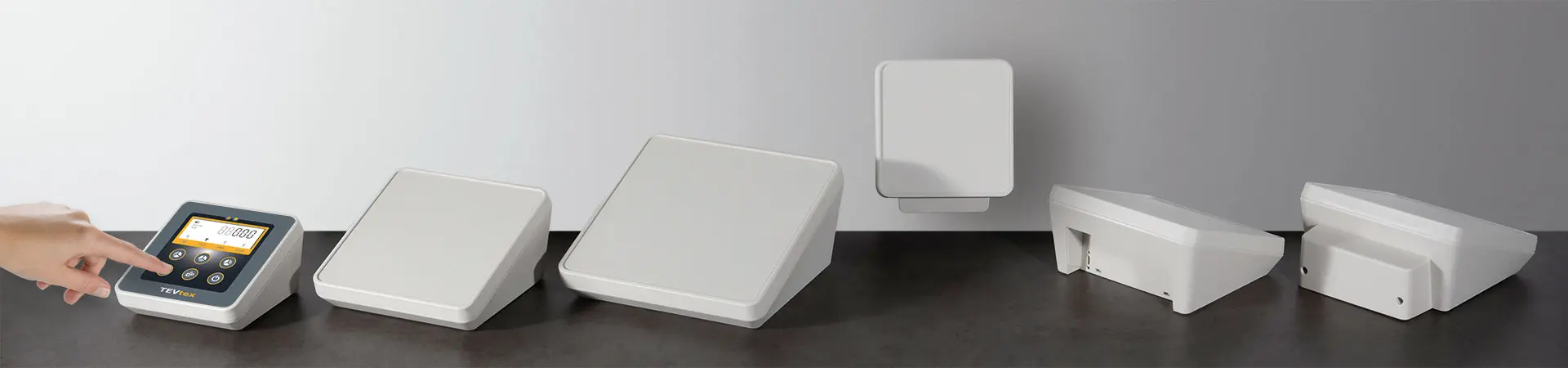

Kwadratowe centrum sterowania

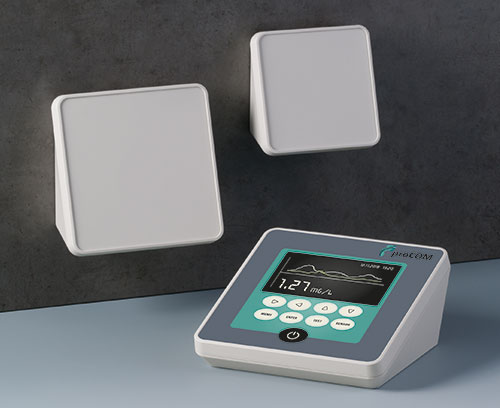

Obudowy PROTEC mają nowoczesny i bardzo atrakcyjny kwadratowy kształt z miękkimi konturami. W rezultacie te obudowy naścienne i biurowe są idealne do nowoczesnych zastosowań elektronicznych, zarówno w pomieszczeniach, jak i na zewnątrz.

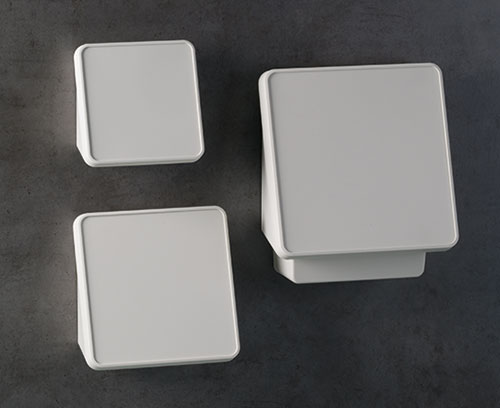

  • trzy rozmiary 140 / 180 / 220, każdy w następujących wersjach:

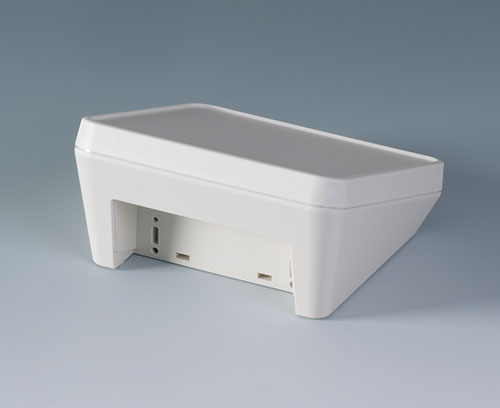

    Wersja I

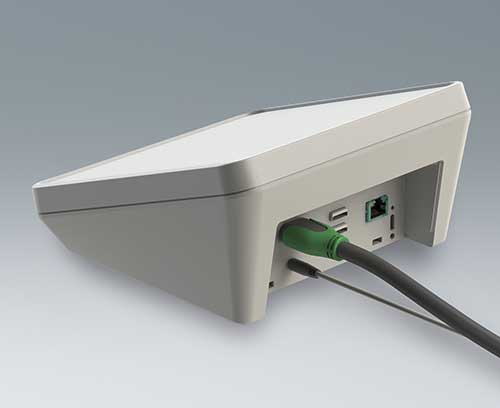

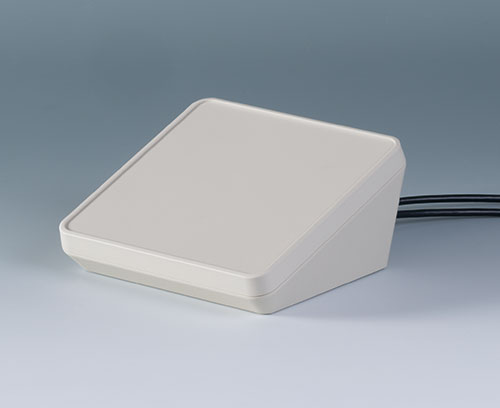

    Z zagłębionym obszarem interfejsu z tyłu obudowy do instalacji i ochrony złączy, interfejsów, przełączników i kabli.

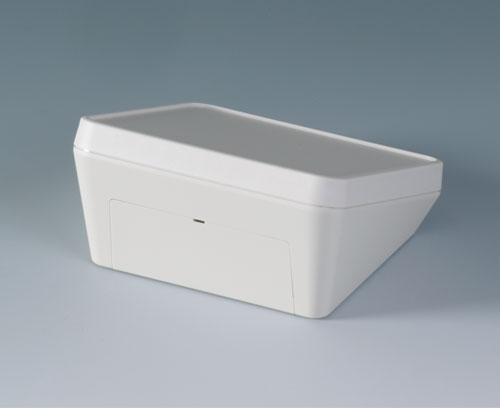

    Wersja II
    Jak wersja I, ale również z dodatkową klapką na zatrzask zakrywającą zagłębienie.

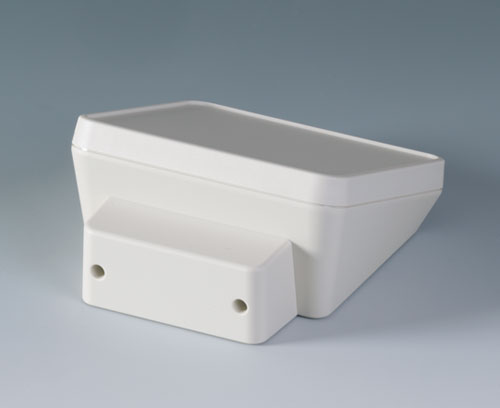

    Wersja III
    Jako wersja I, ale z głęboką pokrywą dla zagłębionego obszaru interfejsu, który jest mocowany za pomocą śrub. Głęboka pokrywa zapewnia dodatkową wewnętrzną przestrzeń dla elektroniki, okablowania i połączeń.

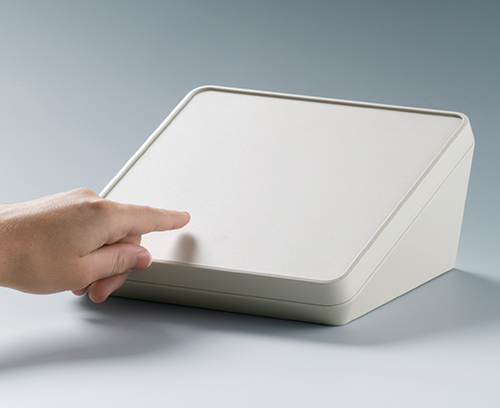

  • przedni panel operacyjny ergonomicznie nachylony o 20°

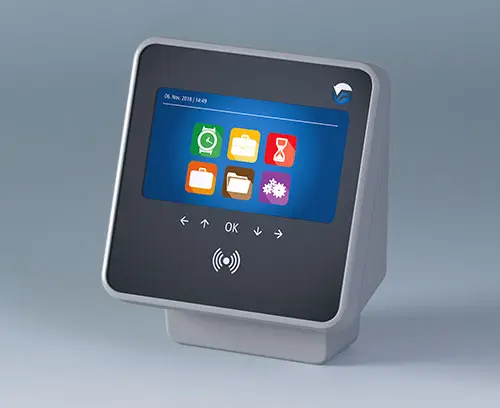

  • zagłębiony obszar roboczy do ochrony klawiatury membranowej

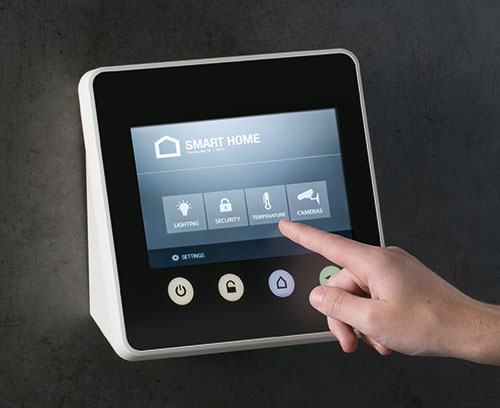

  • dużo miejsca na ekrany dotykowe (PROTEC 140: 5,7"/14,5 cm, PROTEC 180: 7" /17.8 cm, PROTEC 220: 8,4"/ 21,3 cm)
  • brak widocznych śrub mocujących, wszystkie mocowania ukryte pod spodem
  • wysokiej jakości materiał V-0 w kolorze złamanej bieli (RAL 9002) oraz opcjonalnej klasie ochrony IP 65 (uszczelnienie jako wyposażenie dodatkowe) do trudnych zastosowań

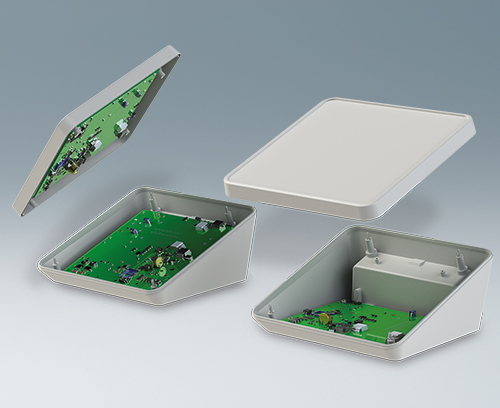

  • zamknięta komora elektroniki z 3 poziomami; dużo miejsca na komponenty i złożenia

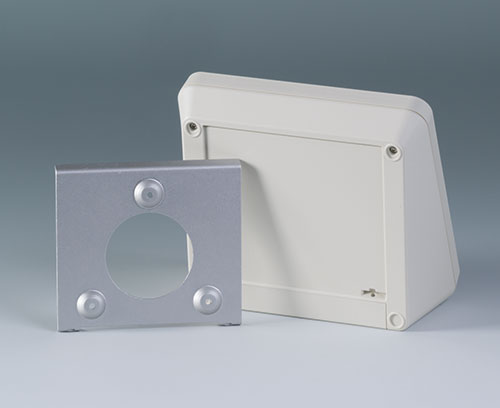

  • ukryty, podtynkowy montaż ścienny z funkcją zapobiegania demontażowi (element zawieszenia ściennego z akcesoriami)
  • wkręty ze stali nierdzewnej typu Torx
  • antypoślizgowe gumowe nóżki gwarantują, że urządzenia stacjonarne nie będą ślizgać się
Wygeneruj PDF
  • Wideo
  • Przykłady aplikacji

Obszary zastosowań

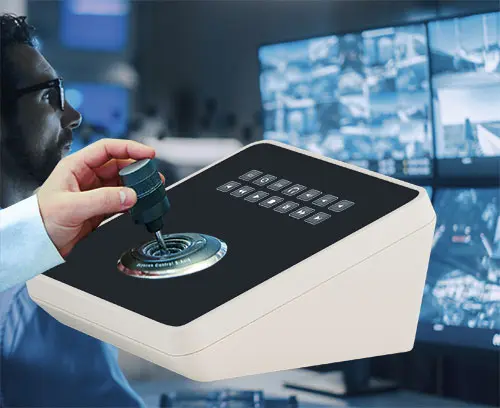

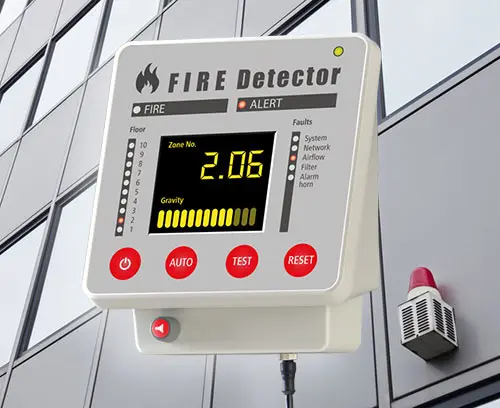

  • Systemy nadzoru, kontrola dostępu i bezpieczeństwa
  • Systemy akwizycji danych
  • Systemy usług budowlanych, centralne jednostki sterujące
  • IoT / IIoT
  • Inteligentna fabryka
  • Przemysł 4.0
  • Bramy
  • Inżynieria systemów danych

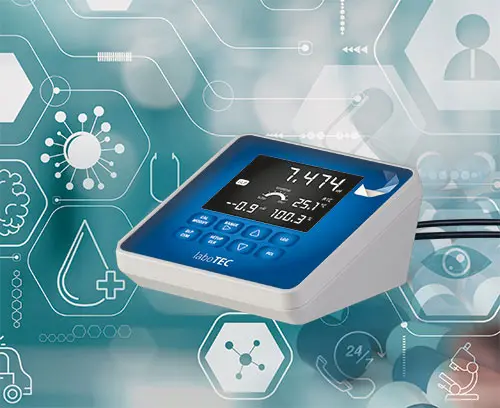

  • Technologia pomiarowa i kontrolna

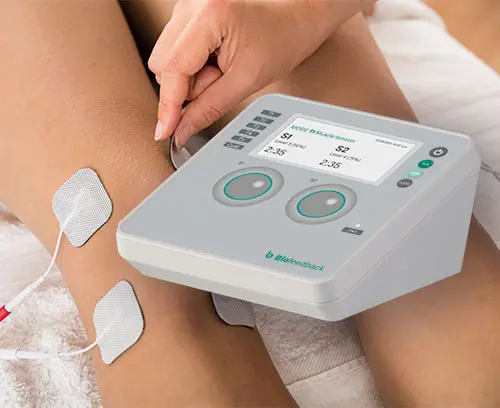

  • Technologia medyczna, opieka zdrowotna
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania

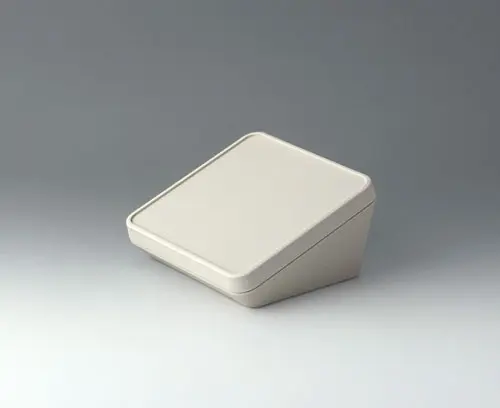

B4414107 PROTEC 140, Vers. I

B4414107

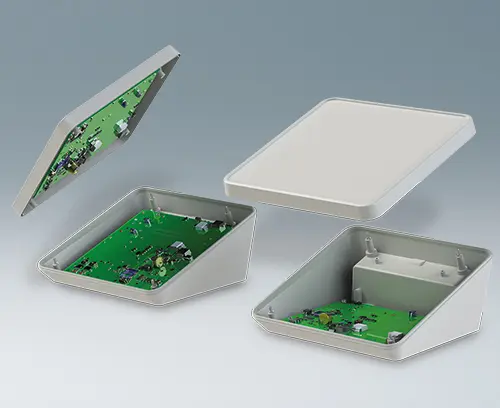

PROTEC 140, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4414107

PROTEC 140, Vers. I
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.

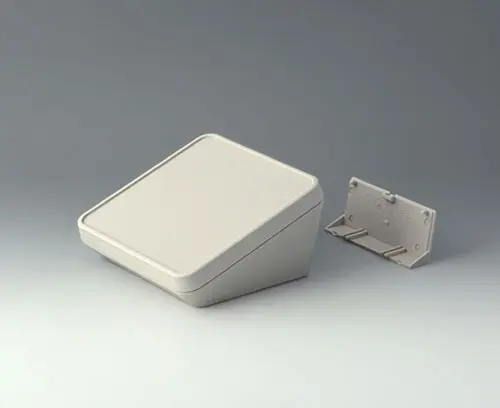

B4414207 PROTEC 140, Vers. II

B4414207

PROTEC 140, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4414207

PROTEC 140, Vers. II
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.

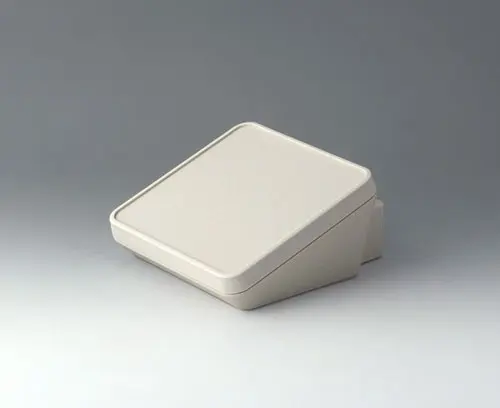

B4414307 PROTEC 140, Vers. III

B4414307

PROTEC 140, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4414307

PROTEC 140, Vers. III
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x160x76mm
IP 65 opt.
B4418107 PROTEC 180, Vers. I

B4418107

PROTEC 180, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4418107

PROTEC 180, Vers. I
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.

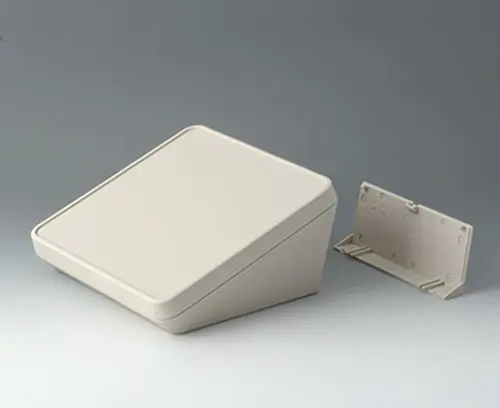

B4418207 PROTEC 180, Vers. II

B4418207

PROTEC 180, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4418207

PROTEC 180, Vers. II
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.

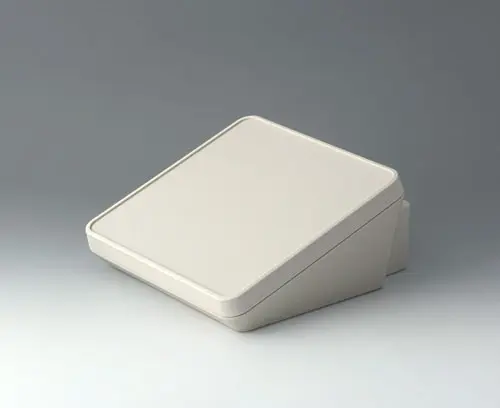

B4418307 PROTEC 180, Vers. III

B4418307

PROTEC 180, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4418307

PROTEC 180, Vers. III
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x201x92mm
IP 65 opt.
B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4422107

PROTEC 220, Vers. I
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.

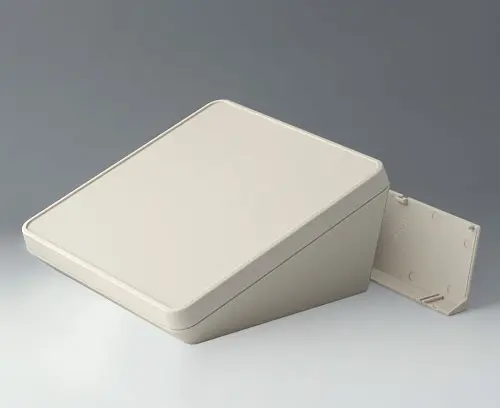

B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4422207

PROTEC 220, Vers. II
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.

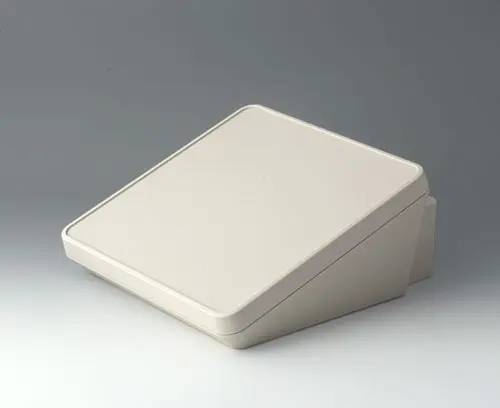

B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Zamknij

B4422307

PROTEC 220, Vers. III
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x243x108mm
IP 65 opt.
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
produkt został dodany do twojej listy
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T08

Torx T8 screwdriver
produkt został dodany do twojej listy
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T10

Torx T10 screwdriver
produkt został dodany do twojej listy

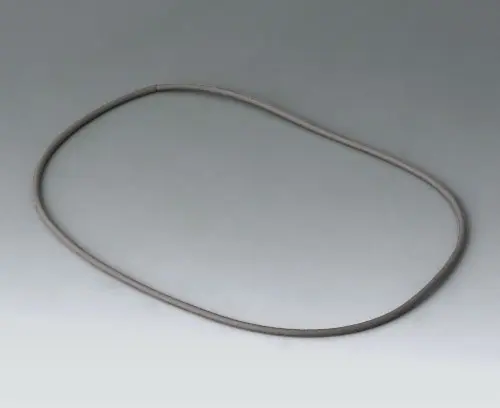

B4514030 Sealing 140

B4514030

Sealing 140

Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zamknij

B4514030

Sealing 140
produkt został dodany do twojej listy

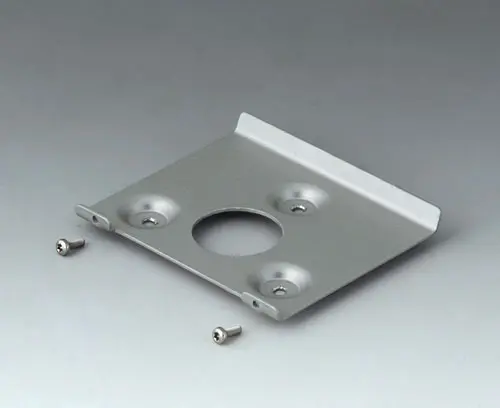

B4514101 Wall suspension element 140

B4514101

Wall suspension element 140

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Zamknij

B4514101

Wall suspension element 140
produkt został dodany do twojej listy
Aluminium

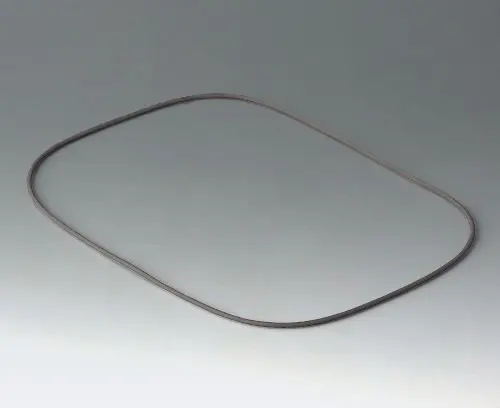

B4518030 Sealing 180

B4518030

Sealing 180

Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zamknij

B4518030

Sealing 180
produkt został dodany do twojej listy

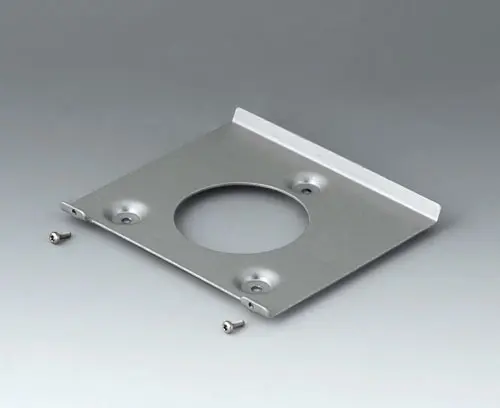

B4518101 Wall suspension element 180

B4518101

Wall suspension element 180

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Zamknij

B4518101

Wall suspension element 180
produkt został dodany do twojej listy
Aluminium

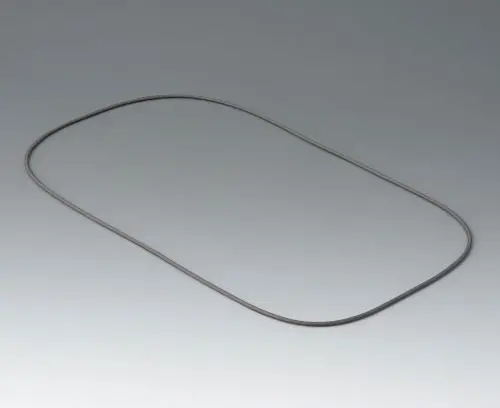

B4522030 Sealing 220

B4522030

Sealing 220

Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zamknij

B4522030

Sealing 220
produkt został dodany do twojej listy

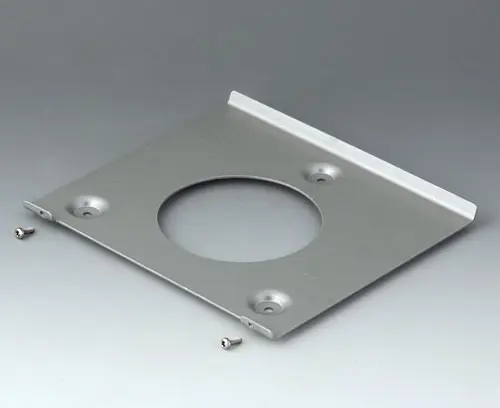

B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Zamknij

B4522101

Wall suspension element 220
produkt został dodany do twojej listy
Aluminium

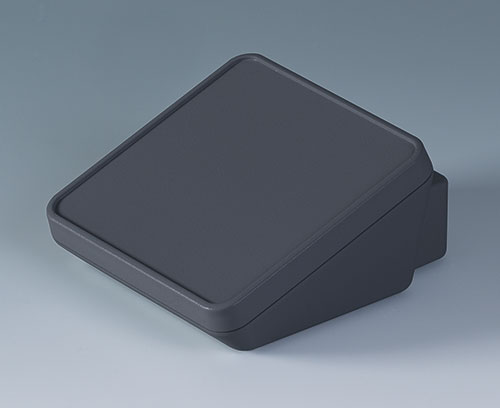

Opcje dostosowywania dla Protec

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
