B5403317 SLIM-CASE M, Vers. VI
Przewiń

B5403317

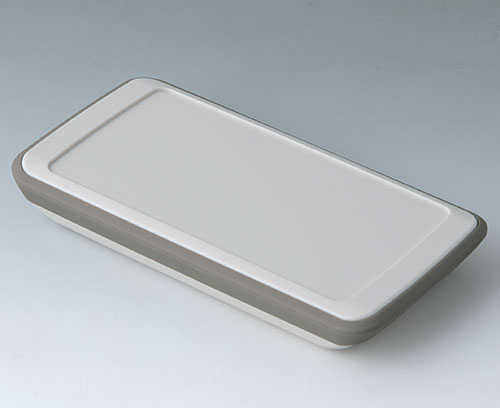

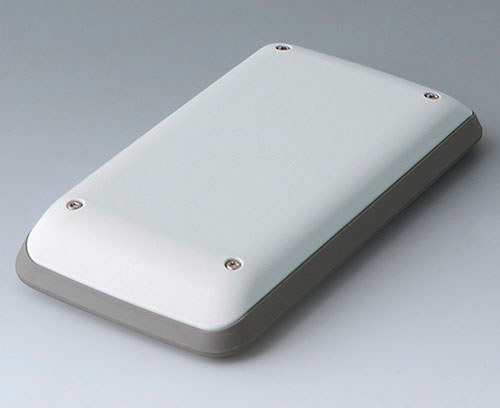

SLIM-CASE M, Vers. VI

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version

With TPE intermediate ring and operating panel recessed 1.6 mm

Supply

Top and bottom part, TPE intermediate ring, assembly kit

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B5403317

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "protection"

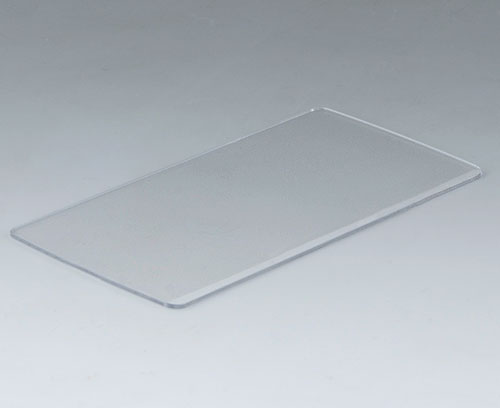

B5503201 Front screen M

B5503201

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

Zamknij

B5503201

Front screen M
produkt został dodany do twojej listy
PC
transparent
125,3x63,5x1,3mm

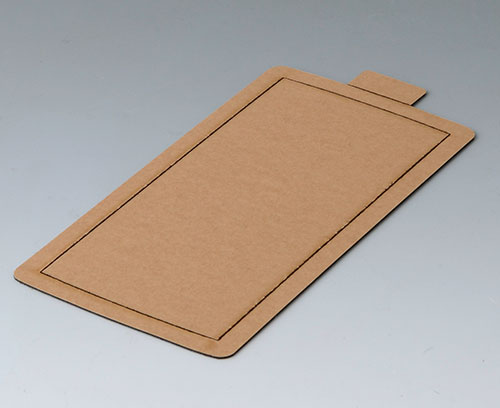

B5503300 Adhesive foil M

B5503300

Adhesive foil M For secure mounting of the front screen on the top part.

Supply 1 adhesive foil

Zamknij

B5503300

Adhesive foil M
produkt został dodany do twojej listy

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
produkt został dodany do twojej listy
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T08

Torx T8 screwdriver
produkt został dodany do twojej listy

Opcje dostosowywania dla B5403317

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Przykłady aplikacji
  • Dane zakupowe
Materiał
ASA+PC (UL 94 V-0)
Bottom and top part
SEBS (TPE)
Intermediate ring
Protection class
IP 54
Kolor
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
148 mm
Width
74 mm
Height
22 mm
PCB length, base
126 mm
PCB width, base
64 mm
PCB length, top
130 mm
PCB width, top
64 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
78 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
