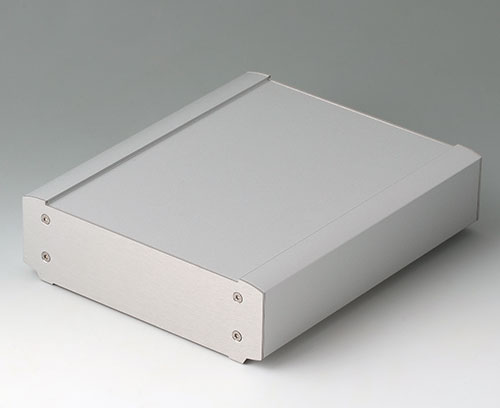

B3407023 SMART-TERMINAL 200
Przewiń

B3407023

SMART-TERMINAL 200

Robust enclosure with two-part aluminium profile (glass bead-blasted and anodised) and aluminium end plates.
Good access inside for installation and assembly work.
Horizontal guides and screw channels provided inside the case for fitting PCBs. Flat areas for easy installation of interfaces. Recessed area in the top for the protection of displays, membrane keypads and operating elements.
Accessories include a wall suspension element, case canting kit (for ergonomically canting the enclosure by 12°) and a set of square-head nuts for mounting a PCB or mounting plate.

Supply

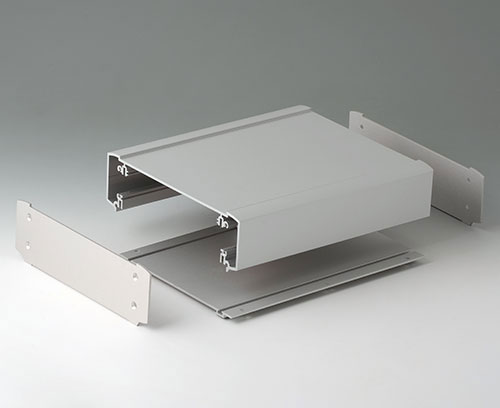

Top profile, base profile, 2 aluminium end plates, assembly kit incl. 4 anti-slide feet

Rysunek 2D w formacie PDF
Widok 3D PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B3407023

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory "station"

B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting mouldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

Zamknij

B3507030

Case canting kit
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava

Accessory "wall/holder"

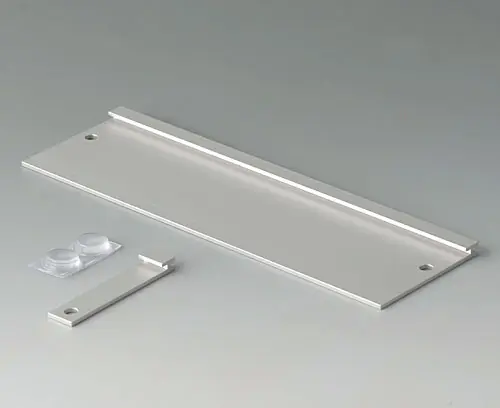

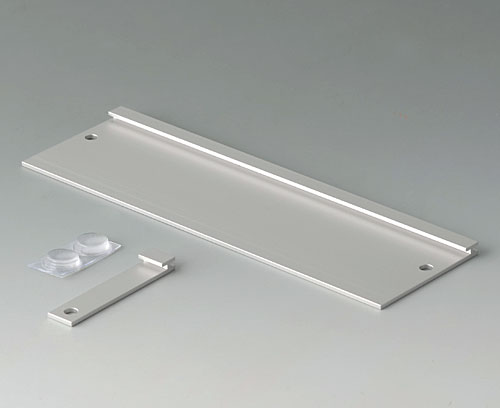

B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.
Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

Zamknij

B3507020

Wall suspension element
produkt został dodany do twojej listy
Aluminium

Accessory "screws"

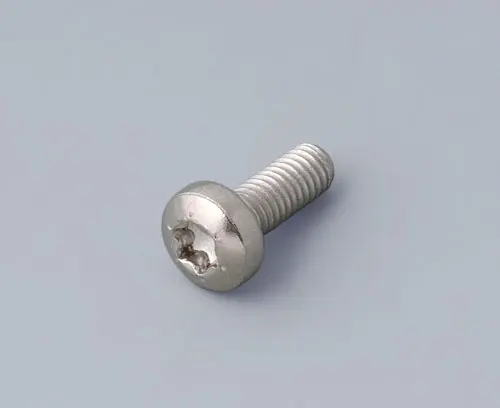

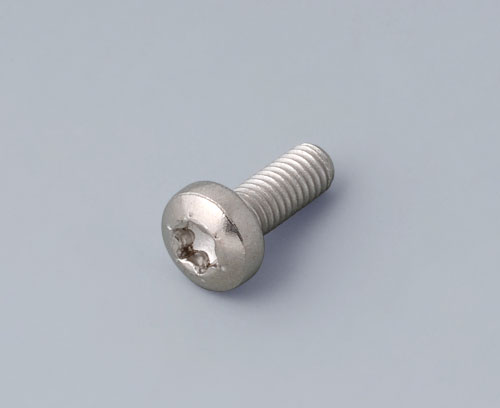

A0330080 Screw M3 x 8 mm (T10)

A0330080

Screw M3 x 8 mm (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

Zamknij

A0330080

Screw M3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T10

Torx T10 screwdriver
produkt został dodany do twojej listy

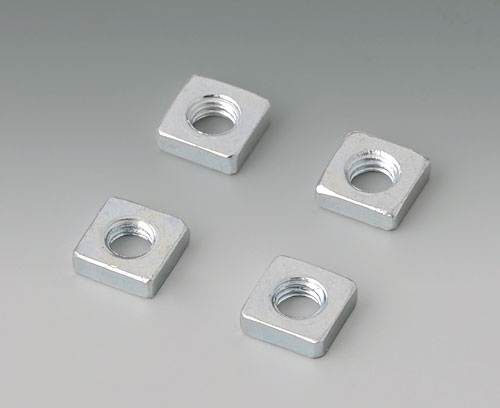

B3500001 Set of M3 square-head nuts

B3500001

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

Zamknij

B3500001

Set of M3 square-head nuts
produkt został dodany do twojej listy
Steel

Opcje dostosowywania dla B3407023

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
Aluminium AlMgSi 0,5
Profiles
Aluminium
End plates
Kolor
matt anodised
Standards
RoHS compliant
REACH compliant
Length
204 mm
Width
170 mm
Height
50 mm
PCB length, top
200 mm
PCB width, top
117 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
700 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
