B3507025 Aluminium end plate
Przewiń

B3507025

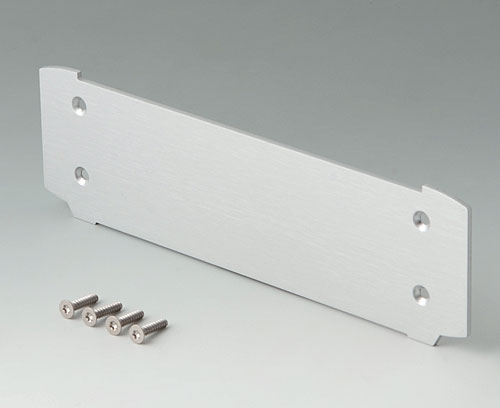

Aluminium end plate

(Order when specifying a SMART-TERMINAL enclosure from individual parts). Simple end plate for fitting to the case profile. Fitted by four screws.
Cannot to be used in conjunction with the designer seals.

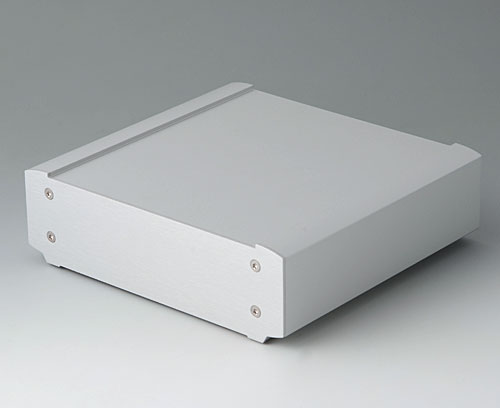

Enclosure length = profile length + 4 mm (when using the end plates on both sides).

Supply

1 end plate, 4 screws

Rysunek 2D w formacie PDF
Dodaj do koszyka Dodaj do koszyka Dodaj do koszyka
produkt został dodany do twojej listy
kontynuuj lub przejdź do koszyka
Generowanie dokumentacji w formacie PDF

Generate Your PDF Datasheet for B3507025

Please select the product details you would like to include in the PDF.

Zamknij
  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory

A9209229 Anti-slide feet 8.5 x 2.2 mm

A9209229

Anti-slide feet 8.5 x 2.2 mm For SMART-TERMINAL enclosures fitted with the aluminium end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

Zamknij

A9209229

Anti-slide feet 8.5 x 2.2 mm
produkt został dodany do twojej listy
black

Opcje dostosowywania dla B3507025

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Materiał
Aluminium
Kolor
matt anodised
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
42 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
