B4016621 Cover M, flat
Scroll

B4016621

Cover M, flat

Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply

1 cover, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para B4016621

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Usado para
  • Veja Opções de personalização
B4016117 DATEC-TERMINAL M, Vers. I

B4016117

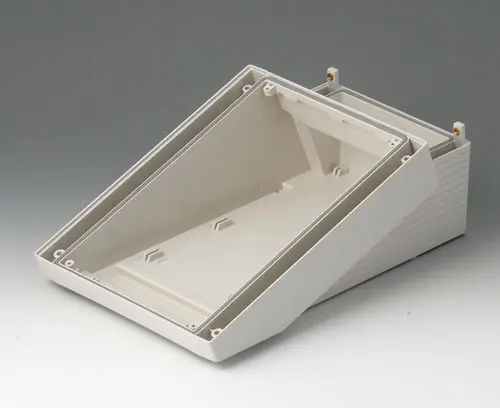

DATEC-TERMINAL M, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Fechar

B4016117

DATEC-TERMINAL M, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016217 DATEC-TERMINAL M, Vers. II

B4016217

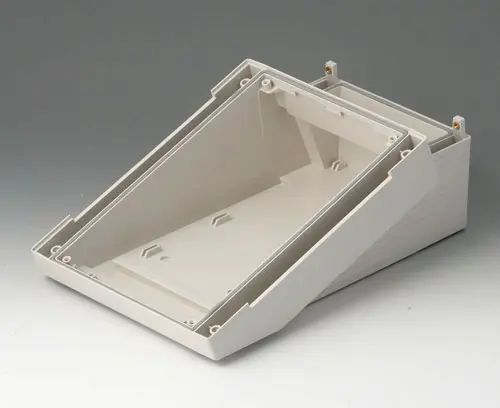

DATEC-TERMINAL M, Vers. II Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Fechar

B4016217

DATEC-TERMINAL M, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.
B4016317 DATEC-TERMINAL M, Vers. III

B4016317

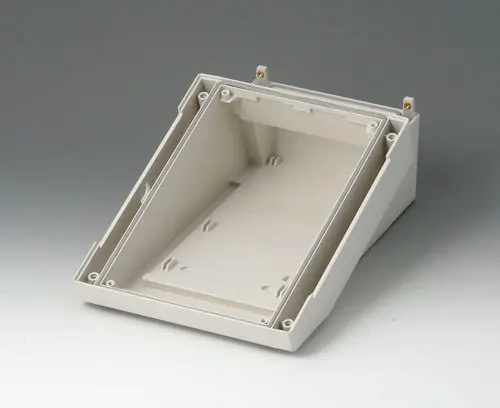

DATEC-TERMINAL M, Vers. III Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.

Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.

Suitable for the installation of Eurocards 100 x 160 mm.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Fechar

B4016317

DATEC-TERMINAL M, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x272x101mm
IP 54 opt.

Customising options for B4016621

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
PC (UL 94 V-0)
Colour
transparent
Standards
RoHS compliant
REACH compliant
Width
168 mm
Depth
220 mm
Height
29 mm
PCB length, base
209 mm
PCB width, base
128 mm
Keypad length
195,1 mm
Keypad width
129,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
241 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
