DATEC-TERMINAL
Scroll

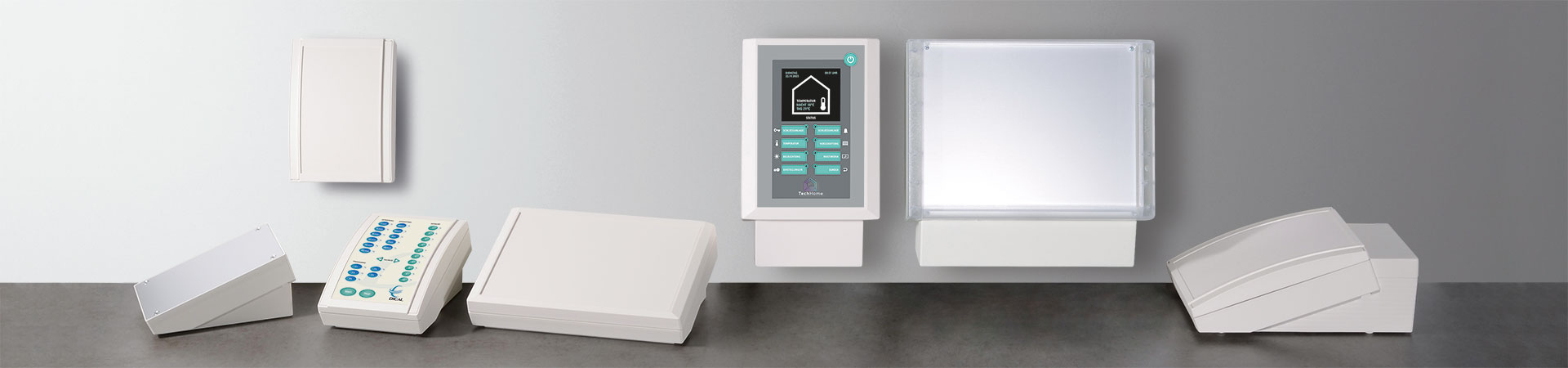

Datec-Terminal

Caixas Modulares para Coleta de Dados Operacionais

DATEC-TERMINAL é uma caixa resistente e atraente projetada exclusivamente para atender aos requisitos da mesa de trabalho e para equipamentos de coleta de dados em parede.

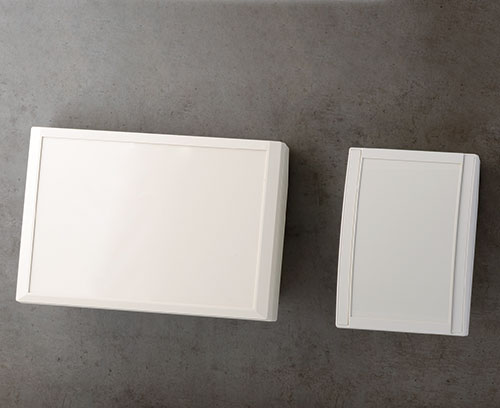

  • caixas terminais ergonômicas

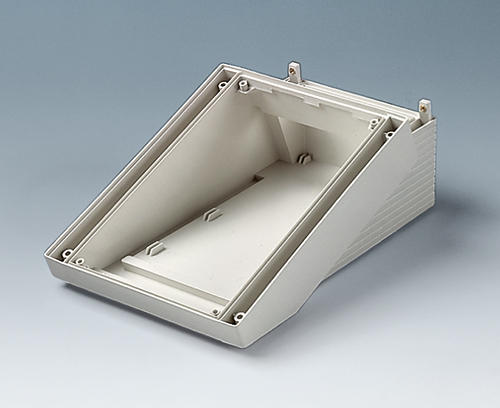

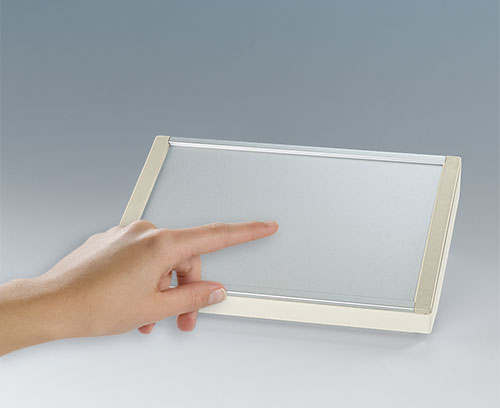

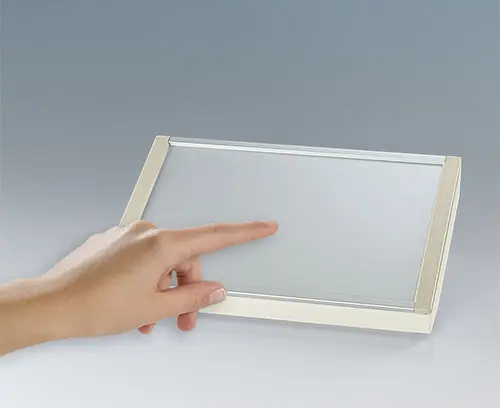

  • área operacional com inclinação de 20°

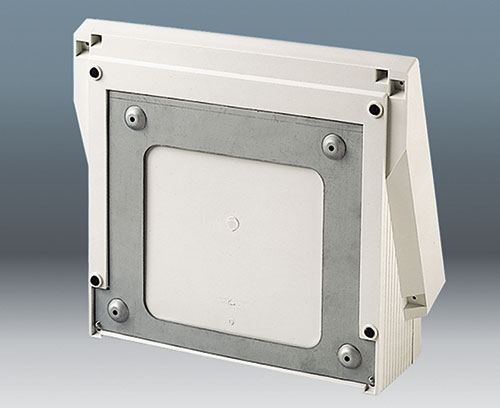

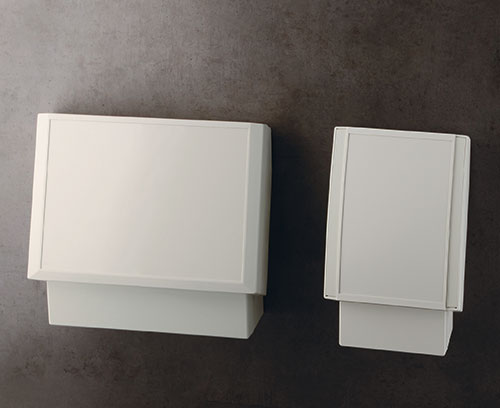

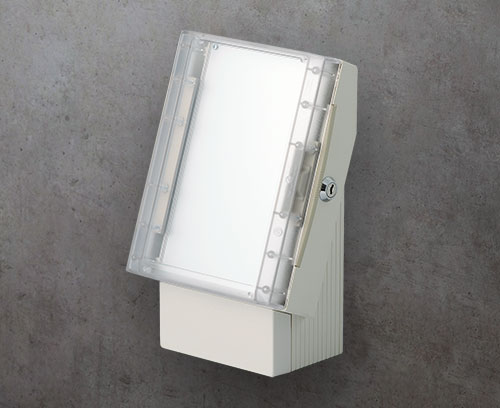

  • para mesa de trabalho ou sistemas de montagem em parede
  • tampas traseiras para montagem de scanners de bolso padrão
  • quatro tamanhos e dois tipos

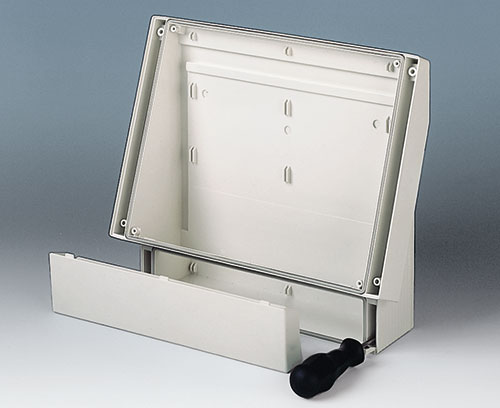

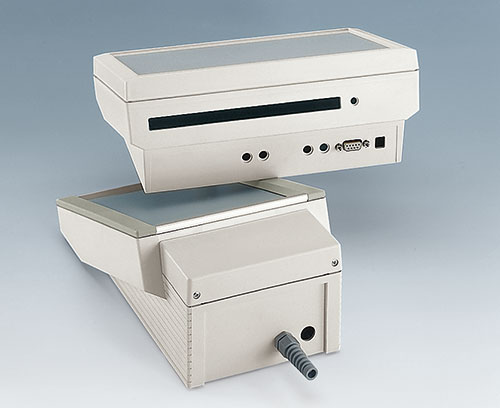

  • tamanhos M & L com secção terminal separada facilmente acessível
  • rápida montagem e fácil acesso aos componentes
  • parafuso de fixação oculto
  • ampla gama de acessórios, funcionais e flexíveis para uso
  • classe de proteção IP 54 em combinação com parte frontal e tampa fechadas
  • parede de montagem oculta com prevenção de remoção

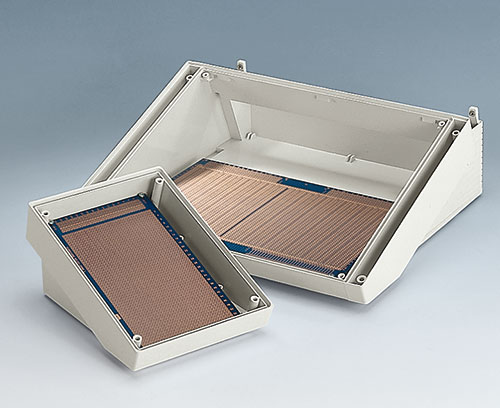

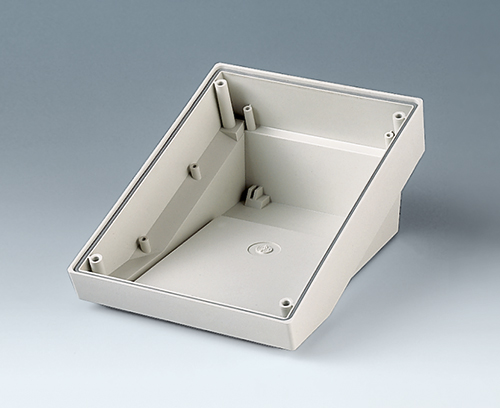

  • pilares de fixação internos para PCBs 100 x 160 mm ou tamanhos duplos eurocard (S, SL e L)
  • superfícies planas para usinagem e interfaces individuais

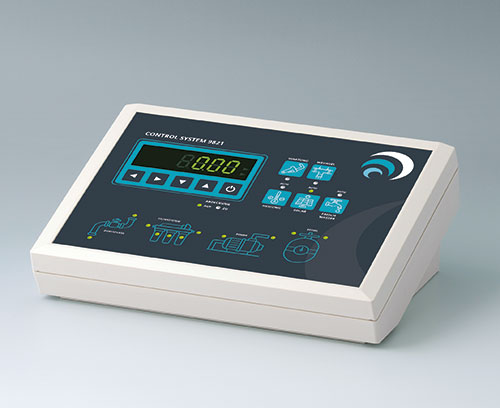

  • área de operação recessada para proteção do teclado de membrana
Generate PDF
  • Exemplos de Aplicação

Application fields

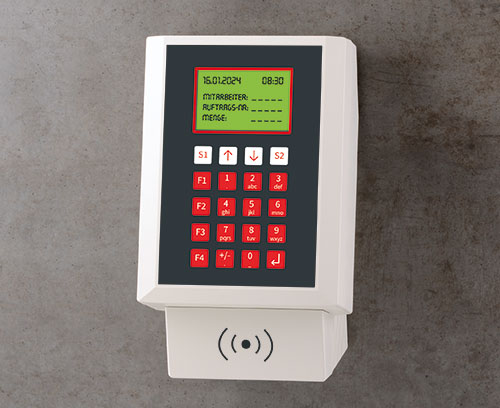

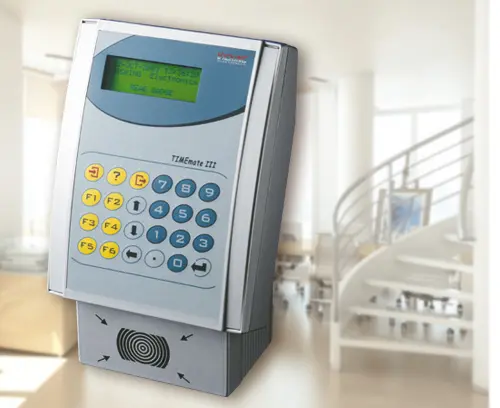

  • Sistemas de coleta de dados de trabalho e máquinas

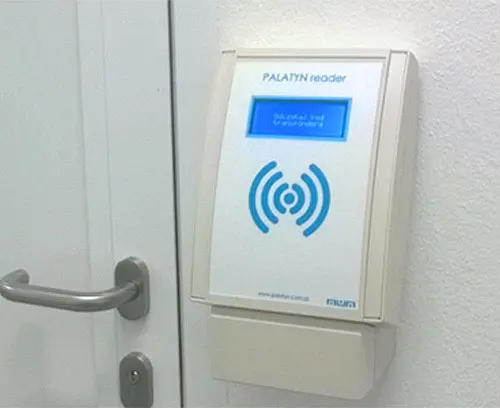

  • Controles de acesso e segurança
  • Medição e controle de unidades de aquecimento e ar condicionado

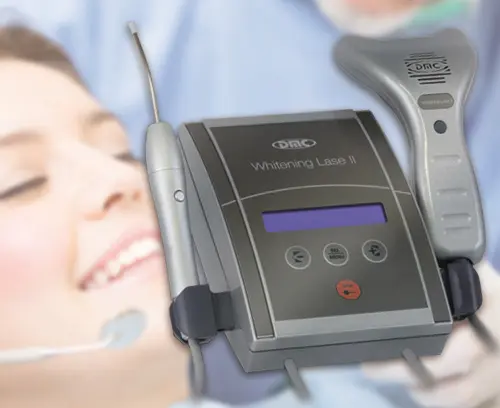

  • Médica, bem-estar
  • Dispositivos de ponto-de-venda
  • Selecione Versões
  • Acessórios
  • Customizadas

Selecione a versão desejada / o(s) tamanho(s) desejado(s) ou clique no botão „Selecionar todos os produtos“ no final da lista de produtos.

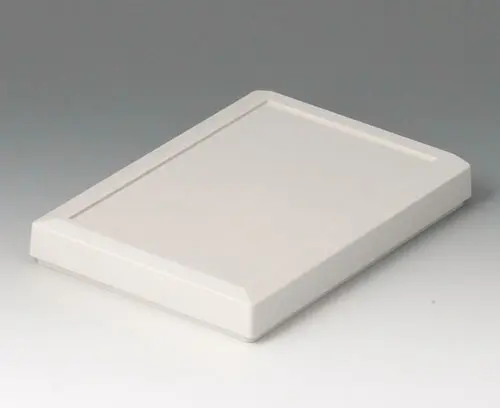

B4013617 Cover S

B4013617

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Fechar

B4013617

Cover S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x23mm
B4013621 Cover S

B4013621

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Fechar

B4013621

Cover S
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
130x180x23mm

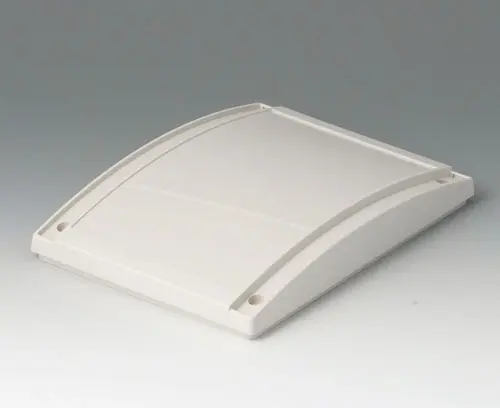

B4013637 Cover S, convex

B4013637

Cover S, convex Suitable for DATEC-TERMINAL S. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4013637

Cover S, convex
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x28mm

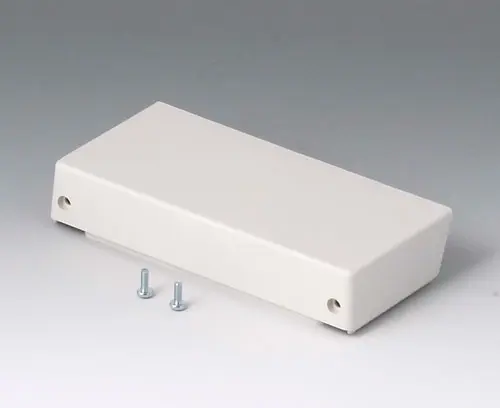

B4016417 Lid M closed, flat

B4016417

Lid M closed, flat Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Fechar

B4016417

Lid M closed, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
134x62x24mm

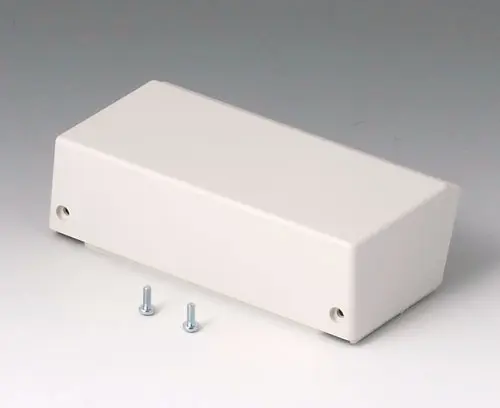

B4016457 Lid M closed, high

B4016457

Lid M closed, high Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Fechar

B4016457

Lid M closed, high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
134x67x38mm

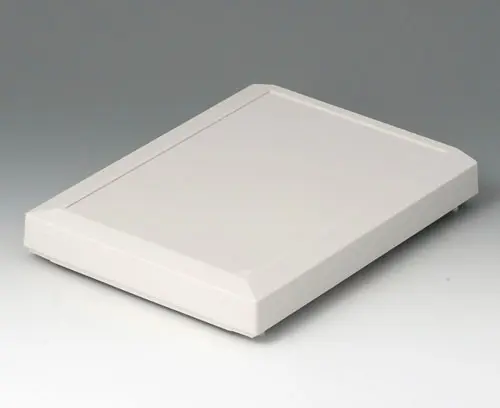

B4016617 Cover M, flat

B4016617

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4016617

Cover M, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x29mm

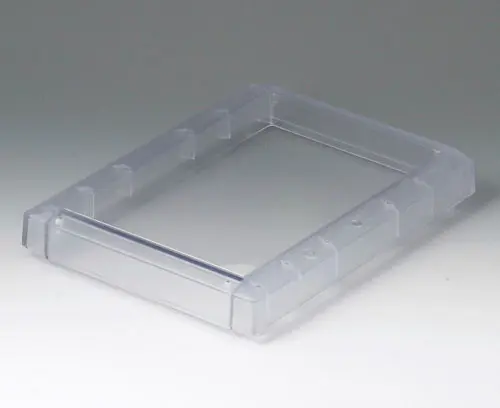

B4016621 Cover M, flat

B4016621

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4016621

Cover M, flat
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
168x220x29mm

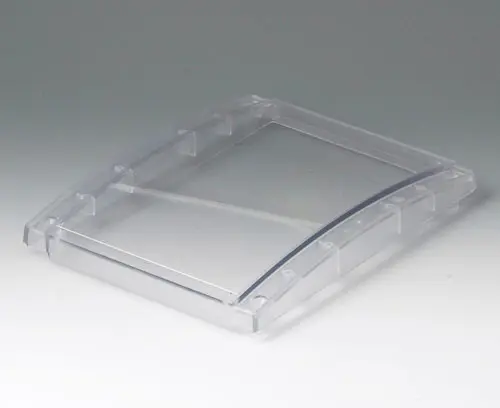

B4016631 Cover M, convex

B4016631

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4016631

Cover M, convex
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
168x220x29mm

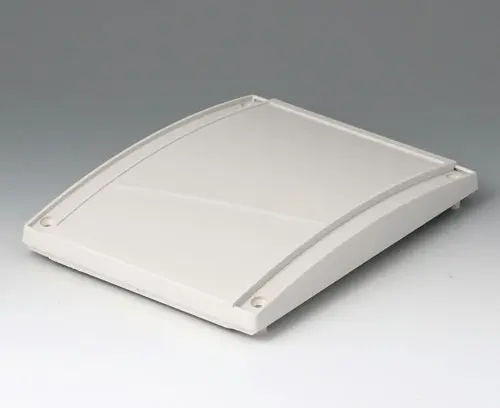

B4016637 Cover M, convex

B4016637

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4016637

Cover M, convex
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x29mm

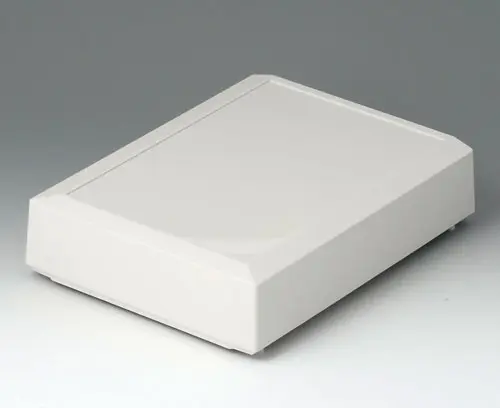

B4016657 Cover M, high

B4016657

Cover M, high Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4016657

Cover M, high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x50mm

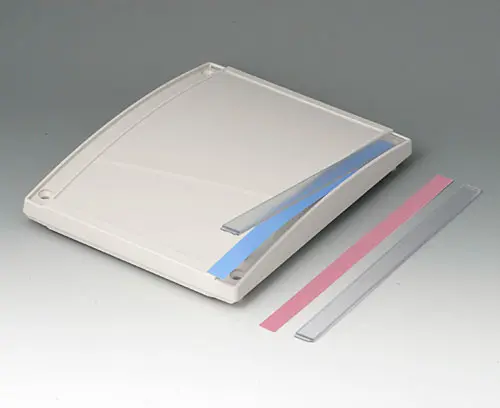

B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Fechar

B4016671

Cover strip M / L
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent

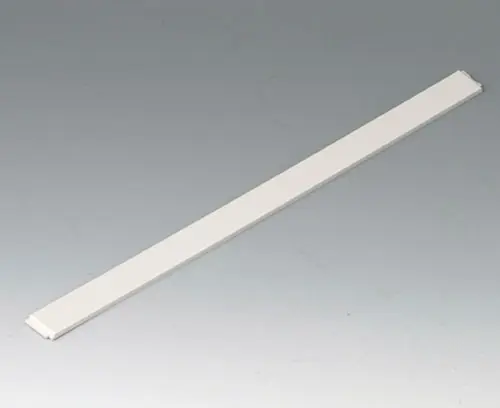

B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Fechar

B4016677

Cover strip M / L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B4016917 Lid M with card slot, one piece

B4016917

Lid M with card slot, one piece Lid M with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

Fechar

B4016917

Lid M with card slot, one piece
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
134x67x38mm

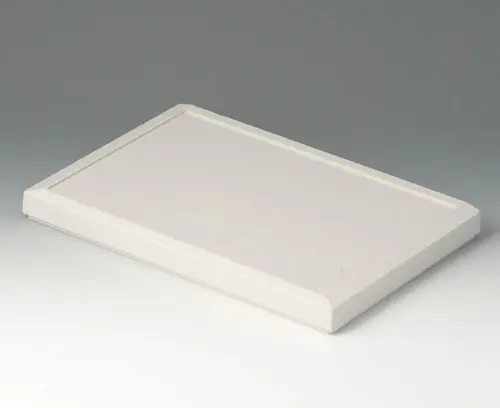

B4026617 Cover SL

B4026617

Cover SL Suitable for DATEC-TERMINAL SL. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Fechar

B4026617

Cover SL
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
264x180x23mm

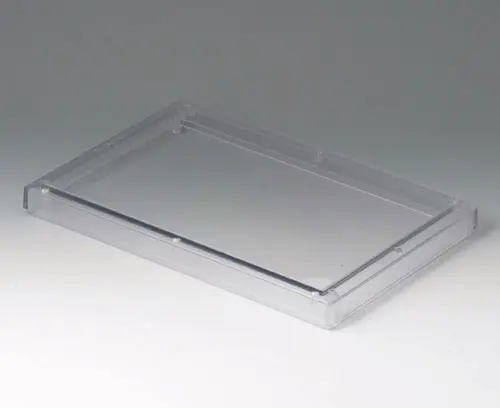

B4026621 Cover SL

B4026621

Cover SL Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Fechar

B4026621

Cover SL
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
264x180x23mm

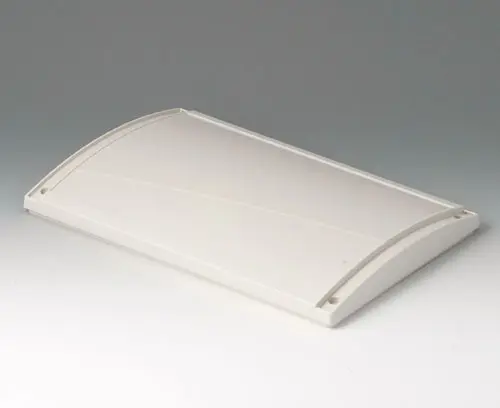

B4026637 Cover SL, convex

B4026637

Cover SL, convex Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4026637

Cover SL, convex
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
263x180x28mm

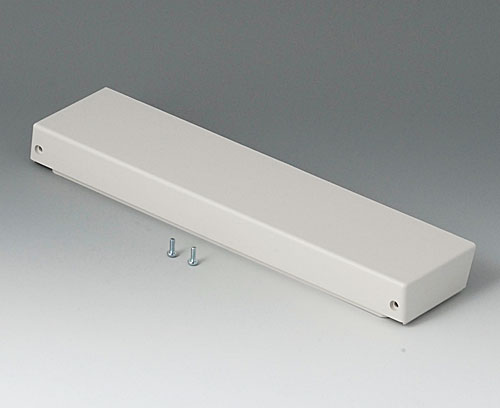

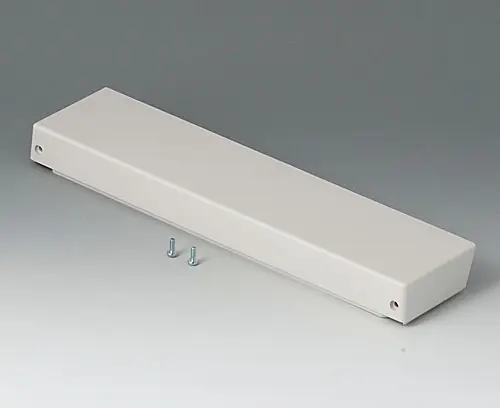

B4030417 Lid L closed, flat

B4030417

Lid L closed, flat Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Fechar

B4030417

Lid L closed, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
268x62x24mm

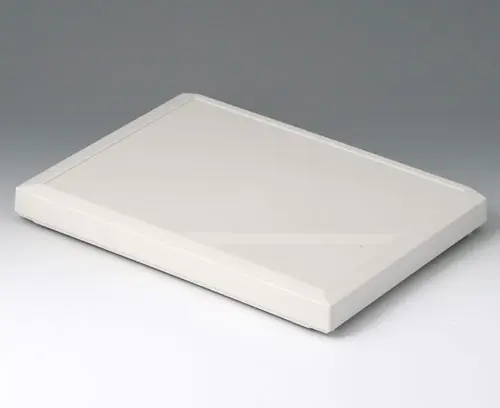

B4030617 Cover L, flat

B4030617

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4030617

Cover L, flat
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

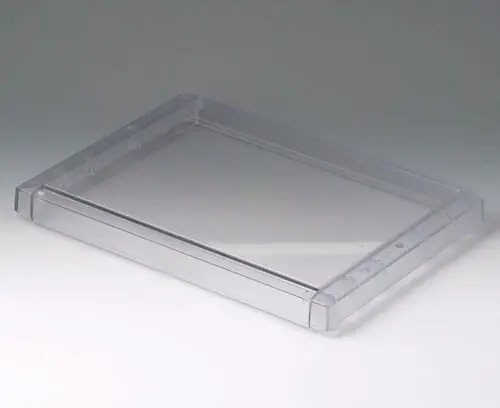

B4030621 Cover L, flat

B4030621

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4030621

Cover L, flat
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
302x220x29mm

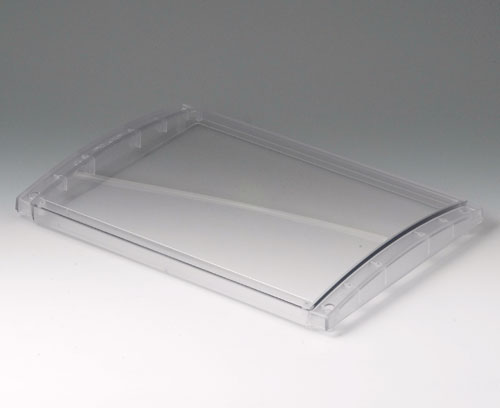

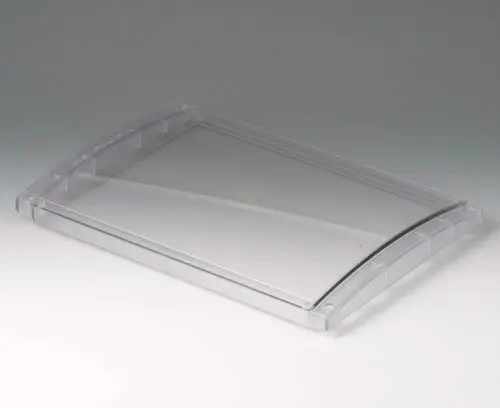

B4030631 Cover L, convex

B4030631

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4030631

Cover L, convex
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent
302x220x29mm

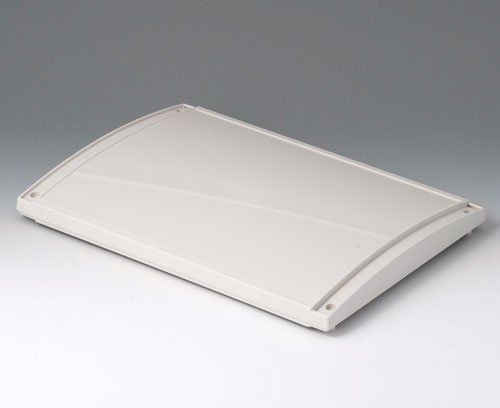

B4030637 Cover L, convex

B4030637

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4030637

Cover L, convex
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

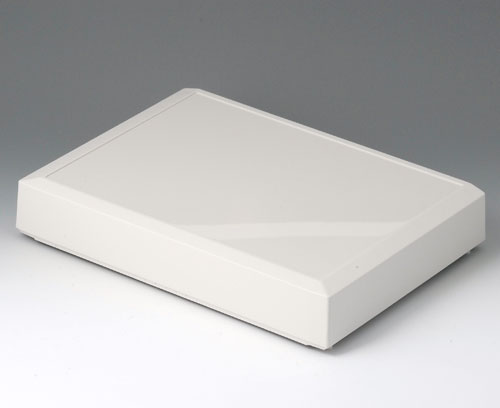

B4030657 Cover L, high

B4030657

Cover L, high Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Fechar

B4030657

Cover L, high
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x50mm
B4030917 Lid L with card slot, one piece

B4030917

Lid L with card slot, one piece Lid L with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

Fechar

B4030917

Lid L with card slot, one piece
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
268x67x38mm

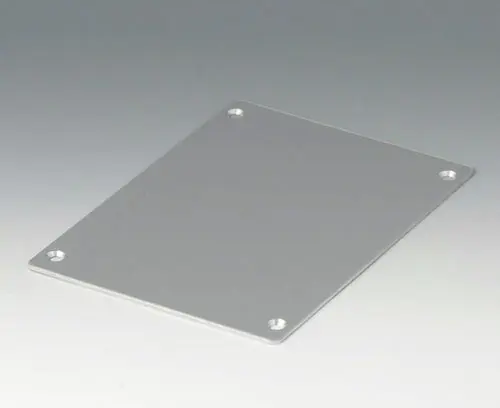

B4113106 Front panel S

B4113106

Front panel S Front panel S for the mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

Fechar

B4113106

Front panel S
Produto adicionado a sua lista
Aluminium
matt anodised
125,9x176x2mm

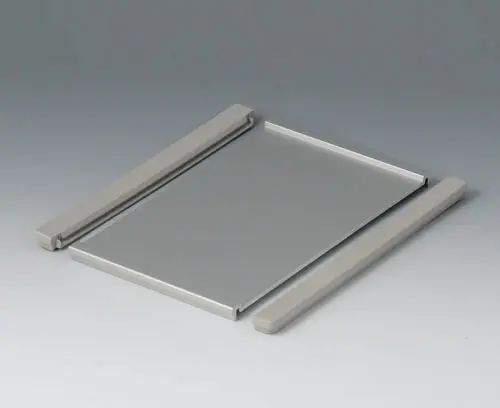

B4113126 Profile plate S

B4113126

Profile plate S Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Fechar

B4113126

Profile plate S
Produto adicionado a sua lista
Aluminium
matt anodised
130x180x8mm

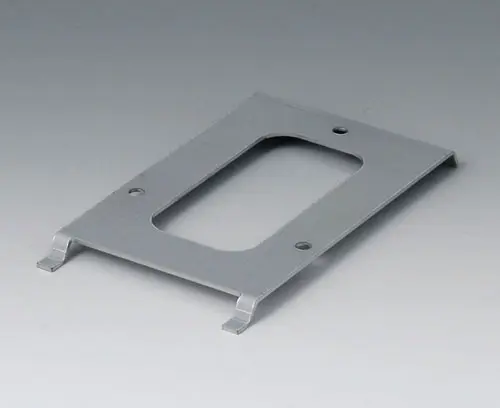

B4113147 Wall suspension element S

B4113147

Wall suspension element S Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

Fechar

B4113147

Wall suspension element S
Produto adicionado a sua lista
Steel
galvanized
79x137x8mm

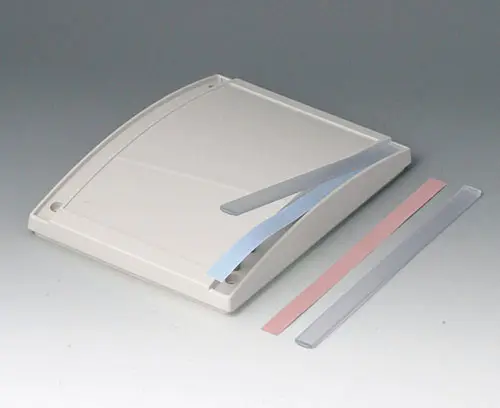

B4113671 Cover strip S / SL

B4113671

Cover strip S / SL For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Fechar

B4113671

Cover strip S / SL
Produto adicionado a sua lista
PC (UL 94 V-0)
transparent

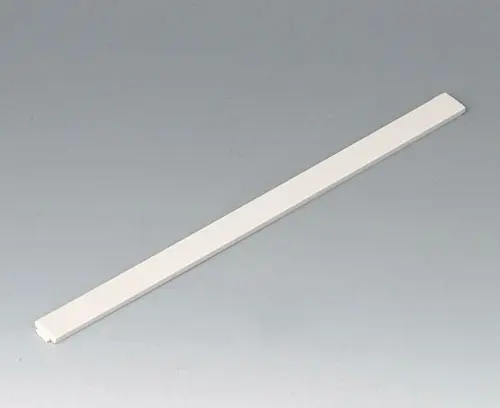

B4113677 Cover strip S / SL

B4113677

Cover strip S / SL For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Fechar

B4113677

Cover strip S / SL
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

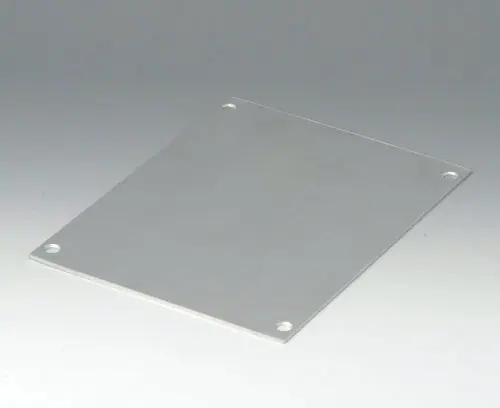

B4116106 Front panel MS

B4116106

Front panel MS Front panel MS for the mounting of all kinds of operating elements. When using cover, please refer to front panel MH (accessory).

Supply 1 front panel, 4 screws diameter 5.0 mm

Fechar

B4116106

Front panel MS
Produto adicionado a sua lista
Aluminium
matt anodised
165,4x217,4x2mm

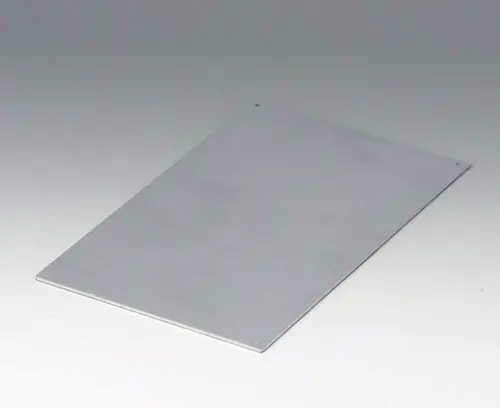

B4116116 Front panel MH

B4116116

Front panel MH Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

Fechar

B4116116

Front panel MH
Produto adicionado a sua lista
Aluminium
matt anodised
128x209x2mm

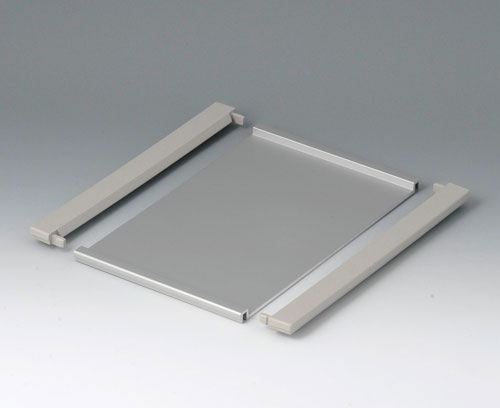

B4116126 Profile plate M

B4116126

Profile plate M Profile plate M for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Fechar

B4116126

Profile plate M
Produto adicionado a sua lista
Aluminium
matt anodised
168x220x8mm
B4116136 Support plate L and M

B4116136

Support plate L and M Suitable for lid L (B4030917) and lid M (B4016917) with card slot, one piece. Support plate for installation of most popular types of card readers.

Supply 1 support plate, 2 screws diameter 2.5 mm

Fechar

B4116136

Support plate L and M
Produto adicionado a sua lista
Aluminium
matt anodised
102x45x1mm
B4116147 Wall suspension element M

B4116147

Wall suspension element M Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

Fechar

B4116147

Wall suspension element M
Produto adicionado a sua lista
Steel
galvanized
214x126x12mm
B4126106 Front panel SL

B4126106

Front panel SL Front panel SL for mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

Fechar

B4126106

Front panel SL
Produto adicionado a sua lista
Aluminium
matt anodised
259,4x176x2mm

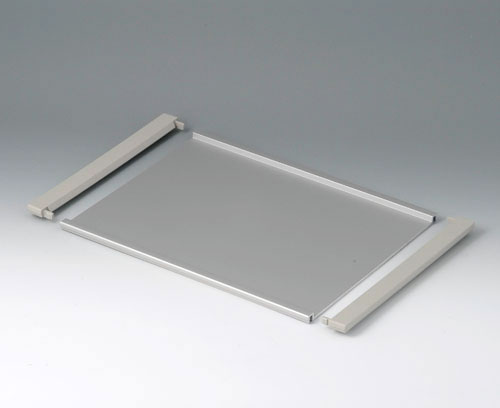

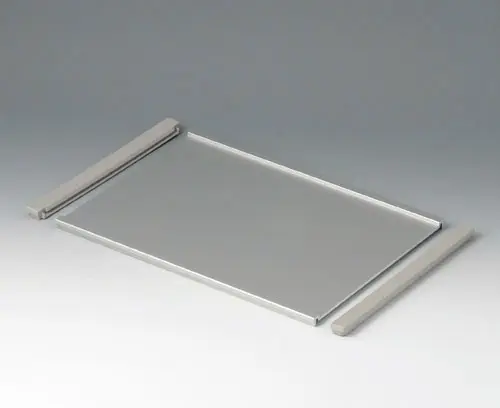

B4126126 Profile plate SL

B4126126

Profile plate SL Profile plate SL for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Fechar

B4126126

Profile plate SL
Produto adicionado a sua lista
Aluminium
matt anodised
263x180x8mm

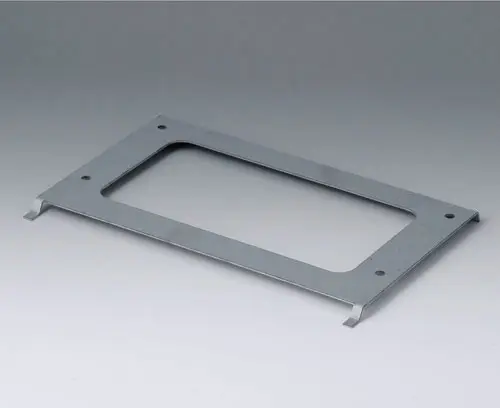

B4126147 Wall suspension element SL

B4126147

Wall suspension element SL Wall suspension element SL for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

Fechar

B4126147

Wall suspension element SL
Produto adicionado a sua lista
Steel
galvanized
210x137x8mm

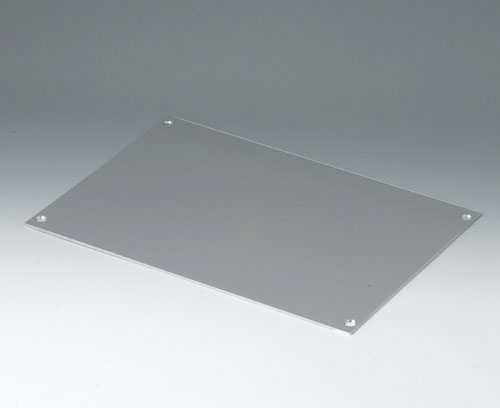

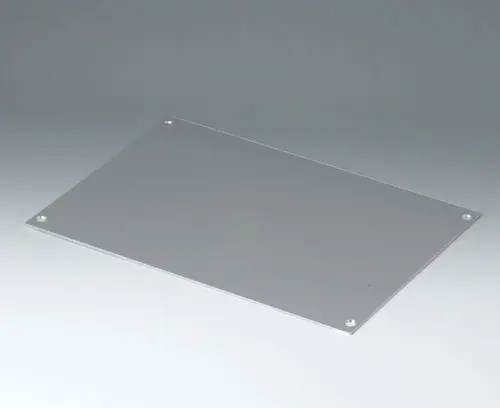

B4130106 Front panel LS

B4130106

Front panel LS Front panel LS for the mounting of all kinds of operating elements. When using cover, please refer to front panel LH (accessory).

Supply 1 front panel, 4 screws diameter 5.0 mm

Fechar

B4130106

Front panel LS
Produto adicionado a sua lista
Aluminium
matt anodised
299,4x217,4x2mm

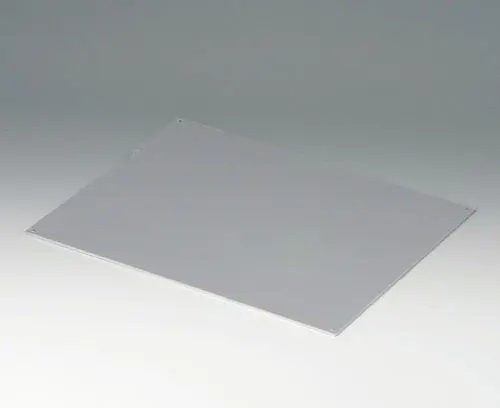

B4130116 Front panel LH

B4130116

Front panel LH Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

Fechar

B4130116

Front panel LH
Produto adicionado a sua lista
Aluminium
matt anodised
262x209x2mm

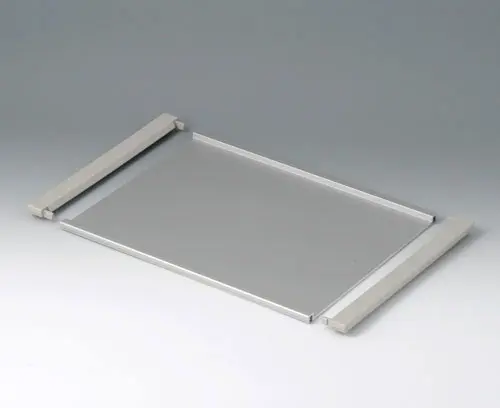

B4130126 Profile plate L

B4130126

Profile plate L Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Fechar

B4130126

Profile plate L
Produto adicionado a sua lista
Aluminium
matt anodised
302x220x8mm

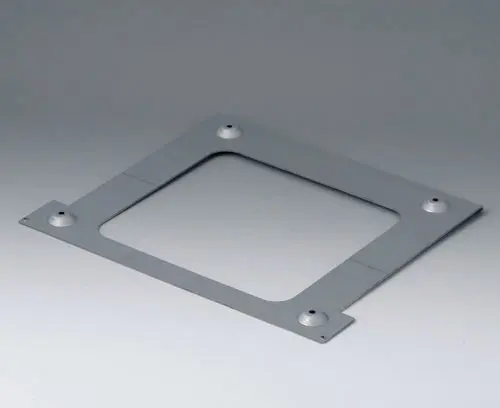

B4130147 Wall suspension element L

B4130147

Wall suspension element L Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

Fechar

B4130147

Wall suspension element L
Produto adicionado a sua lista
Steel
galvanized
214x260x12mm

Opções para customizadas Datec-Terminal

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
