In-Box

Resistentes Caixas Industriais

Caixas para instalações de terminais, bem como para equipamentos eletrônicos, a série IN-BOX oferece opções versáteis para a escolha dos engenheiros elétricos e eletrônicos.

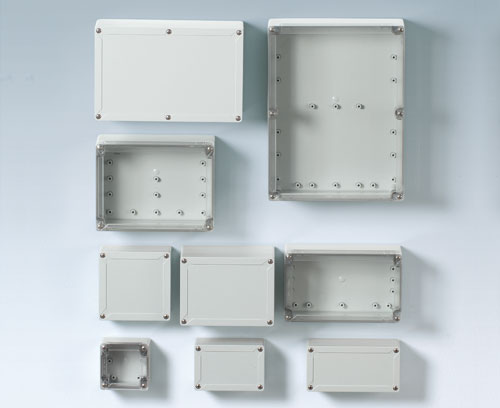

  • nove caixas para base com superfícies em alto brilho e diferentes alturas

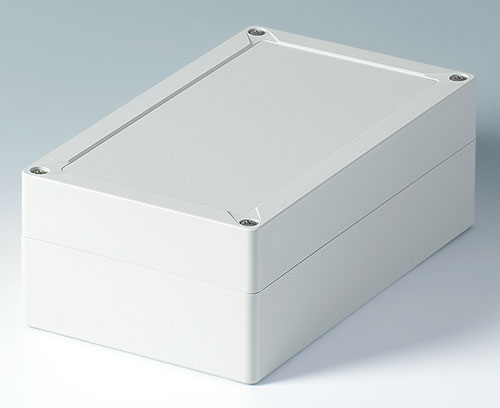

  • dois materiais padrão: ABS (UL 94 HB) ou PC (V-2);
    as caixas completas em PC estão em conformidade com a norma de segurança contra incêndios, norma UL 94 5V (melhor do que V-0), embora o material possua apenas a classificação V-2
  • elevado grau de proteção IP 66/67; junta de vedação pré-espumada na parte frontal
  • alta resistência ao impacto IK07 (ABS) e IK08 (PC)

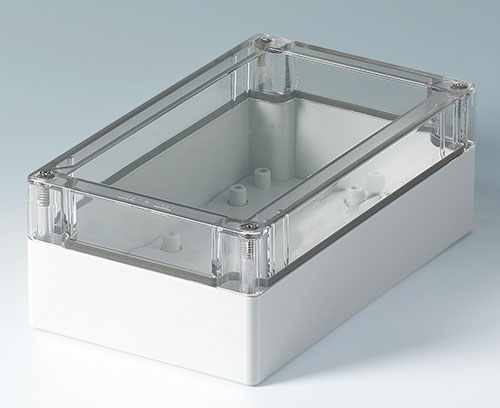

  • partes frontais da caixa com cor ou transparente

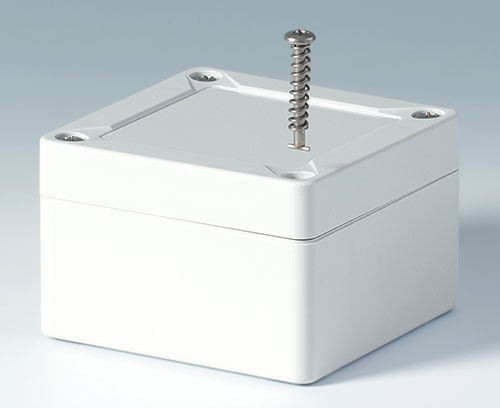

  • eficientes parafusos ao redor da tampa com um quarto de volta em aço inoxidável

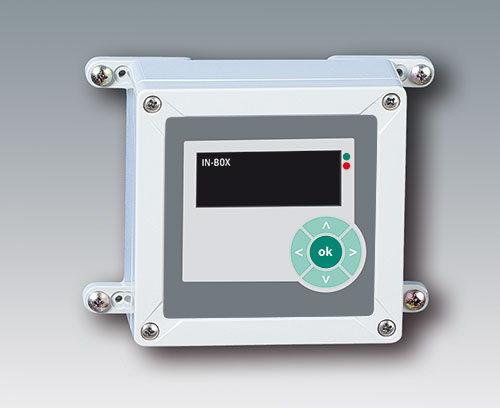

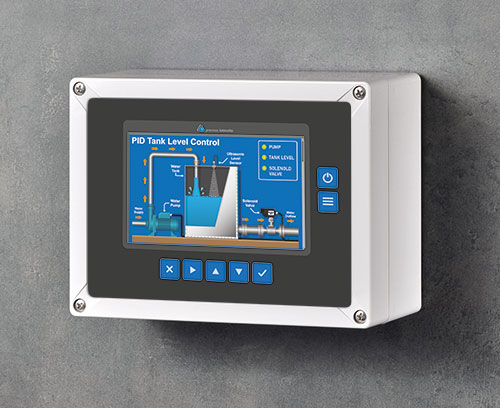

  • área de operação recessada para proteção ao teclado de membrana ou lâmina decorativa/rótulo

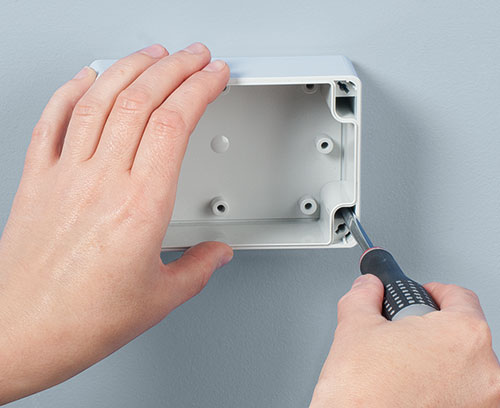

  • montagem direta em parede ou montagem na parede exterior com suportes de montagem; se necessário, um kit de dobradiça interna pode ser fornecido como acessório

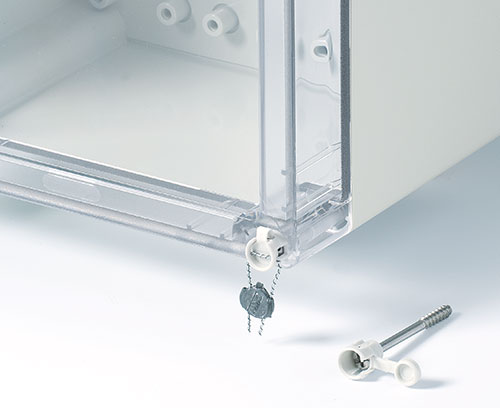

  • kit de segurança opcional para uso com marcas de chumbo

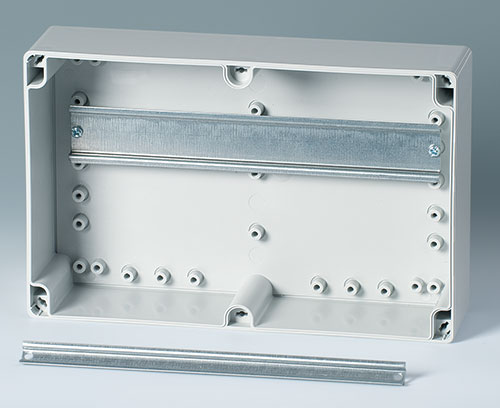

  • trilhos DIN e placas de montagem para instalação e configurações individuais
  • pilares de parafusos internos para PCBs, trilhos DIN e placas de montagem
Generate PDF
  • Exemplos de Aplicação

Application fields

  • Ideal para a indústria eletrônica como instrumentos digitais e analógicos, sensores, interfaces e sistemas de segurança.
  • Além disso, para aplicações elétricas tais como sistemas de aquecimento, clima e ventilação, construção de máquinas e equipamentos de construção.
  • Smart Factory / Industrie 4.0
  • Selecione Versões
  • Acessórios
  • Customizadas

Selecione a versão desejada / o(s) tamanho(s) desejado(s) ou clique no botão „Selecionar todos os produtos“ no final da lista de produtos.

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2306917

Pressure equalisation element M6x0.75
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2310917

Pressure equalisation element M10x1
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137

C2320137

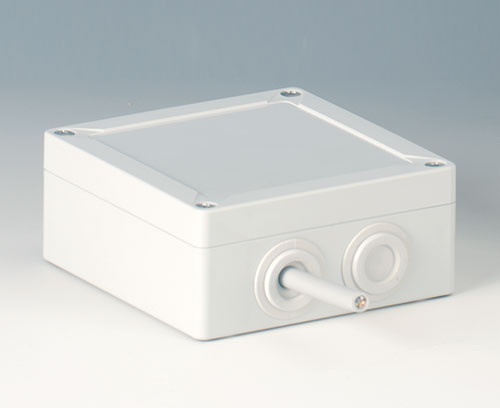

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Fechar

C2320137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67

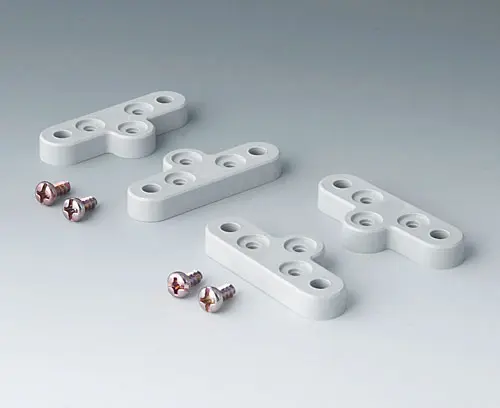

C7100092 Wall-mounting brackets

C7100092

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

Fechar

C7100092

Wall-mounting brackets
Produto adicionado a sua lista
PC GF15

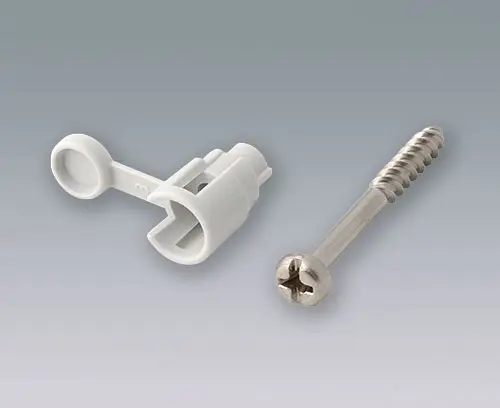

C7100128 Security kit

C7100128

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Fechar

C7100128

Security kit
Produto adicionado a sua lista
PP
C7100138 Security kit

C7100138

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Fechar

C7100138

Security kit
Produto adicionado a sua lista
PP

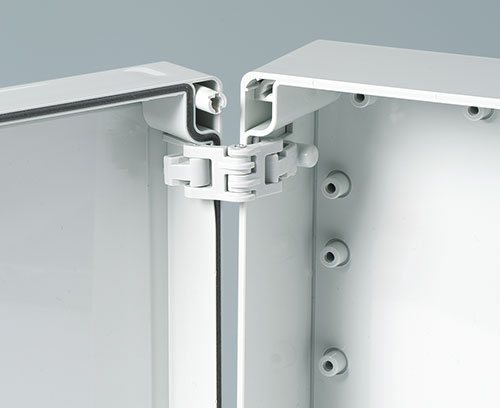

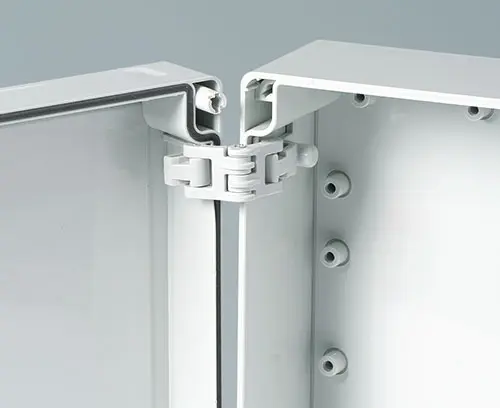

C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

Fechar

C7100142

Inside hinge
Produto adicionado a sua lista
PC

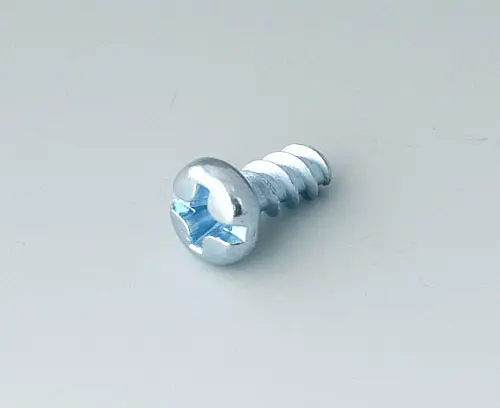

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Fechar

C7100167

Screw 3.9 x 9 mm
Produto adicionado a sua lista

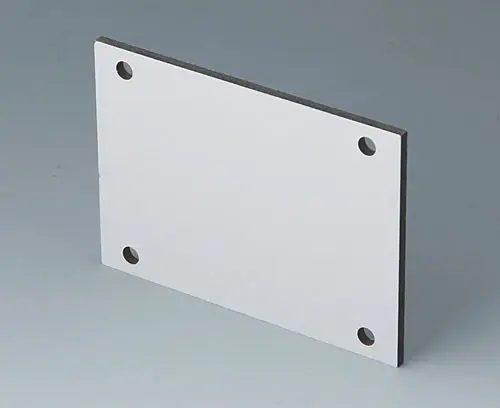

C7110056 Mounting plate

C7110056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7110056

Mounting plate
Produto adicionado a sua lista
73x53x2,5mm

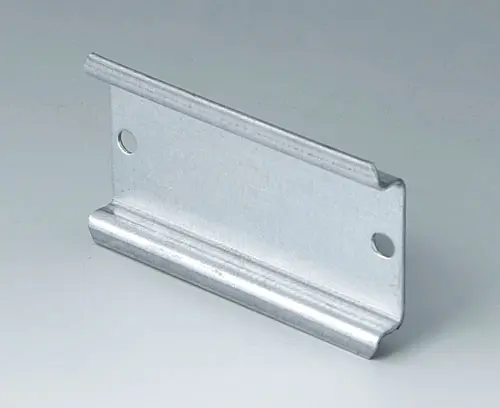

C7110077 Standard DIN rail, Type TH 35

C7110077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7110077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
66x35x7,5mm

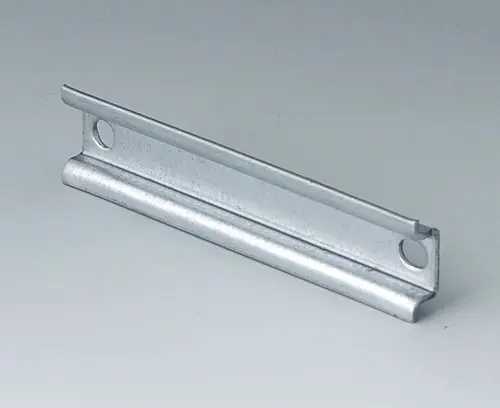

C7110087 Standard DIN rail, Type TH 15

C7110087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7110087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
66x15x5,5mm

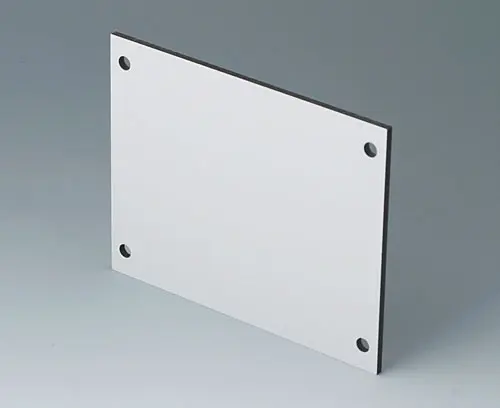

C7111056 Mounting plate

C7111056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7111056

Mounting plate
Produto adicionado a sua lista
91x73x2,5mm

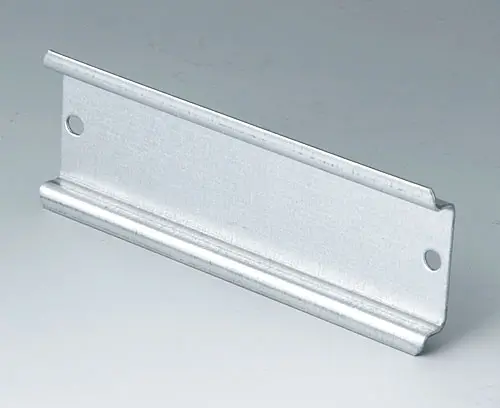

C7111077 Standard DIN rail, Type TH 35

C7111077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7111077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
104x35x7,5mm

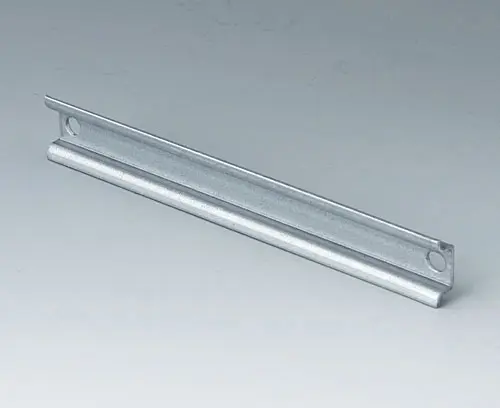

C7111087 Standard DIN rail, Type TH 15

C7111087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7111087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
104x15x5,5mm

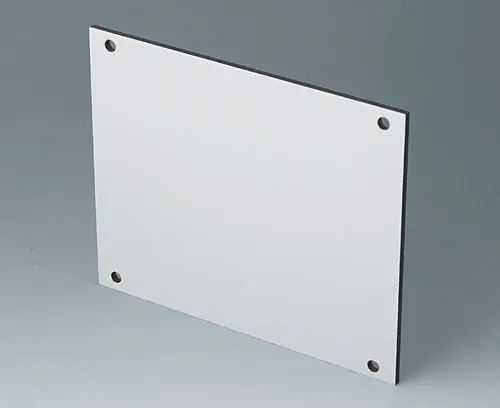

C7112056 Mounting plate

C7112056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7112056

Mounting plate
Produto adicionado a sua lista
113x93x2,5mm

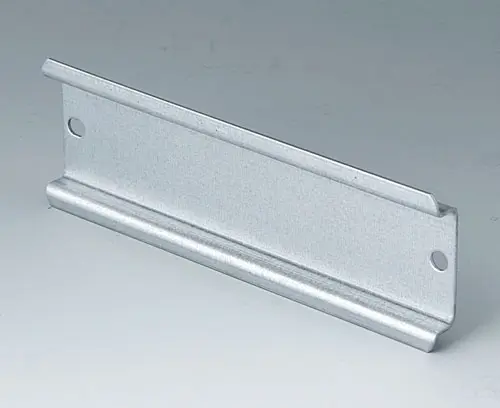

C7112077 Standard DIN rail, Type TH 35

C7112077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7112077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
108x35x7,5mm
C7112087 Standard DIN rail, Type TH 15

C7112087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7112087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
108x15x5,5mm

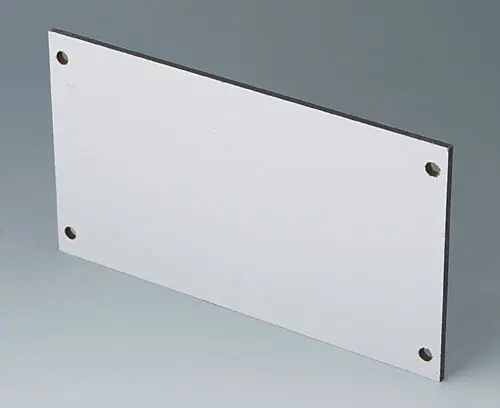

C7113056 Mounting plate

C7113056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7113056

Mounting plate
Produto adicionado a sua lista
131x73x2,5mm
C7113077 Standard DIN rail, Type TH 35

C7113077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7113077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
144x35x7,5mm

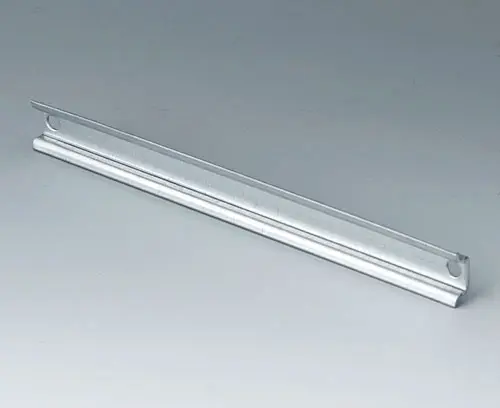

C7113087 Standard DIN rail, Type TH 15

C7113087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7113087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
144x15x5,5mm

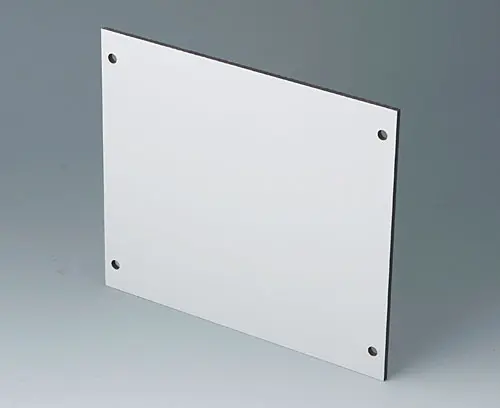

C7114056 Mounting plate

C7114056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7114056

Mounting plate
Produto adicionado a sua lista
131x113x2,5mm

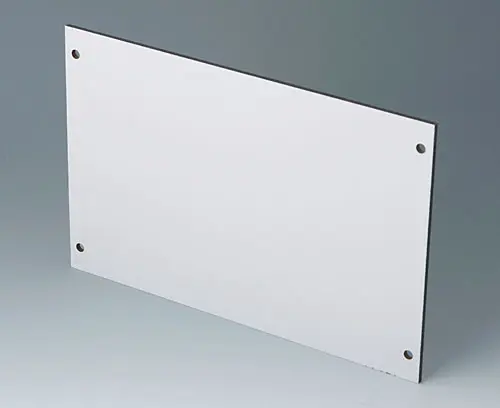

C7115056 Mounting plate

C7115056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7115056

Mounting plate
Produto adicionado a sua lista
171x113x2,5mm

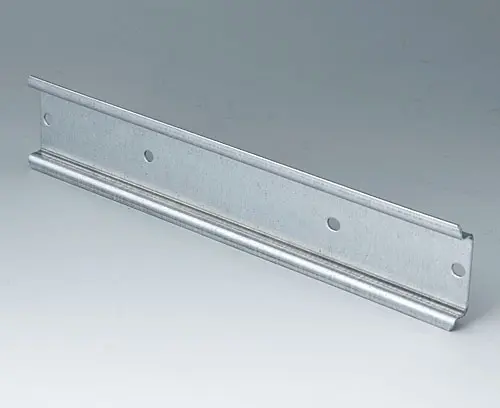

C7115077 Standard DIN rail, Type TH 35

C7115077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7115077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
184x35x7,5mm

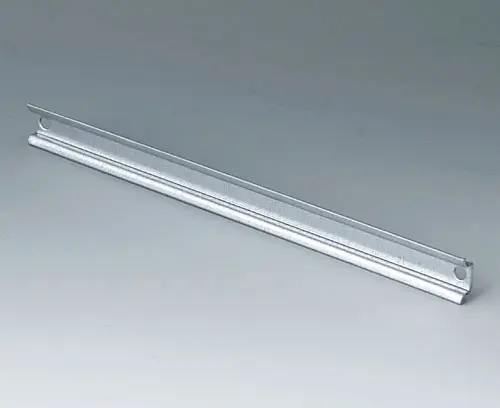

C7115087 Standard DIN rail, Type TH 15

C7115087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7115087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
184x15x5,5mm

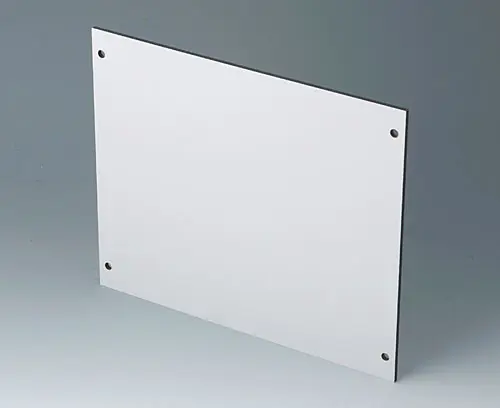

C7116056 Mounting plate

C7116056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7116056

Mounting plate
Produto adicionado a sua lista
171x143x2,5mm

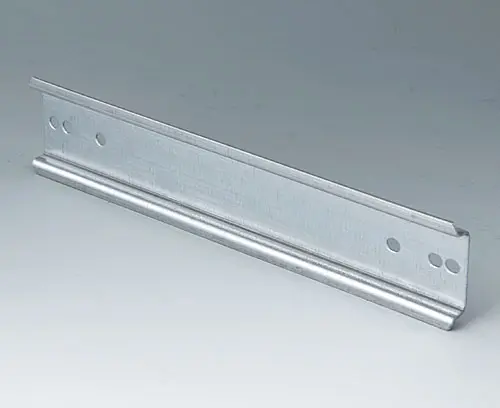

C7116077 Standard DIN rail, Type TH 35

C7116077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7116077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
168x35x7,5mm

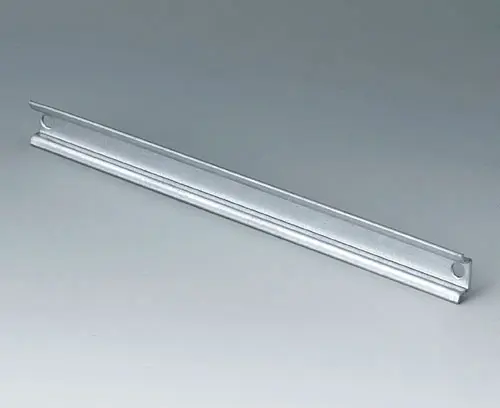

C7116087 Standard DIN rail, Type TH 15

C7116087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7116087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
168x15x5,5mm
C7117056 Mounting plate

C7117056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7117056

Mounting plate
Produto adicionado a sua lista
220,5x152,5x2,5mm

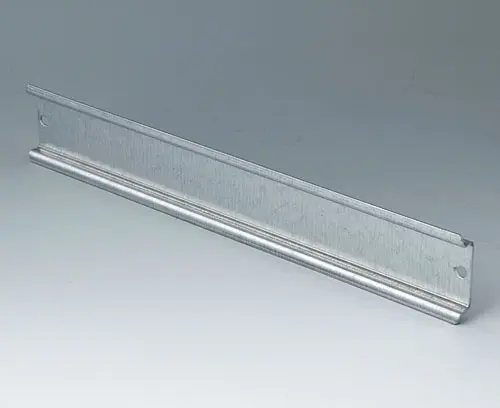

C7117077 Standard DIN rail, Type TH 35

C7117077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7117077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
220x35x7,5mm
C7117087 Standard DIN rail, Type TH 15

C7117087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7117087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
220x15x5,5mm

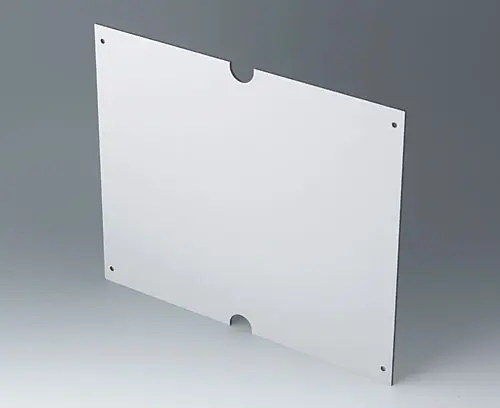

C7118056 Mounting plate

C7118056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7118056

Mounting plate
Produto adicionado a sua lista
270,5x222,5x2,5mm

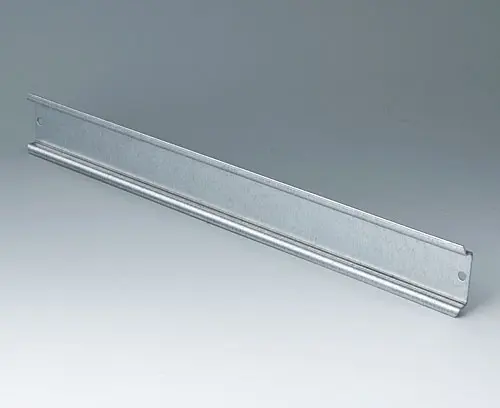

C7118077 Standard DIN rail, Type TH 35

C7118077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7118077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
283,5x35x7,5mm

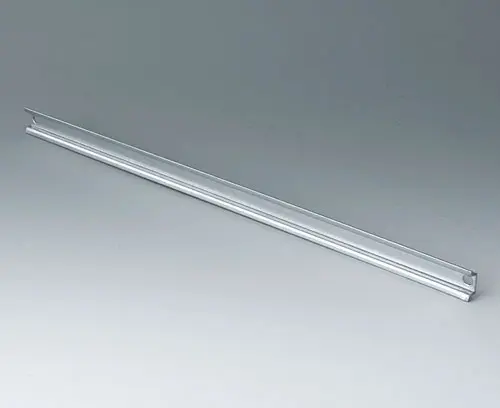

C7118087 Standard DIN rail, Type TH 15

C7118087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7118087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
283,5x15x5,5mm

Opções para customizadas In-Box

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
