Soft-Case

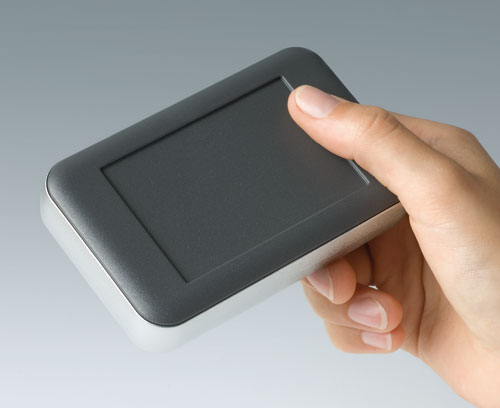

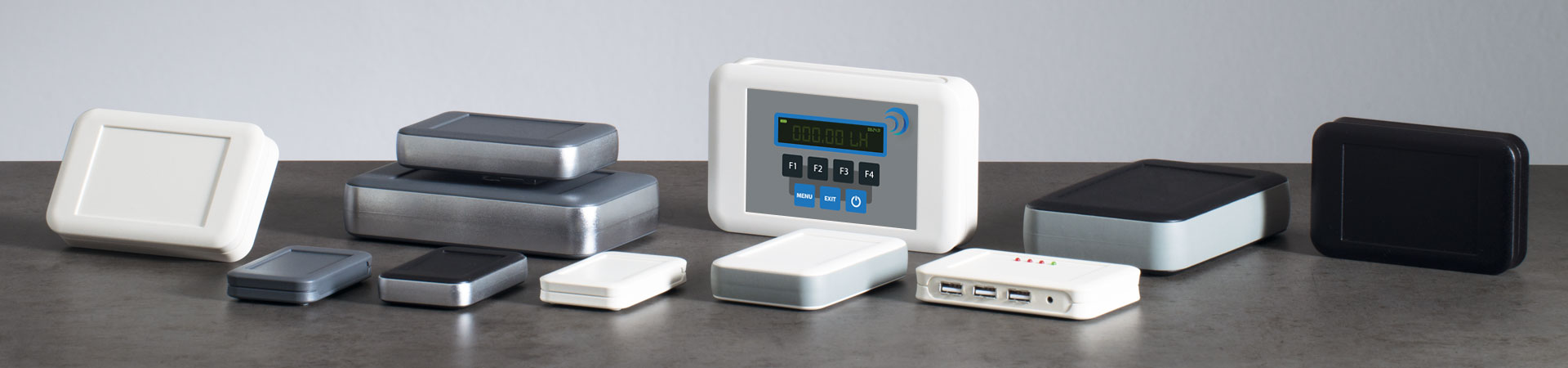

Caixas Portáteis em Amplos Formatos

As caixas SOFT-CASE são reconhecidas pelos engenheiros por atender as atuais necessidades de design e tecnologia.

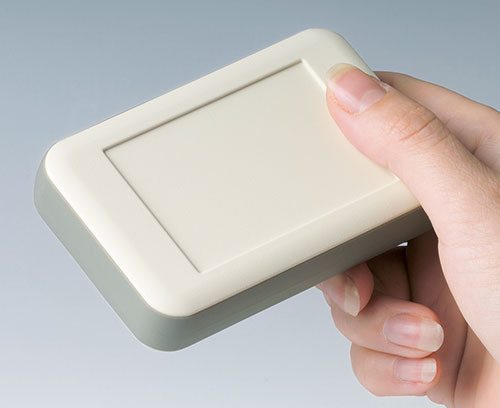

  • Projeto acessível com contornos suaves que proporciona toque com agradável sensação

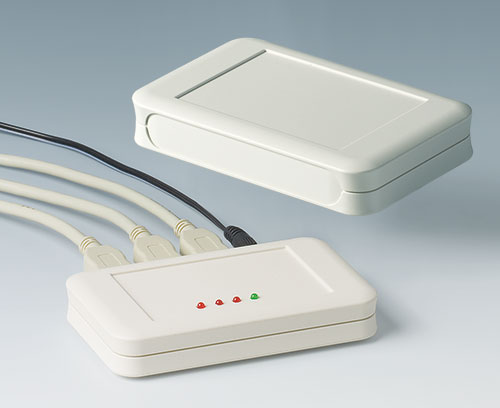

  • "grande formato" único, oferece uma vasta área de interface, bem como espaço suficiente para telas maiores, ao mesmo tempo, garantindo o conforto do usuário
  • removendo o painel de montagem do conector na extremidade maior permite acomodar mais conexões
  • uso universal para portáteis, mesa de trabalho e aplicações em suporte de parede

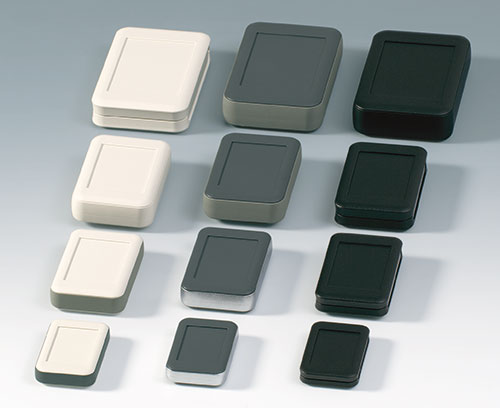

  • quatro tamanhos

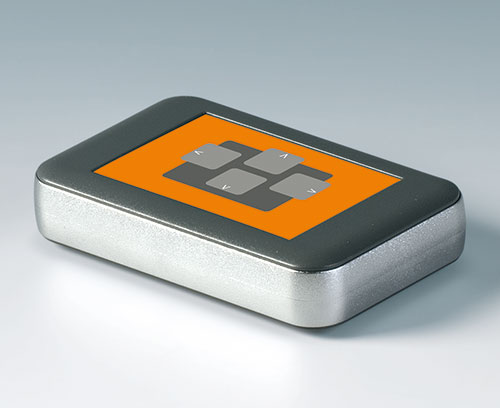

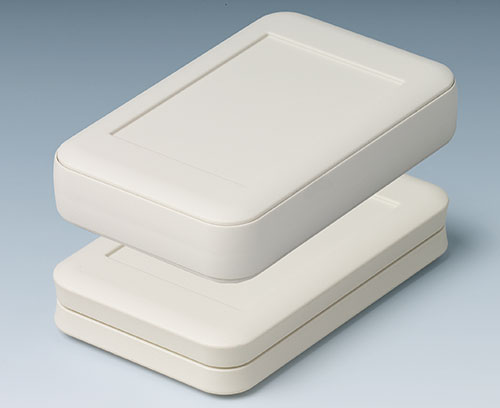

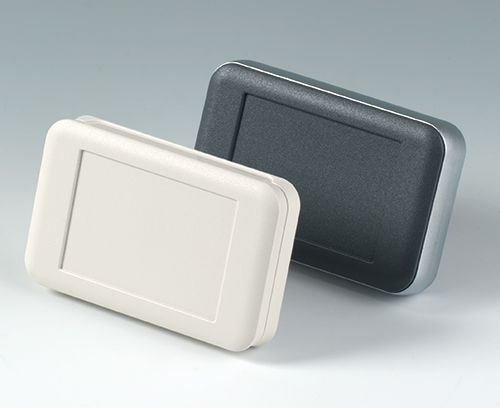

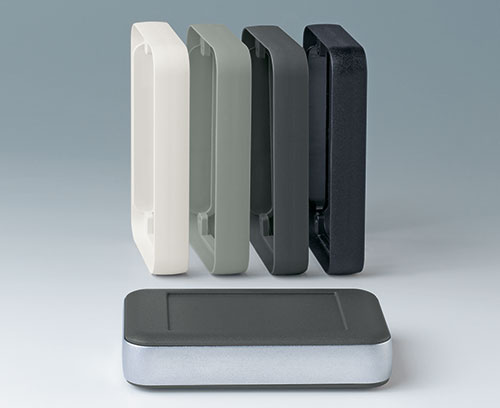

  • anéis intermediários opcionais proporcionam mais altura de instalação. Diferentes versões: anéis ABS na cor da caixa ou cromados, anel TPE suave
  • com anel TPE suave e possível classe de proteção IP 54 (caixa na versão sem compartimento da bateria em ABS ou PMMA)

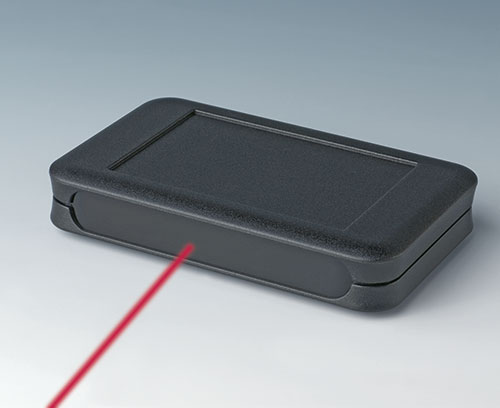

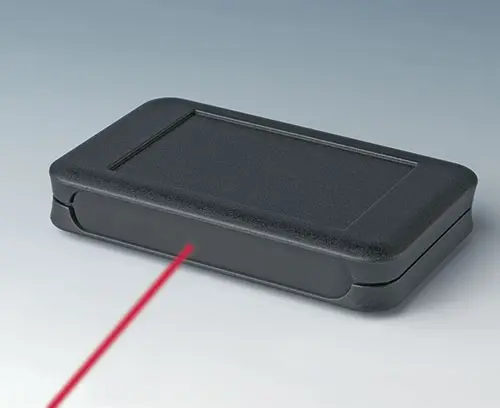

  • dois materiais: ABS (UL 94 HB) ou PMMA luz infravermelha permeável (UL 94 HB)

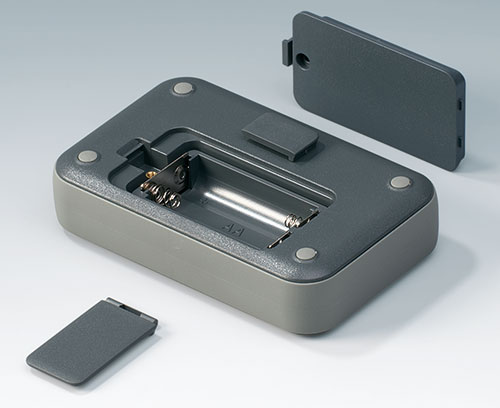

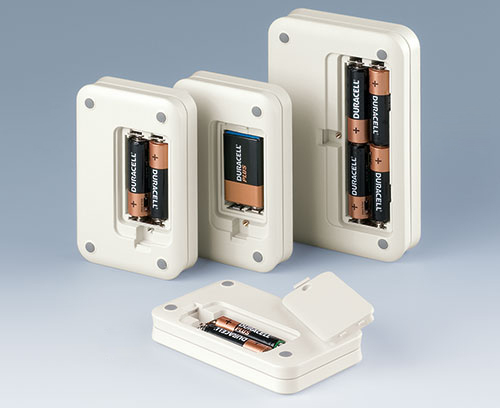

  • com ou sem compartimento de bateria para 2 x AAA, 2 x AA, 4 x AA ou 1 x 9 V;
  • grampo na tampa do compartimento de bateria pode ser fixa com parafuso

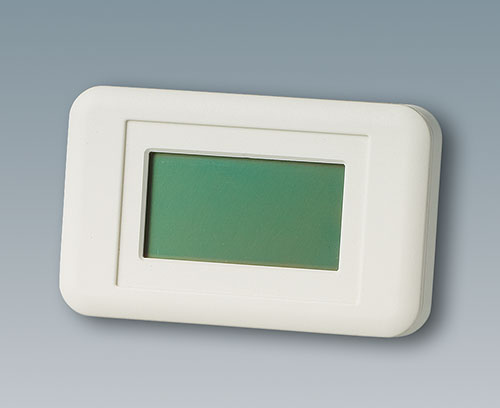

  • área de operação com recesso para proteger o teclado de membrana ou folha decorativa/etiqueta

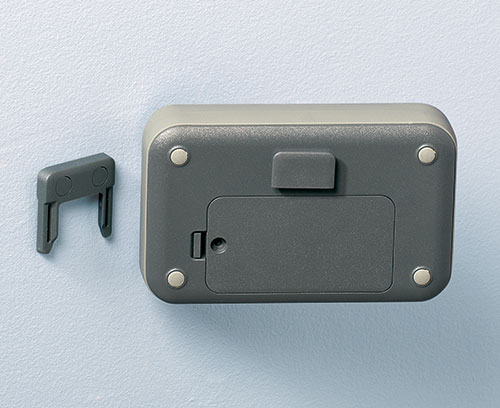

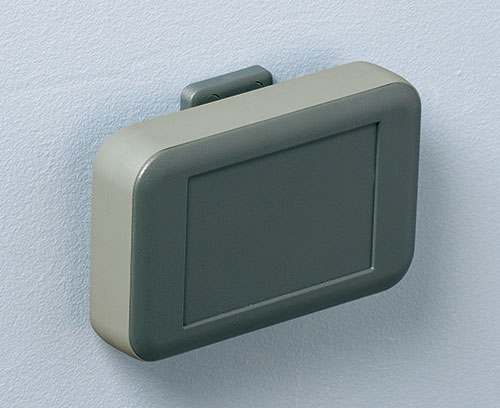

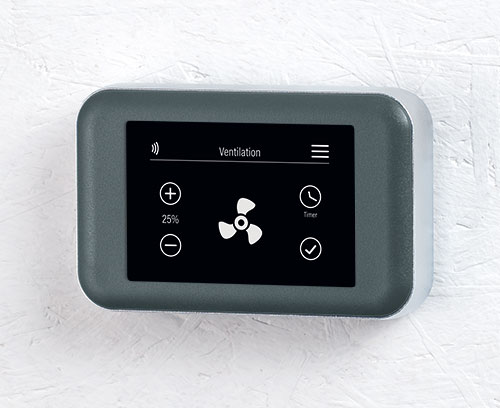

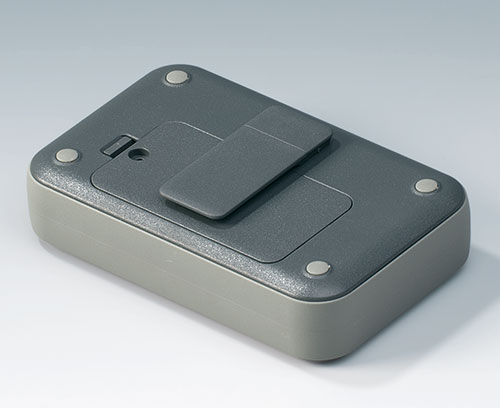

  • combi-clip serve como um clipe de cinto e/ou elemento de suspensão de parede (acessório)

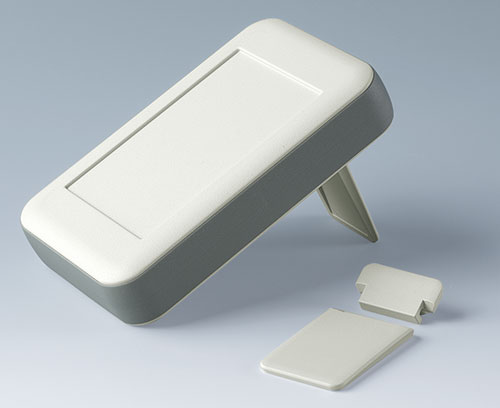

  • barra de inclinação do pé para ergonomia sobre uma mesa

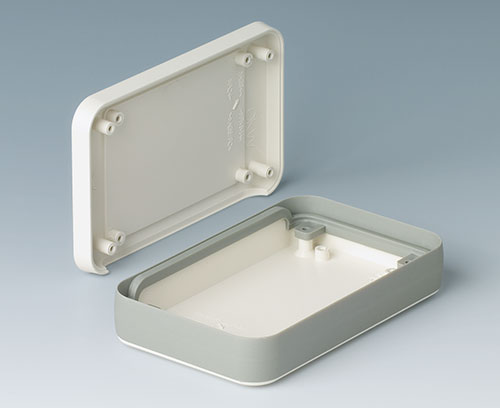

  • pilares de fixação internos para montagem de PCBs
Generate PDF
  • Exemplos de Aplicação

Application fields

  • Todos os tipos de dispositivos de controle remoto, sem fio ou com cabo

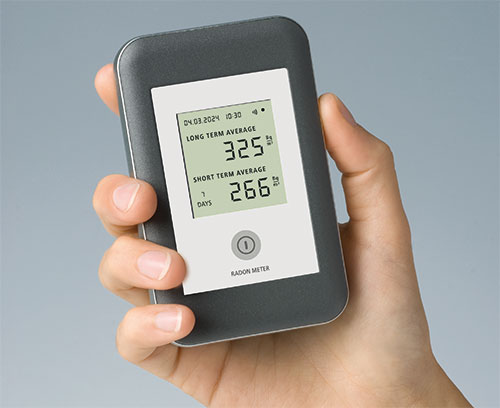

  • Medição e engenharia de controle
  • Tecnologia de controle digital

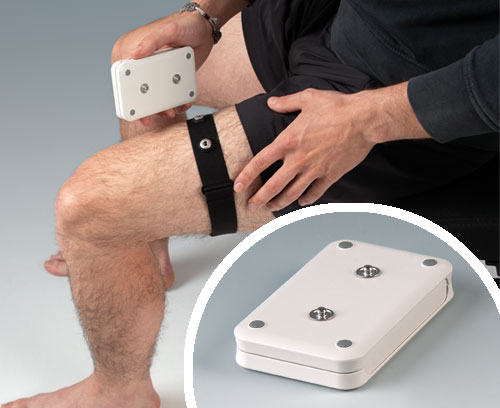

  • Médica e laboratório de tecnologia
  • Periféricos e equipamentos de interface
  • Tecnologia de comunicações
  • IoT/IIoT
  • Selecione Versões
  • Acessórios
  • Customizadas

Selecione a versão desejada / o(s) tamanho(s) desejado(s) ou clique no botão „Selecionar todos os produtos“ no final da lista de produtos.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista

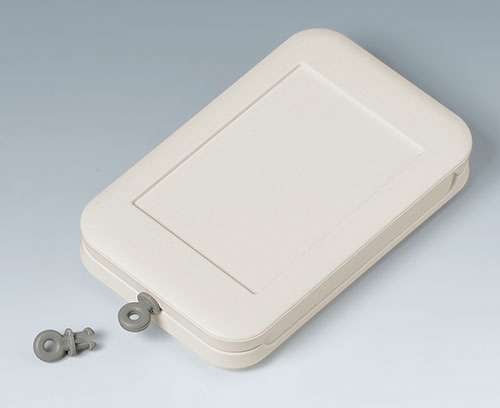

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Fechar

A9100001

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Fechar

A9100002

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9150011 Intermediate ring S

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Fechar

A9150011

Intermediate ring S
Produto adicionado a sua lista
ABS (UL 94 HB)
matt chromed
54x85x12mm
A9150017 Intermediate ring S

A9150017

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9150017

Intermediate ring S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
54x85x12mm
A9150018 Intermediate ring S

A9150018

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9150018

Intermediate ring S
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
54x85x12mm
A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9150118

Intermediate protection ring S
Produto adicionado a sua lista
SEBS (TPE)
volcano
54x85x12mm
A9150219 Intermediate ring S

A9150219

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Fechar

A9150219

Intermediate ring S
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
54x85x12mm
A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Fechar

A9151010

Set of battery clips, 2 x AAA
Produto adicionado a sua lista
Steel
nickel-plated
A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Fechar

A9151011

Intermediate ring M
Produto adicionado a sua lista
ABS (UL 94 HB)
matt chromed
68x108x16mm
A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9151017

Intermediate ring M
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm
A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9151018

Intermediate ring M
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
68x108x16mm
A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9151118

Intermediate protection ring M
Produto adicionado a sua lista
SEBS (TPE)
volcano
68x108x16mm
A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Fechar

A9151219

Intermediate ring M
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm
A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Fechar

A9152010

Set of battery clips, 2/4 x AA
Produto adicionado a sua lista
Steel
nickel-plated
A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Fechar

A9152011

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
matt chromed
76x120x21mm
A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152017

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152018

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
76x120x21mm
A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Fechar

A9152047

Combi-Clip
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
45x27mm
A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Fechar

A9152048

Combi-Clip
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
45x27mm
A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Fechar

A9152049

Combi-Clip
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
45x27mm
A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Fechar

A9152057

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Fechar

A9152058

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Fechar

A9152059

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152118

Intermediate protection ring L
Produto adicionado a sua lista
SEBS (TPE)
volcano
76x120x21mm
A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Fechar

A9152219

Intermediate ring L
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm
A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Fechar

A9153011

Intermediate ring XL
Produto adicionado a sua lista
ABS (UL 94 HB)
matt chromed
96x154x26mm
A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Fechar

A9153017

Intermediate ring XL
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm
A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Fechar

A9153018

Intermediate ring XL
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
96x154x26mm
A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Fechar

A9153118

Intermediate ring XL
Produto adicionado a sua lista
SEBS (TPE)
volcano
96x154x26mm
A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Fechar

A9153219

Intermediate ring XL
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Fechar

A9174006

Set of battery clips, 1 x 9 V
Produto adicionado a sua lista
Steel
tin-plated
B9106128 Strap eyelet

B9106128

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

Fechar

B9106128

Strap eyelet
Produto adicionado a sua lista
ABS (UL 94 HB)
lava

Opções para customizadas Soft-Case

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
