C7030114 IN-BOX
Scroll

C7030114

IN-BOX

Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply

1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Desenho PDF 2D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para C7030114

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "protection"

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2306917

Pressure equalisation element M6x0.75
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Fechar

C2310917

Pressure equalisation element M10x1
Produto adicionado a sua lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Fechar

C2320137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67
C7100138 Security kit

C7100138

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Fechar

C7100138

Security kit
Produto adicionado a sua lista
PP

Accessory "wall/holder"

C7100092 Wall-mounting brackets

C7100092

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

Fechar

C7100092

Wall-mounting brackets
Produto adicionado a sua lista
PC GF15
C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

Fechar

C7100142

Inside hinge
Produto adicionado a sua lista
PC

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Fechar

C7100167

Screw 3.9 x 9 mm
Produto adicionado a sua lista

Accessory

C7118056 Mounting plate

C7118056

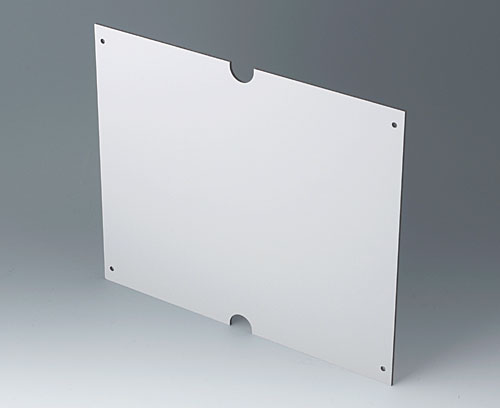

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Fechar

C7118056

Mounting plate
Produto adicionado a sua lista
270,5x222,5x2,5mm
C7118077 Standard DIN rail, Type TH 35

C7118077

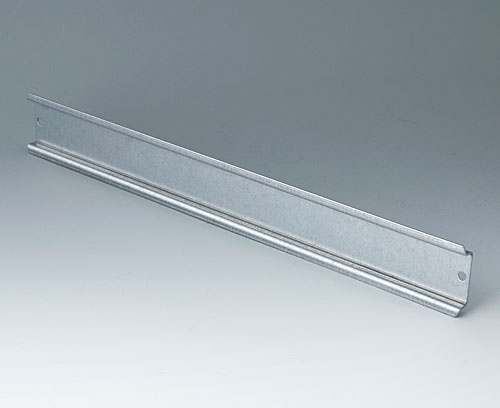

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Fechar

C7118077

Standard DIN rail, Type TH 35
Produto adicionado a sua lista
Steel
283,5x35x7,5mm
C7118087 Standard DIN rail, Type TH 15

C7118087

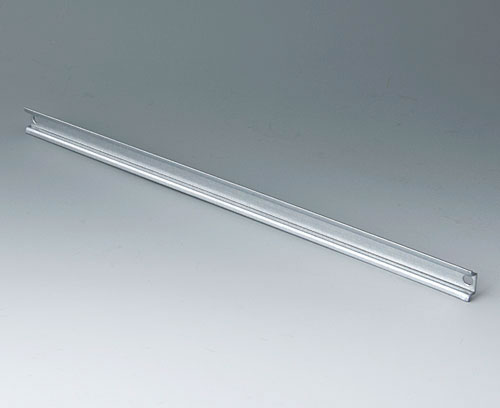

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Fechar

C7118087

Standard DIN rail, Type TH 15
Produto adicionado a sua lista
Steel
283,5x15x5,5mm

Customising options for C7030114

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS/PC (UL 94 HB)
Protection class
IP 66, IP 67, IK 07
Colour
Bottom part light grey RAL 7035,
Top part transparent
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
302 mm
Width
232 mm
Height
110 mm
PCB length, base
270,5 mm
PCB width, base
222,5 mm
Keypad length
274,9 mm
Keypad width
204,8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
932 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
