A9052209 SOFT-CASE L
Scroll

A9052209

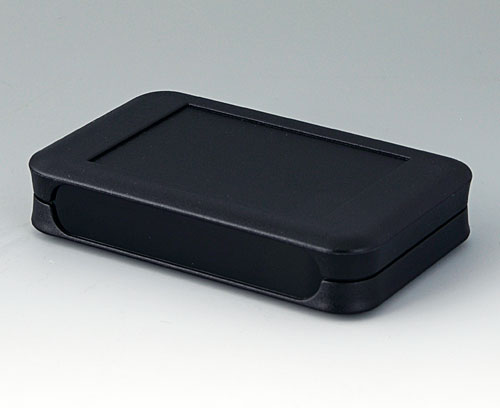

SOFT-CASE L

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.

Version

Without battery compartment

Supply

Top and bottom part, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9052209

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "intermediate ring"

A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Fechar

A9152011

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
matt chromed
76x120x21mm
A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152017

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152018

Intermediate ring L
Produto adicionado a sua lista
ABS (UL 94 HB)
lava
76x120x21mm
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Fechar

A9152118

Intermediate protection ring L
Produto adicionado a sua lista
SEBS (TPE)
volcano
76x120x21mm
A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Fechar

A9152219

Intermediate ring L
Produto adicionado a sua lista
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm

Accessory "wall/holder"

A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Fechar

A9152049

Combi-Clip
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
45x27mm

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Fechar

A9100001

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano
A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Fechar

A9152049

Combi-Clip
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
45x27mm

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Fechar

A9152059

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A9052209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações

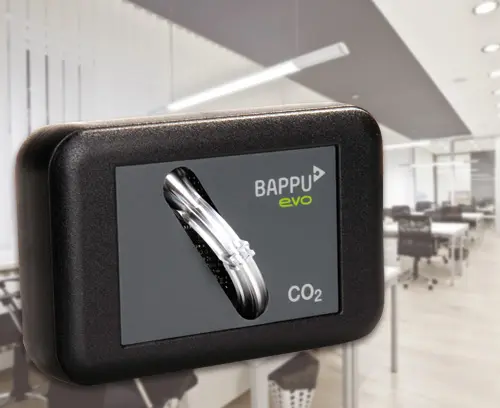

  • Exemplos de Aplicação
  • Purchasing Data
Material
PMMA (IR) (UL 94 HB)
Protection class
IP 54 opt.
Necessary accessories: soft TPE intermediate ring, IP 40
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
73 mm
Width
117 mm
Height
24 mm
PCB length, base
63 mm
PCB width, base
108 mm
PCB length, top
63 mm
PCB width, top
108 mm
Keypad length
51,5 mm
Keypad width
77,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
64 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
