A9010065

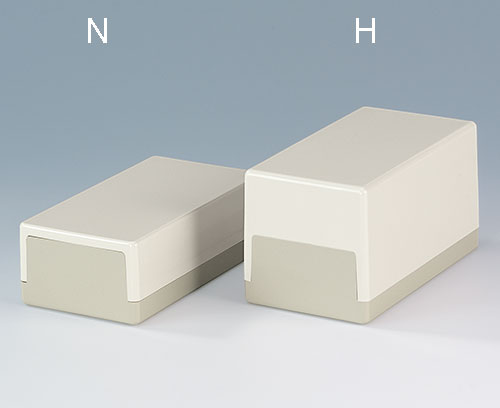

FLAT-PACK CASES 100 N, Vers. I

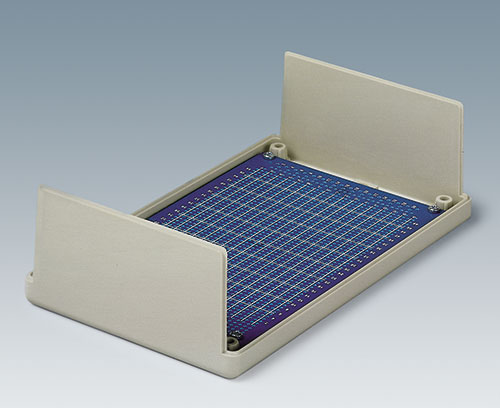

Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 100 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
100x50x25mm
IP 40
A9011065
FLAT-PACK CASES 100 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 100 H, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
100x50x40mm
IP 40
A9020065
FLAT-PACK CASES 120 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 120 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9020265
FLAT-PACK CASE 120 S
Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 120 S
ABS
(UL 94 HB)
off-white RAL 9002
120x65x40mm
A9021065
FLAT-PACK CASE 120 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 120 H, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
120x65x65mm
IP 40
A9030065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 150 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40

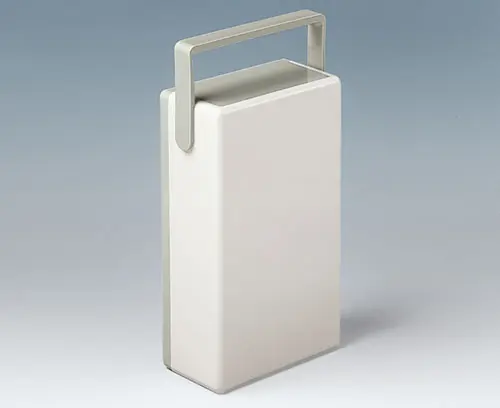

A9030165
FLAT-PACK CASES 150 N, Vers. II
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
With handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 150 N, Vers. II
ABS
(UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40
A9031065
FLAT-PACK CASE 150 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
without handle bar.
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 150 H, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
150x80x80mm
IP 40
A9032065
FLAT-PACK CASES 150 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, assembly kit and 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 150 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
150x80x55mm
IP 40
A9040065
FLAT-PACK CASES 189 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 189 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40
A9040165
FLAT-PACK CASES 189 N, Vers. II
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
With handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 189 N, Vers. II
ABS
(UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40
A9041065
FLAT-PACK CASE 189 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 189 H, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40
A9041165
FLAT-PACK CASE 189 H, Vers. II
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
With handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 189 H, Vers. II
ABS
(UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40
A9042065
FLAT-PACK CASE 189 H, Vers. I
Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 189 H, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
189x110x120mm
IP 40
A9043065
FLAT-PACK CASES 189 N, Vers. I
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
Version
Without handle bar
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASES 189 N, Vers. I
ABS
(UL 94 HB)
off-white RAL 9002
189x110x70mm
IP 40
A9043265

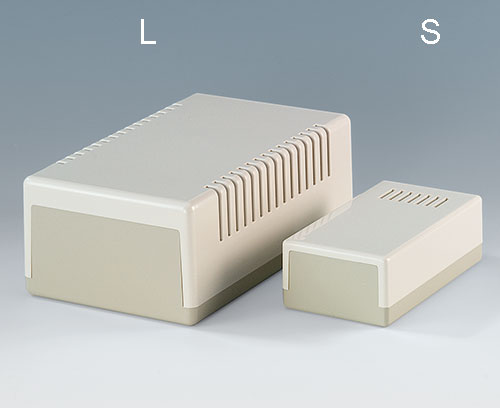

FLAT-PACK CASE 189 L
Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.
Supply
1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs
关闭
FLAT-PACK CASE 189 L
ABS
(UL 94 HB)
off-white RAL 9002
189x110x70mm

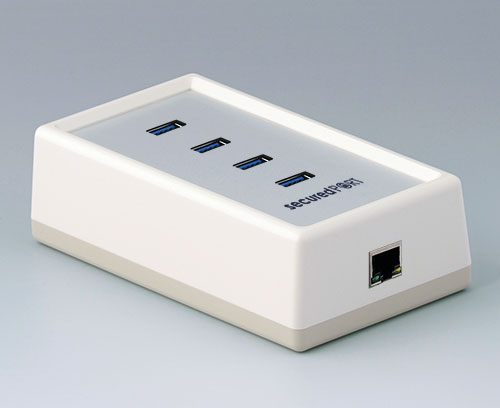

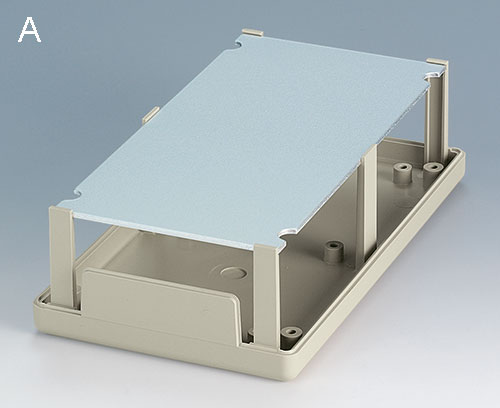

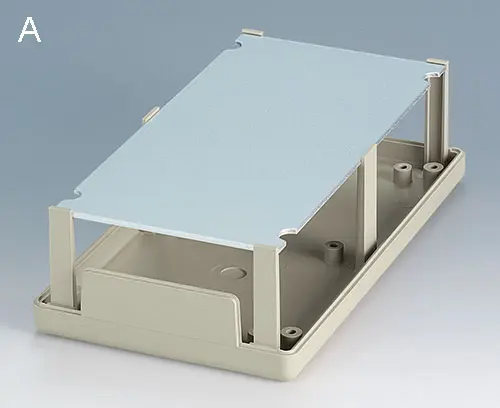

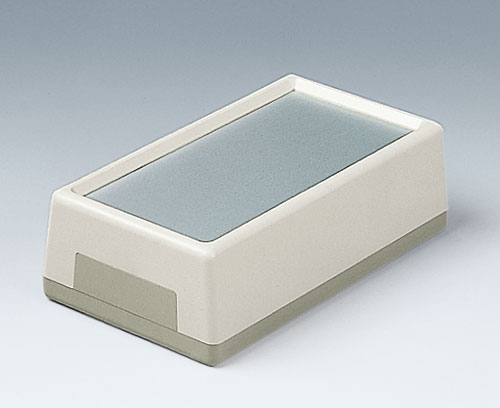

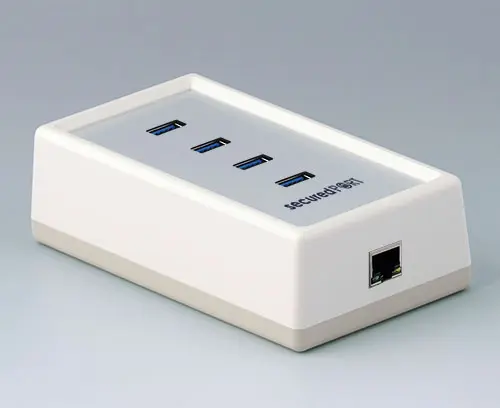

A9520165
FLAT-PACK CASE 120 A
Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply
1 top and base part, assembly kit
关闭
FLAT-PACK CASE 120 A
ABS
(UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40
A9530165
FLAT-PACK CASE 150 A
Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply
1 top and base part, assembly kit
关闭
FLAT-PACK CASE 150 A
ABS
(UL 94 HB)
off-white RAL 9002
150x85x45mm
IP 40
A9540165
FLAT-PACK CASE 210 A
Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply
1 top and base part, assembly kit
关闭
FLAT-PACK CASE 210 A
ABS
(UL 94 HB)
off-white RAL 9002
210x125x70mm
IP 40
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screw 3 x 8 mm (T10)
Stainless steel

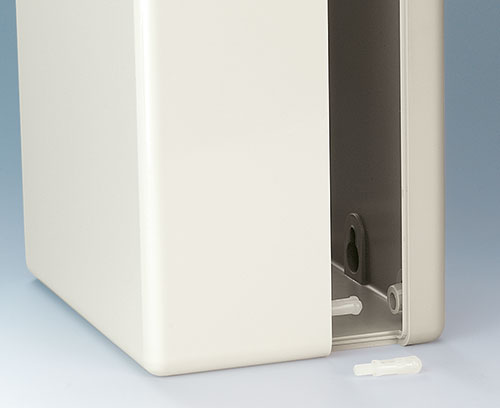

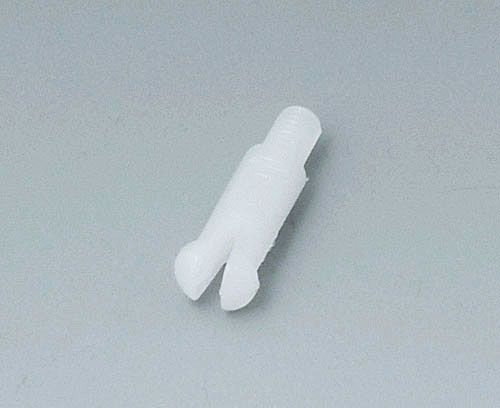

A9100008
Snap-lock
Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.
Supply
1 snap lock
关闭
Snap-lock
PA 6
(UL 94 HB)
natural-coloured

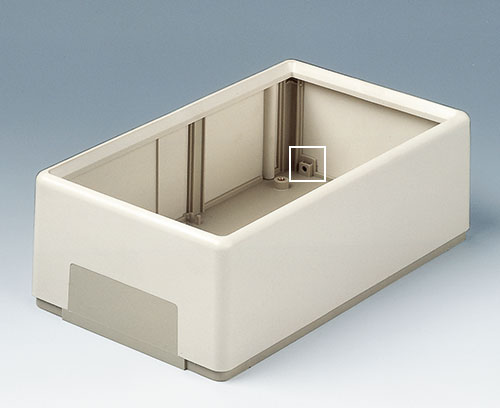

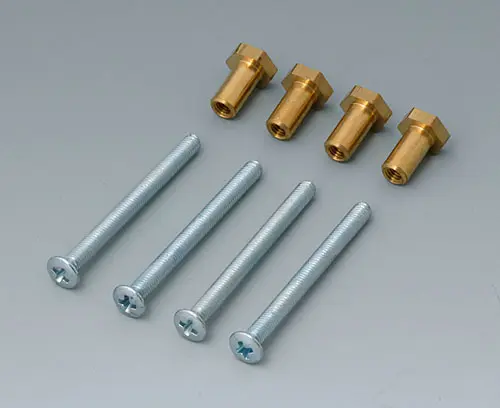

A9120000

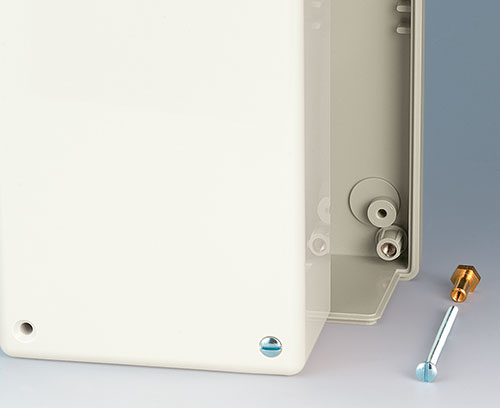

Assembly kit for wall mounting
Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.
Supply
1 assembly kit with 4/2 screws and counternuts
关闭
Assembly kit for wall mounting

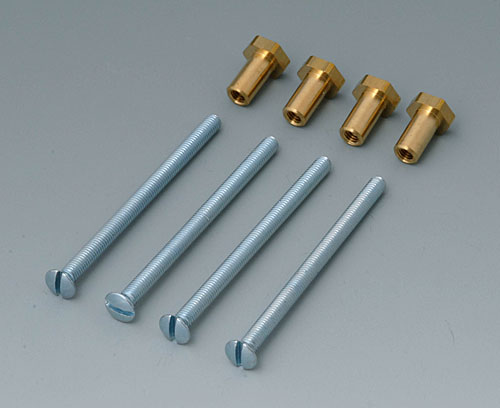

A9130000
Assembly kit for wall mounting
Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.
Supply
1 assembly kit with 4/2 screws and counternuts
关闭
Assembly kit for wall mounting

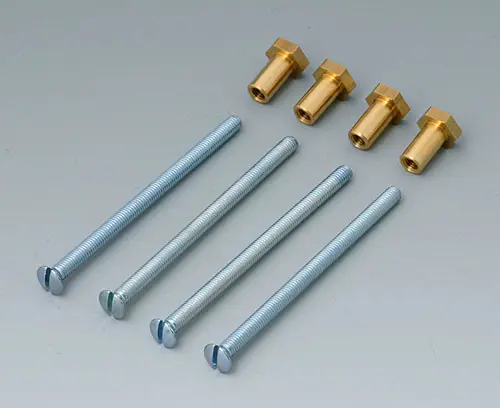

A9132000
Assembly kit for wall mounting
Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.
Supply
1 assembly kit with 4/2 screws and counternuts
关闭
Assembly kit for wall mounting

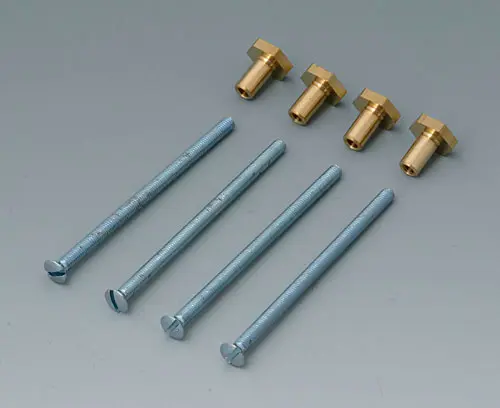

A9140000
Assembly kit for wall mounting
Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.
Supply
1 assembly kit with 4/2 screws and counternuts
关闭
Assembly kit for wall mounting
A9172107
Belt/Pocket clip
Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.
Supply
1 belt/pocket clip, assembly kit
关闭
Belt/Pocket clip
ABS
(UL 94 HB)
off-white RAL 9002
62x30mm

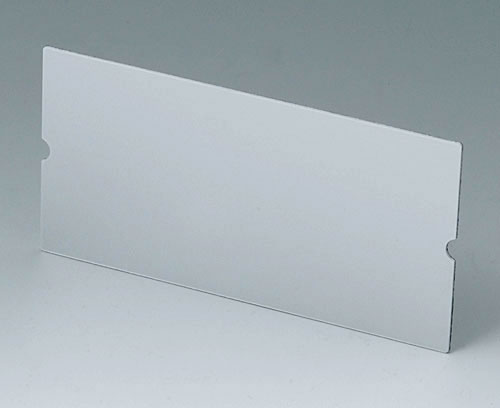

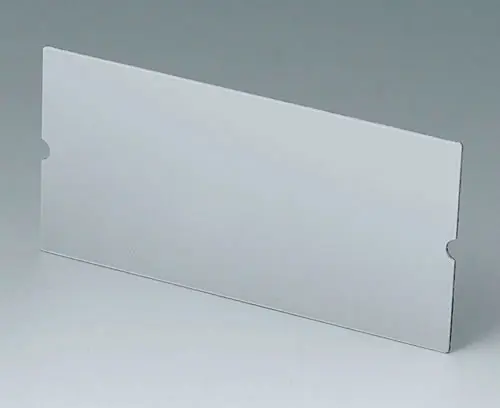

A9195201
Front panel 120 A
Front panel for FLAT-PACK CASE A9520165.
Supply
1 front panel
关闭
Front panel 120 A
Aluminium
matt anodised
113x58x1mm

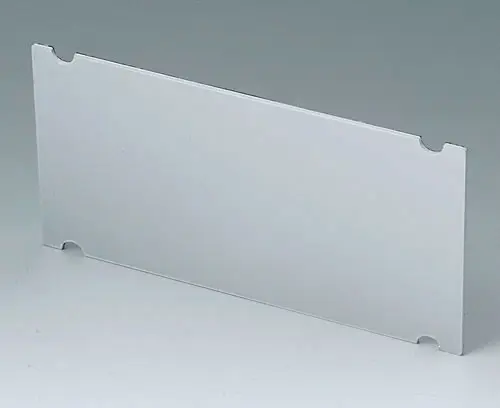

A9195301
Front panel 150 A
Front panel for FLAT-PACK CASE A9530165.
Supply
1 front panel
关闭
Front panel 150 A
Aluminium
matt anodised
141.8x71.6x1.5mm
A9195401
Front panel 210 A
Front panel for FLAT-PACK CASE A9540165.
Supply
1 front panel
关闭
Front panel 210 A
Aluminium
matt anodised
201x116x1.5mm
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
关闭
Anti-slide feet 6.5 x 2 mm
transparent

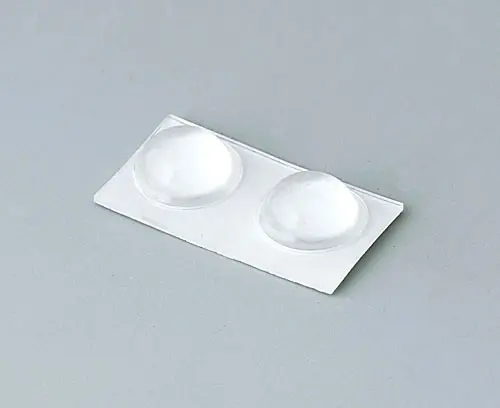

A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
关闭
Anti-slide feet 9.5 x 3.8 mm
transparent
A9250807
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply
1 tilt foot bar, assembly kit
关闭
Tilt foot bar
ABS
(UL 94 HB)
off-white RAL 9002

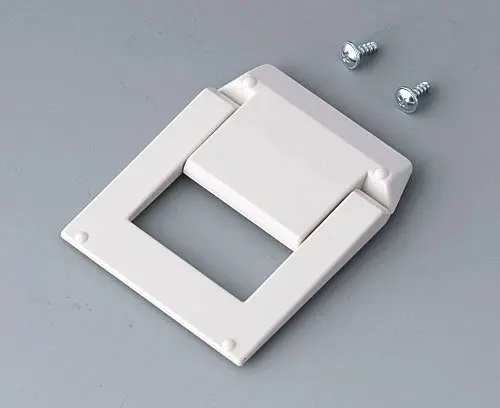

A9250817
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.
Supply
1 tilt foot bar, assembly kit
关闭
Tilt foot bar
ABS
(UL 94 HB)
off-white RAL 9002

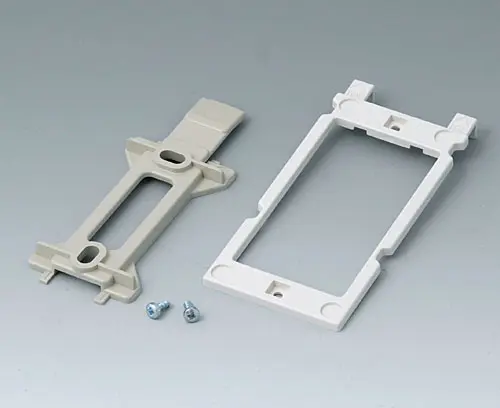

B1350048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply
1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
关闭
Wall suspension elements
ABS
(UL 94 HB)
pebble grey RAL 7032
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply
1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
关闭
Wall suspension elements
ABS
(UL 94 HB)
pebble grey RAL 7032

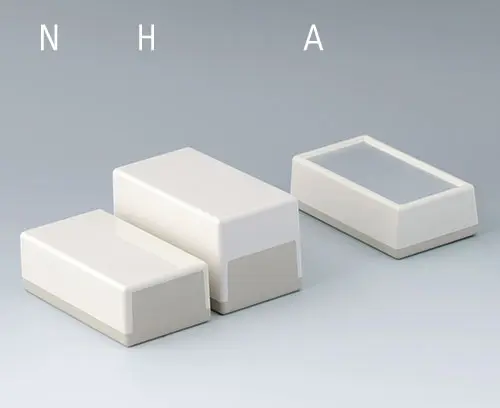

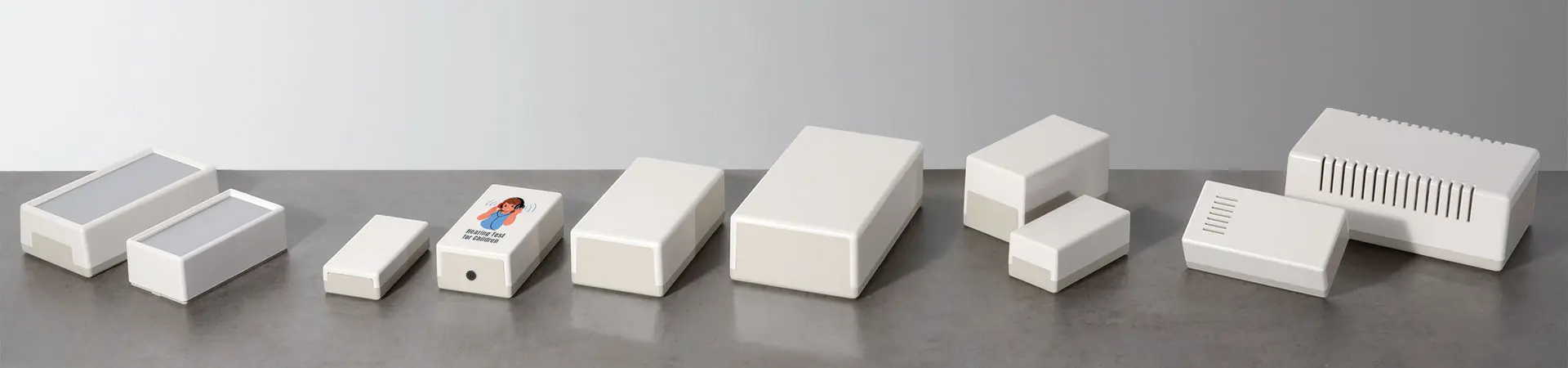

产品类型用于 Flat-Pack Case 扁平机盒
