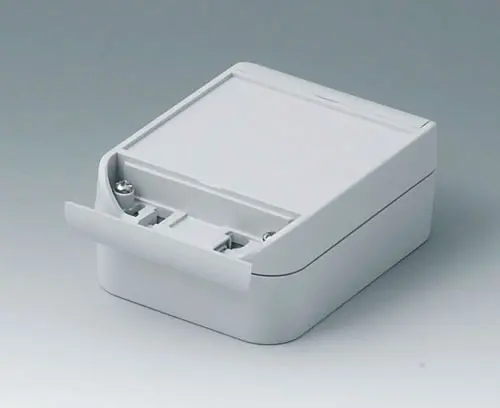

C6009121
SMART-BOX WIDTH 90

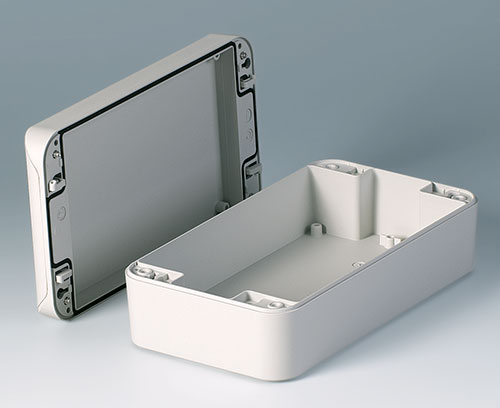

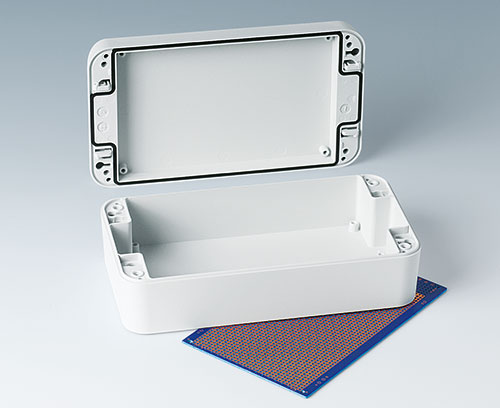

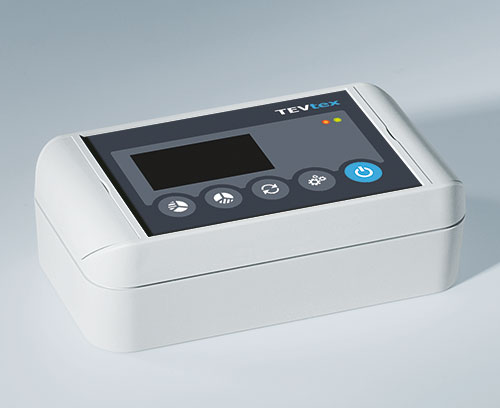

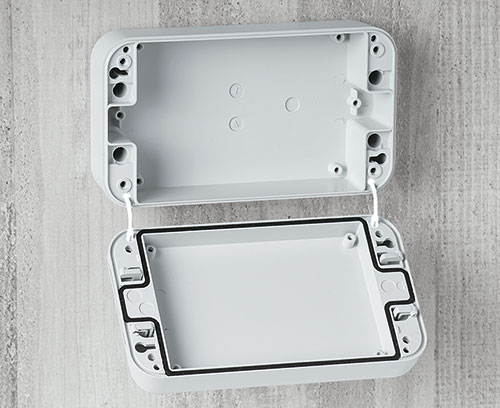

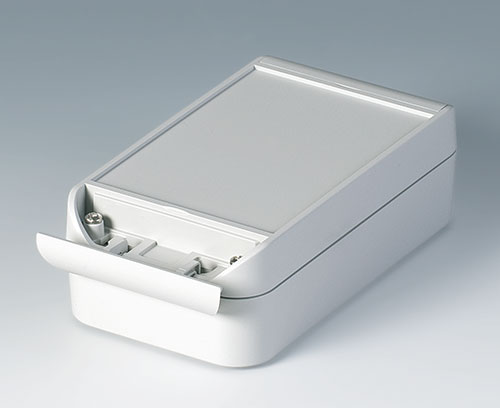

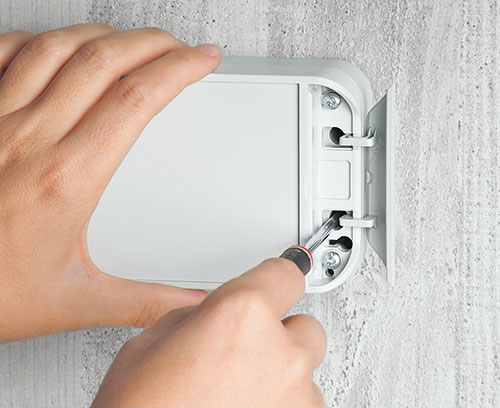

Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 90
ASA+PC
(UL 94 V-0)
light grey RAL 7035
120x90x50mm
IP 66

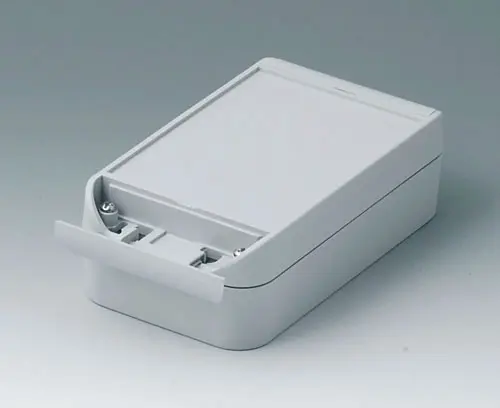

C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 90
ASA+PC
(UL 94 V-0)
light grey RAL 7035
160x90x50mm
IP 66
C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 110
ASA+PC
(UL 94 V-0)
light grey RAL 7035
140x110x60mm
IP 66
C6011201
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 110
ASA+PC
(UL 94 V-0)
light grey RAL 7035
200x110x60mm
IP 66
C6013161
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 130
ASA+PC
(UL 94 V-0)
light grey RAL 7035
160x130x60mm
IP 66
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 130
ASA+PC
(UL 94 V-0)
light grey RAL 7035
220x130x60mm
IP 66
C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 150
ASA+PC
(UL 94 V-0)
light grey RAL 7035
180x150x60mm
IP 66
C6017281
SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply
1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
关闭
SMART-BOX WIDTH 170
ASA+PC
(UL 94 V-0)
light grey RAL 7035
280x170x60mm
IP 65
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.
Supply
1 self-tapping screw
关闭
Self-tapping screw 3 x 8 mm (T10)
Stainless steel
C2299018

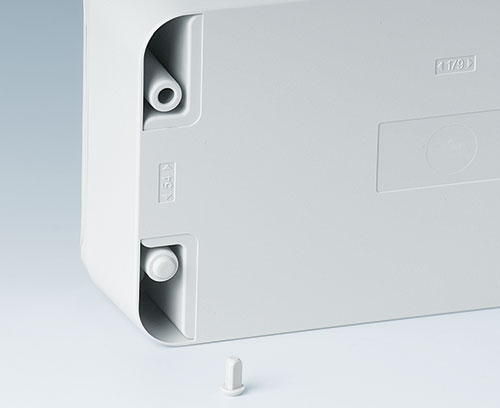

Case feet
When using the case for desktop applications.
Supply
4 case feet
关闭
Case feet
TPE
(UL 94 HB)
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply
1 pressure equalisation element, 1 seal washer, 1 nut
关闭
Pressure equalisation element M6x0.75
PA 6
(UL 94 HB)
light grey RAL 7035
IP 56
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply
1 pressure equalisation element, 1 seal washer, 1 nut
关闭
Pressure equalisation element M10x1
PA 6
(UL 94 HB)
light grey RAL 7035
IP 56
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply
1 cable grommet
关闭
Cable grommet
TPE
light grey RAL 7035
IP 67
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply
1 cable grommet
关闭
Cable grommet
EPDM
light grey RAL 7035
IP 67
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply
1 cable grommet
关闭
Cable grommet
TPE
light grey RAL 7035
IP 67

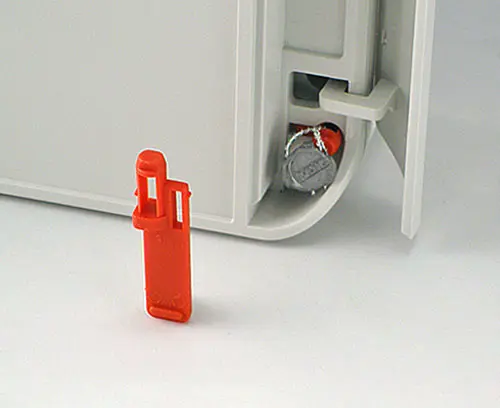

C6100006

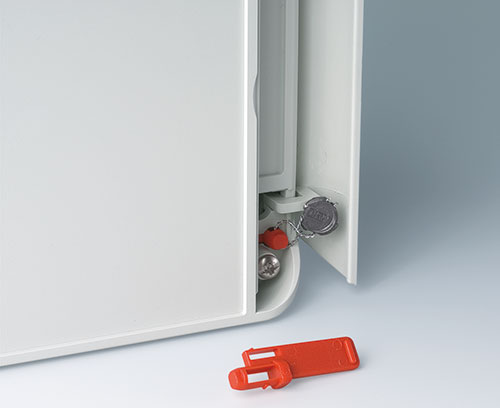

Security plug
For use with lead tags.
Supply
1 plug
关闭
Security plug
PA 6
red
C6100016
Set of security
For use with lead tags.
Supply
2 plugs
关闭
Set of security
PA 6
red

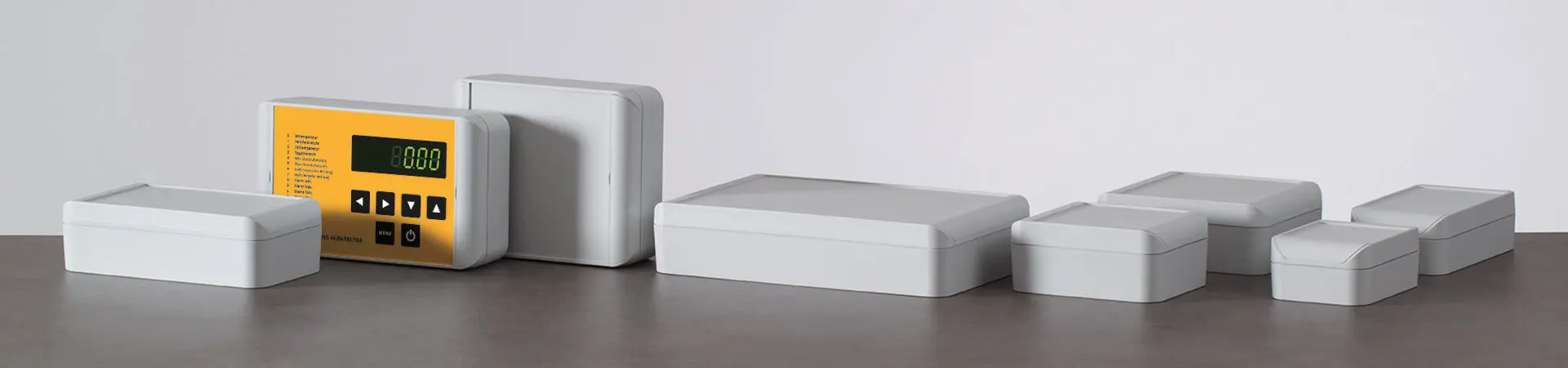

产品类型用于 Smart-Box 玲珑机盒
如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。

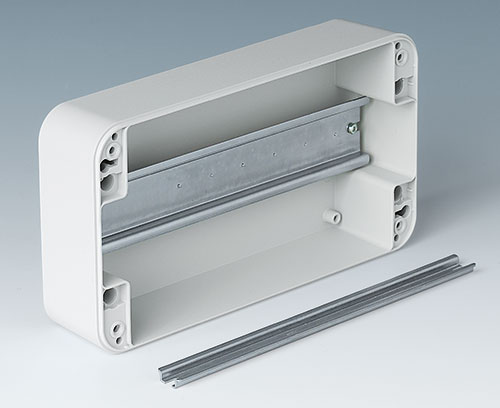

DIN 标准导轨接线盒
