CONTROL-KNOBS 调控旋钮

Control-Knobs 调控旋钮

便用旋钮

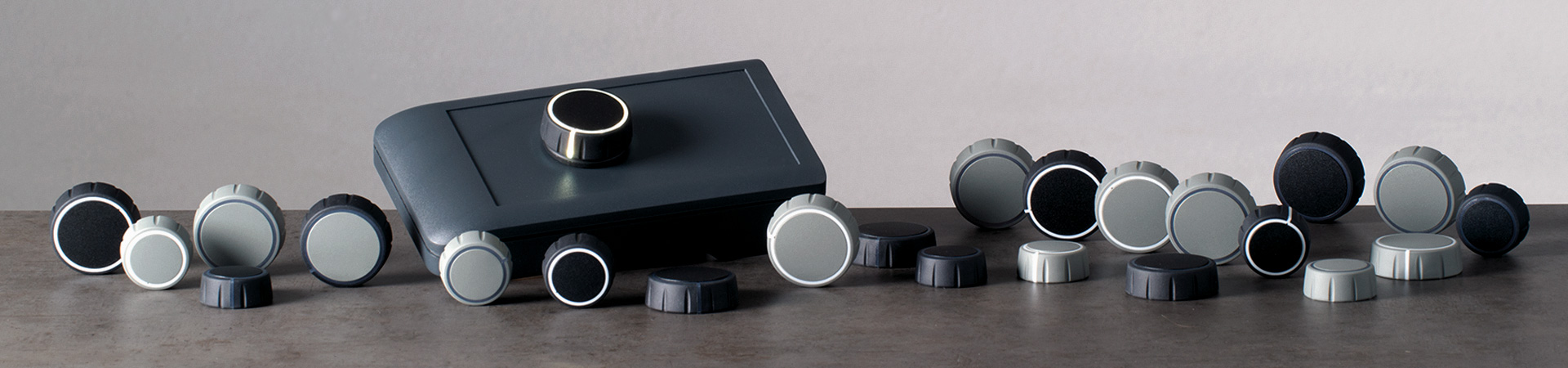

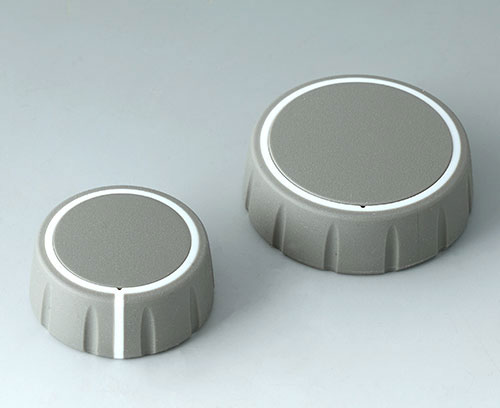

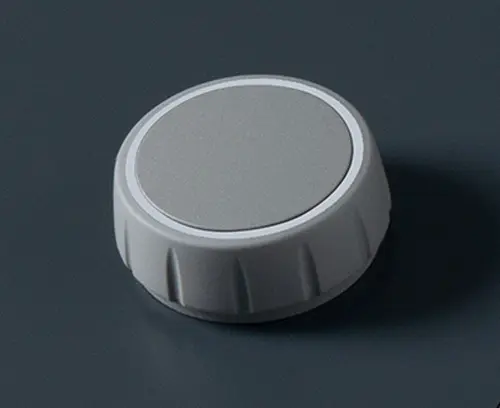

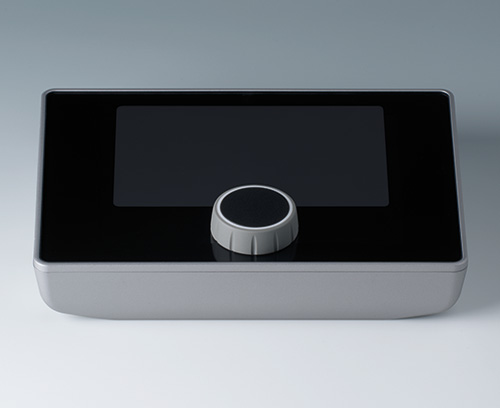

新型 CONTROL-KNOBS 调控旋钮的触握表面由柔软的材料制成:易于触握,触感舒适,符合人体工程学。 其高质量外观(必要时可发光),体现出现代化旋钮系列成为菜单控制界面的核心元素。

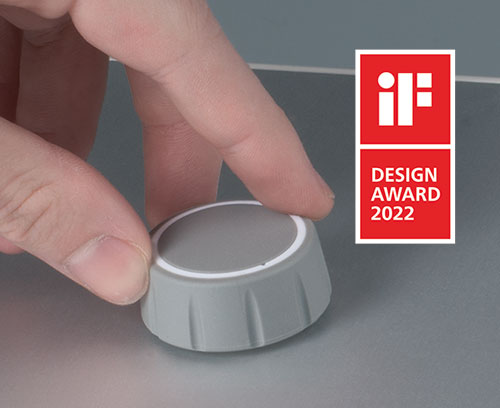

  • 通过防滑效果和柔软的触感便于触握
  • 创新的旋钮结构设计,包括硬软两个塑料部分:旋钮主体由高质量 PC材质制成,包裹在柔软的 TPE 材料中,并具备实用的防滑外观 *** iF product design award 2022 ***

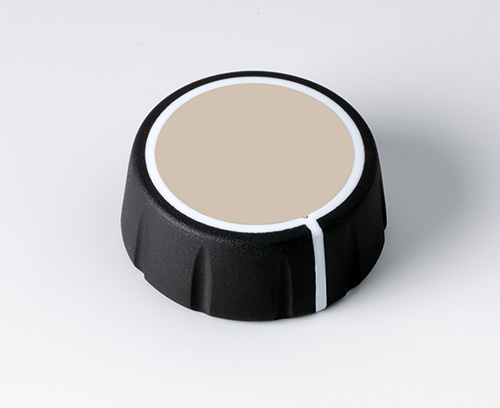

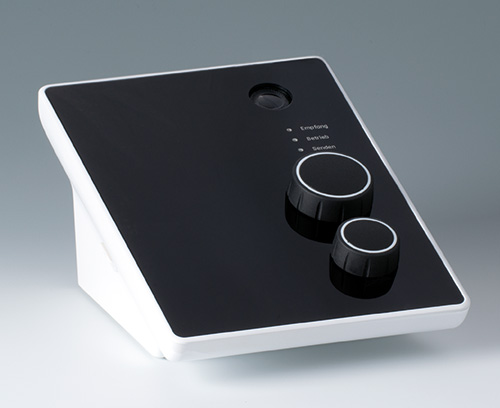

  • 提供两种尺寸规格,分别为ø36 mm和ø46 mm,每种可提供2种属TPE材质的标准颜色(黑色和灰黑色)

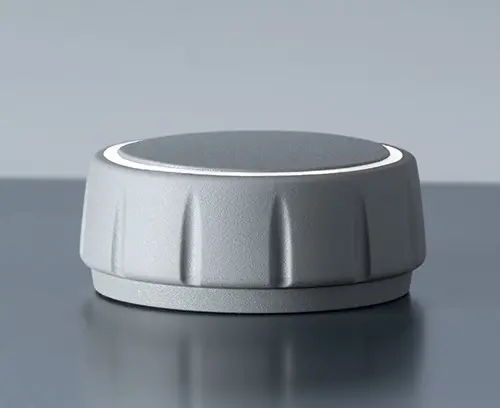

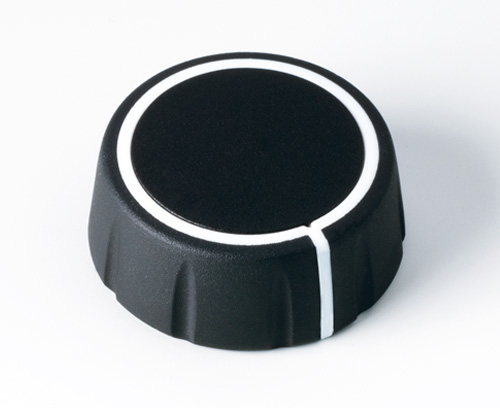

  • CONTROL-KNOBS 调控旋钮可提供带或不带用于精细调整的侧面指针线种类

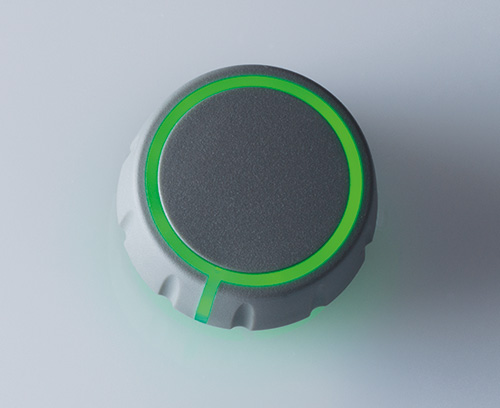

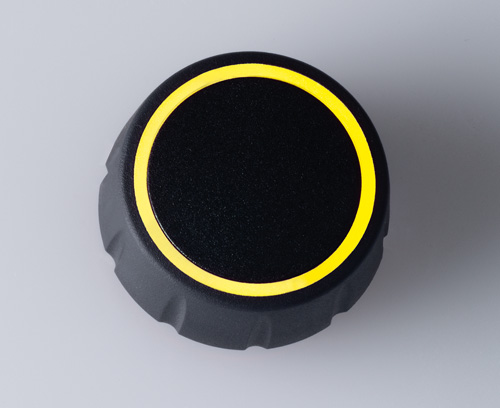

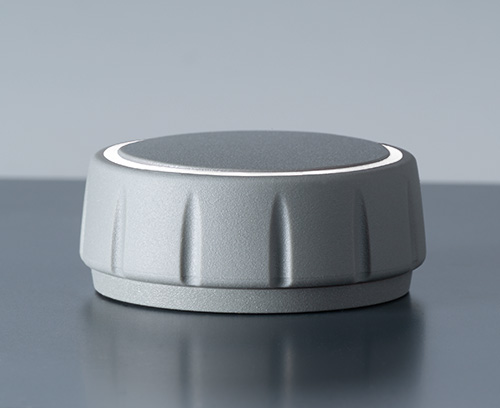

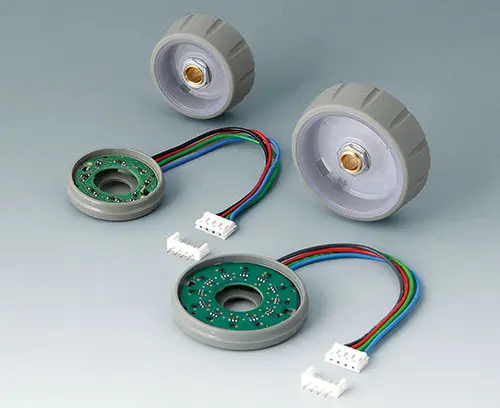

  • CONTROL-KNOBS 调控旋钮可提供带或不带LED照明种类
  • 照明选项:

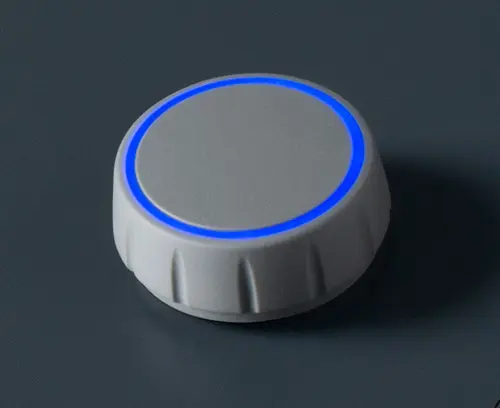

    - 仅照明环在上部表面

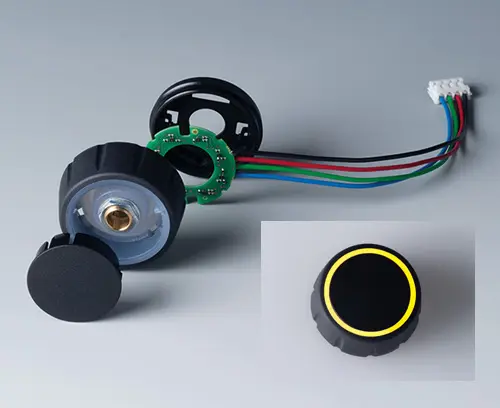

    - 照明环在上部表面并带侧面指针线
    如选择带照明的CONTROL-KNOBS调控旋钮,还请订购相应底座和LED照明灯,见附件。
  • 照明灯采用现代节能 SMD-LED 技术,供电电源为5 V; RGB LED技术可实现独特的照明效果

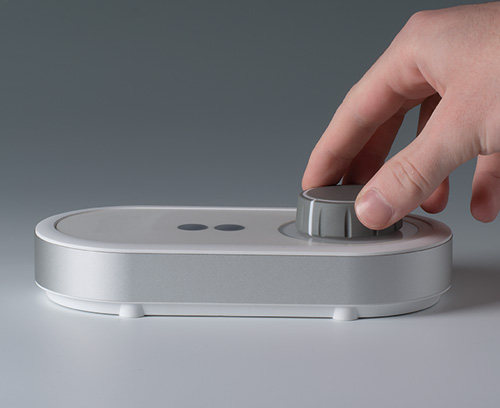

  • 功能设计为具备旋转功能的操作元件,并具备相应的旋转脉冲编码器,并具备按键功能,用于大容量设备的菜单控制式用户界面。

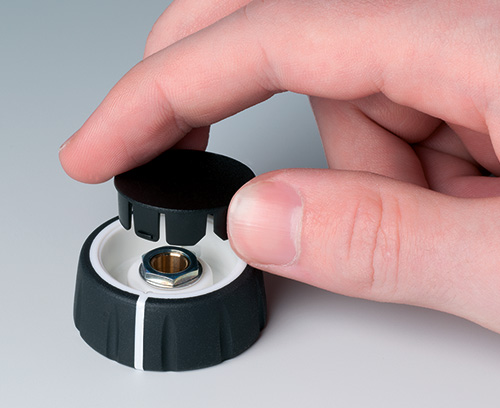

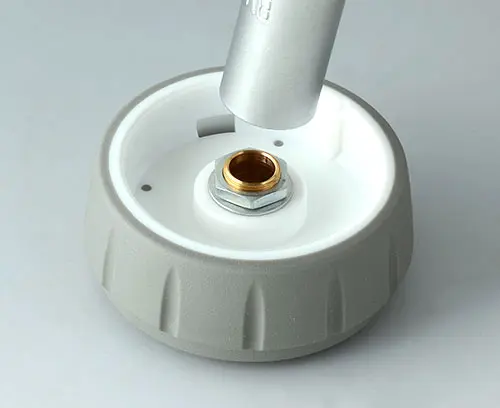

  • 利用成熟的钳式夹固原理,可牢固地固定在轴上
  • 最大扭矩:组件安装期间 = 1.5 Nm,功能操作期间 = 1.2 Nm

旋钮规格

轴孔大小

ø 36 mm 6 mm, 1/4" (6,35 mm)
ø 46 mm 6 mm, 1/4" (6,35 mm)

不带照明 CONTROL-KNOBS 调控旋钮的最起码组件:
1个CONTROL-KNOBS 调控旋钮基体、1个护盖 - 如有需要,底座也可组合使用(属附件)

带照明 CONTROL-KNOBS 调控旋钮的最起码组件:

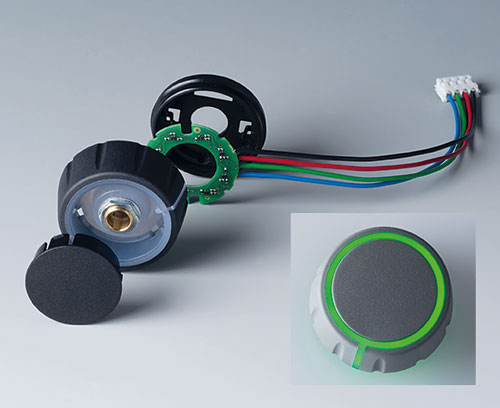

 1个带照明型 CONTROL-KNOBS 调控旋钮基体、1个护盖、1 个底座、1个 LED - 照明灯(RBG 背光)

设计师描述说明

“全面整体功能 - 舒适触握的现代化旋钮,可以可靠地调节或控制工艺过程,在现代产品的操作界面中拥有不可缺少的位置。 归根结底,其旋钮可确保您的产品即使在不利操作的空间中和恶劣的工作环境下也能正常使用 - 坚固耐用,功能精确。 CONTROL - KNOBS调控旋钮很容易操作,发光线指示您要查找的功能的空间、状态和位置。 无论是否戴手套,借助易于触握的结构和触感舒适的表面材料,可将所需的扭矩可靠地传递到按钮轴上,无论在任何使用情况下都如此。”
 来自 Martin Nußberger 先生,多形式工业设计部

  • 录像

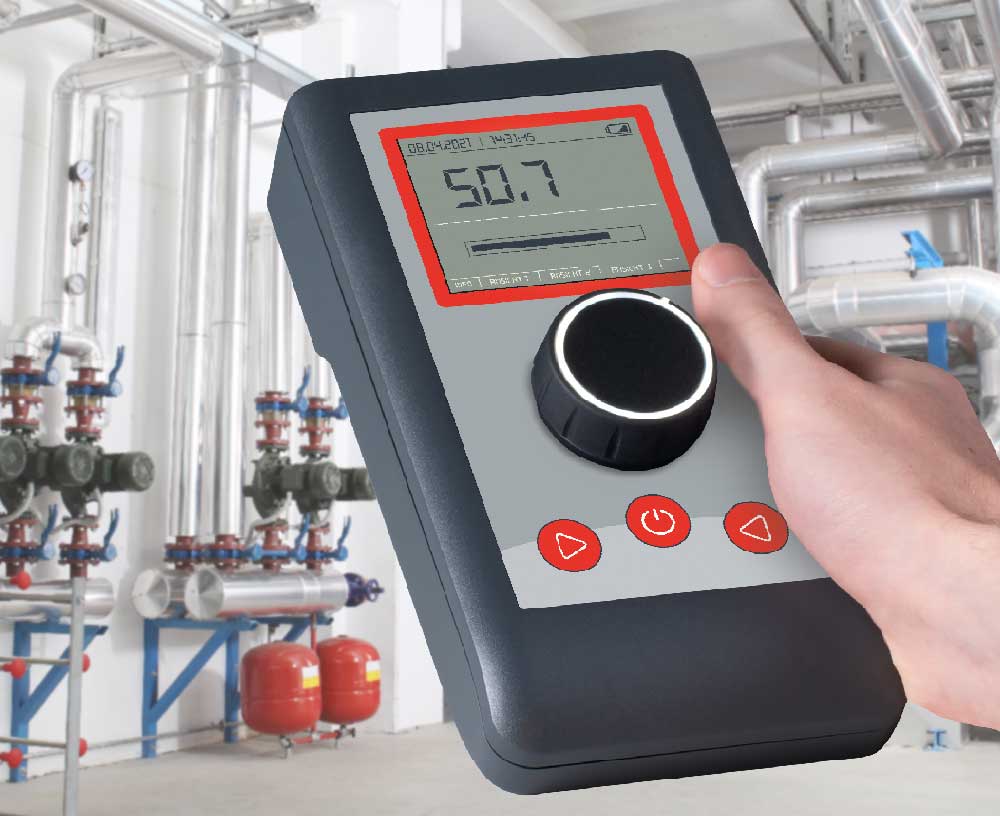

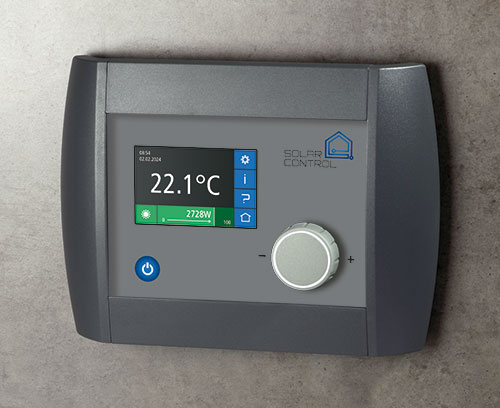

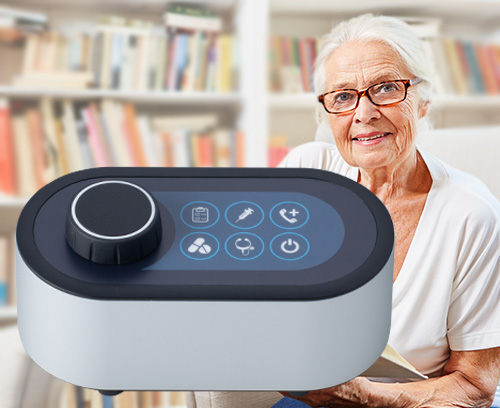

  • 应用示例

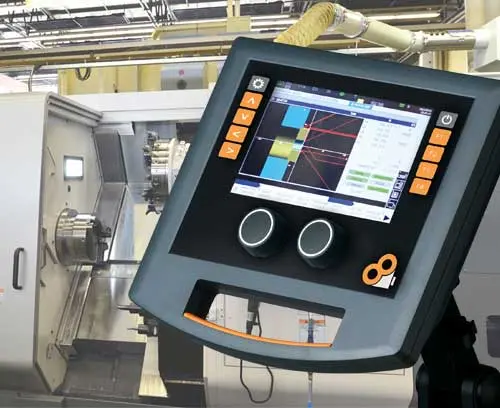

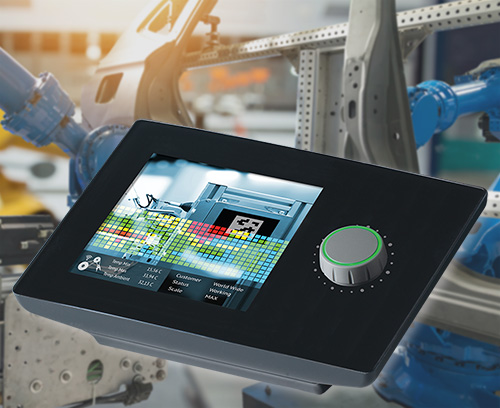

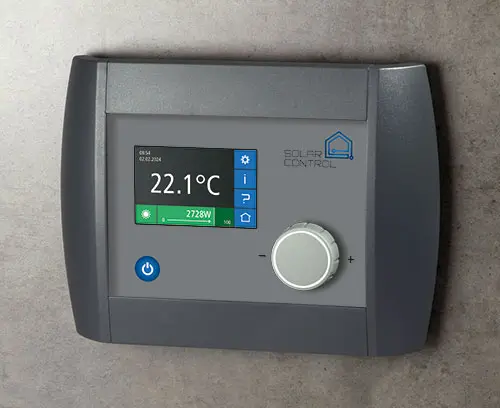

应用范围

适配安装于符合 DIN 41591 标准的带圆轴端的旋转电位器和旋转脉冲发生器,可选带敲击功能。

  • 测量和控制技术
  •  医疗和实验室技术
  • 健康和医疗保健技术
  • 暖气和空调设施
  •  通信技术
  • 建筑领域
  • Smart Factory
  • 类型
  • 配件
  • 按客户要求修改加工

请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
产品已添加到关注清单中
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
产品已添加到关注清单中
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
产品已添加到关注清单中
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

关闭

A6300000

Spanner
产品已添加到关注清单中

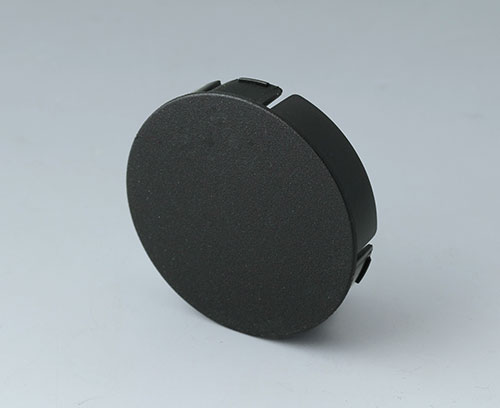

B7536108 Cover 36

B7536108

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

关闭

B7536108

Cover 36
产品已添加到关注清单中
PA 6
volcano

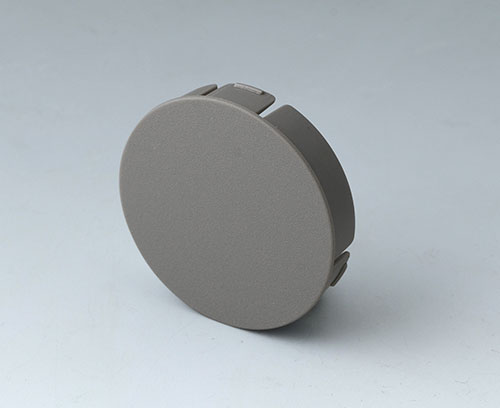

B7536109 Cover 36

B7536109

Cover 36 Suitable for CONTROL-KNOBS 36. Simply push on.

Supply 1 cover

关闭

B7536109

Cover 36
产品已添加到关注清单中
PA 6
nero

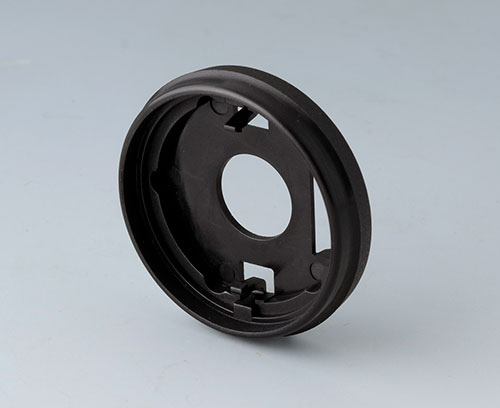

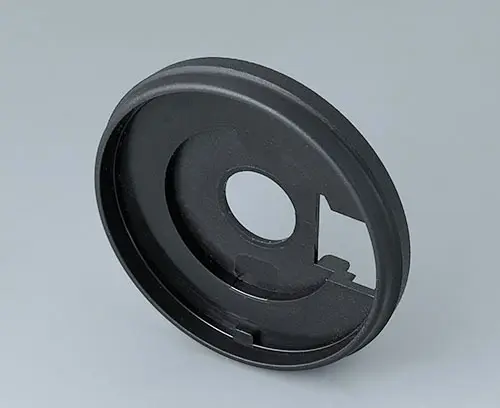

B7536208 Base 36

B7536208

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

关闭

B7536208

Base 36
产品已添加到关注清单中
PA 6
volcano

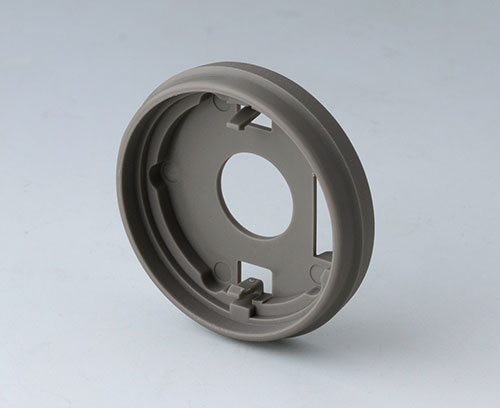

B7536209 Base 36

B7536209

Base 36 Suitable for all CONTROL-KNOBS 36. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 36, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 36 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

关闭

B7536209

Base 36
产品已添加到关注清单中
PA 6
nero
B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

关闭

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
产品已添加到关注清单中

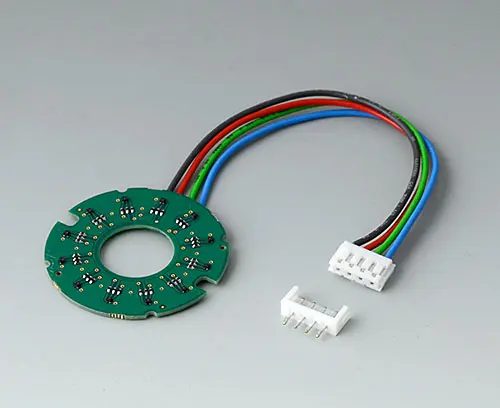

B7546002 LED illumination kit, 12 LEDs (RGB backlight)

B7546002

LED illumination kit, 12 LEDs (RGB backlight)

Board D=37 mm with 12 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

CONTROL-KNOBS 46 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

关闭

B7546002

LED illumination kit, 12 LEDs (RGB backlight)
产品已添加到关注清单中

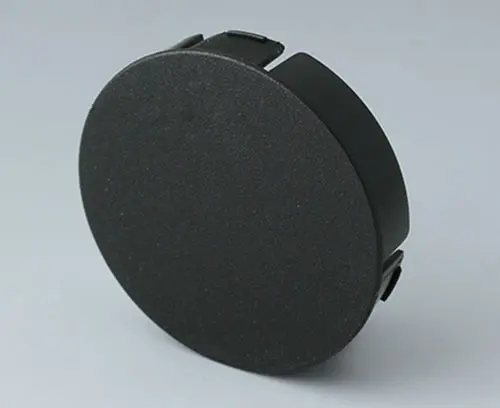

B7546108 Cover 46

B7546108

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

关闭

B7546108

Cover 46
产品已添加到关注清单中
PA 6
volcano
B7546109 Cover 46

B7546109

Cover 46 Suitable for CONTROL-KNOBS 46. Simply push on.

Supply 1 cover

关闭

B7546109

Cover 46
产品已添加到关注清单中
PA 6
nero

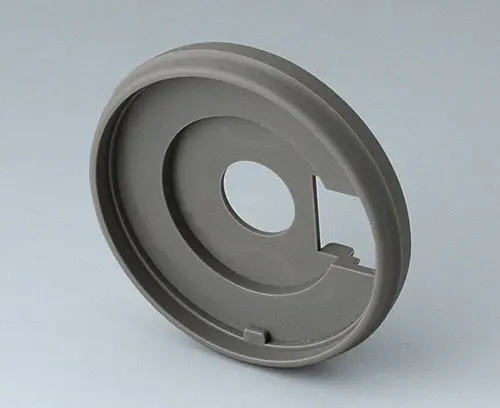

B7546208 Base 46

B7546208

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

关闭

B7546208

Base 46
产品已添加到关注清单中
PA 6
volcano
B7546209 Base 46

B7546209

Base 46 Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.

Supply 1 base

关闭

B7546209

Base 46
产品已添加到关注清单中
PA 6
nero

产品类型用于 Control-Knobs 调控旋钮

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
