STAR-KNOBS 星亮旋钮

Star-Knobs 星亮旋钮

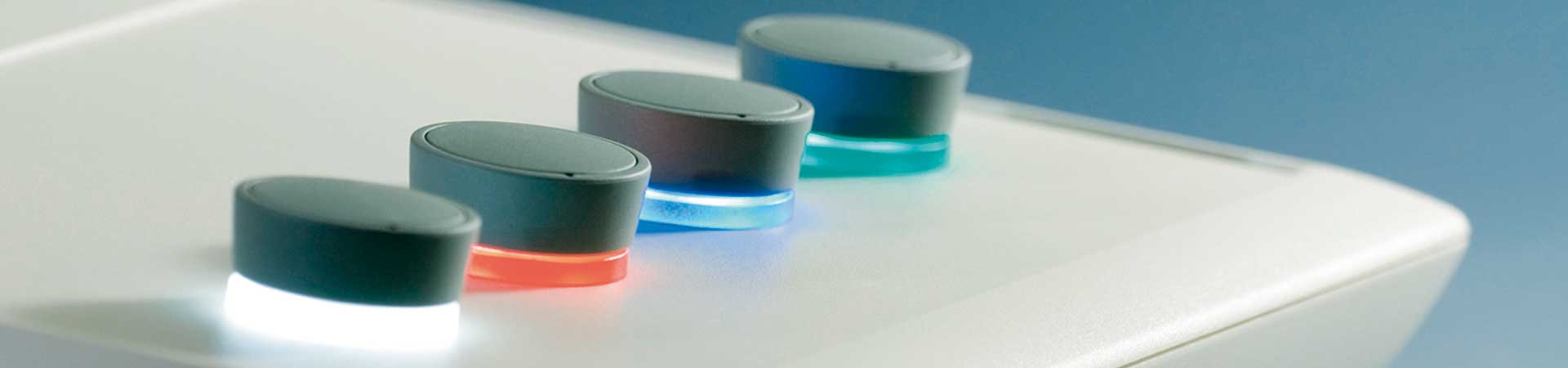

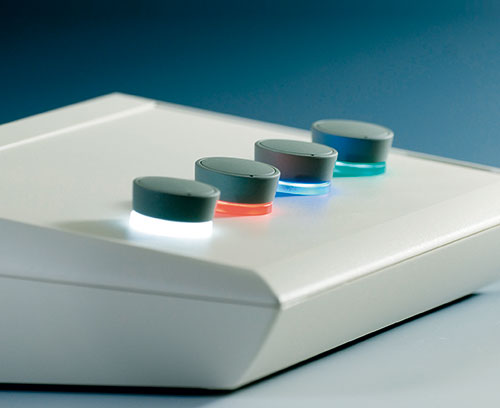

现代式带照明旋钮

OKW 的 STAR-KNOBS 星亮旋钮系列设计为具有旋转功能的操作元件,带相应的旋转脉冲发生器,并具备用于菜单控制界面的敲击功能。只需一个旋钮就可以操作多种功能。可选择的照明型式突出了现代设备的设计款式形象。

  • 创新的旋钮设计款式提供内置或外置安装型式

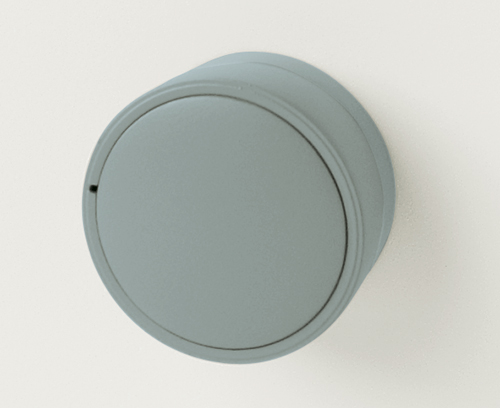

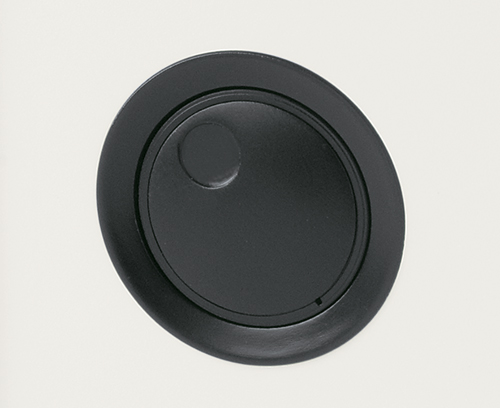

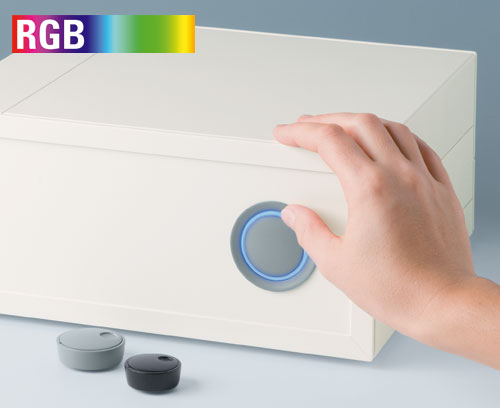

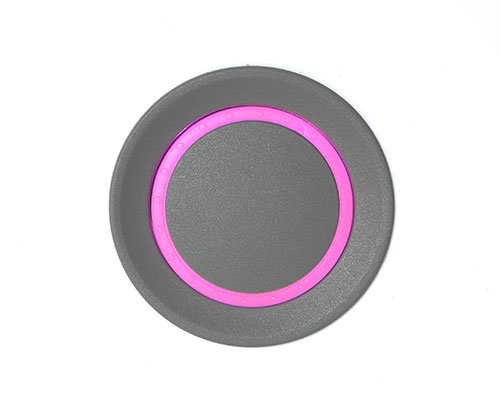

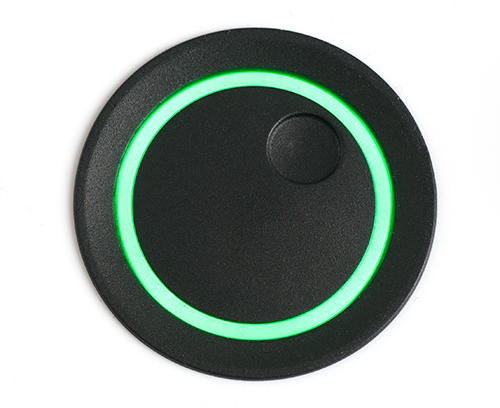

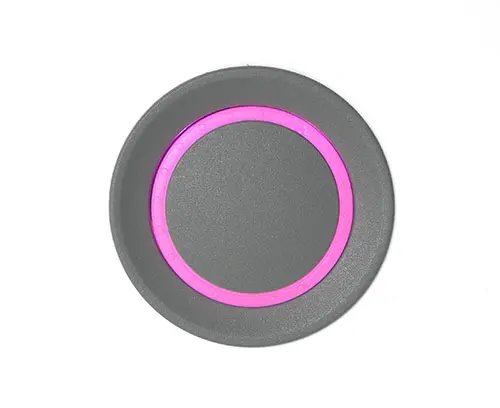

  • 齐平安装式使 STAR-KNOBS 星亮旋钮和设备表面之间形成了一个优美的形状过渡,如有需要,半透明型旋钮可以带照明,既外环和钮盖之间有一个发光环

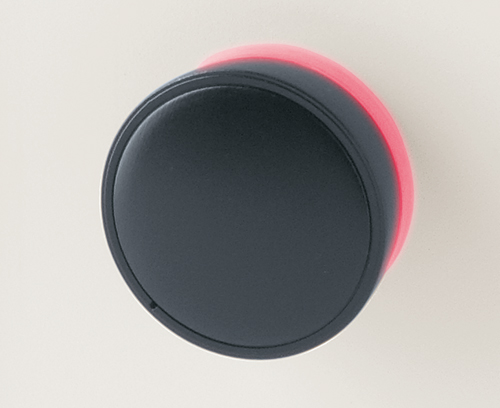

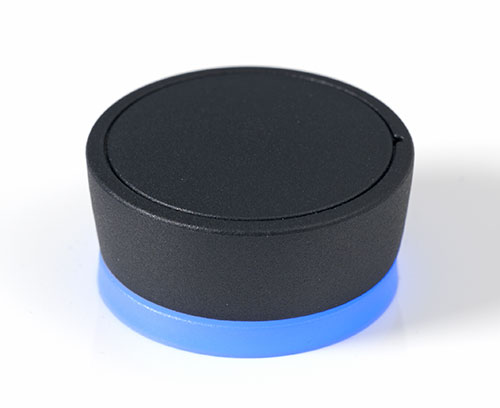

  • 外置安装式通过其微倾于内轴的外环结构体现了旋钮的特殊设计款式,从而实现了符合人体工程学的良好操作性能; 旋钮装置于一个约 3 毫米高的光环上,光环可以根据要求照亮

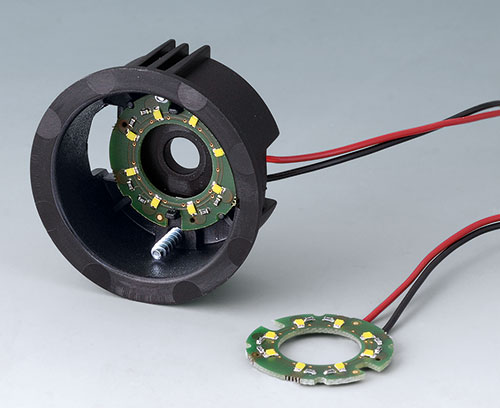

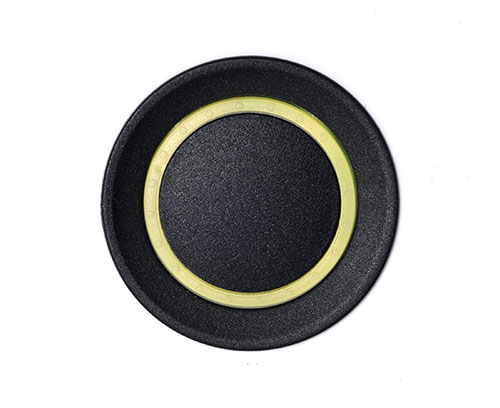

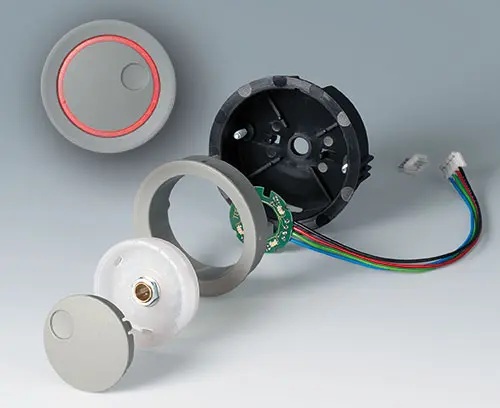

  • 采用现代化的节能 SMD LED 照明技术,转换电源 5 V: 可选择白色背光,适配光环颜色为钻石、翡翠和蓝宝石色; 或采用 RGB 背光,用于独特灯光效果制作,作为配件
  • 无或带防滑豆的旋钮
  • 钮盖可选无或带手指凹陷区利于操作

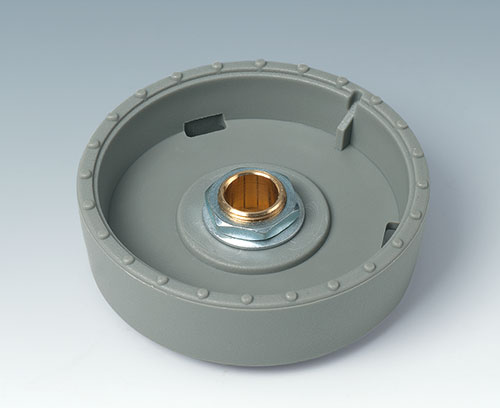

  • 经过验证的卡夹式夹头安装使操作安全
  • 最大扭矩: 安装时 = 1,5 Nm, 操作时 = 1,2 Nm
旋钮尺寸规格  轴孔规格
ø 33 mm 6 mm、 1/4"
ø 41 mm 6 mm

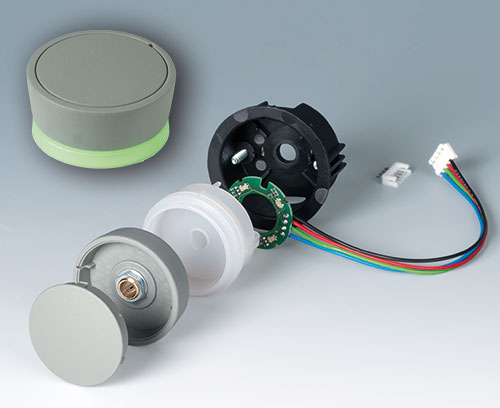

一个 STAR-KNOBS 星亮旋钮的最起码组件:
1 个旋钮、1 个盖子、1 套安装套件

照明注意事项:
类型 内置安装型式 请选择半透明型旋钮 (颜色: 钻石, 翡和蓝宝石色)。
类型 外置安装型式 请选择半透明型安装套件 (颜色: 钻石、 翡翠和蓝宝石色)。
白色背光或 RGB 背光作为配件。
  • 应用示例

应用范围

适配安装于符合 DIN 41591 标准的带圆轴端的旋转电位器和旋转脉冲发生器,可选带敲击功能。

  • 测量和控制技术
  •  医疗和实验室技术
  • 健康和医疗保健技术
  • 暖气和空调设施
  •  通信技术
  • 建筑领域
  • Smart Factory
  • 类型
  • 配件
  • 资料
  • 按客户要求修改加工

请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6207009

Round nut M7 x 0.75
产品已添加到关注清单中
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6210009

Round nut M10 x 0.75
产品已添加到关注清单中
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

关闭

A6295009

Round nut 3/8"-32G
产品已添加到关注清单中
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

关闭

A6300000

Spanner
产品已添加到关注清单中
B7546001 LED illumination kit, 8 LEDs (RGB backlight)

B7546001

LED illumination kit, 8 LEDs (RGB backlight)

Board D=27 mm with 8 LEDs (RGB backlight), without controller, SMD technology, connecting cable 120 mm long, 4-pin socket at the end, incl. connector.

Recommended for:

STAR-KNOBS 33 / 41
- flush-fitting version: only in conjunction with the diamond knob
- surface-mounted version: only in conjunction with the diamond assembly kit

CONTROL-KNOBS 36 with optional illumination
- installation in the bases available as accessories

Supply 1 LED illumination kit (RGB backlight)

关闭

B7546001

LED illumination kit, 8 LEDs (RGB backlight)
产品已添加到关注清单中
B8733001 Assembly support 33

B8733001

Assembly support 33 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

关闭

B8733001

Assembly support 33
产品已添加到关注清单中
ABS (UL 94 HB)
green
B8733004 LED illumination kit

B8733004

LED illumination kit PCB D = 27 mm with 8 LEDs (white light), SMD-technology, connecting cable 120 mm long, 2-pin connector at the end, incl. PCB connector. Universally applicable for knob sizes 33 and 41 mm.
Recommended for flush-fitting version: only in conjunction with the translucent* knob.
Recommended for surface-mounted version: only in conjunction with the translucent* assembly kit.
(*translucent = colours diamond, ruby, emerald, sapphire).

Supply 1 LED illumination kit

关闭

B8733004

LED illumination kit
产品已添加到关注清单中
B8741001 Assembly support 41

B8741001

Assembly support 41 Holds the knob when tightening the collet (flush-fitting variant) and positions it in the correct height on the axis of rotary pulse generators (flush-fitting and surface-mounted variant).

Supply 1 assembly support

关闭

B8741001

Assembly support 41
产品已添加到关注清单中
ABS (UL 94 HB)
green
