Datec-Compact

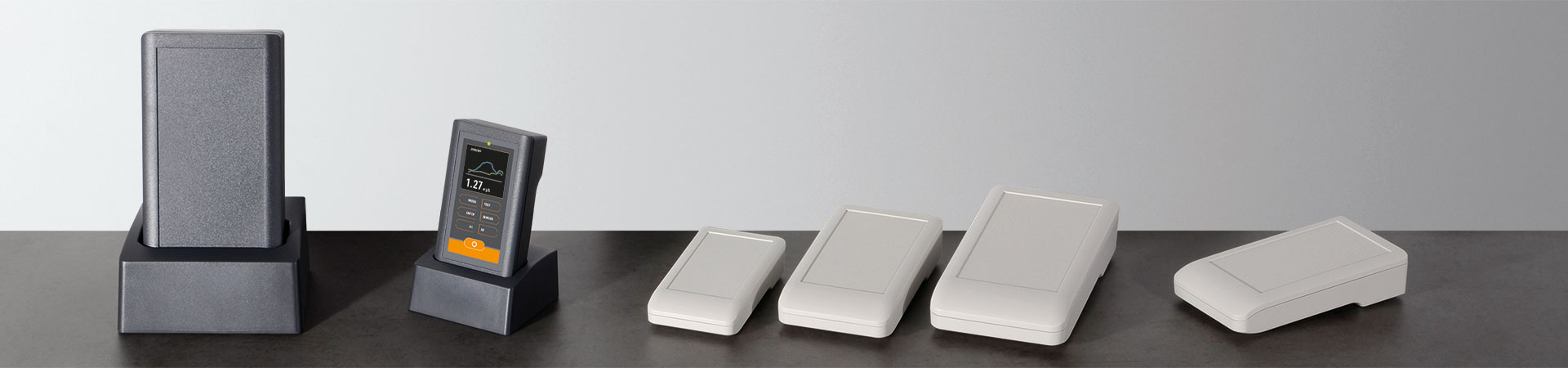

Compact handheld plastic enclosures

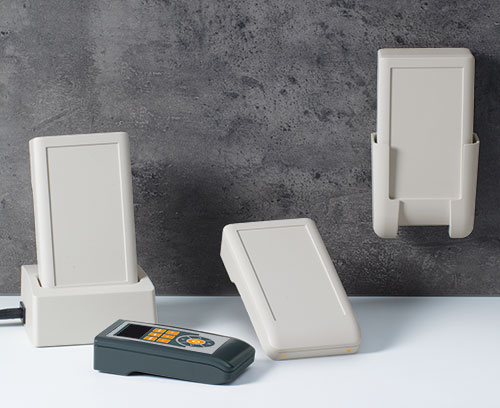

The new DATEC-COMPACT series of handheld enclosures has a compact and robust design, ideally suited for mobile devices.

  • robust, high-quality material ASA+PC-FR for outdoor use

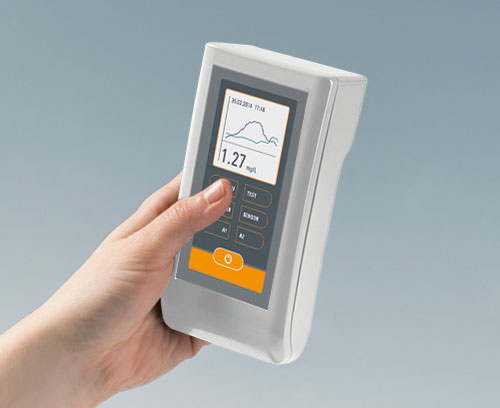

  • high protection class IP 65 with sealing for tough environment
    or protection class IP 41 without sealing as low-priced enclosures for measuring instruments

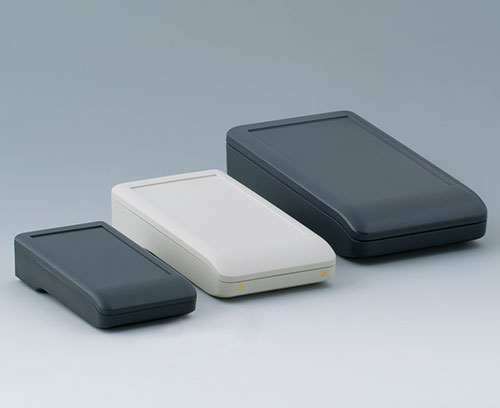

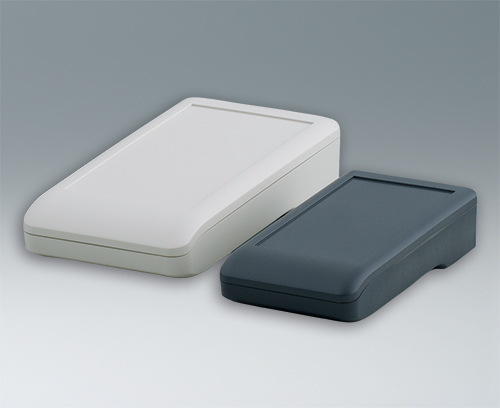

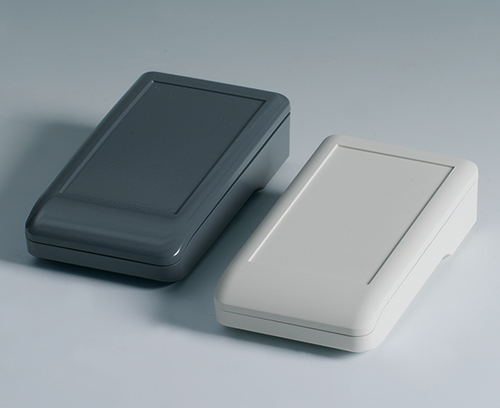

  • 3 sizes, 2 colours

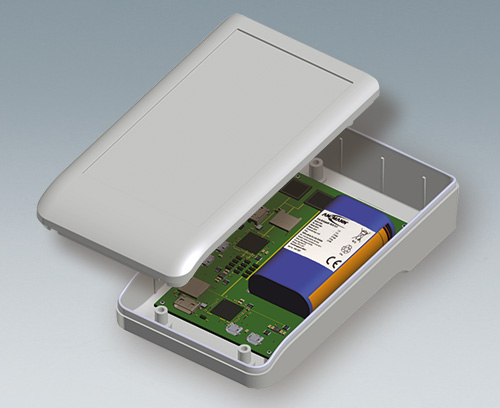

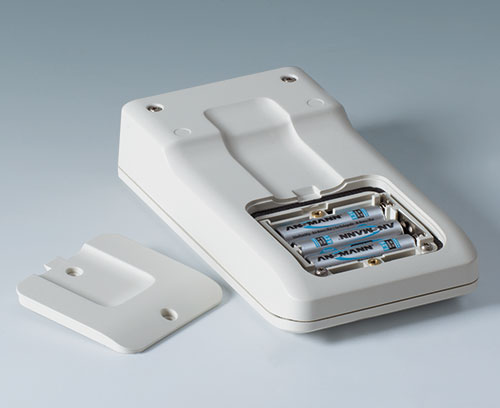

  • with / without battery compartment for 1.5 V AAA or AA batteries;
    three battery cells guarantee reliable 3V power supply
  • SD cards/USB connectors can be inserted within the sealed compartment (versions with battery compartment)
  • station for easy data and charging current transmission available as accessories
  • screw connection with stainless steel screws and Torx drive
  • further accessories: set of battery clips and gold-plated contacts
Generate PDF
  • Video
  • Application Examples

Application fields

  • Mobile data recording

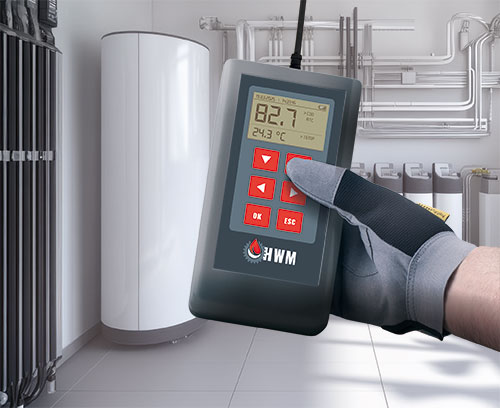

  • Measuring and control technology
  • Control technology
  • Medical and laboratory technology
  • Environmental technology
  • Outdoor
  • Smart Factory
  • Industry 4.0
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your basket
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A9105507 Station S

A9105507

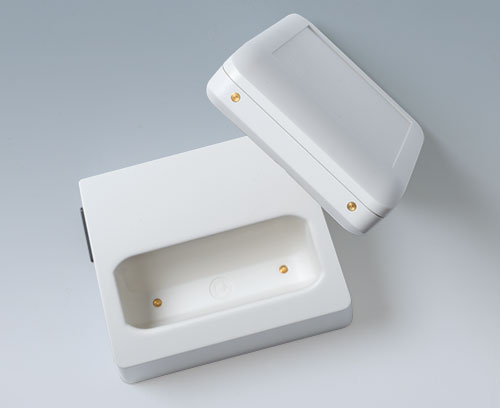

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9105507

Station S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9105508 Station S

A9105508

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9105508

Station S
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9105627 Holder S

A9105627

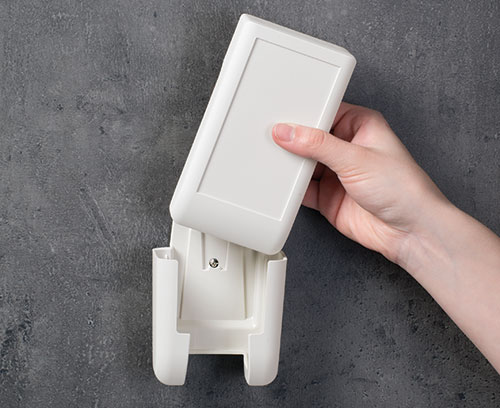

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9105627

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9105628 Holder S

A9105628

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9105628

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9106507 Station M

A9106507

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9106507

Station M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9106508 Station M

A9106508

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9106508

Station M
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9106627 Holder M

A9106627

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9106627

Holder M
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002

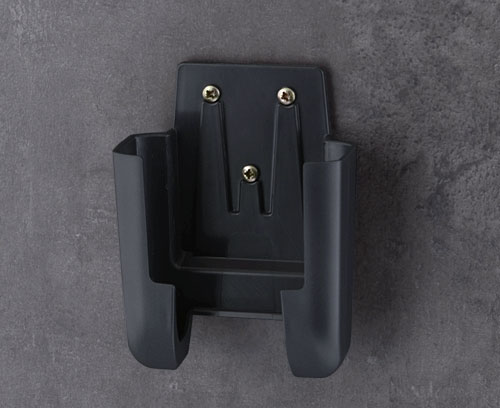

A9106628 Holder M

A9106628

Holder M Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9106628

Holder M
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9107507 Station L

A9107507

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9107507

Station L
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9107508 Station L

A9107508

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9107508

Station L
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9107627 Holder L

A9107627

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9107627

Holder L
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9107628 Holder L

A9107628

Holder L Special holder for DATEC-COMPACT L for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9107628

Holder L
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9190023 Set of battery clips, 3 x AA

A9190023

Set of battery clips, 3 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190023

Set of battery clips, 3 x AA
product added to your basket
Steel
nickel-plated
A9190024 Set of battery clips, 3 x AAA

A9190024

Set of battery clips, 3 x AAA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 double contacts left, 1 single contact positive, 1 single contact negative

Close

A9190024

Set of battery clips, 3 x AAA
product added to your basket
Steel
nickel-plated
A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin
product added to your basket
gold-plated
A9193031 Spring contact

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193031

Spring contact
product added to your basket
gold-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

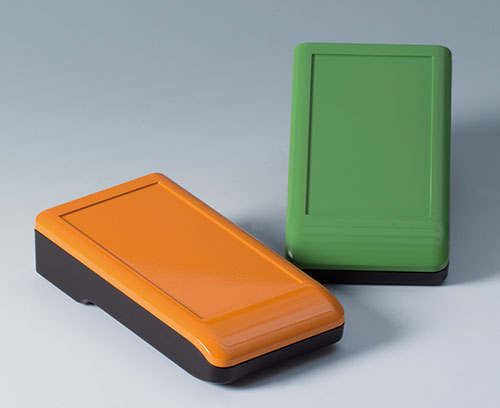

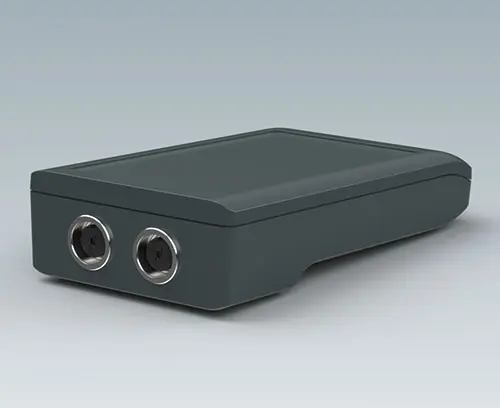

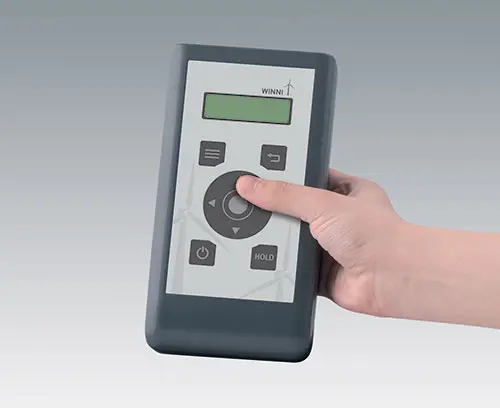

Customising options for Datec-Compact

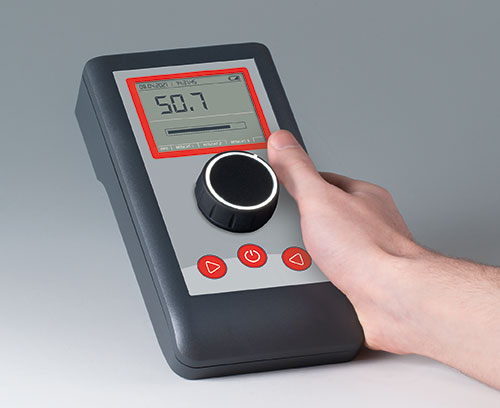

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
