Holding devices
Scroll

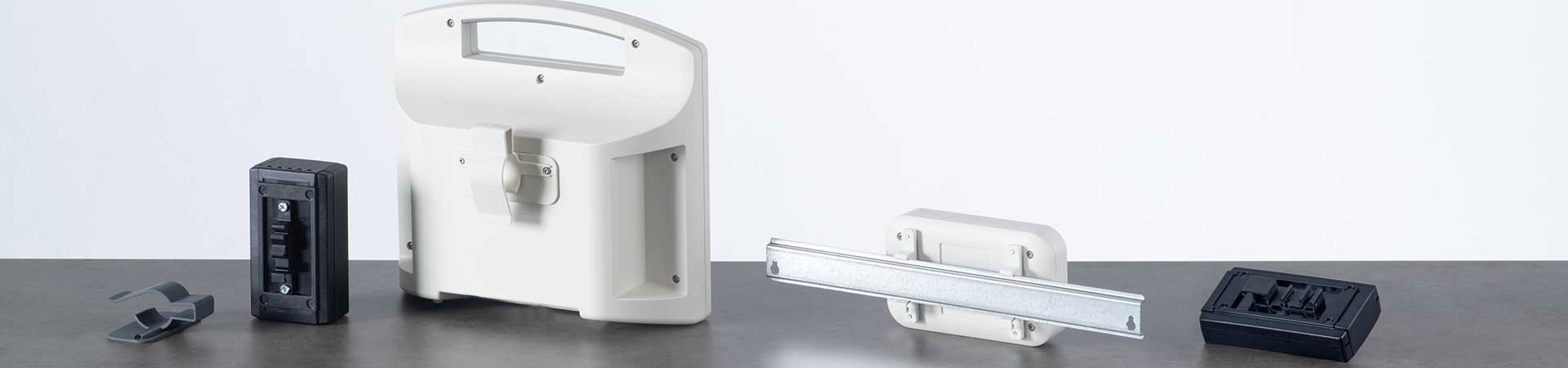

Holding devices

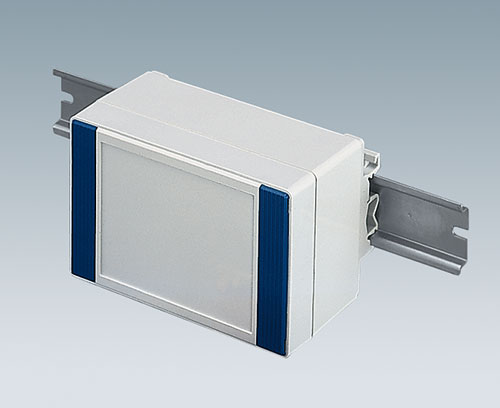

  • Fastening element for DIN rails in accordance with DIN EN 60715 TH35 and G32

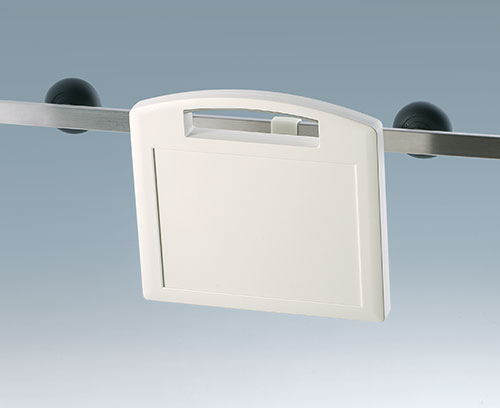

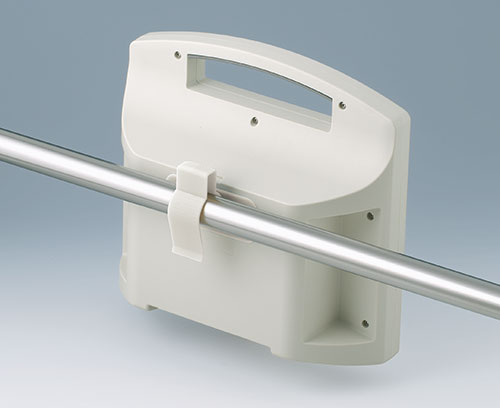

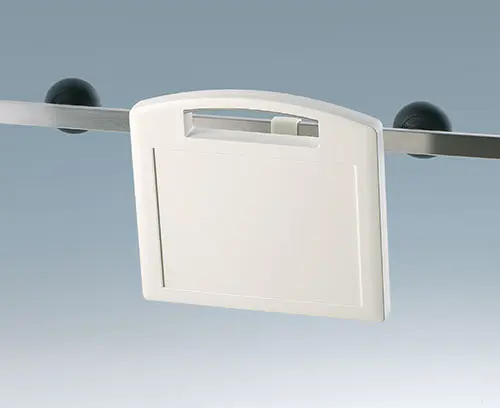

  • Holding clamp for round tubes up to ø 32 mm / equipment rails DIN EN ISO 19054
Generate PDF
  • Browse Full List
  • View Customising Options

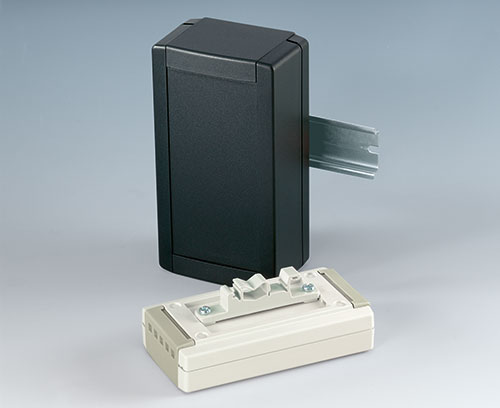

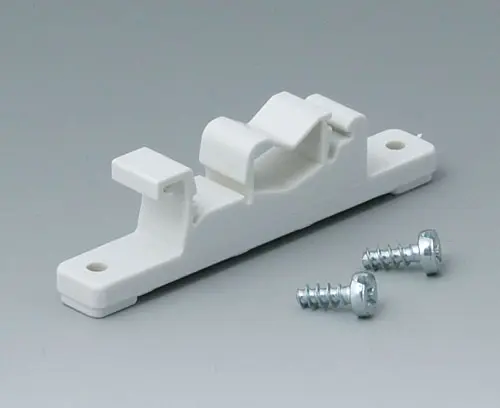

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Close

B1300017

Fastening element for DIN-Rails
product added to your basket
PA 6
off-white RAL 9002
B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Close

B1300019

Fastening element for DIN-Rails
product added to your basket
PA 6
black RAL 9005

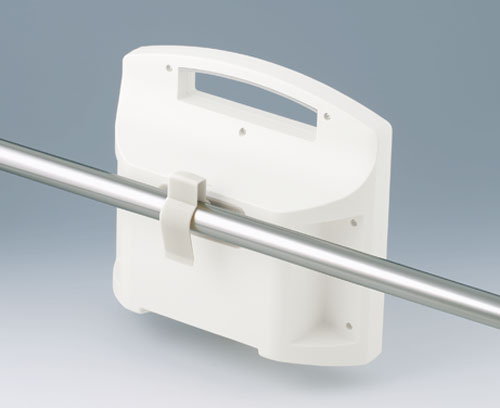

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Close

B4308237

Holding clamps
product added to your basket
PA 6
off-white RAL 9002

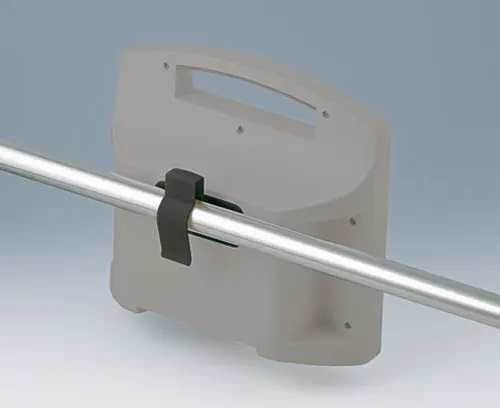

B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Close

B4308238

Holding clamps
product added to your basket
PA 6
lava

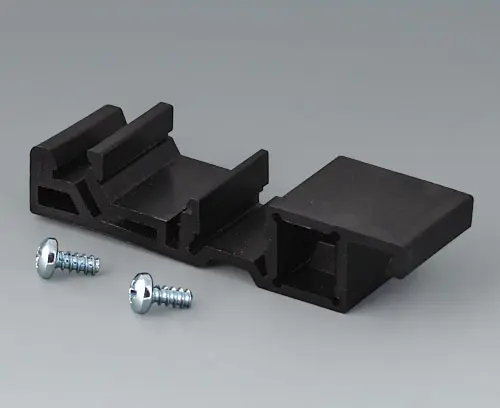

B6811751 DIN rail adapter

B6811751

DIN rail adapter Universal wall suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.

Supply 1 piece, 2 screws

Close

B6811751

DIN rail adapter
product added to your basket
PA 66 (UL 94 V-0)
black RAL 9005

Customising options for Holding devices

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
