ROBUST-BOX
Scroll

Robust-Box

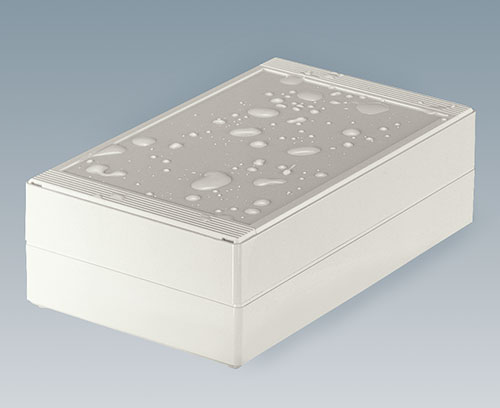

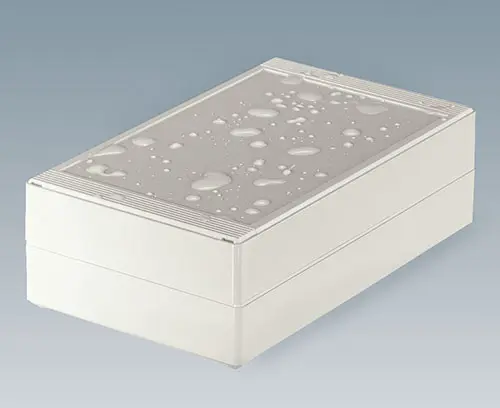

Universal IP 66 plastic enclosures

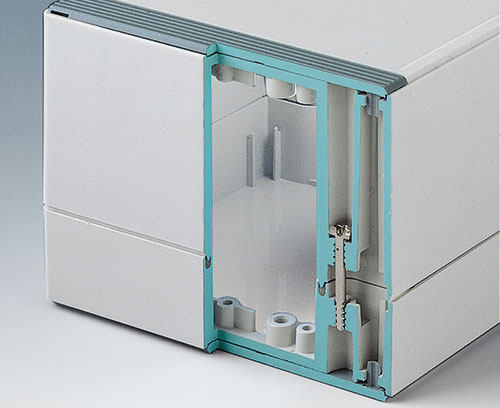

Both case shells of the ROBUST-BOX are equipped with pre-moulded threads. As a result, users can decide whether the flat or the high part of the case is used as the bottom part.

  • versatile, sealed enclosures in eleven basic dimensions, different heights and two standard materials
  • ABS (UL 94 HB), approved as a terminal mounting case
  • PC (UL 94 HB), a solid and robust case, with high heat resistance for use in adverse environments

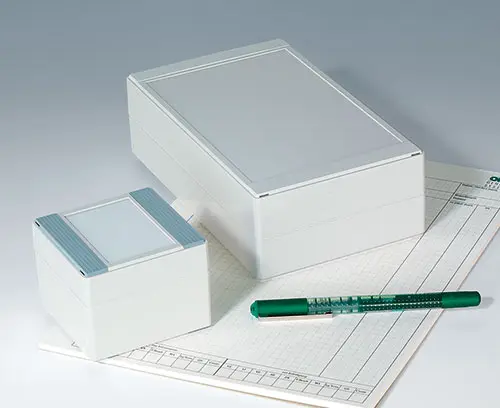

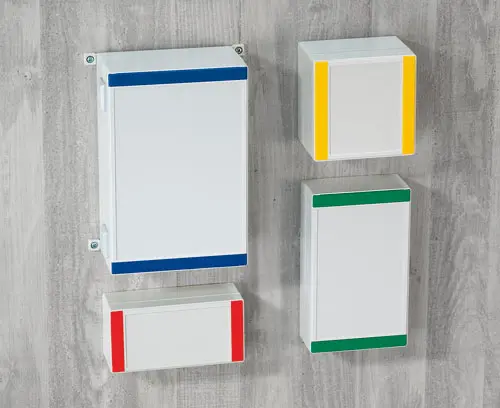

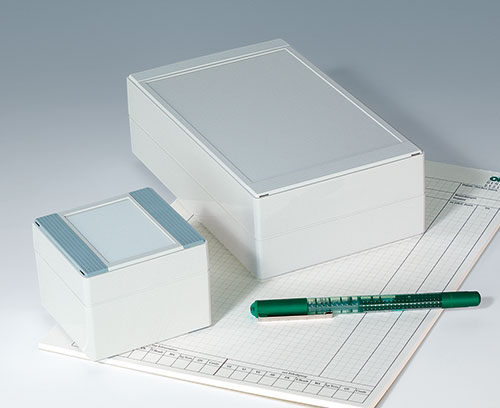

  • usable as a handheld, desktop or wall mount enclosure, and also as a DIN rail enclosure (with accessory DIN rail clips)

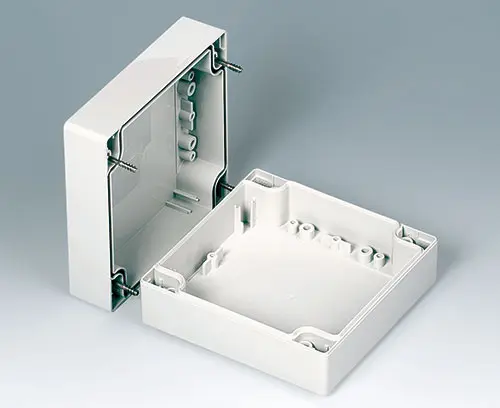

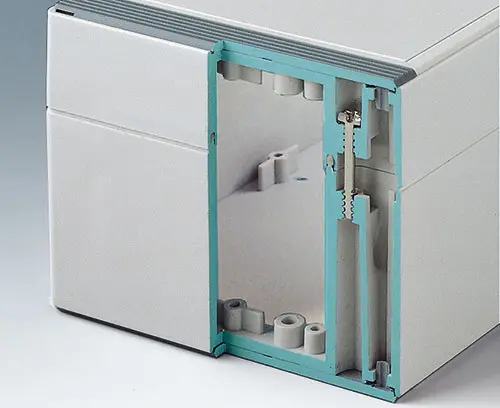

  • easy-assembly; the case shells can be used as either the top or the base section

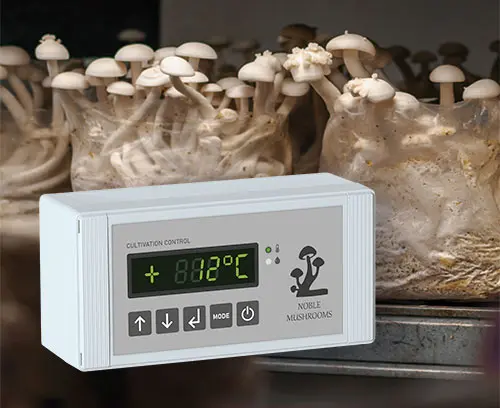

  • both parts with recessed operating area for protecting membrane keypads or product labels
  • the cover fixings are outside of the sealed area; the fixing screws are rust proof and captured in the top part
  • hidden screw shafts for wall mounting or external wall mounting brackets
  • coloured cover strips for coding (as an alternative to the standard version in light grey)

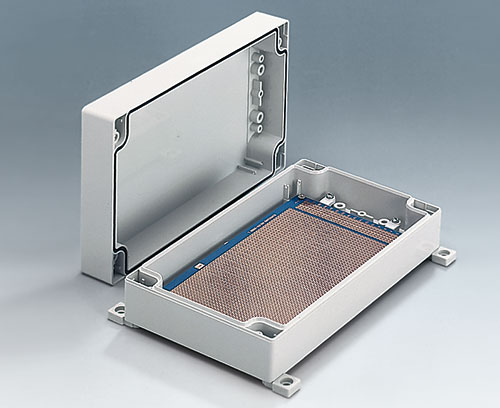

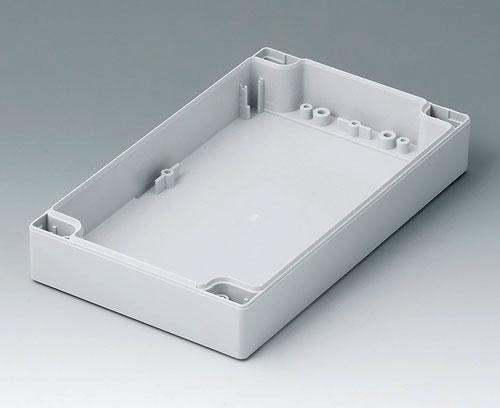

  • internal fastening pillars for PCBs and components
  • extensive range of accessories: case feet, hinge, fastening elements to DIN rails, PCB support for mounting pre-assembled PCB units etc.
Generate PDF

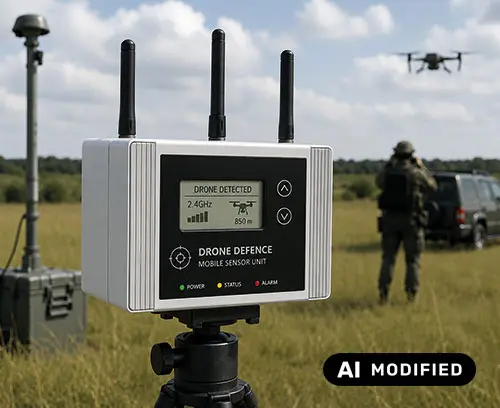

  • Application Examples

Application fields

  • These robust enclosures can be used for both electrical and electronic installations, for example heating, climate, ventilation, machine building and construction equipment

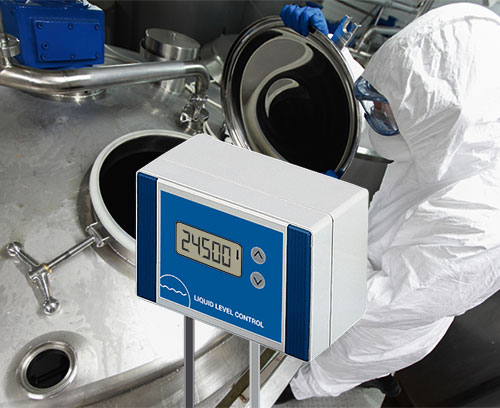

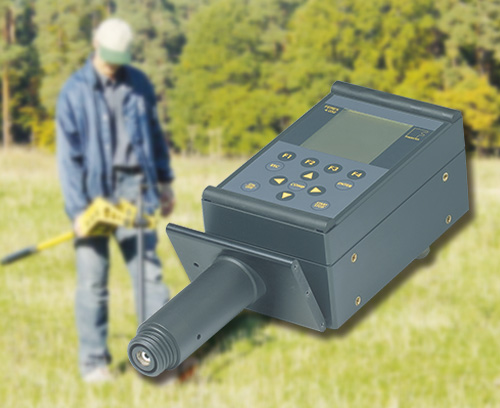

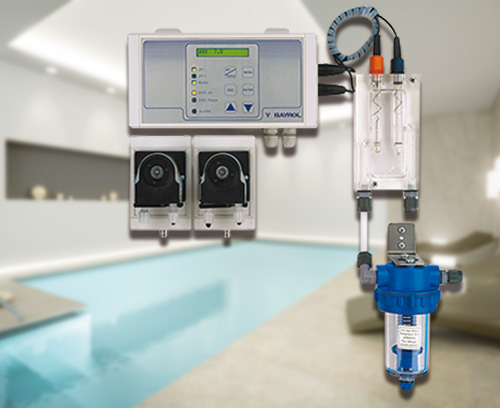

  • Also, push-button controllers, sensors and measuring equipment
  • Gateways
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel
C2200801 Cover strips 80, without holes

C2200801

Cover strips 80, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2200801

Cover strips 80, without holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2201082 Cover strips 80

C2201082

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201082

Cover strips 80
product added to your basket
PC (UL 94 HB)
silver grey RAL 7001
C2201084 Cover strips 80

C2201084

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201084

Cover strips 80
product added to your basket
PC (UL 94 HB)
red RAL 3020
C2201085 Cover strips 80

C2201085

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201085

Cover strips 80
product added to your basket
PC (UL 94 HB)
yellow RAL 1023
C2201086 Cover strips 80

C2201086

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201086

Cover strips 80
product added to your basket
PC (UL 94 HB)
green RAL 6024
C2201087 Cover strips 80

C2201087

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2201087

Cover strips 80
product added to your basket
PC (UL 94 HB)
blue RAL 5017

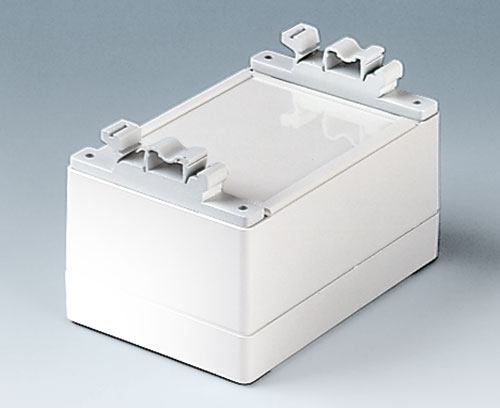

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

Close

C2201088

Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035
C2201201 Cover strips 120, without holes

C2201201

Cover strips 120, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2201201

Cover strips 120, without holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2201601 Cover strips 160, without holes

C2201601

Cover strips 160, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2201601

Cover strips 160, without holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2202001 Cover strips 200, without holes

C2202001

Cover strips 200, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2202001

Cover strips 200, without holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2202401 Cover strips 240, without holes

C2202401

Cover strips 240, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2202401

Cover strips 240, without holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2203123 Cover strips 120

C2203123

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203123

Cover strips 120
product added to your basket
PC (UL 94 HB)
silver grey RAL 7001
C2203124 Cover strips 120

C2203124

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203124

Cover strips 120
product added to your basket
PC (UL 94 HB)
red RAL 3020
C2203125 Cover strips 120

C2203125

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203125

Cover strips 120
product added to your basket
PC (UL 94 HB)
yellow RAL 1023
C2203126 Cover strips 120

C2203126

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203126

Cover strips 120
product added to your basket
PC (UL 94 HB)
green RAL 6024
C2203127 Cover strips 120

C2203127

Cover strips 120 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2203127

Cover strips 120
product added to your basket
PC (UL 94 HB)
blue RAL 5017
C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

Close

C2203128

Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035
C2204162 Cover strips 160

C2204162

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2204162

Cover strips 160
product added to your basket
PC (UL 94 HB)
silver grey RAL 7001
C2204164 Cover strips 160

C2204164

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2204164

Cover strips 160
product added to your basket
PC (UL 94 HB)
red RAL 3020
C2204165 Cover strips 160

C2204165

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2204165

Cover strips 160
product added to your basket
PC (UL 94 HB)
yellow RAL 1023
C2204166 Cover strips 160

C2204166

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2204166

Cover strips 160
product added to your basket
PC (UL 94 HB)
green RAL 6024
C2204167 Cover strips 160

C2204167

Cover strips 160 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

Close

C2204167

Cover strips 160
product added to your basket
PC (UL 94 HB)
blue RAL 5017
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

Close

C2204168

Fastening elements to DIN-Rails
product added to your basket
PA 6
light grey RAL 7035
C2210801 Cover strips 80, with holes

C2210801

Cover strips 80, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2210801

Cover strips 80, with holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2211201 Cover strips 120, with holes

C2211201

Cover strips 120, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2211201

Cover strips 120, with holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2211601 Cover strips 160, with holes

C2211601

Cover strips 160, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2211601

Cover strips 160, with holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2212001 Cover strips 200, with holes

C2212001

Cover strips 200, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2212001

Cover strips 200, with holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2212401 Cover strips 240, with holes

C2212401

Cover strips 240, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2212401

Cover strips 240, with holes
product added to your basket
PC (UL 94 HB)
light grey RAL 7035

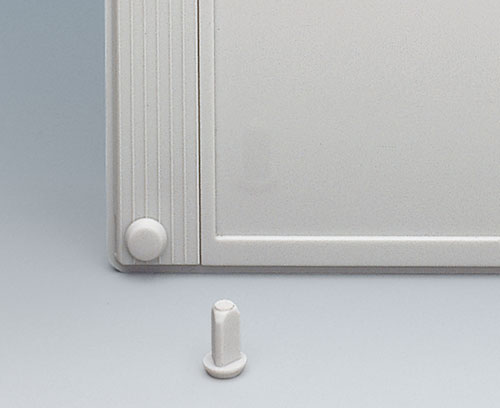

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your basket
TPE (UL 94 HB)

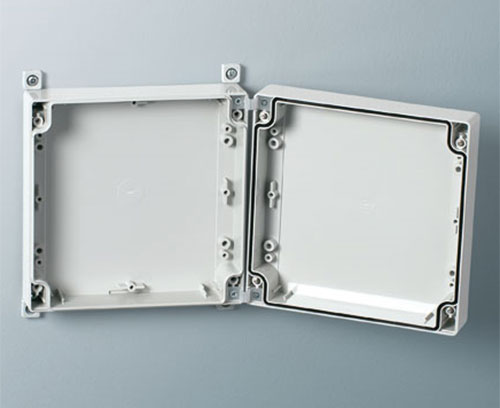

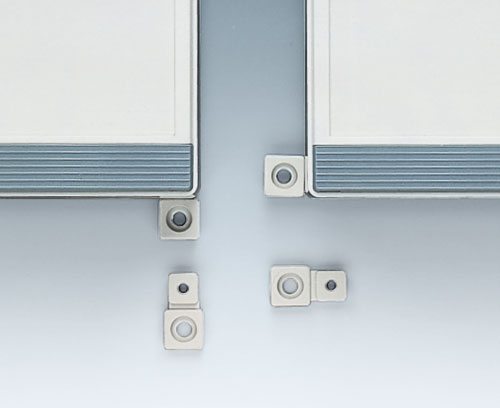

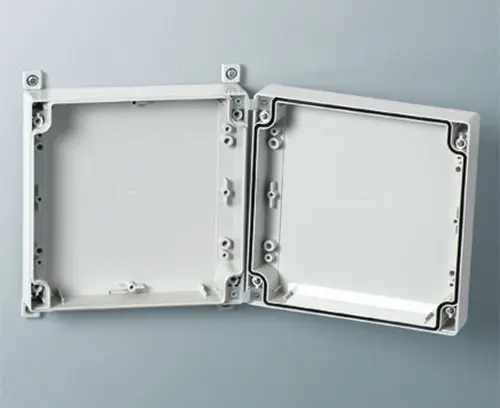

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035

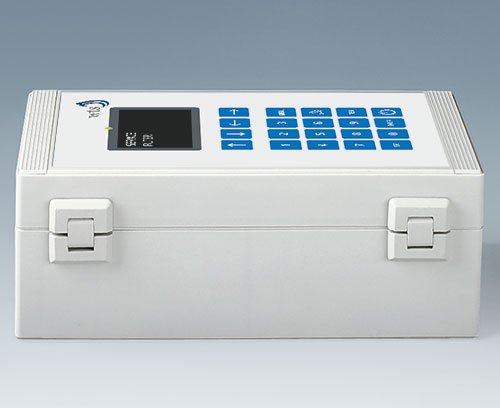

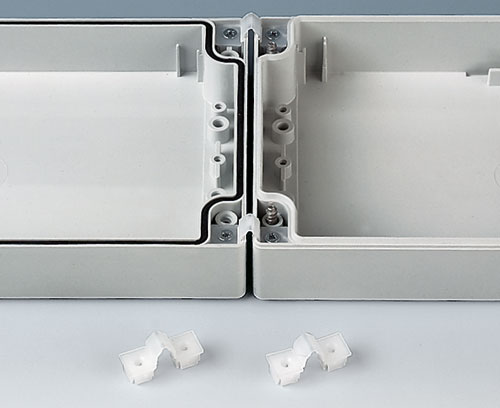

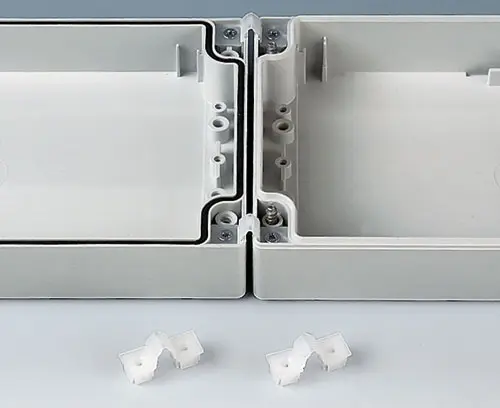

C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

Close

C2299031

Securing hinge for the cover
product added to your basket
PP
natural-coloured
C2299040 Security plug

C2299040

Security plug For use with lead tags.

Supply 1 plug

Close

C2299040

Security plug
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035

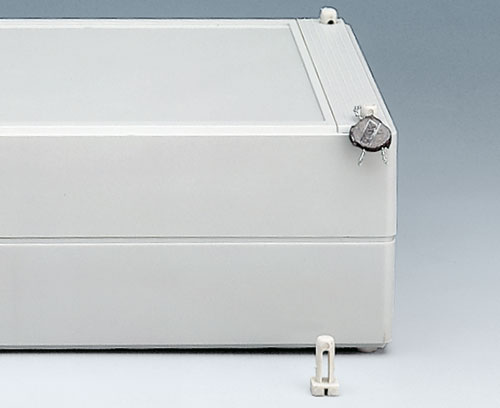

C2299042 Security kit width 120

C2299042

Security kit width 120 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299042

Security kit width 120
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
C2299046 Security kit width 160

C2299046

Security kit width 160 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299046

Security kit width 160
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
C2299048 Security kit width 80

C2299048

Security kit width 80 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

Close

C2299048

Security kit width 80
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
C2299058 PCB support

C2299058

PCB support For mounting pre-assembled PCB units. Suitable for: 200 x 120 mm for Eurocard size and all other cases width 120 mm.

Supply 2 PCB support, assembly kit (threaded bushes, screws)

Close

C2299058

PCB support
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Close

C2299068

PCB support
product added to your basket
PC (UL 94 HB)
light grey RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 120, 160, 200 and 240 mm length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Close

C2299088

Hinge
product added to your basket
PA 6
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalisation element M6x0.75
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalisation element M10x1
product added to your basket
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137 Cable grommet

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Close

C2320137

Cable grommet
product added to your basket
EPDM
light grey RAL 7035
IP 67

Customising options for Robust-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
