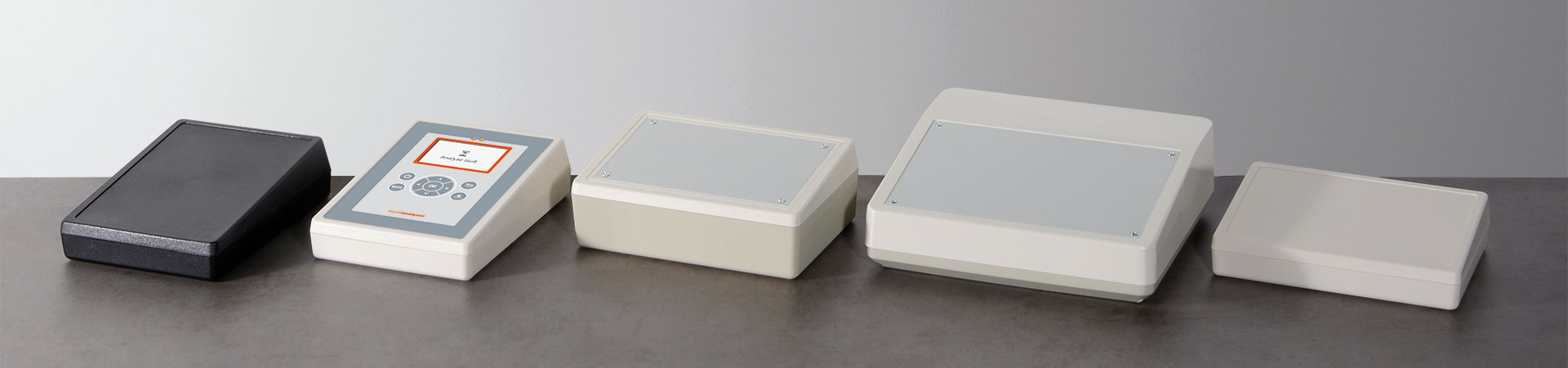

Cajas de sobremesa

Prácticas cajas con panel de mando inclinado

La gama de cajas con panel frontal inclinado de OKW son perfectas para una gran variedad de aplicaciones electrónicas para interior. Una caja que se adapta perfectamente a sus requisitos de tamaño e inclinación del panel de mando.

  • Cajas de sobremesa con área de operaciones inclinado.
  • Especialmente adecuadas para teclados numéricos y de membrana.
  • Gama útil de cinco modelos distintos.

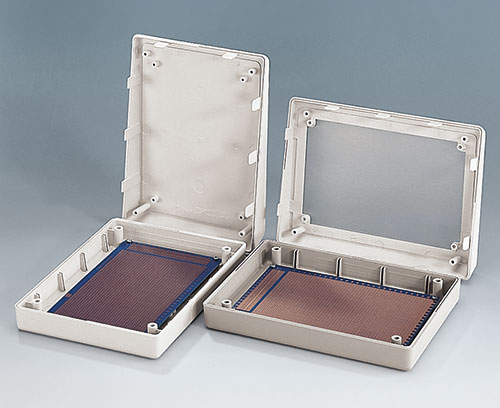

  • Preparadas para la incorporación de tarjetas Eurocard 100 x 160 mm (tipos 138/190/190F/190H)
  • Las versiones de panel frontal están disponibles para la instalación de unidades electrónicas completas prefabricadas.
  • Panel de montaje de conexiones (tipos 220, Combi F/H).
  • Versión con accesorio para dislapys de lecturas digitales, instrumentos de medición, codificadores, etc. (Combi Desk Case H).
  • Categoría de protección IP 40.
  • Juego de soporte de pared como accesorio.
  • Torretas de fijación para placas de circuitos y piezas de montaje
Crear PDF

Application fields

  • Sistemas de recopilación de datos en el puesto de trabajo y en máquinas
  • Instalaciones de intercomunicación
  • Dispositivos de control de acceso y periféricos informáticos
  • Tecnologías de laboratorio y medicina
  • Tecnologías de medición y regulación
  • Mandos industriales
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente

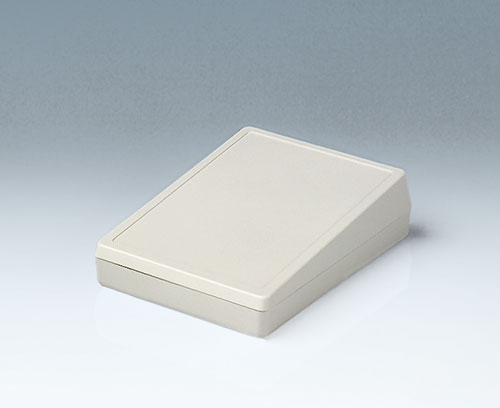

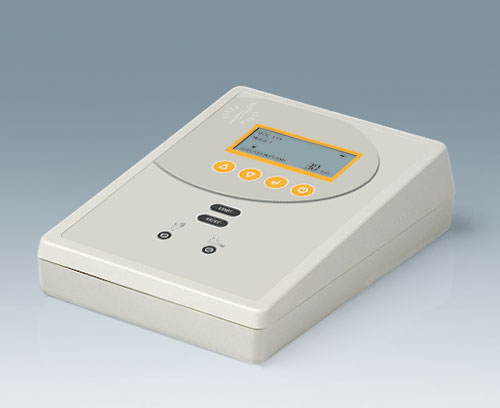

A0514007 DESK CASE 138

A0514007

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm . Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Cerrar

A0514007

DESK CASE 138
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
138x190x54mm
A0514009 DESK CASE 138

A0514009

DESK CASE 138 Two-part case with closed top. Ergonomically sloped control area recessed by 0.8 mm. Suitable for numerical keypads and membrane keyboards. Fastening pillars for PCBs or keyboards in the top and base.

Supply 1 top and base part, assembly kit

Cerrar

A0514009

DESK CASE 138
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
138x190x54mm

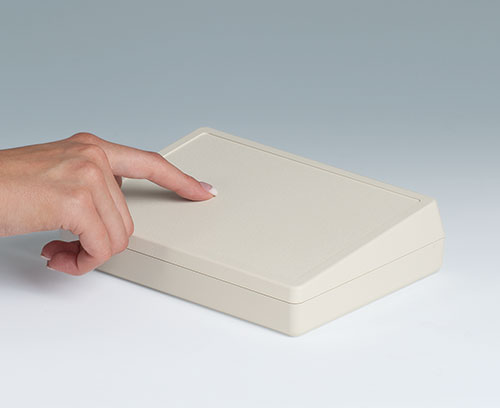

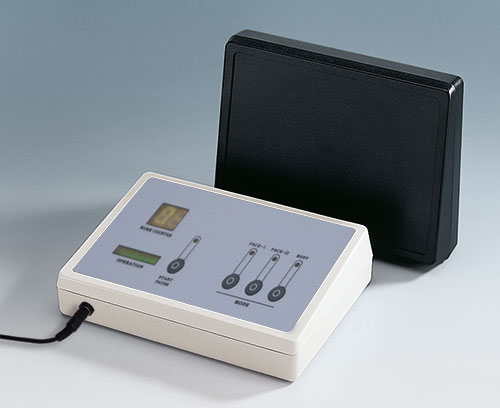

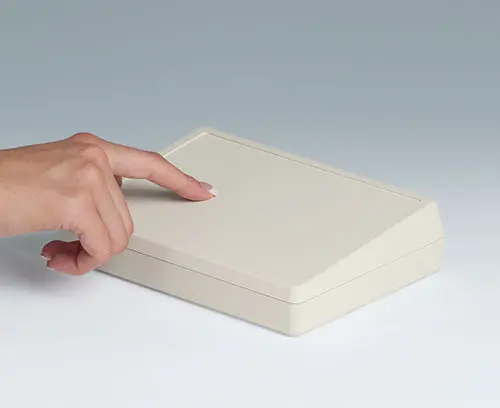

A0519007 DESK CASE 190

A0519007

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Cerrar

A0519007

DESK CASE 190
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
190x138x47mm
A0519009 DESK CASE 190

A0519009

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Cerrar

A0519009

DESK CASE 190
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
190x138x47mm
A9082065 DESK CASE 220

A9082065

DESK CASE 220 Two-part case with sloped operation area. Fastenings pillars for mounting PCBs in the base. Raised rear area to accommodate plugs.

Supply 1 top and base part, assembly kit

Cerrar

A9082065

DESK CASE 220
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
220x156x100mm

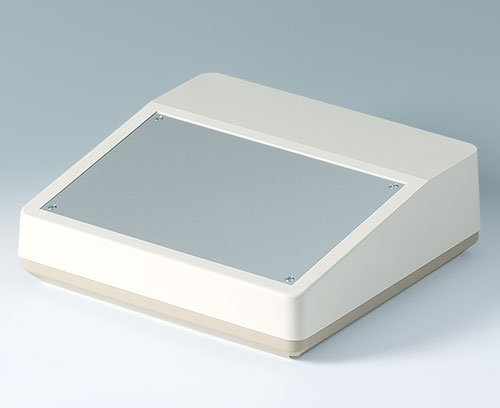

A9084165 COMBI DESK CASE F

A9084165

COMBI DESK CASE F Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Flat version without attachment

Supply 1 top and base part, assembly kit

Cerrar

A9084165

COMBI DESK CASE F
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
228x216x76mm
A9085165 COMBI DESK CASE H

A9085165

COMBI DESK CASE H Two-part case with sloped operation area. The base part has fastening pillars with inserts M3 for the mounting of PCBs. Raised panel at the rear for cable grommets and plug mounting.

Version Case with attachment, e.g. display

Supply 1 top and base part, attachment, assembly kit

Cerrar

A9085165

COMBI DESK CASE H
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
228x216x126mm

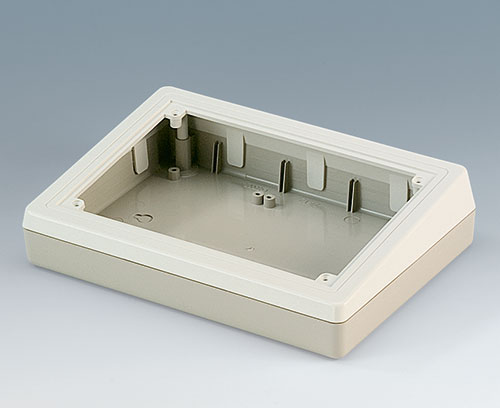

A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top prepared for front panel mounting, flat base part

Supply 1 top and base part, assembly kit

Cerrar

A9086265

DESK CASE 190 F
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
190x138x47mm
A9086365 DESK CASE 190 H

A9086365

DESK CASE 190 H Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top for front panel mounting, higher base part

Supply 1 top and base part, assembly kit

Cerrar

A9086365

DESK CASE 190 H
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
190x138x70mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista

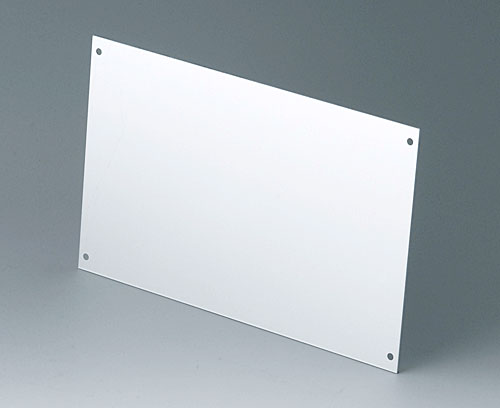

A9180001 Front panel 220

A9180001

Front panel 220 Front panel for DESK CASE 220.

Supply 1 front panel (screws supplied with case)

Cerrar

A9180001

Front panel 220
Producto añadido a su lista
Aluminium
matt anodised
205,5x129,4x1,5mm

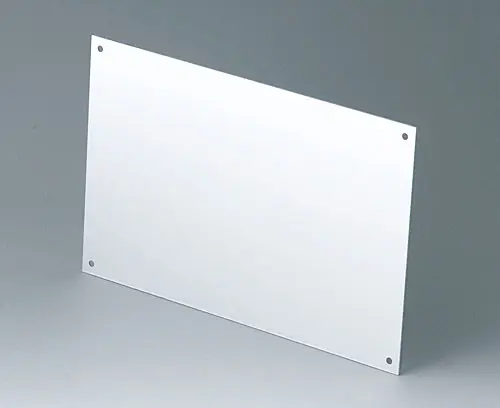

A9184001 Front panel

A9184001

Front panel Front panel for COMBI DESK CASE F/H. Front panel for attachment for COMBI DESK CASE H separate accessories (A9185001).

Supply 1 front panel (screws supplied with case)

Cerrar

A9184001

Front panel
Producto añadido a su lista
Aluminium
matt anodised
200x130x1,5mm

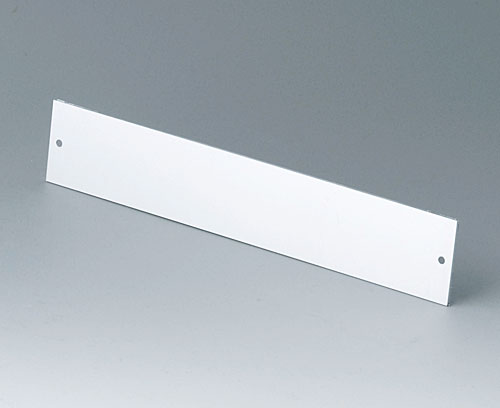

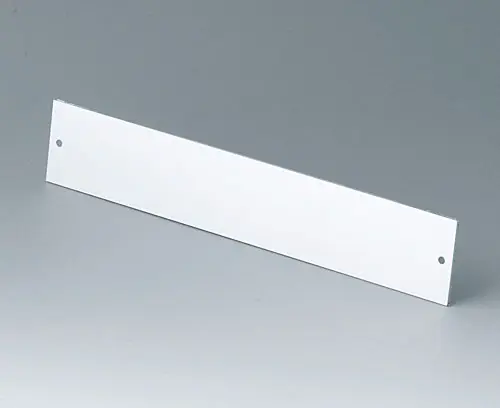

A9185001 Front panel

A9185001

Front panel Front panel for attachment for COMBI DESK CASE H.

Supply 1 front panel (screws supplied with case)

Cerrar

A9185001

Front panel
Producto añadido a su lista
Aluminium
matt anodised
200x35x1,5mm

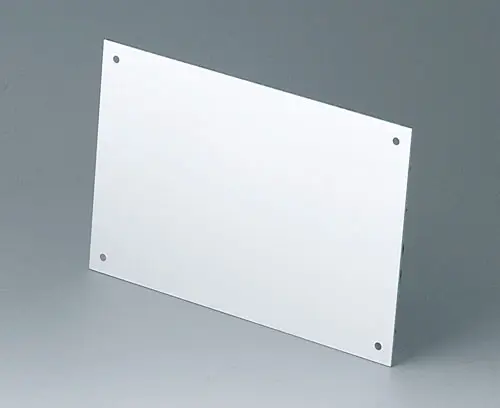

A9186001 Front panel 190 F/H

A9186001

Front panel 190 F/H Front panel for DESK CASE 190 F and H.

Supply 1 front panel (screws supplied with case)

Cerrar

A9186001

Front panel 190 F/H
Producto añadido a su lista
Aluminium
matt anodised
161,5x106x1,5mm
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Producto añadido a su lista
transparent
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Cerrar

B1350048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Cerrar

B1360048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032

Opciones de productos para Cajas de sobremesa

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
