DATEC-MOBIL-BOX
Scroll

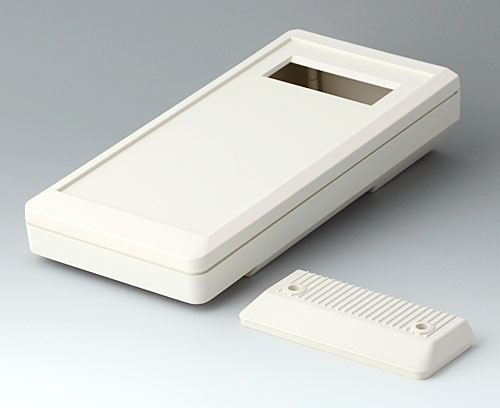

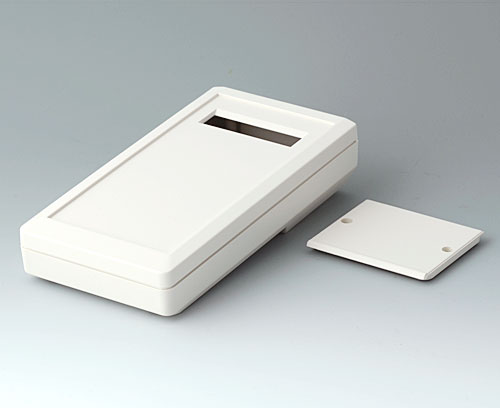

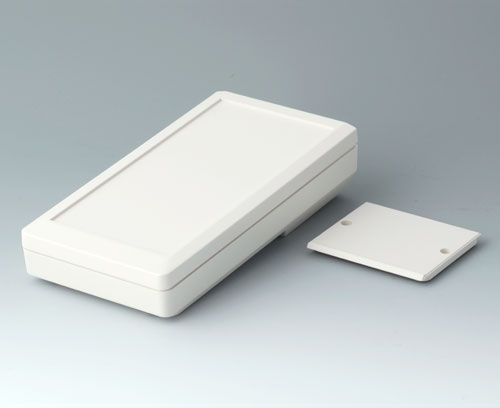

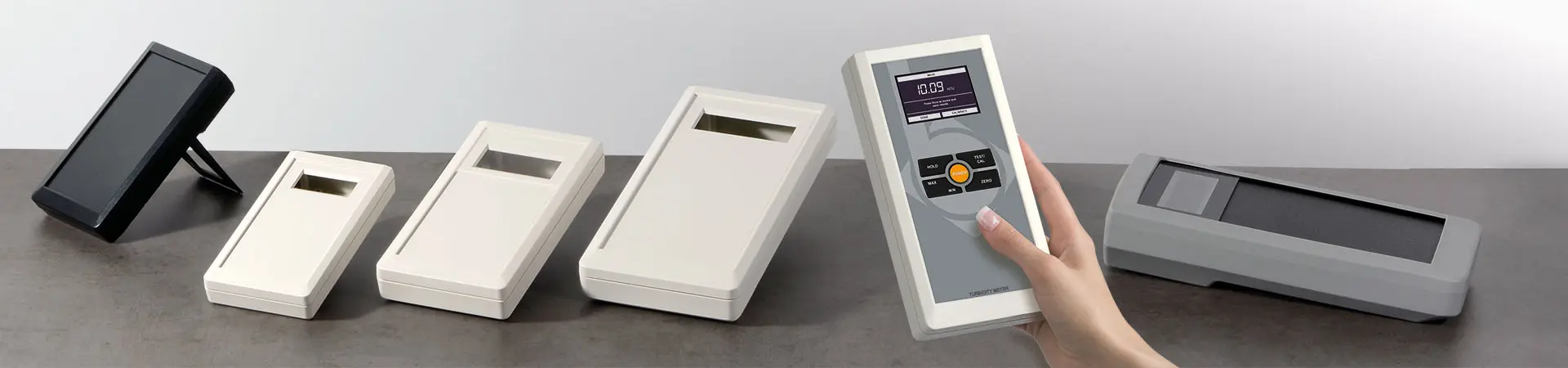

Datec-Mobil-Box

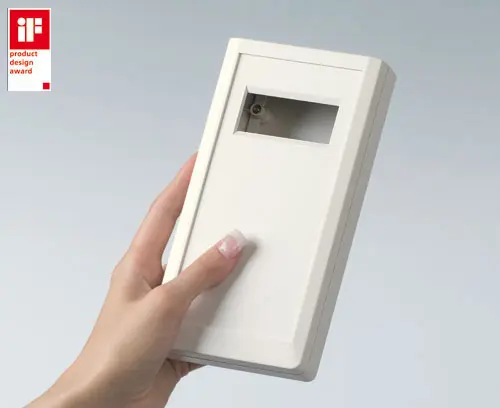

Caja de mano robusta

Con la denominación DATEC-MOBIL-BOX se ha desarrollado una serie de cajas especificas para la recopilación móvil de datos ya sea en interiores o en exterior.

  • Contorno ergonómico para un agarre y operativa cómodo.
  • Robusta, con protección hasta IP 65, (kit de juntas de protección disponibles como accesorio).

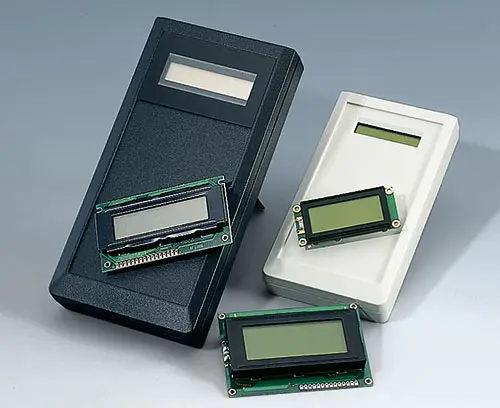

  • Diseñada para la integración de pantallas LCD estandarizadas; protector de pantallas acrílico accesorio para garantizar una alta protección en el área del display.
  • Superficies planas para interfaces.

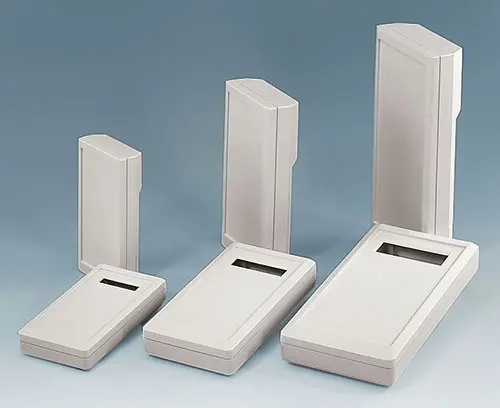

  • 3 tamaños en 2 colores

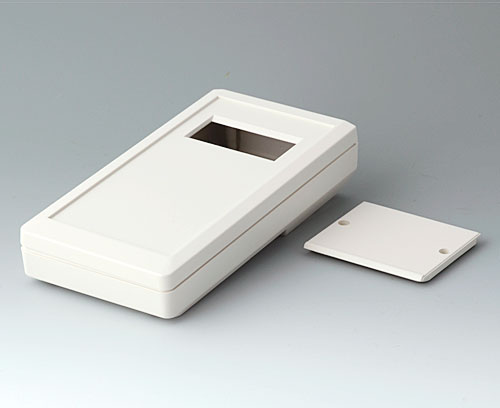

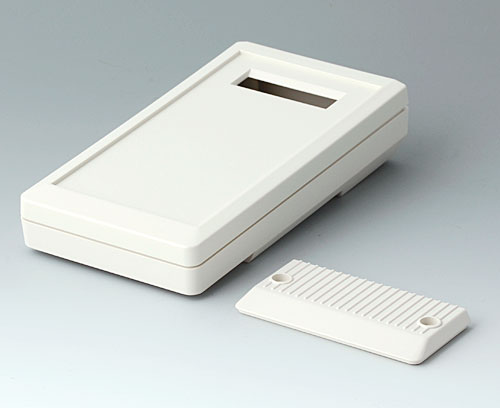

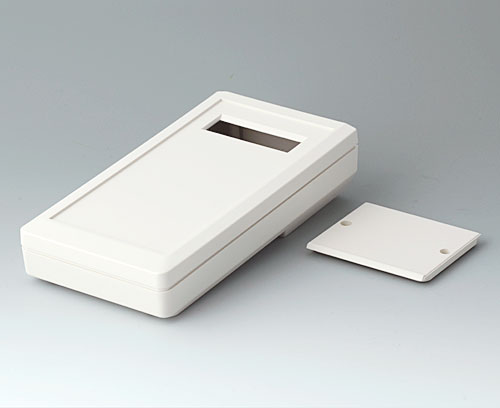

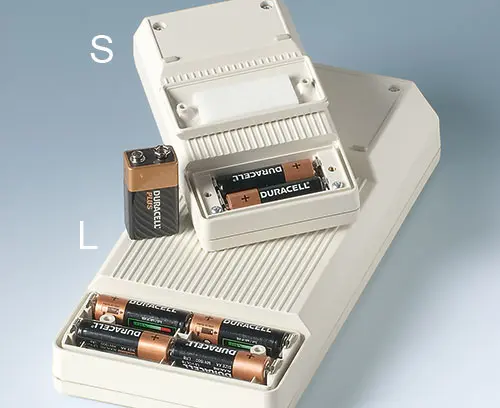

  • Tamaños S y L con/sin compartimiento de pilas.

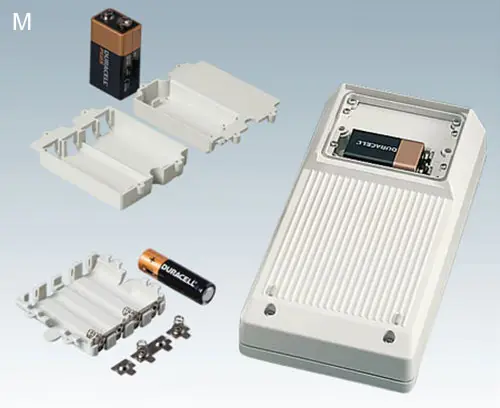

  • Tamaño M con compartimentos de pilas (los contactos para pilas se piden aparte).

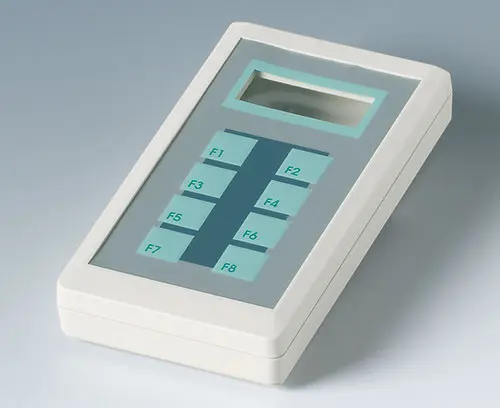

  • Panel de control rebajado para proteger el teclado de membrana.
  • Cabezales de fijación para placas de circuito impreso y piezas de montaje; Formato Eurocard en tamaño L

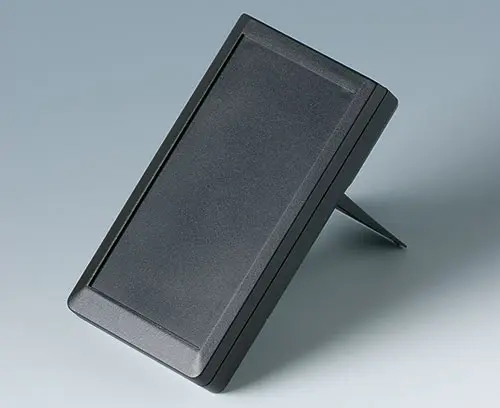

  • Pies de apoyo para conseguir un ángulo de lectura ergonómico en aplicaciones de sobremesa (accesorio).

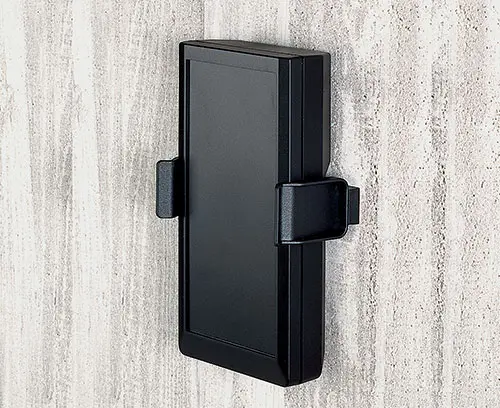

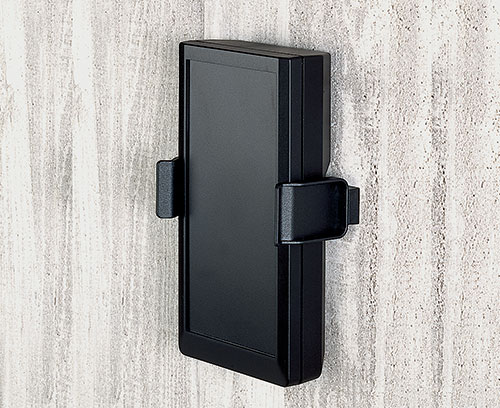

  • Soportes de pared para guardar el equipo de forma segura (accesorio).
  • Protector de goma para absorber golpes y proteger las superficies (accesorio tamaño L).

DECLARACIÓN DE DISEÑO

"DATEC-MOBIL-BOX es un auténtico milagro del espacio. Si, además, se le suma la línea de productos Datec-Pocket-Box, dispondrá de seis tamaños de cajas adaptadas a componentes convencionales en las que el espacio interior puede aprovecharse hasta en el último rincón. Todas estas cajas móviles pueden considerarse sinónimo de aprovechamiento del espacio en combinación con la funcionalidad de las superficies de visualización y mando, interfaces y suministro energético estándares. Cuando se trata de productos móviles y compactos, este diseño de cajas es imbatible".
Martin Nußberger, polyform Industrie Design

Crear PDF

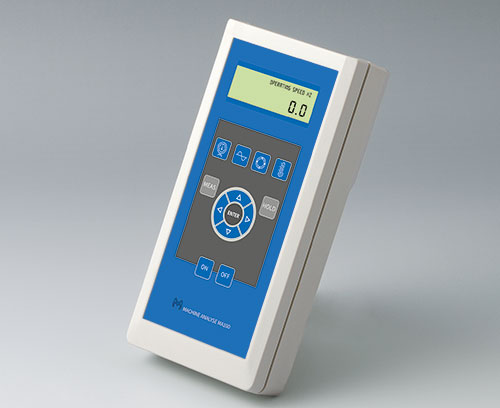

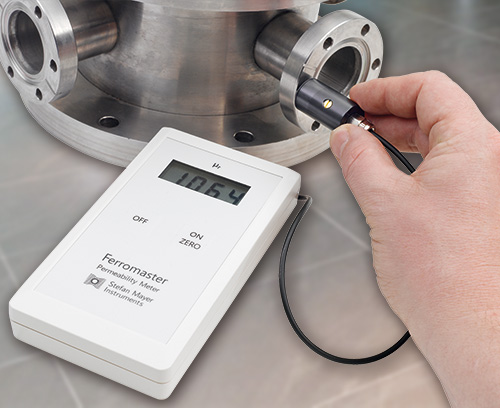

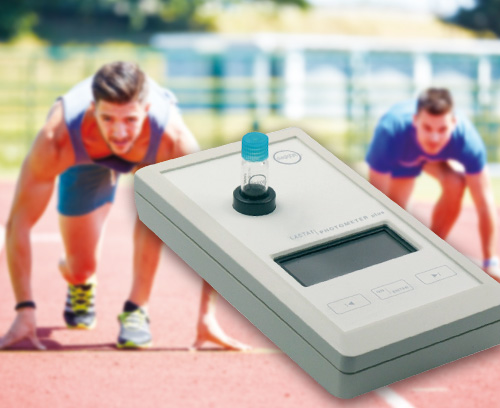

  • Ejemplos de aplicación

Application fields

  • Pensada para su uso en entornos difíciles
  • Recopilación y transmisión móvil de datos
  • Tecnologías de medición y regulación
  • Logística de almacenamiento y distribución
  • Tecnologías de control digital
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista
Stainless steel
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Cerrar

A9100002

Ring eyelet
Producto añadido a su lista
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Cerrar

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Producto añadido a su lista
Steel
tin-plated

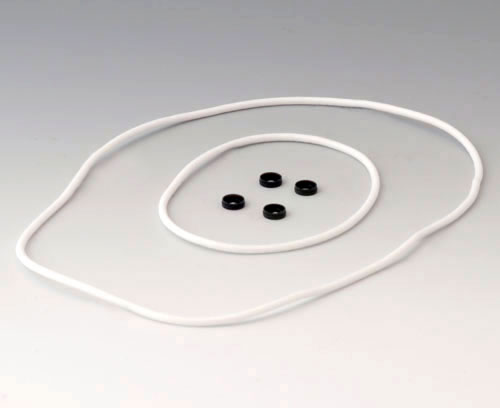

A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

Cerrar

A9173001

Sealing kit S
Producto añadido a su lista

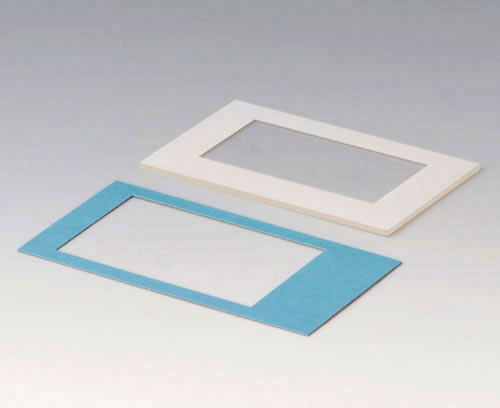

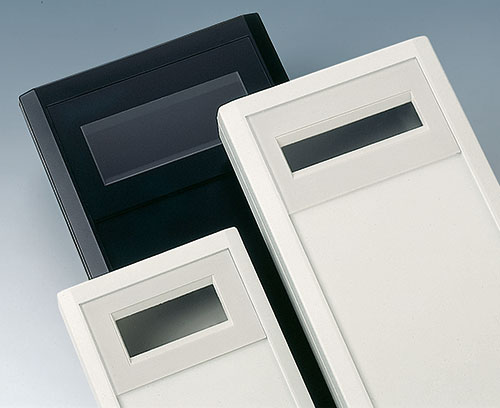

A9173007 Display window S, border off-white

A9173007

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173007

Display window S, border off-white
Producto añadido a su lista
Acrylic glass
transparent
A9173009 Display window S, border black

A9173009

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173009

Display window S, border black
Producto añadido a su lista
Acrylic glass
transparent

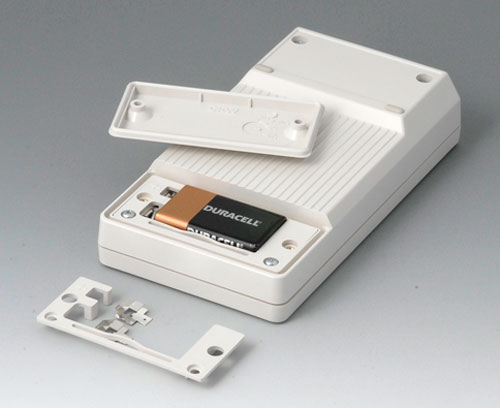

A9173010 9 V contact kit, 1 x 9 V

A9173010

9 V contact kit, 1 x 9 V For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.

Supply 1 plug-in contact set

Cerrar

A9173010

9 V contact kit, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)

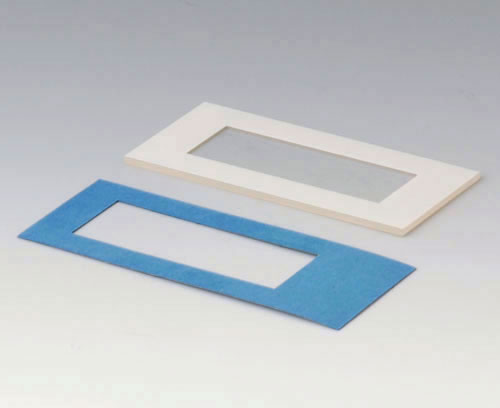

A9173307 Display window S, border off-white

A9173307

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173307

Display window S, border off-white
Producto añadido a su lista
Acrylic glass
transparent

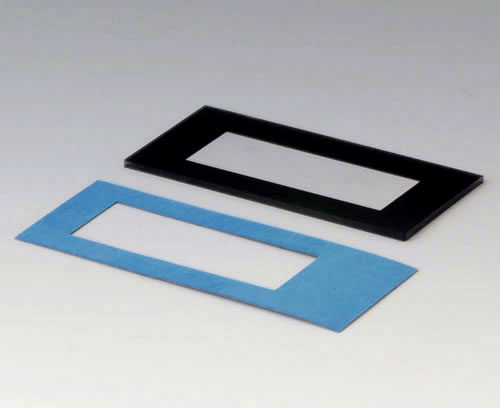

A9173309 Display window S, border black

A9173309

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173309

Display window S, border black
Producto añadido a su lista
Acrylic glass
transparent

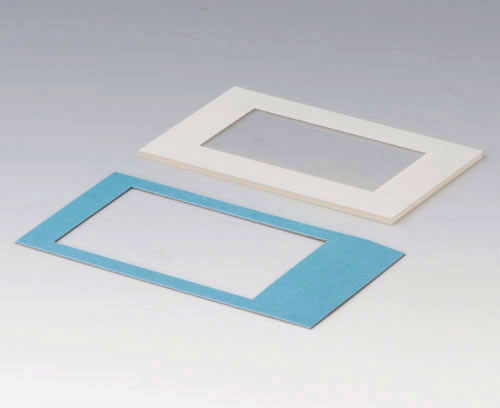

A9173407 Display window S, border off-white

A9173407

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173407

Display window S, border off-white
Producto añadido a su lista
Acrylic glass
transparent
A9173409 Display window S, border black

A9173409

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173409

Display window S, border black
Producto añadido a su lista
Acrylic glass
transparent
A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class, of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

Cerrar

A9174001

Sealing kit M
Producto añadido a su lista

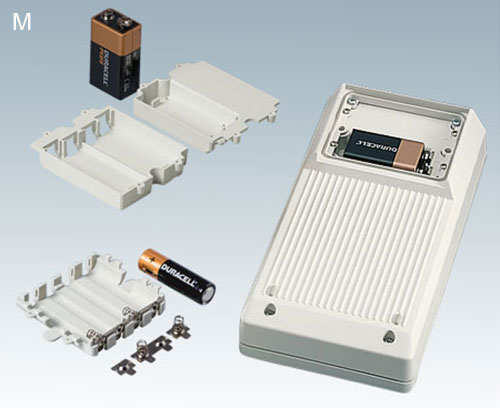

A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174002

Battery compartment, 2 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Cerrar

A9174003

Battery compartment, 1 x 9 V
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
A9174007 Display window M, border off-white

A9174007

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Cerrar

A9174007

Display window M, border off-white
Producto añadido a su lista
Acrylic glass
transparent

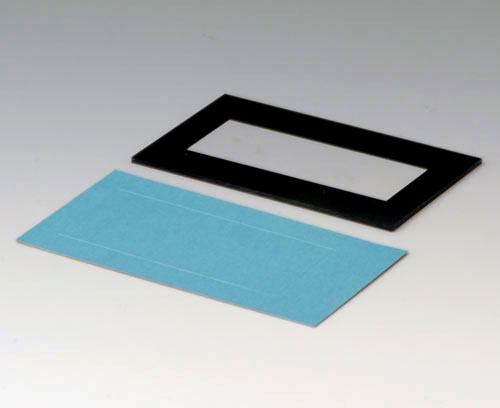

A9174009 Display window M, border black

A9174009

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Cerrar

A9174009

Display window M, border black
Producto añadido a su lista
Acrylic glass
transparent
A9174307 Display window M, border off-white

A9174307

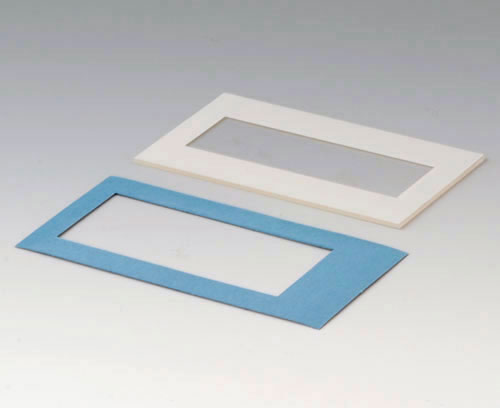

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Cerrar

A9174307

Display window M, border off-white
Producto añadido a su lista
Acrylic glass
transparent

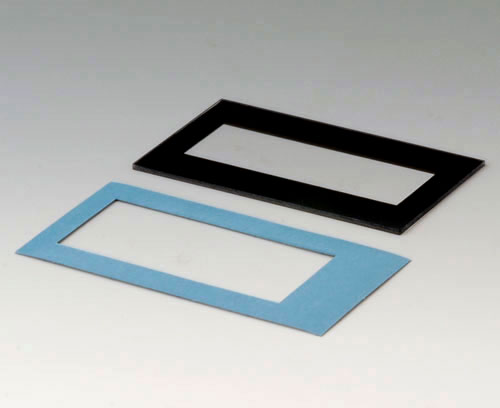

A9174309 Display window M, border black

A9174309

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Cerrar

A9174309

Display window M, border black
Producto añadido a su lista
Acrylic glass
transparent

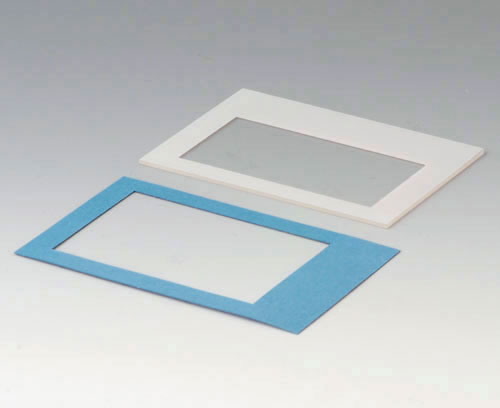

A9174407 Display window M, border off-white

A9174407

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version IV

Supply 1 display window, 1 adhesive foil

Cerrar

A9174407

Display window M, border off-white
Producto añadido a su lista
Acrylic glass
transparent
A9174409 Display window M, border black

A9174409

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Cerrar

A9174409

Display window M, border black
Producto añadido a su lista
Acrylic glass
transparent
A9175001 Sealing kit L

A9175001

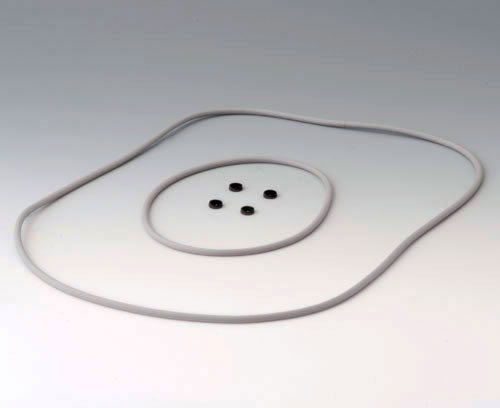

Sealing kit L Application: for increasing the protection class, of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

Cerrar

A9175001

Sealing kit L
Producto añadido a su lista
A9175007 Display window L, border off-white

A9175007

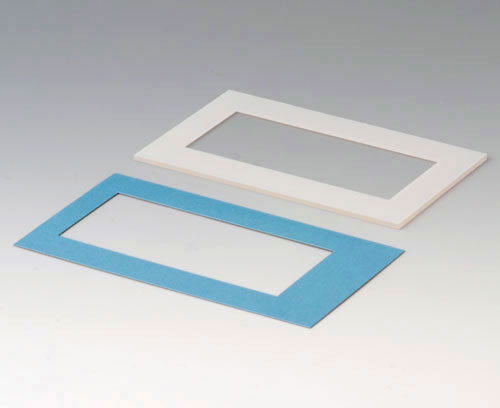

Display window L, border off-white The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

Cerrar

A9175007

Display window L, border off-white
Producto añadido a su lista
Acrylic glass
transparent
A9175009 Display window L, border black

A9175009

Display window L, border black The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

Cerrar

A9175009

Display window L, border black
Producto añadido a su lista
Acrylic glass
transparent

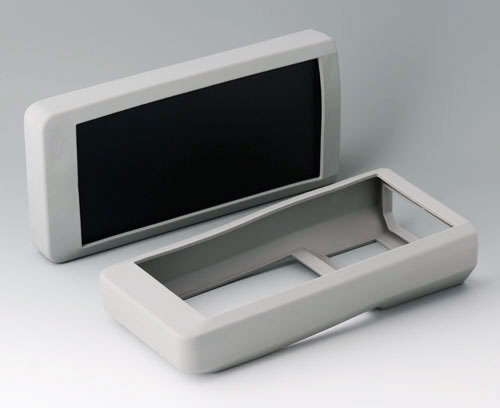

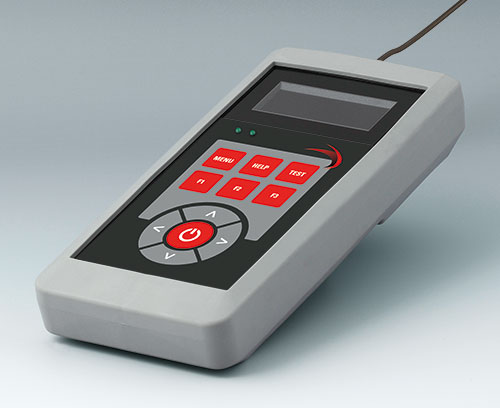

A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Cerrar

A9175108

Protector L
Producto añadido a su lista
SBS (TPE)
volcano

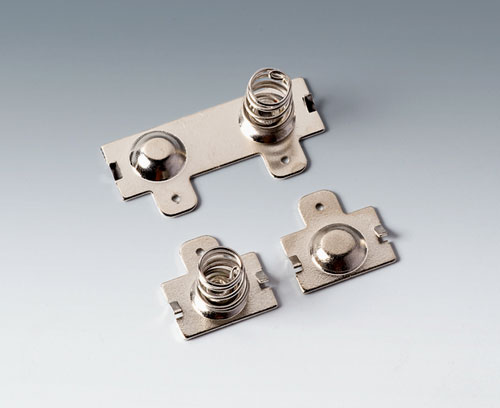

A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

Cerrar

A9190011

Set of battery clips, 2 x AA
Producto añadido a su lista
Steel
nickel-plated

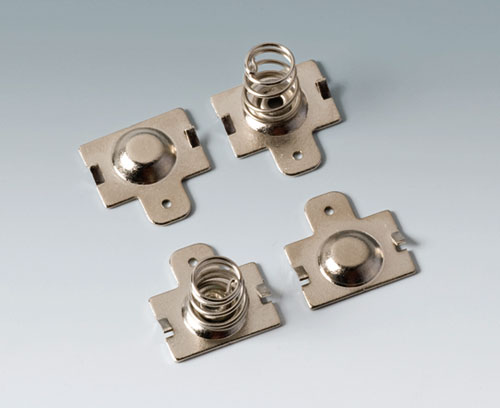

A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

Cerrar

A9190012

Set of battery clips, 4 x AA
Producto añadido a su lista
Steel
nickel-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent

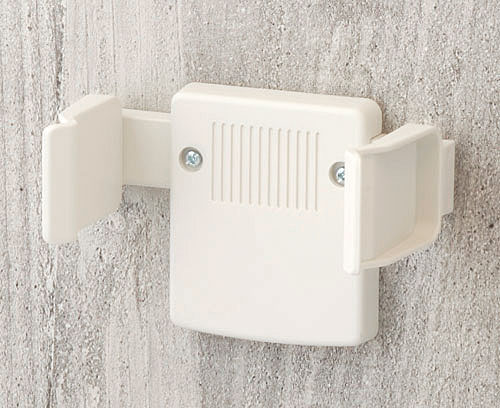

A9226127 Wall suspension element

A9226127

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226127

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

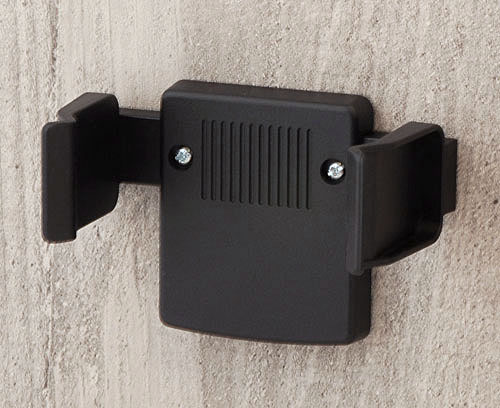

A9226129 Wall suspension element

A9226129

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226129

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226227

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226229

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

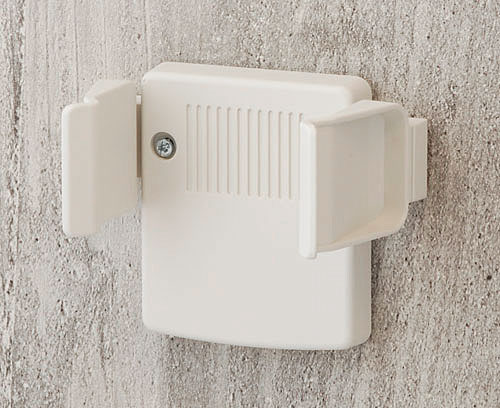

A9226237 Wall suspension element

A9226237

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226237

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

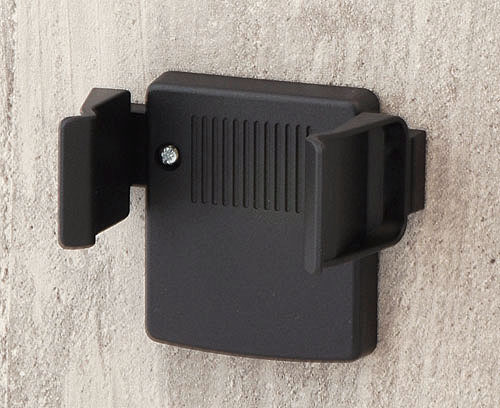

A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226239

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Cerrar

A9250250

Battery spacer
Producto añadido a su lista
PE foam
50x25x4mm
A9250907 Tilt foot bar

A9250907

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9250907

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9250909

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Cerrar

A9345217

Set of battery compartment, 4 x AA
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002

Opciones de productos para Datec-Mobil-Box

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
