Easytec

Cajas para abrida para modernos sensores

La nueva serie de cajas de pared EASYTEC se ha diseñado especialmente con la mente puesta en la integración de sensores inteligentes para el internet (industrial) de las cosas.

  • Cajas de diseño moderno con gran nivel de estabilidad

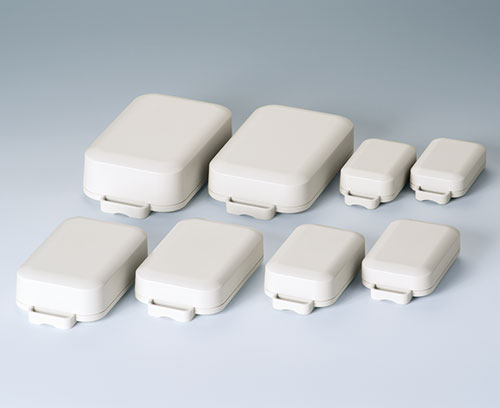

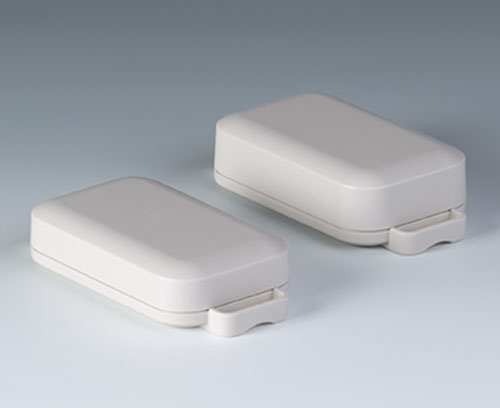

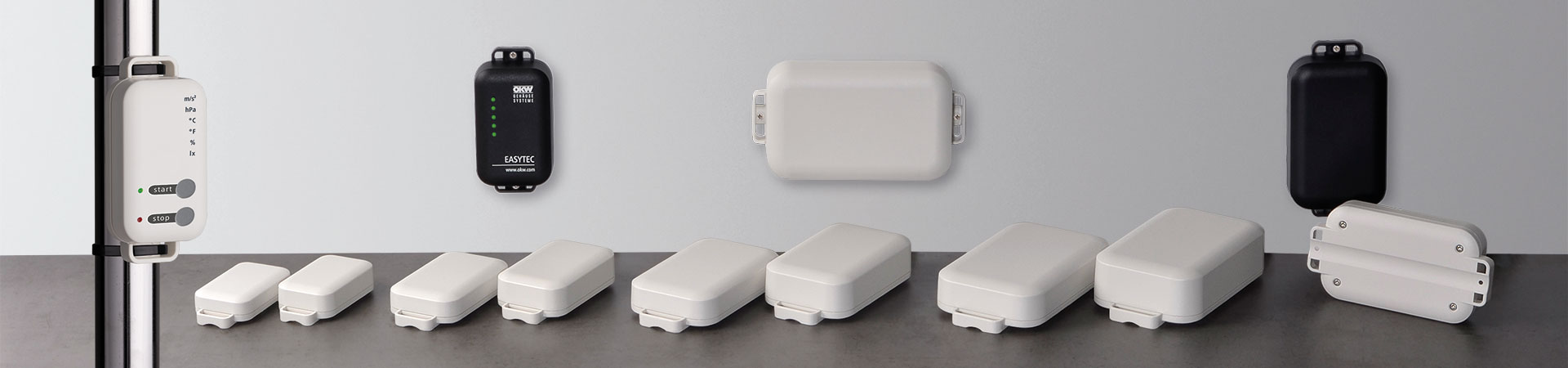

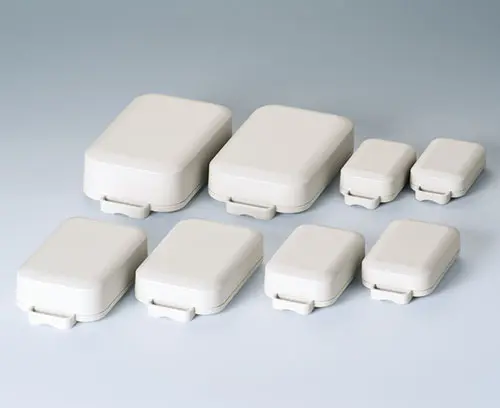

  • Cuatro tamaños, 80/100/125/150, cada uno en dos alturas

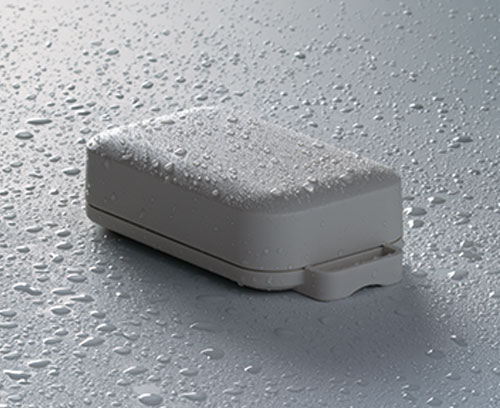

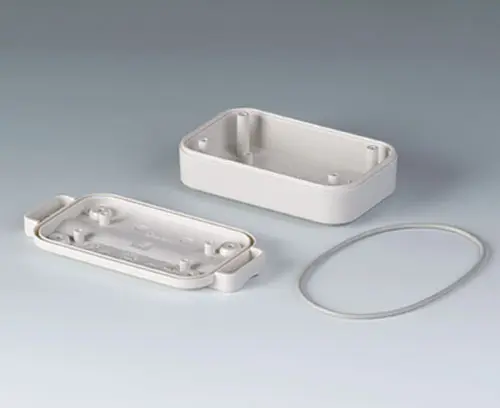

  • Material pirorretardante ASA+PC-FR y categoría de protección opcional IP 65 (juntas como accesorio) para aplicaciones robustas en interiores y exteriores

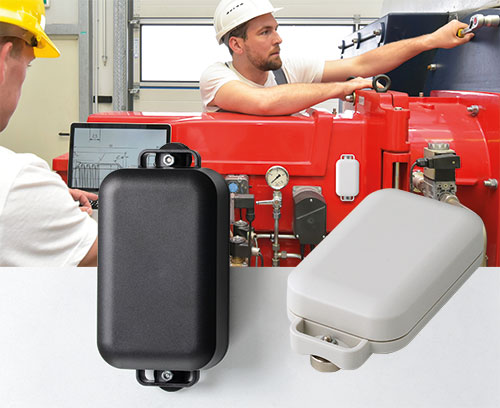

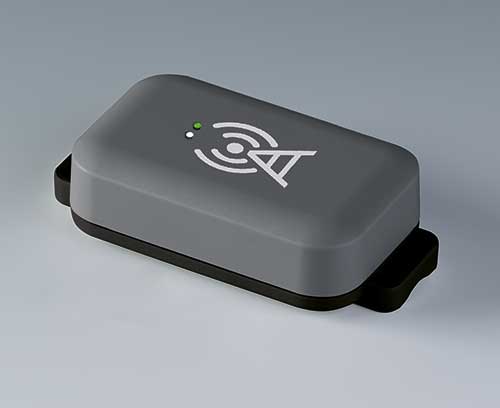

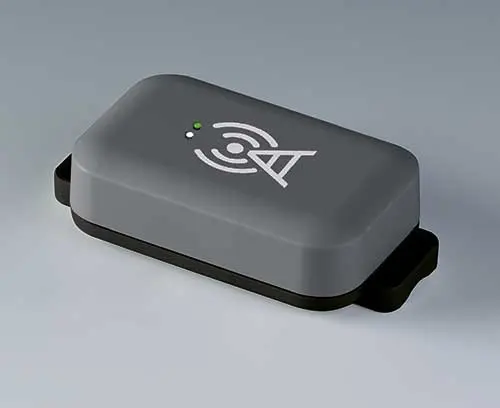

  • El discreto blanco grisáceo que viene por defecto (RAL 9002) favorece las numerosas posibilidades de aplicación, y, si lo solicita, fabricamos las cajas también en otros colores

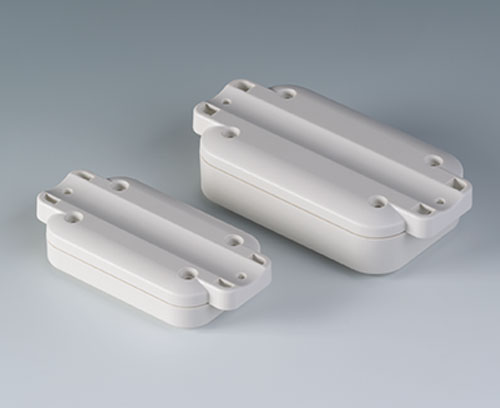

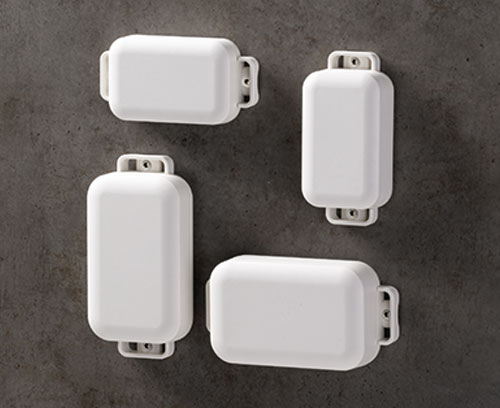

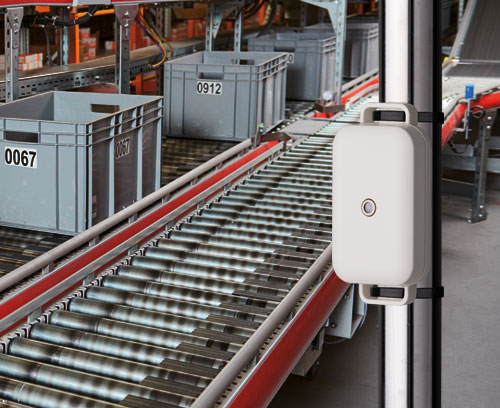

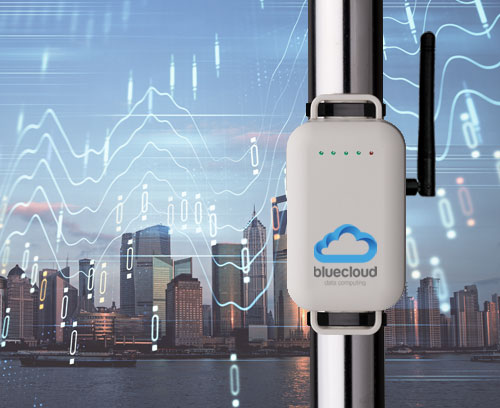

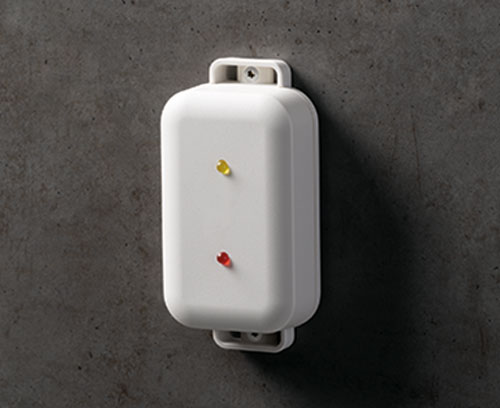

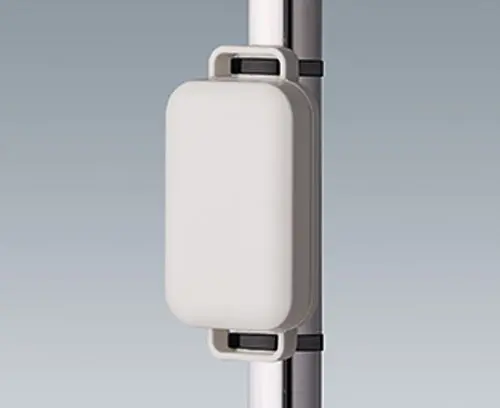

  • La parte inferior está provista de dos bridas para un montaje rápido en la pared y una fijación en tuberías o perfiles redondeados
  • Espacio impermeable para sistemas electrónicos con dos niveles de placas de circuitos (en la parte superior / inferior)
  • Tornillos de acero inoxidable y par Torx
Crear PDF
  • Video

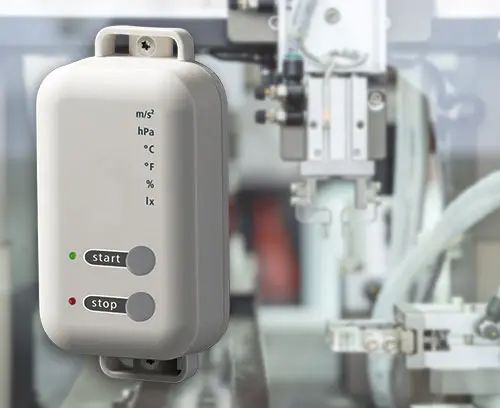

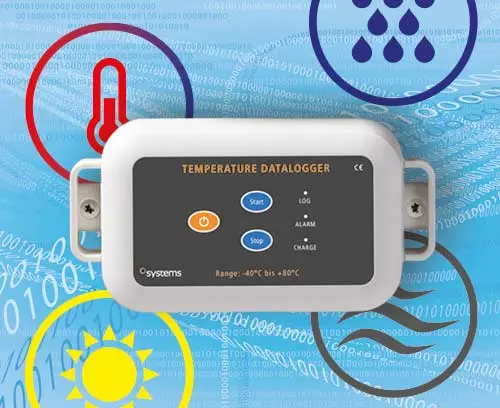

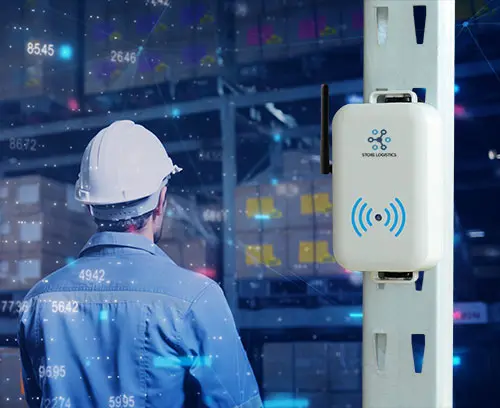

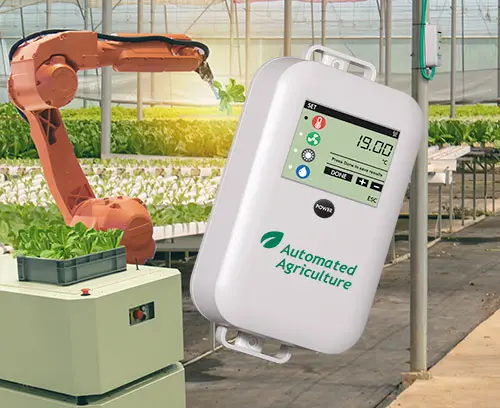

  • Ejemplos de aplicación

Application fields

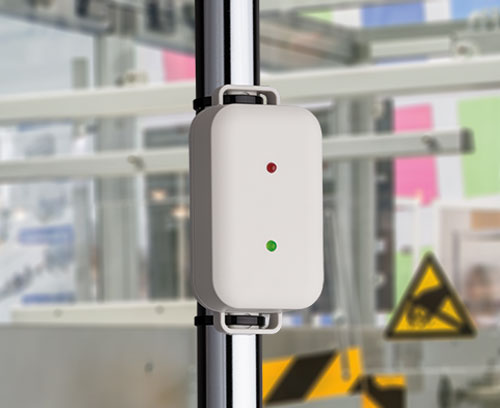

  • Internet de las cosas / Internet industrial de las cosas
  • Sensores
  • Tecnologías medioambientales
  • Tecnologías de medición y control
  • Tecnologías de regulación
  • Tecnologías de medicina y laboratorio
  • Instrumentos de seguridad y vigilancia
  • Tecnologías de la información
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente

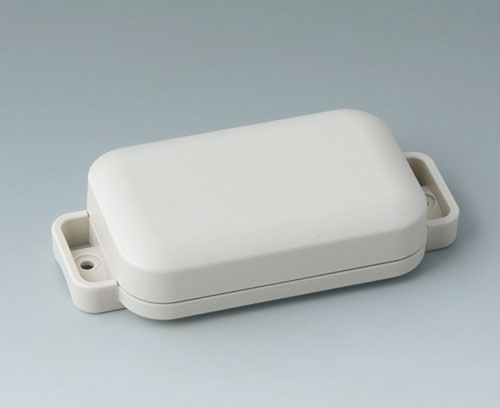

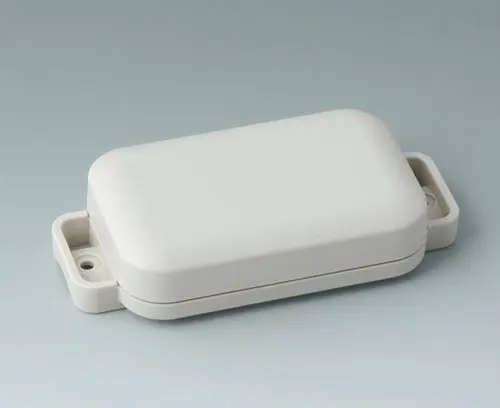

C3204107 EASYTEC 80

C3204107

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Cerrar

C3204107

EASYTEC 80
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x22mm
IP 65 opt., IP 40

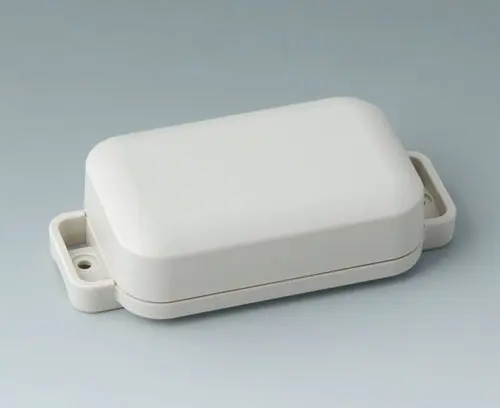

C3204207 EASYTEC 80

C3204207

EASYTEC 80 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Cerrar

C3204207

EASYTEC 80
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
101x50x26mm
IP 65 opt., IP 40

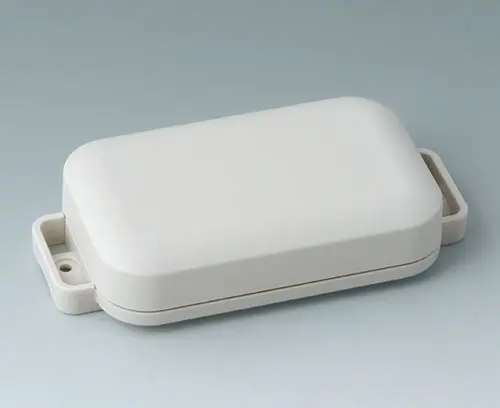

C3206107 EASYTEC 100

C3206107

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Cerrar

C3206107

EASYTEC 100
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x26mm
IP 65 opt., IP 40
C3206207 EASYTEC 100

C3206207

EASYTEC 100 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Cerrar

C3206207

EASYTEC 100
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
121x62x31mm
IP 65 opt., IP 40

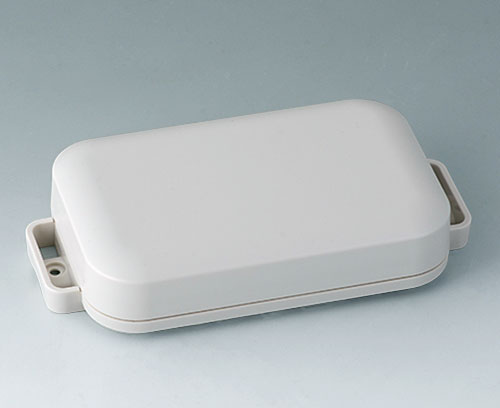

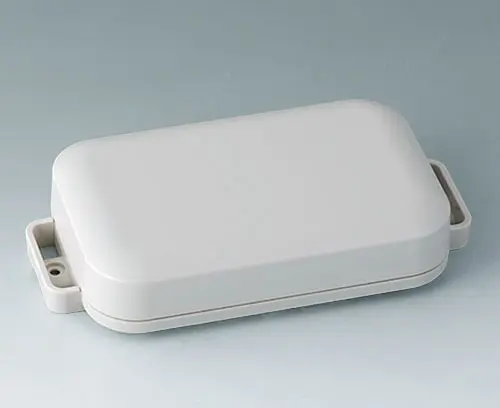

C3207107 EASYTEC 125

C3207107

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Cerrar

C3207107

EASYTEC 125
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x30mm
IP 65 opt., IP 40

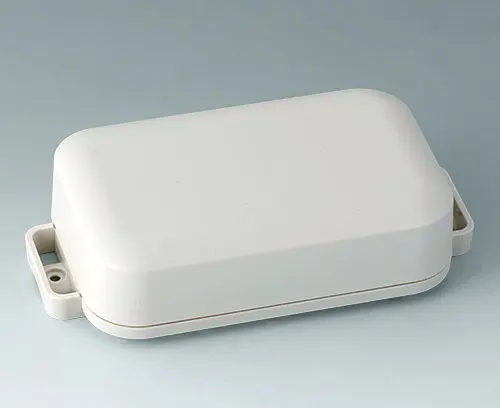

C3207207 EASYTEC 125

C3207207

EASYTEC 125 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Cerrar

C3207207

EASYTEC 125
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
147x78x37mm
IP 65 opt., IP 40

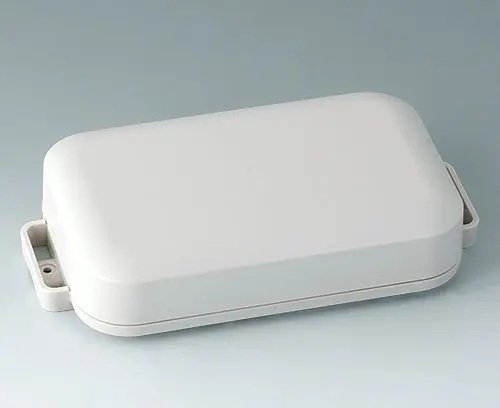

C3208107 EASYTEC 150

C3208107

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part flat

Supply Top and bottom part, assembly kit

Cerrar

C3208107

EASYTEC 150
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x36mm
IP 65 opt., IP 40

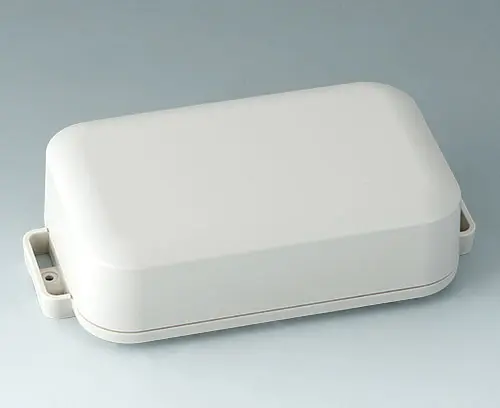

C3208207 EASYTEC 150

C3208207

EASYTEC 150 2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.

Version Top part high

Supply Top and bottom part, assembly kit

Cerrar

C3208207

EASYTEC 150
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x93x46mm
IP 65 opt., IP 40
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Producto añadido a su lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Producto añadido a su lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T08

Torx T8 screwdriver
Producto añadido a su lista

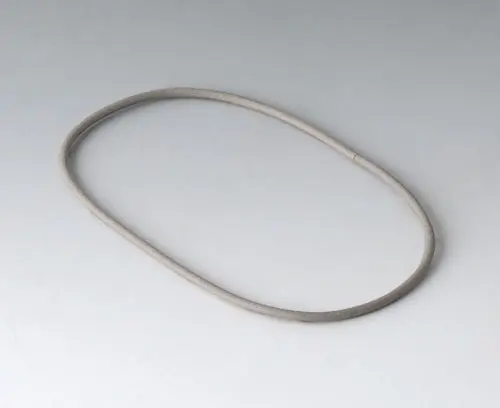

A9500030 Sealing 80

A9500030

Sealing 80 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9500030

Sealing 80
Producto añadido a su lista

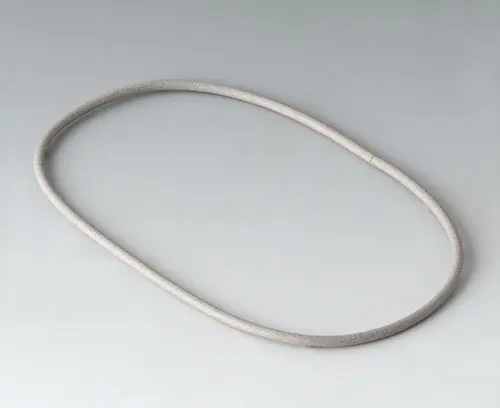

A9502030 Sealing 100

A9502030

Sealing 100 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9502030

Sealing 100
Producto añadido a su lista

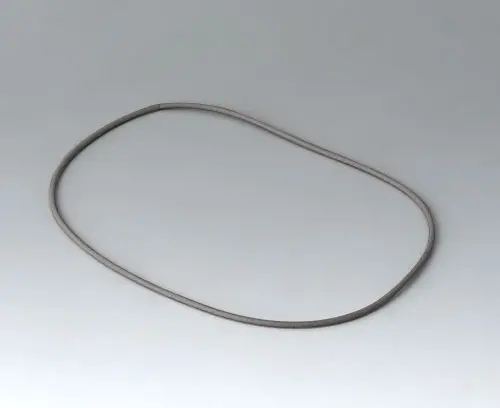

A9503030 Sealing 125

A9503030

Sealing 125 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9503030

Sealing 125
Producto añadido a su lista
A9504030 Sealing 150

A9504030

Sealing 150 Application: for increasing the protection class. Bottom part with groove accepts the seal.

Supply 1 seal

Cerrar

A9504030

Sealing 150
Producto añadido a su lista

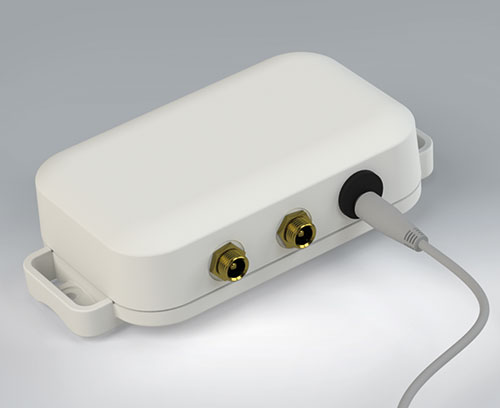

Opciones de productos para Easytec

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
