In-Box

Cajas industriales robustas

Ya sea como caja para instalación de terminales, o para equipos electrónicos, la serie IN-BOX ofrece opciones versátiles para los ingenieros eléctricos y electrónicos.

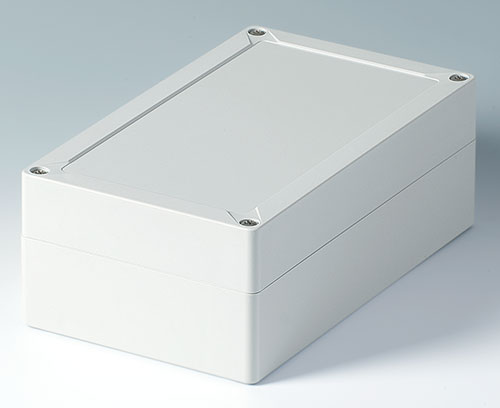

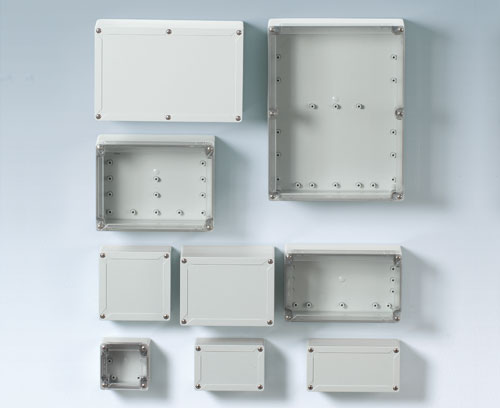

  • 9 cajas básicas de acabado brillante y diferentes alturas.
  • Dos materiales estándar: ABS (UL 94 HB) o PC (V-2);
    Todas las cajas en PC cumplen la normativa de protección ignífuga UL 94 5V (mejor que V-0), aunque el material sólo tenga la clasificación V-2.
  • Elevadas categorías de protección IP 66/67; el aislamiento de goma va preinstalado en la parte superior.
  • Gran resistencia a impactos IK07 (ABS), IK08 (PC).

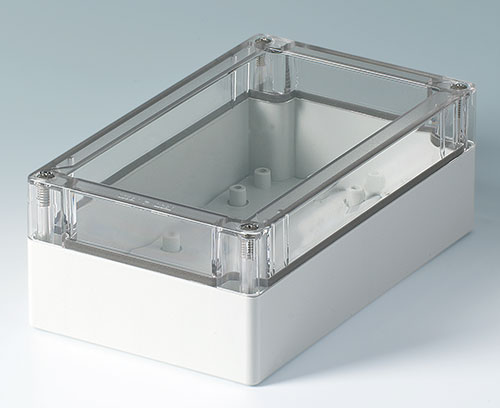

  • Parte superior del mismo color que la parte inferior o transparente.

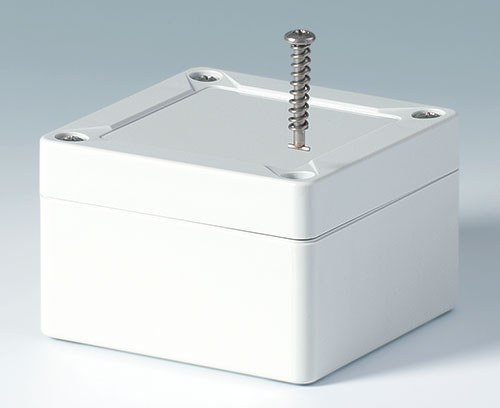

  • Cierre rápido eficiente con tornillos de cuarto de vuelta en acero inoxidable.

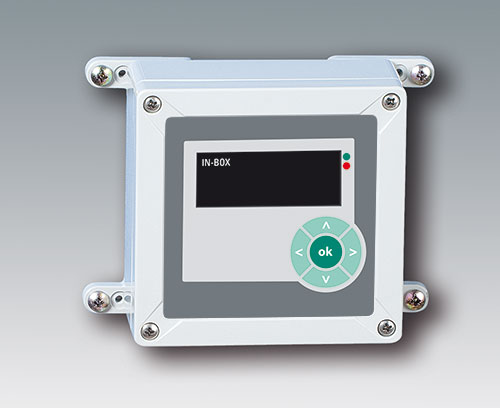

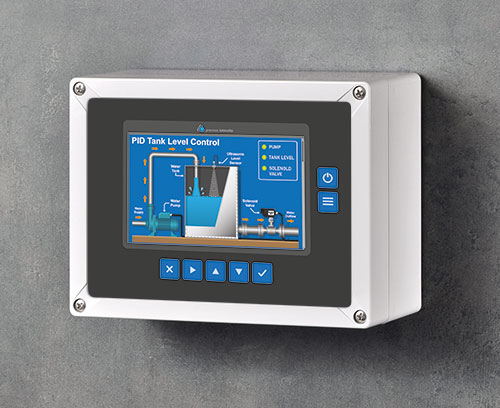

  • Panel de control rebajado para proteger el teclado de membrana.

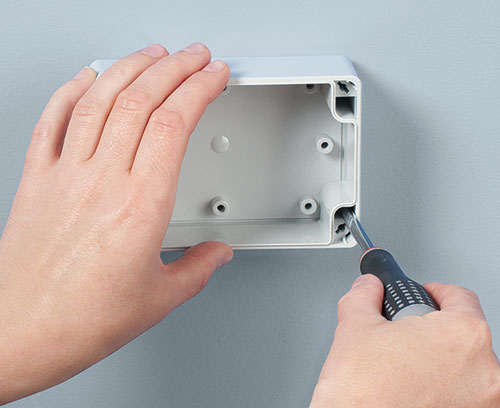

  • Montaje desde el interior directamente a la pared o desde el exterior mediante escuadras de fijación; en caso necesario de una bisagra interior para su instalación, existe como accesorio.

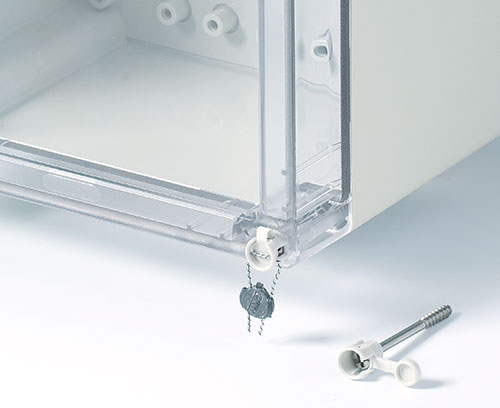

  • Precintado de seguridad opcional para impedir accesos no autorizados a la caja.

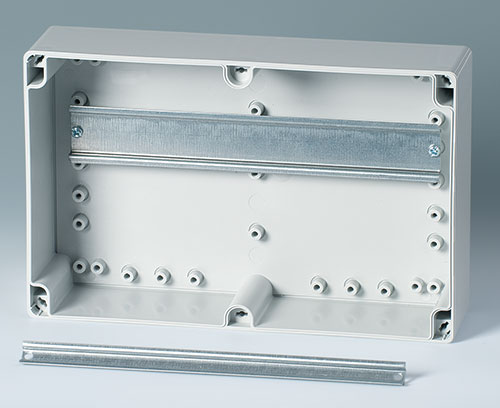

  • Railes DIN normalizados y placas de montaje para una configuración de instalación personalizada.
  • Torretas de fijación integrados para placas de circuito impreso, raíles DIN y placas y piezas de montaje.
Crear PDF

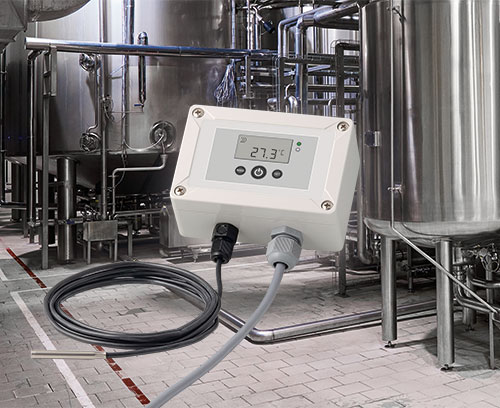

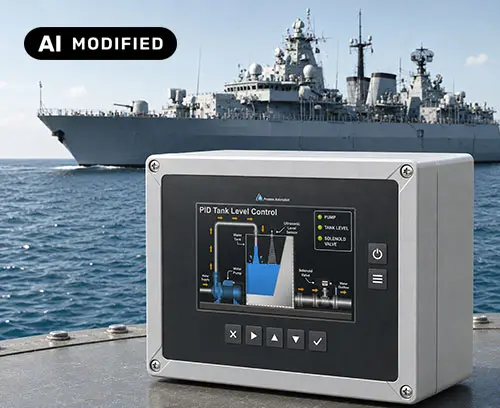

  • Ejemplos de aplicación

Application fields

  • Pensada para su uso en instalaciones eléctricas, como en tecnologías de calefacción, climatización y ventilación, dispositivos de mando y de control, construcción de maquinaria e instalaciones, tecnologías de seguridad, etc.
  • También puede emplearse en el sector de la electrónica, como, por ejemplo, instrumentos de medición digitales y analógicos, sensores, carcasas para interfaces, alarmas, etc.
  • Smart Factory / Industrie 4.0
  • Versiones
  • Accesorios

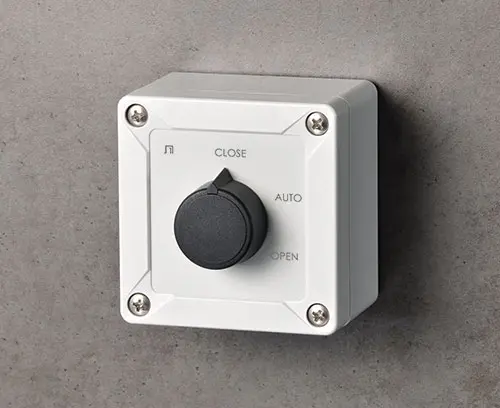

  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2306917

Pressure equalisation element M6x0.75
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Cerrar

C2310917

Pressure equalisation element M10x1
Producto añadido a su lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

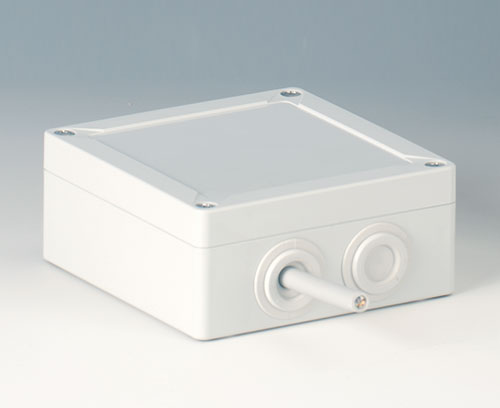

C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Cerrar

C2320137

Cable grommet
Producto añadido a su lista
EPDM
light grey RAL 7035
IP 67
C7100092 Wall-mounting brackets

C7100092

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

Cerrar

C7100092

Wall-mounting brackets
Producto añadido a su lista
PC GF15
C7100128 Security kit

C7100128

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Cerrar

C7100128

Security kit
Producto añadido a su lista
PP
C7100138 Security kit

C7100138

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

Cerrar

C7100138

Security kit
Producto añadido a su lista
PP

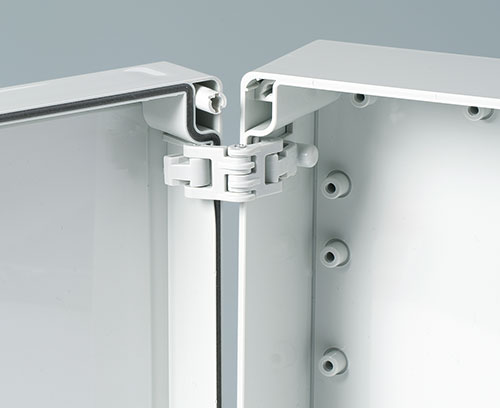

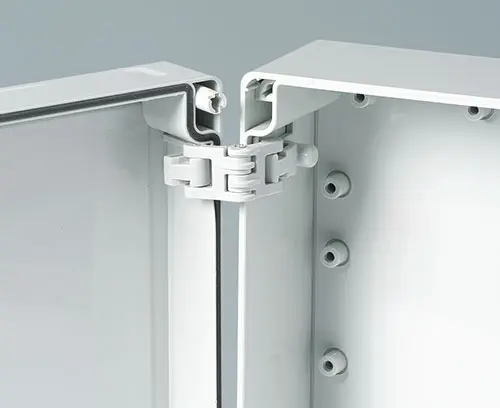

C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

Cerrar

C7100142

Inside hinge
Producto añadido a su lista
PC
C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Cerrar

C7100167

Screw 3.9 x 9 mm
Producto añadido a su lista
C7110056 Mounting plate

C7110056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7110056

Mounting plate
Producto añadido a su lista
73x53x2,5mm
C7110077 Standard DIN rail, Type TH 35

C7110077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7110077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
66x35x7,5mm
C7110087 Standard DIN rail, Type TH 15

C7110087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7110087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
66x15x5,5mm
C7111056 Mounting plate

C7111056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7111056

Mounting plate
Producto añadido a su lista
91x73x2,5mm
C7111077 Standard DIN rail, Type TH 35

C7111077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7111077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
104x35x7,5mm
C7111087 Standard DIN rail, Type TH 15

C7111087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7111087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
104x15x5,5mm
C7112056 Mounting plate

C7112056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7112056

Mounting plate
Producto añadido a su lista
113x93x2,5mm
C7112077 Standard DIN rail, Type TH 35

C7112077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7112077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
108x35x7,5mm
C7112087 Standard DIN rail, Type TH 15

C7112087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7112087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
108x15x5,5mm
C7113056 Mounting plate

C7113056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7113056

Mounting plate
Producto añadido a su lista
131x73x2,5mm
C7113077 Standard DIN rail, Type TH 35

C7113077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7113077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
144x35x7,5mm
C7113087 Standard DIN rail, Type TH 15

C7113087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7113087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
144x15x5,5mm
C7114056 Mounting plate

C7114056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7114056

Mounting plate
Producto añadido a su lista
131x113x2,5mm
C7115056 Mounting plate

C7115056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7115056

Mounting plate
Producto añadido a su lista
171x113x2,5mm
C7115077 Standard DIN rail, Type TH 35

C7115077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7115077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
184x35x7,5mm
C7115087 Standard DIN rail, Type TH 15

C7115087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7115087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
184x15x5,5mm
C7116056 Mounting plate

C7116056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7116056

Mounting plate
Producto añadido a su lista
171x143x2,5mm

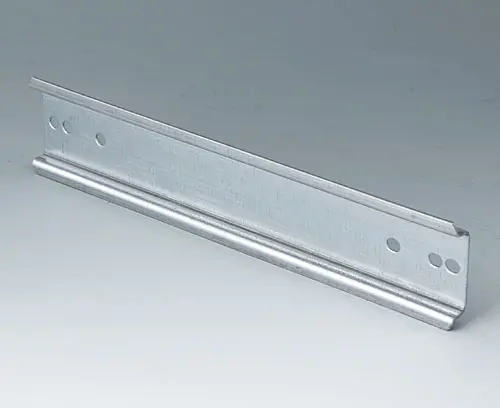

C7116077 Standard DIN rail, Type TH 35

C7116077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7116077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
168x35x7,5mm
C7116087 Standard DIN rail, Type TH 15

C7116087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7116087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
168x15x5,5mm
C7117056 Mounting plate

C7117056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7117056

Mounting plate
Producto añadido a su lista
220,5x152,5x2,5mm
C7117077 Standard DIN rail, Type TH 35

C7117077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7117077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
220x35x7,5mm
C7117087 Standard DIN rail, Type TH 15

C7117087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7117087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
220x15x5,5mm
C7118056 Mounting plate

C7118056

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

Cerrar

C7118056

Mounting plate
Producto añadido a su lista
270,5x222,5x2,5mm
C7118077 Standard DIN rail, Type TH 35

C7118077

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

Cerrar

C7118077

Standard DIN rail, Type TH 35
Producto añadido a su lista
Steel
283,5x35x7,5mm
C7118087 Standard DIN rail, Type TH 15

C7118087

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

Cerrar

C7118087

Standard DIN rail, Type TH 15
Producto añadido a su lista
Steel
283,5x15x5,5mm

Opciones de productos para In-Box

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
