SMART-CASE
Scroll

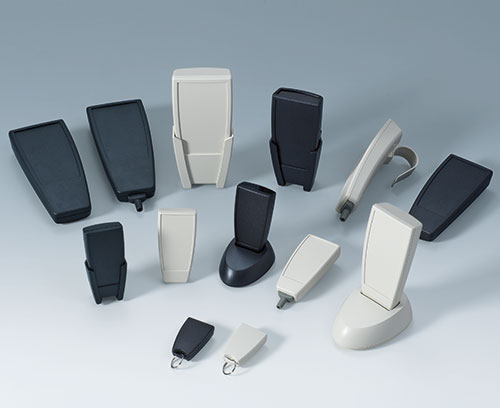

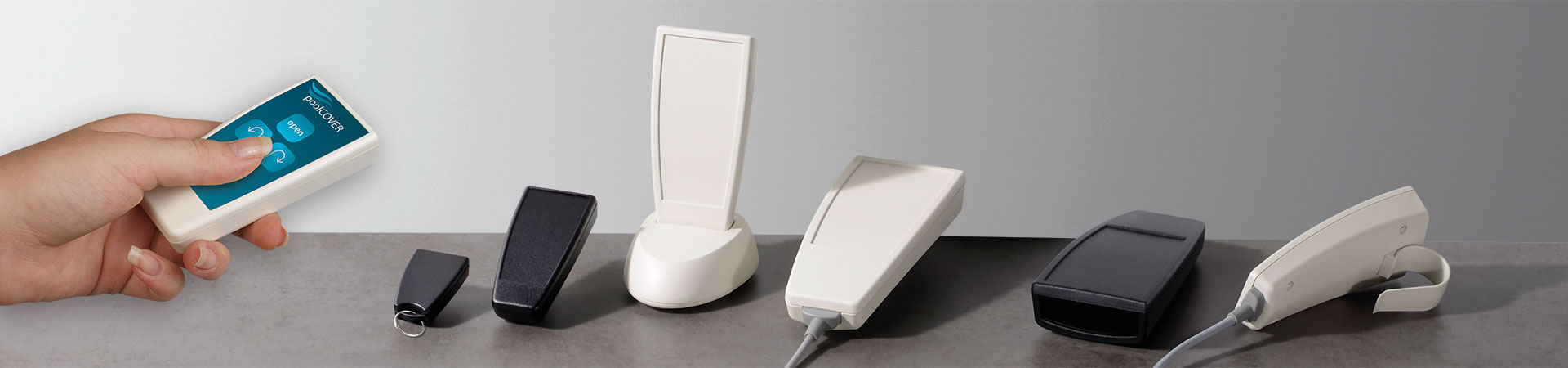

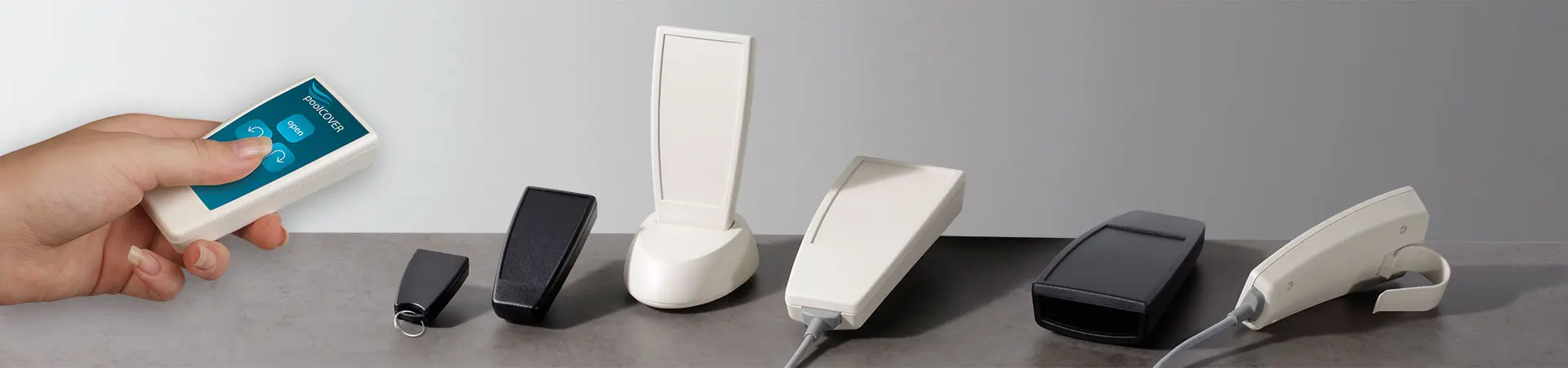

Smart-Case

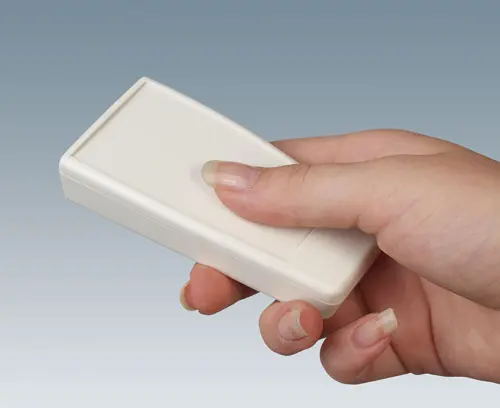

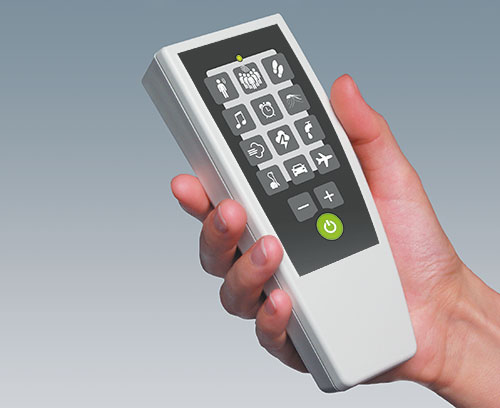

Caja de mano para un buen agarre

La idea de hacer más hincapié en los requisitos ergonómicos fue el punto de partida para el desarrollo de la serie de cajas de mano SMART-CASE.

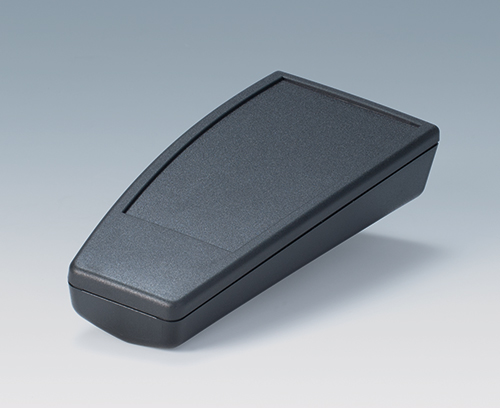

  • Diseño ergonómico para un máximo confort en el uso.

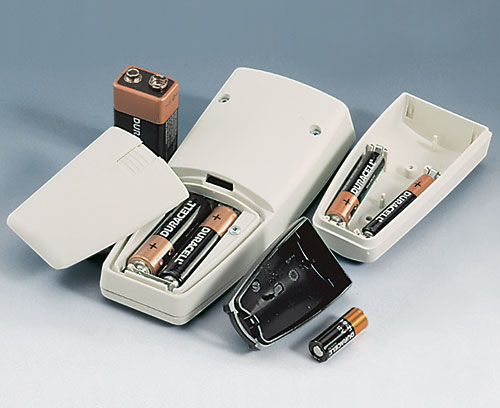

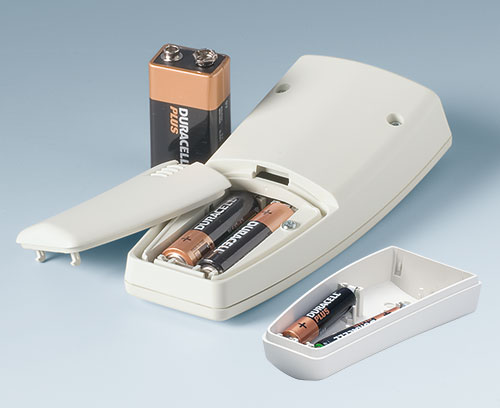

  • Ideal para mandos a distancia cableados o a pilas: AAA, AA, 9 V ó 12 V.

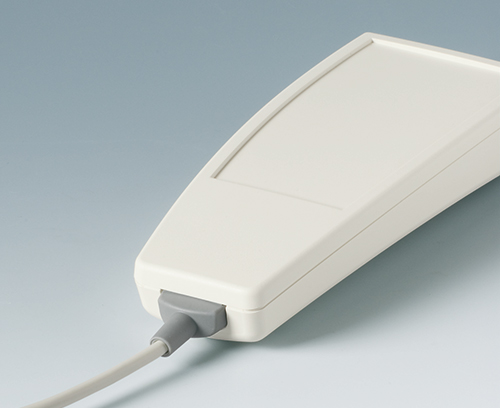

  • Versión con pasacables integrado (tamaños M, L y XL).

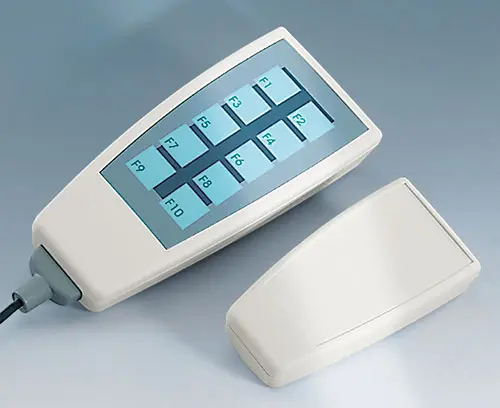

  • Panel de control rebajado para proteger el teclado de membrana o la lámina decorativa.

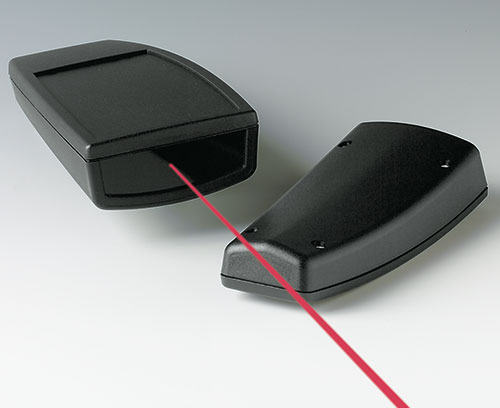

  • ABS (UL 94 HB), opcionalmente en PMMA (plexiglás) permeable a los infrarrojos.

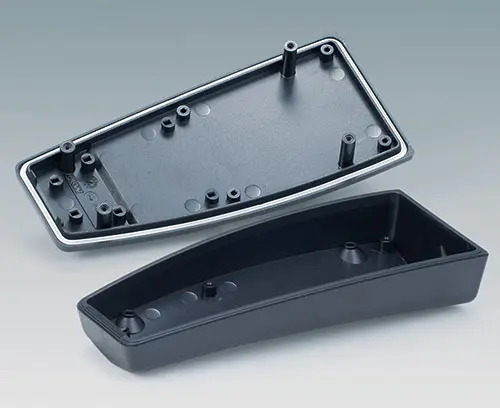

  • Categoría de protección hasta IP 65: tamaños L y XL con junta de sellado opcional y sin compartimiento para pilas

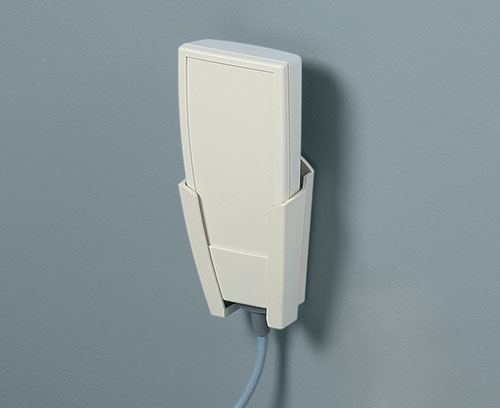

  • Práctico clip de sujeción y soporte para guardarlo de forma segura disponible como accesorio.

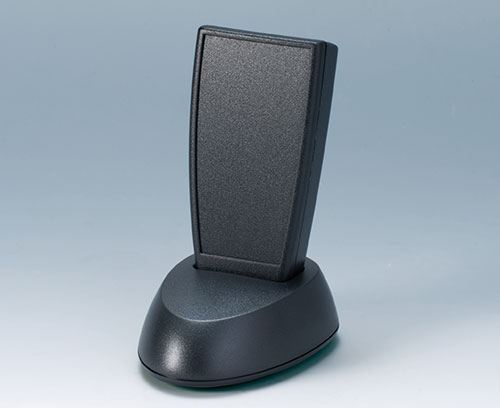

  • Base M, L y XL para aplicaciones de sobremesa.

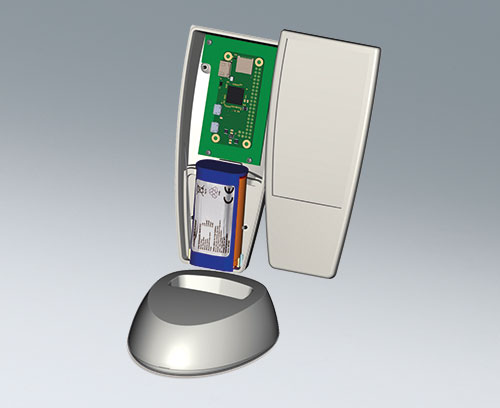

  • Cabezales o bases de fijación para placas de circuito impreso y piezas de montaje.
  • 4 tamaños.
Crear PDF
  • Ejemplos de aplicación

Application fields

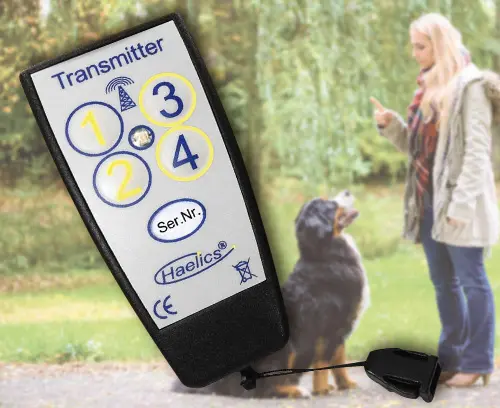

  • Mandos a distancia de diversos tipos, con o sin cables
  • Se usa especialmente en los ámbitos social y sanitario, así como en los hogares y la industria
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Producto añadido a su lista
A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Cerrar

A9100001

Ring eyelet
Producto añadido a su lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Cerrar

A9100002

Ring eyelet
Producto añadido a su lista
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista

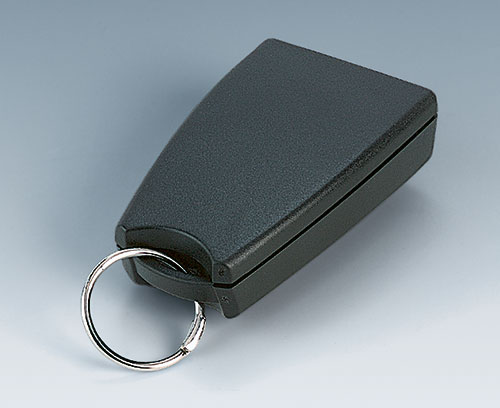

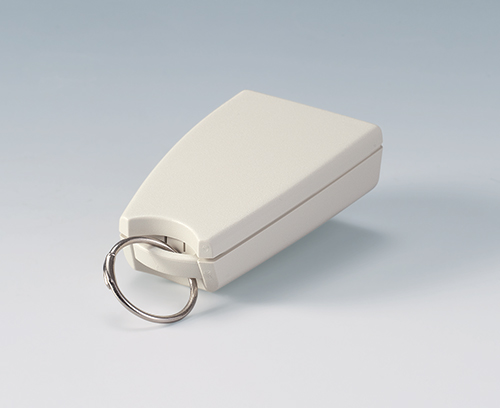

A9164001 Key ring

A9164001

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Cerrar

A9164001

Key ring
Producto añadido a su lista
Steel
nickel-plated
20,5mm
A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Cerrar

A9166001

Set of battery clips, 2 x AAA
Producto añadido a su lista
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Cerrar

A9166002

Battery contact, 2 x AAA
Producto añadido a su lista
Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Cerrar

A9166003

Battery holder, 2 x AAA
Producto añadido a su lista
PA 6 (UL 94 HB)
black RAL 9005

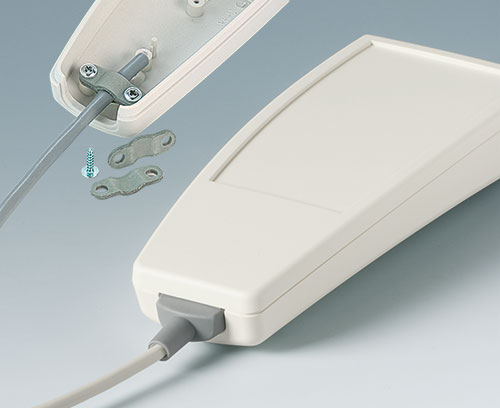

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Cerrar

A9166004

Set of pull-relief
Producto añadido a su lista
PA 6
volcano
A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

A9166005

Adhesive foil M
Producto añadido a su lista
A9166037 Station M

A9166037

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9166037

Station M
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9166039 Station M

A9166039

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9166039

Station M
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9166307 Holder M

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Cerrar

A9166307

Holder M
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Cerrar

A9166309

Holder M
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9167002 Sealing L

A9167002

Sealing L Application: for a higher protection class. For versions II - V.

Supply 1 Sealing kit

Cerrar

A9167002

Sealing L
Producto añadido a su lista
A9167005 Adhesive foil L

A9167005

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

A9167005

Adhesive foil L
Producto añadido a su lista
A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Cerrar

A9167017

Belt/pocket clip
Producto añadido a su lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Cerrar

A9167019

Belt/pocket clip
Producto añadido a su lista
PA 6 (UL 94 HB)
black RAL 9005

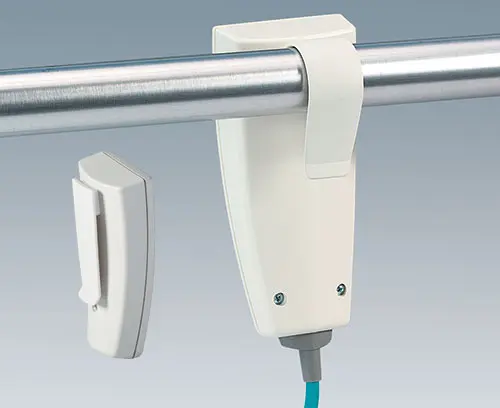

A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Cerrar

A9167027

Holding clamp
Producto añadido a su lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Cerrar

A9167029

Holding clamp
Producto añadido a su lista
PA 6 (UL 94 HB)
black RAL 9005
A9167037 Station L

A9167037

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9167037

Station L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9167039 Station L

A9167039

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9167039

Station L
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9167307 Holder L

A9167307

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Cerrar

A9167307

Holder L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9167309 Holder L

A9167309

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Cerrar

A9167309

Holder L
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9168002 Sealing XL

A9168002

Sealing XL Application: For a higher protection class. For the versions II - V.

Supply 1 sealing

Cerrar

A9168002

Sealing XL
Producto añadido a su lista
A9168005 Adhesive foil XL

A9168005

Adhesive foil XL For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Cerrar

A9168005

Adhesive foil XL
Producto añadido a su lista
A9168037 Station XL

A9168037

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9168037

Station XL
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Cerrar

A9168039

Station XL
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9168307 Holder XL

A9168307

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Cerrar

A9168307

Holder XL
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9168309 Holder XL

A9168309

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Cerrar

A9168309

Holder XL
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Cerrar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Producto añadido a su lista
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Cerrar

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
Producto añadido a su lista
Steel
nickel-plated

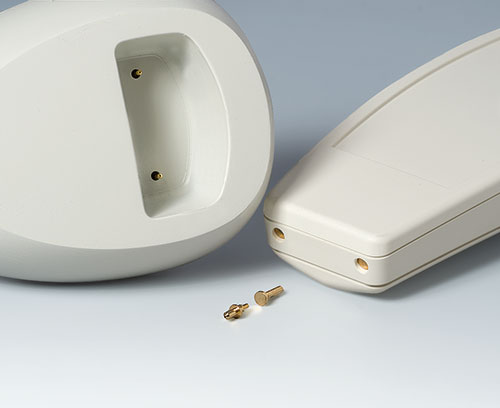

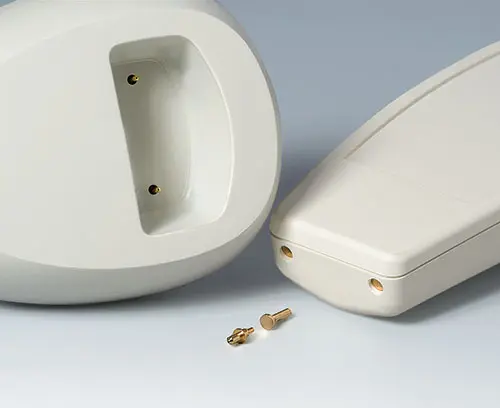

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Cerrar

A9193030

Contact pin
Producto añadido a su lista
gold-plated
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Cerrar

A9193032

Spring contact
Producto añadido a su lista
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Cerrar

B9100063

Carrying strap, textile lanyard
Producto añadido a su lista
black
860mm

Opciones de productos para Smart-Case

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
