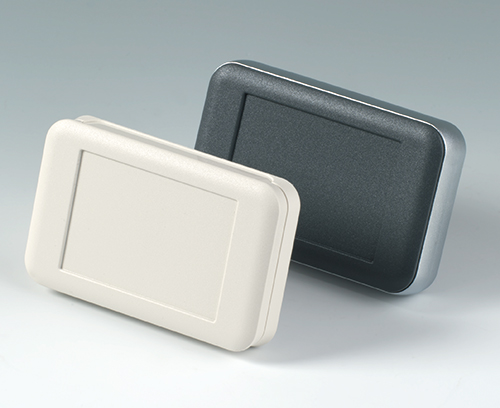

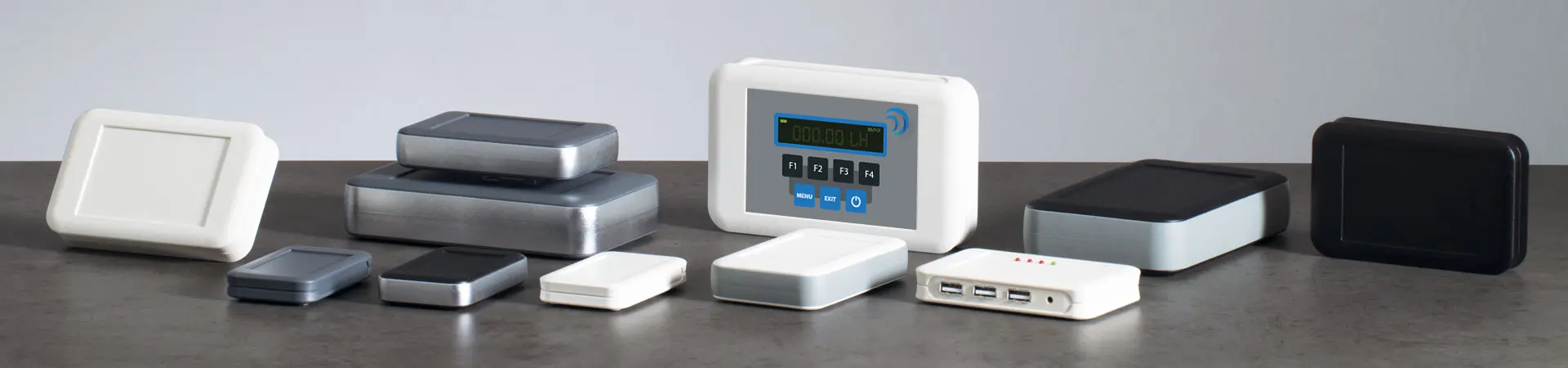

Soft-Case

Caja de mano de formato ancho

Las cajas SOFT-CASE convencen a los ingenieros porque responden a las necesidades actuales de diseño y tecnológicas.

  • Diseños manejables con contornos suaves para un tacto agradable.

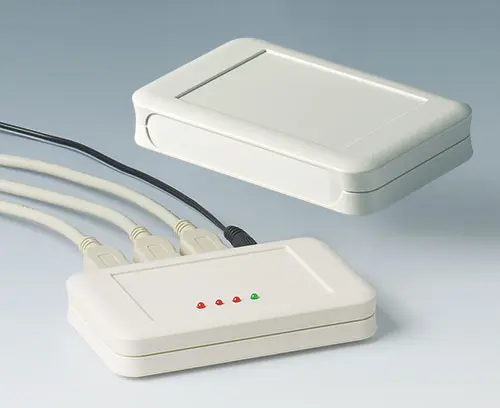

  • Su "formato ancho" único, ofrece un generoso área para interfaces así como suficiente espacio para dispalys, asegurando un uso cómodo.
  • Un lateral con contorno rebajado para dar cabida a más conectores.

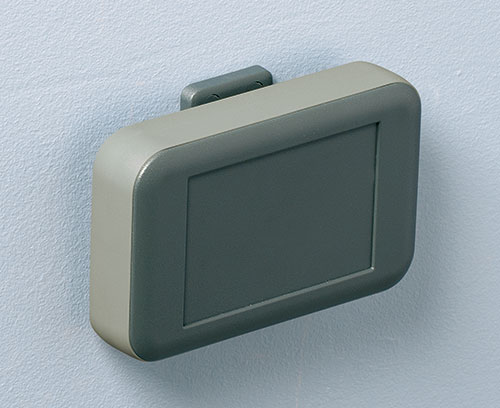

  • Uso universal como caja de mano, de sobremesa y de montaje a pared.

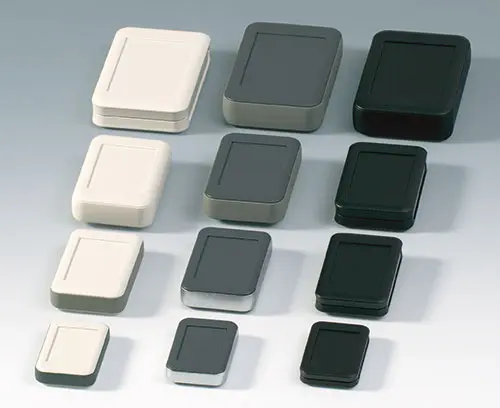

  • 4 tamaños.

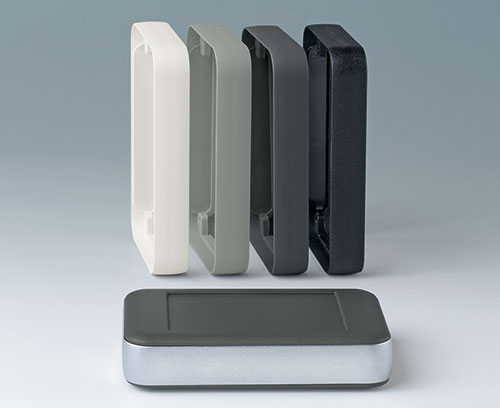

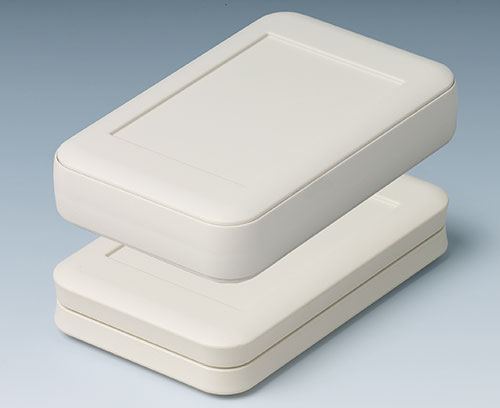

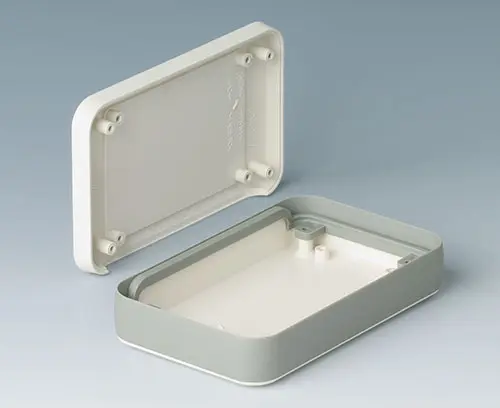

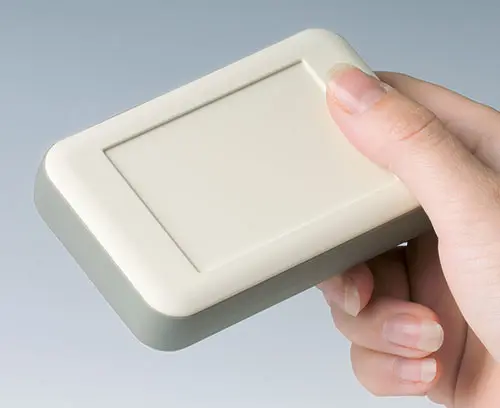

  • Anillo intermedio opcional para mayor altura de montaje en diferentes modelos: en ABS del color de la caja o cromado, en TPE.
  • Junto con el anillo intermedio en TPE, posibilidad de protección IP 54 (modelos sin compartimiento para las pilas en ABS o PMMA).

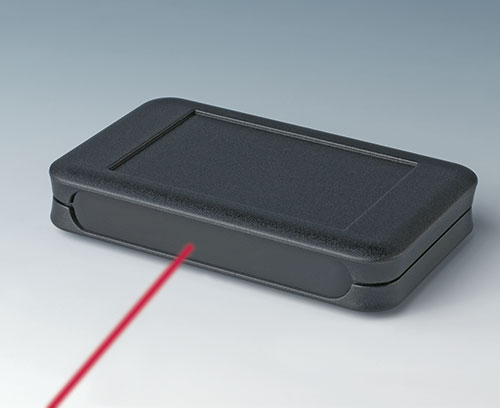

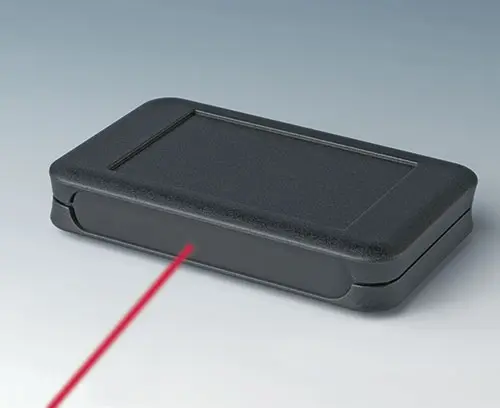

  • 2 materiales: ABS (UL 94 HB), opcionalmente en PMMA (plexiglás) permeable a los infrarrojos.

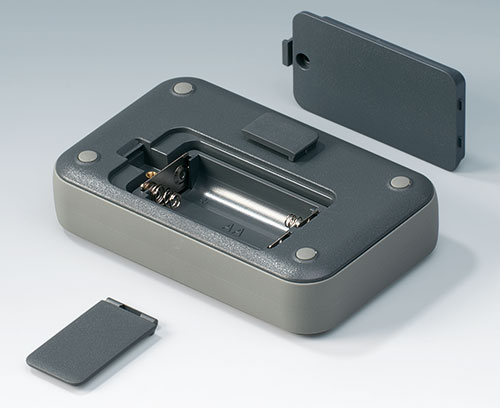

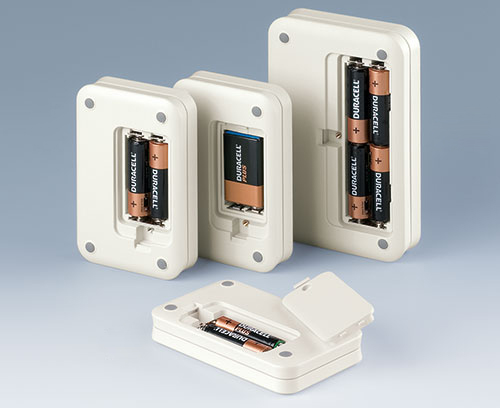

  • Con/sin compartimiento para pilas 2 x AAA, 2 x AA, 4 x AA o 1 x 9 V; tapa del compartimiento para pilas enclaustrable y con tronillos, en caso necesario.

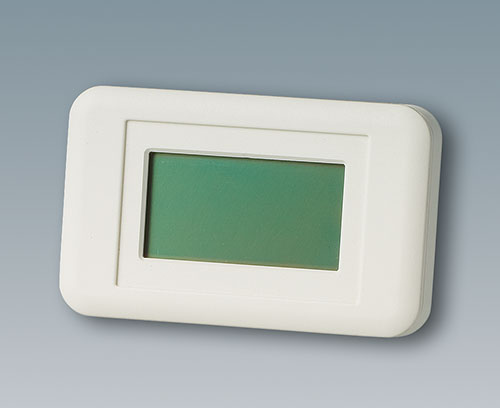

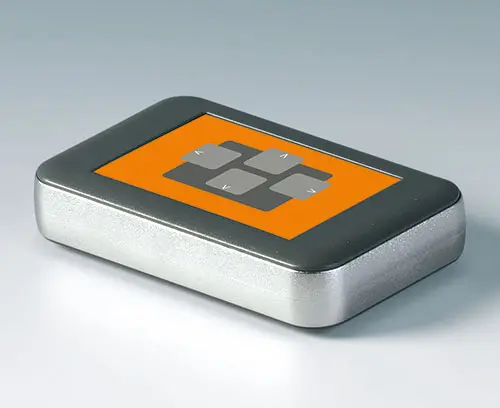

  • Panel de control rebajado para proteger el teclado de membrana o la lámina decorativa.

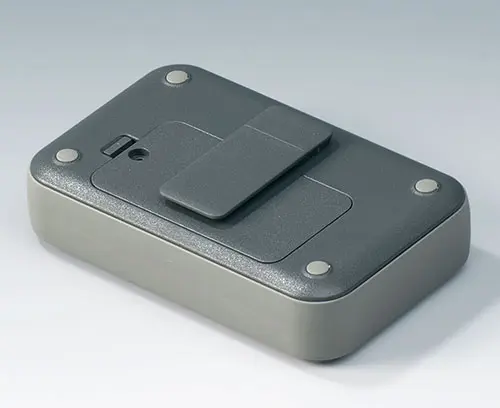

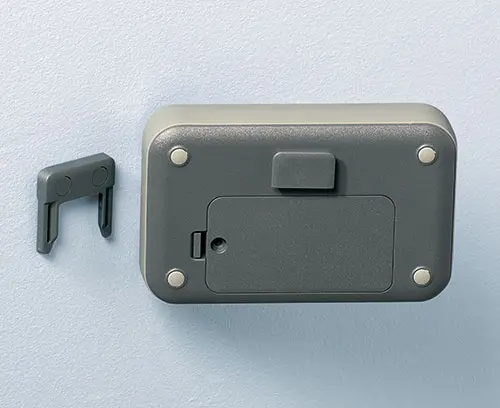

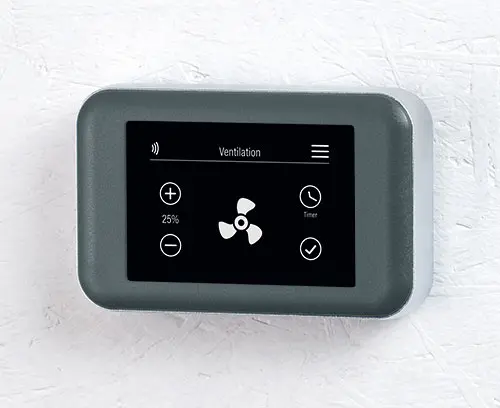

  • El Combi-clip sirve como clip de sujeción o soporte de pared (accesorio).

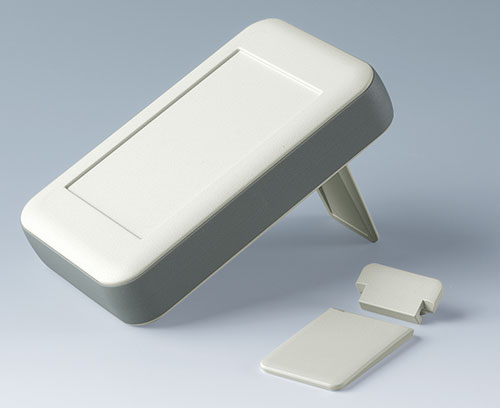

  • Pies de apoyo para conseguir un ángulo de lectura ergonómico en aplicaciones de sobremesa.
  • Cabezales o bases de fijación para placas de circuito impreso y piezas de montaje.
Crear PDF

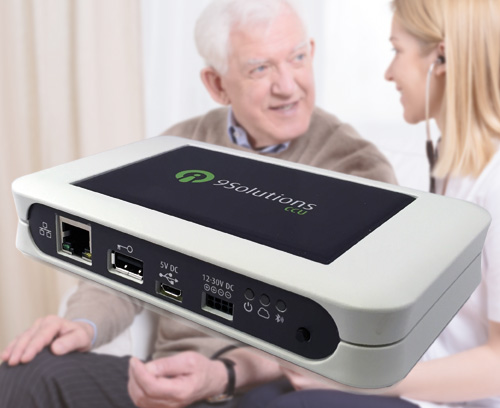

  • Ejemplos de aplicación

Application fields

  • Mandos a distancia de diversos tipos, con o sin cables

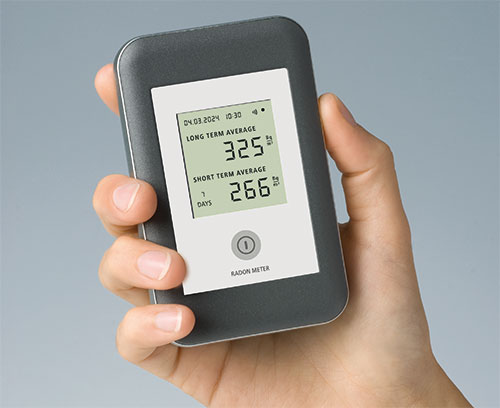

  • Tecnologías de medición y regulación
  • Tecnologías de control digital

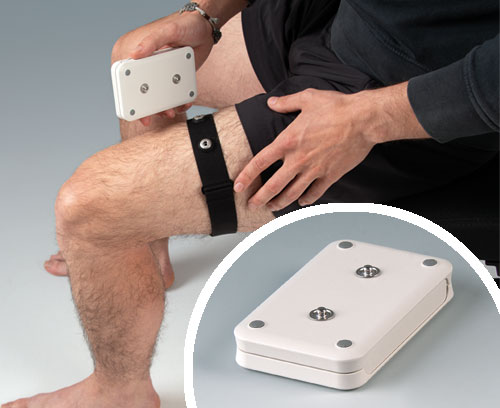

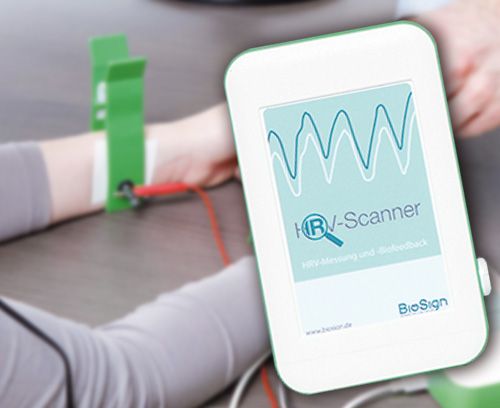

  • Tecnologías de medicina y laboratorio
  • Dispositivos periféricos y de interfaz
  • Tecnologías de comunicación
  • IoT/IIoT
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Producto añadido a su lista

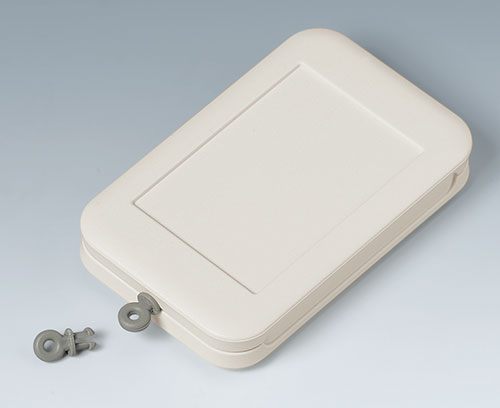

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Cerrar

A9100001

Ring eyelet
Producto añadido a su lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Cerrar

A9100002

Ring eyelet
Producto añadido a su lista
PA 6
volcano

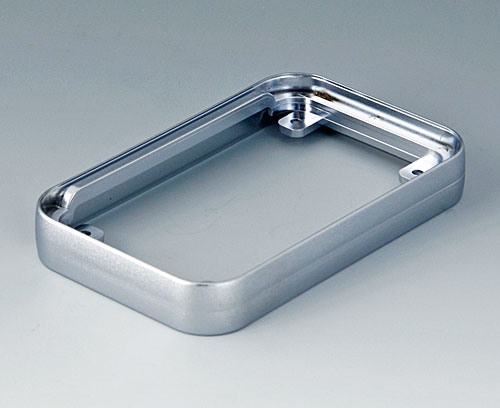

A9150011 Intermediate ring S

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Cerrar

A9150011

Intermediate ring S
Producto añadido a su lista
ABS (UL 94 HB)
matt chromed
54x85x12mm

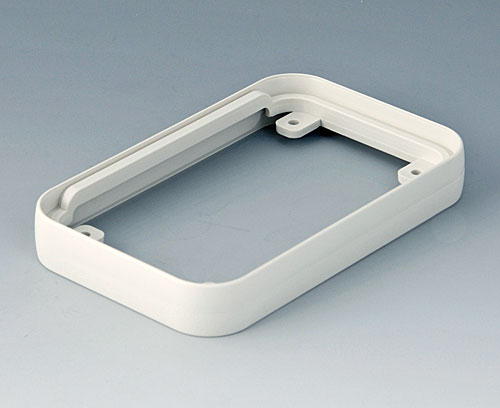

A9150017 Intermediate ring S

A9150017

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9150017

Intermediate ring S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
54x85x12mm
A9150018 Intermediate ring S

A9150018

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9150018

Intermediate ring S
Producto añadido a su lista
ABS (UL 94 HB)
lava
54x85x12mm
A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9150118

Intermediate protection ring S
Producto añadido a su lista
SEBS (TPE)
volcano
54x85x12mm
A9150219 Intermediate ring S

A9150219

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Cerrar

A9150219

Intermediate ring S
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
54x85x12mm

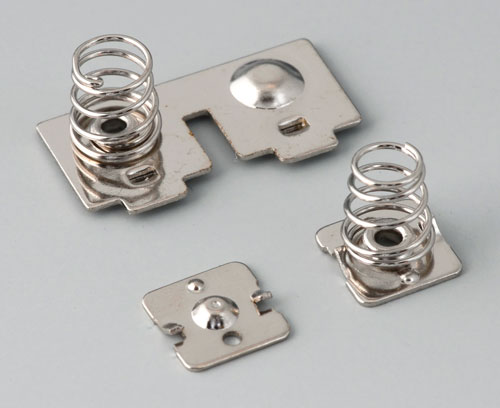

A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Cerrar

A9151010

Set of battery clips, 2 x AAA
Producto añadido a su lista
Steel
nickel-plated
A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Cerrar

A9151011

Intermediate ring M
Producto añadido a su lista
ABS (UL 94 HB)
matt chromed
68x108x16mm

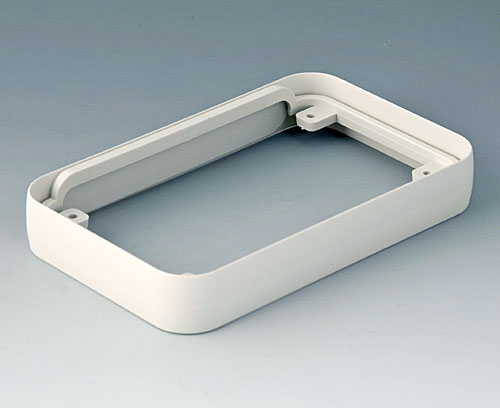

A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9151017

Intermediate ring M
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm

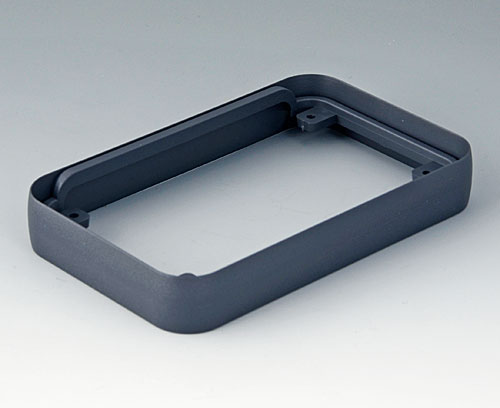

A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9151018

Intermediate ring M
Producto añadido a su lista
ABS (UL 94 HB)
lava
68x108x16mm
A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9151118

Intermediate protection ring M
Producto añadido a su lista
SEBS (TPE)
volcano
68x108x16mm

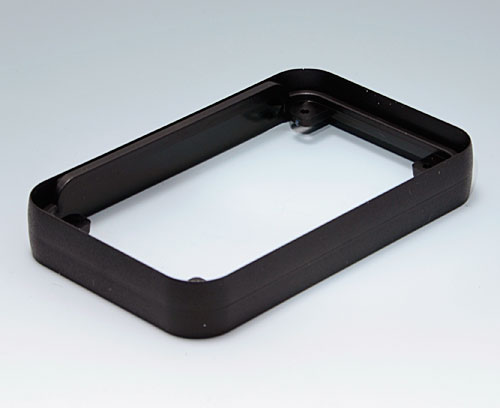

A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Cerrar

A9151219

Intermediate ring M
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm

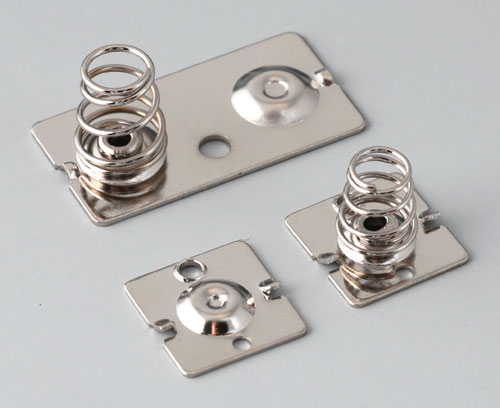

A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Cerrar

A9152010

Set of battery clips, 2/4 x AA
Producto añadido a su lista
Steel
nickel-plated
A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Cerrar

A9152011

Intermediate ring L
Producto añadido a su lista
ABS (UL 94 HB)
matt chromed
76x120x21mm
A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9152017

Intermediate ring L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9152018

Intermediate ring L
Producto añadido a su lista
ABS (UL 94 HB)
lava
76x120x21mm

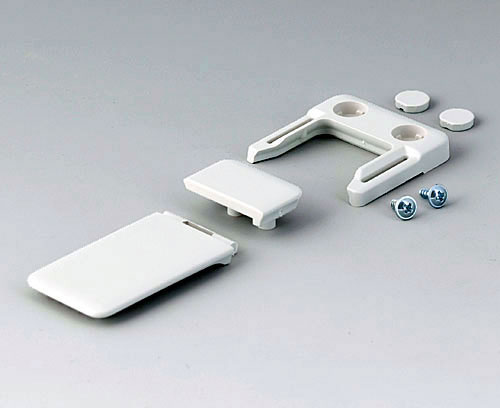

A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Cerrar

A9152047

Combi-Clip
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
45x27mm
A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Cerrar

A9152048

Combi-Clip
Producto añadido a su lista
ABS (UL 94 HB)
lava
45x27mm

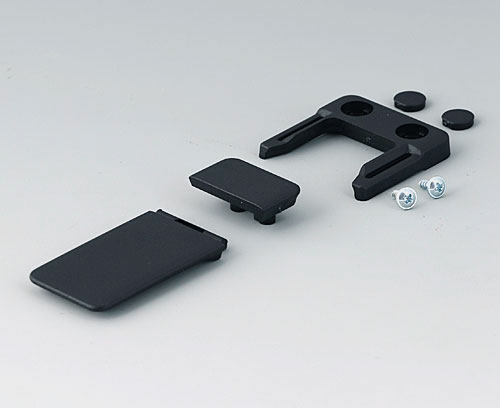

A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Cerrar

A9152049

Combi-Clip
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
45x27mm
A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9152057

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9152058

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
lava

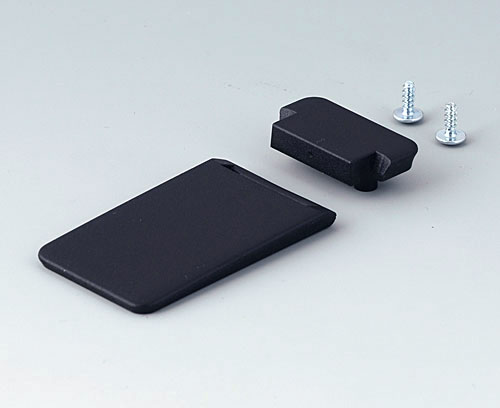

A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9152059

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Cerrar

A9152118

Intermediate protection ring L
Producto añadido a su lista
SEBS (TPE)
volcano
76x120x21mm
A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Cerrar

A9152219

Intermediate ring L
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm
A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Cerrar

A9153011

Intermediate ring XL
Producto añadido a su lista
ABS (UL 94 HB)
matt chromed
96x154x26mm
A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Cerrar

A9153017

Intermediate ring XL
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm
A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Cerrar

A9153018

Intermediate ring XL
Producto añadido a su lista
ABS (UL 94 HB)
lava
96x154x26mm

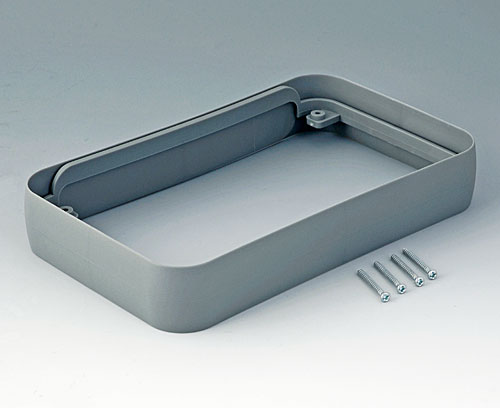

A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Cerrar

A9153118

Intermediate ring XL
Producto añadido a su lista
SEBS (TPE)
volcano
96x154x26mm
A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Cerrar

A9153219

Intermediate ring XL
Producto añadido a su lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Cerrar

A9174006

Set of battery clips, 1 x 9 V
Producto añadido a su lista
Steel
tin-plated
B9106128 Strap eyelet

B9106128

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

Cerrar

B9106128

Strap eyelet
Producto añadido a su lista
ABS (UL 94 HB)
lava

Opciones de productos para Soft-Case

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
