A9073219 DATEC-MOBIL-BOX S, Vers. II
Scroll

A9073219

DATEC-MOBIL-BOX S, Vers. II

Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version

Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm

Supply

Case-top and base, battery compartment lid, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9073219

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "protection"

A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

Cerrar

A9173001

Sealing kit S
Producto añadido a su lista

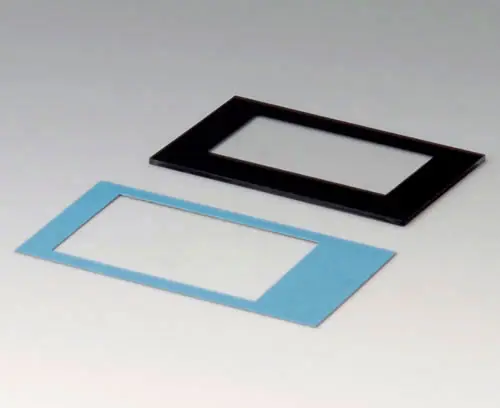

A9173009 Display window S, border black

A9173009

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Cerrar

A9173009

Display window S, border black
Producto añadido a su lista
Acrylic glass
transparent

Accessory "wall/holder"

A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Cerrar

A9226239

Wall suspension element
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Cerrar

A9100002

Ring eyelet
Producto añadido a su lista
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Producto añadido a su lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Producto añadido a su lista
Stainless steel

Accessory

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Cerrar

A9250909

Tilt foot bar
Producto añadido a su lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A9073219

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit, display window (set with adhesive foil)
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
152 mm
Width
83 mm
Height
33,5 mm
PCB length, base
142 mm
PCB width, base
72 mm
PCB length, top
141 mm
PCB width, top
72 mm
Display length, base
45 mm
Display width, base
17 mm
Keypad length
129 mm
Keypad width
67,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
118 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
