B4113147 Wall suspension element S

B4113147

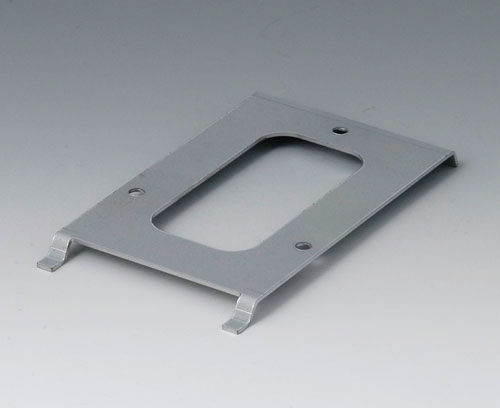

Wall suspension element S

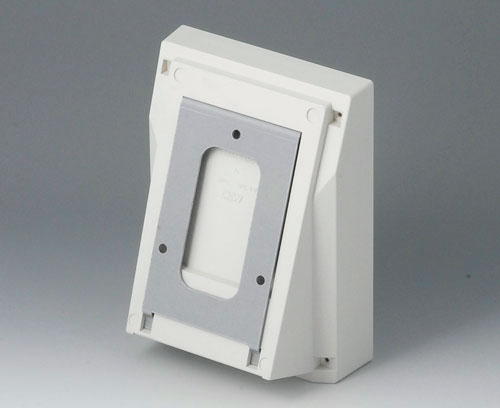

Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply

1 wall suspension element, 2 screws

  • Utilizado para
  • Modificaciones específicas del cliente
B4013117 DATEC-TERMINAL S

B4013117

DATEC-TERMINAL S Basic case with ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate Eurocards 100 x 160 mm.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Cerrar

B4013117

DATEC-TERMINAL S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x86mm
IP 54 opt.

Customising options for B4113147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Modelos 3D & Planos / Documentos
  • Purchasing Data
Material
Color
galvanized
Anchura
79 mm
Altura
137 mm
Profundidad
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
88 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
