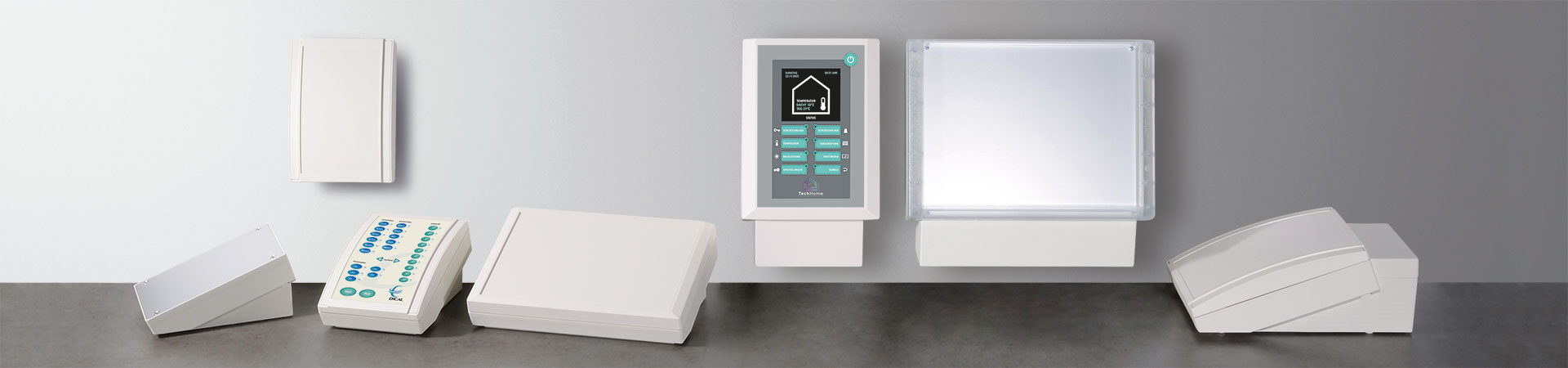

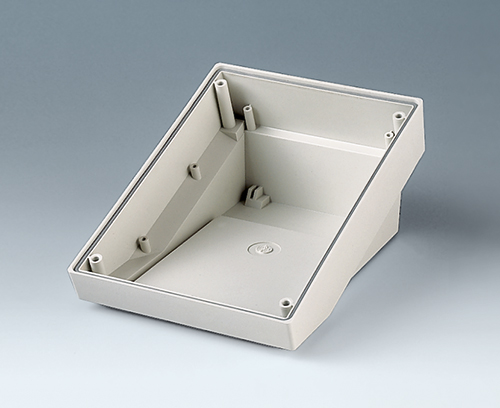

Datec-Terminal

Caja modular para la recopilación de datos

Las cajas DATEC-TERMINAL son duras y atractivas especialmente diseñadas para la recopilación de datos ya sea en sobremesa o montada a pared.

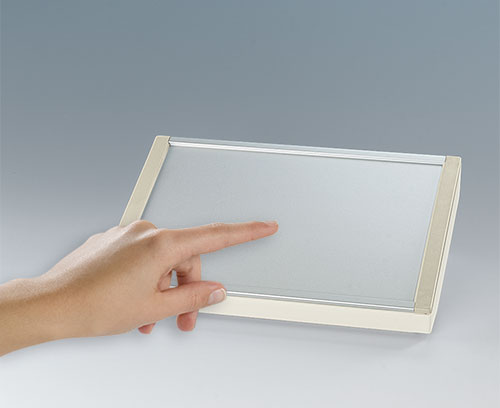

  • Frontal inclinado 20° de forma ergonómica.

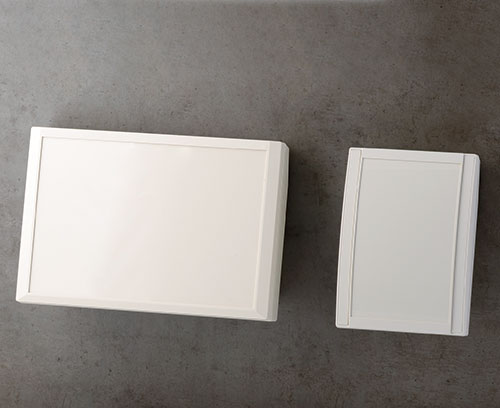

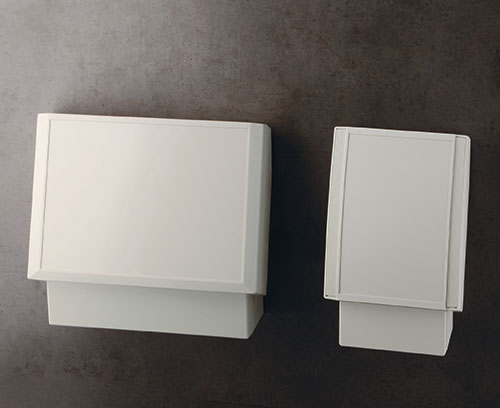

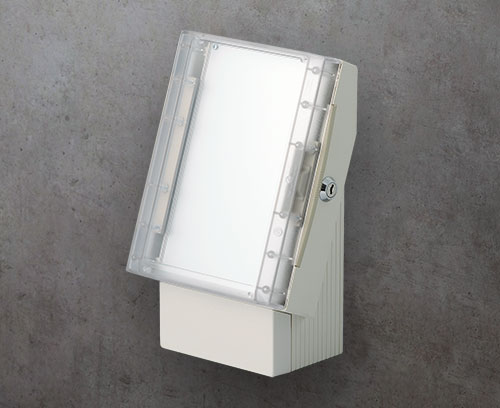

  • Para aplicaciones de sobremesa y pared.
  • Con módulo para montaje de sistemas de lectura de paso estandarizados.
  • 4 tamaños, 2 tipos
  • Tamaños M y L con compartimiento separado para conexiones de fácil acceso.
  • Montaje sencillo y accesibilidad a los componentes.
  • Tornillos de montaje ocultos a la vista.
  • Amplio programa de accesorios, funcional y flexible.
  • Categoría de protección IP 54 junto con la cubierta y la tapa cerrada.

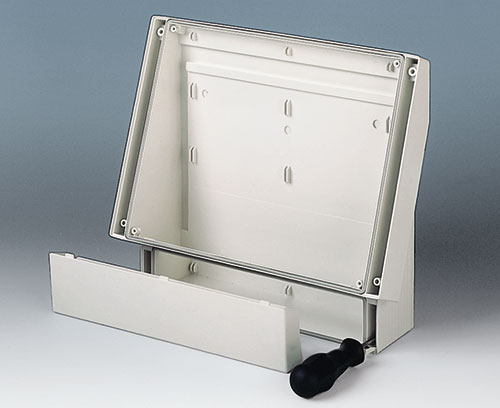

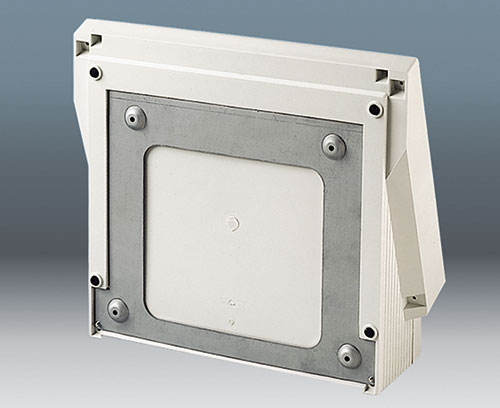

  • Montaje de pared oculto con protección contra desmontaje.

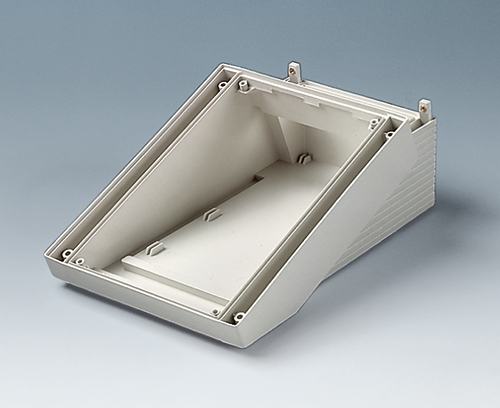

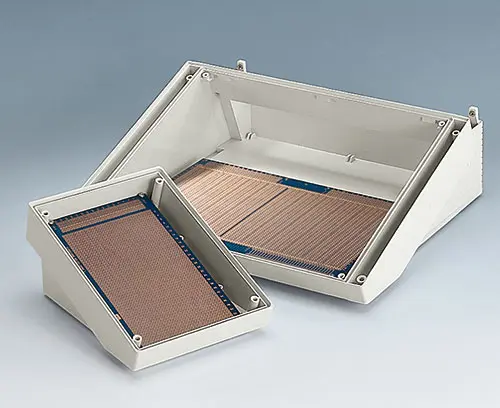

  • Torretas internos para montaje de PCBs de 100 x 160 mm o doble Eurocard (tamaños S, SL y L).
  • Superficies planas para personalizar mecanizados e interfaces.

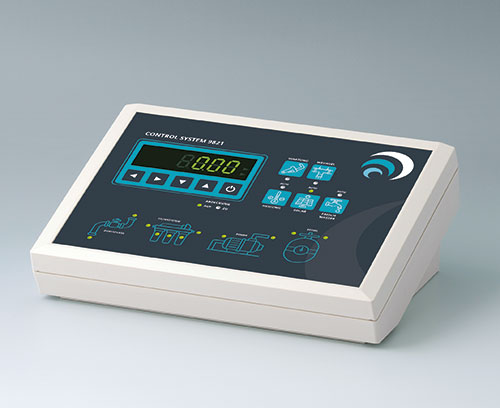

  • Panel de control rebajado para proteger el teclado de membrana.
Crear PDF

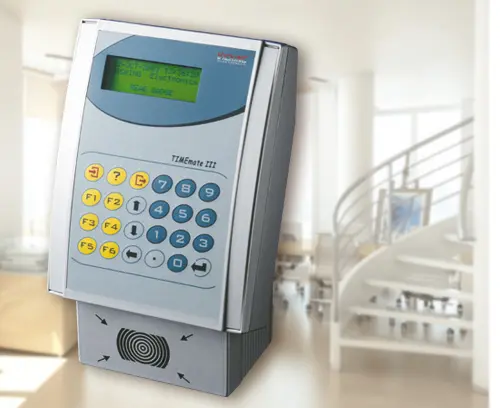

  • Ejemplos de aplicación

Application fields

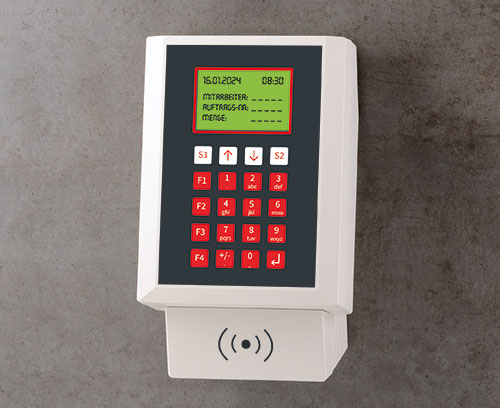

  • Sistemas de recopilación de datos en el puesto de trabajo y en máquinas
  • Tecnología de datos
  • Controles de acceso
  • Instalaciones de vigilancia y porteros automáticos

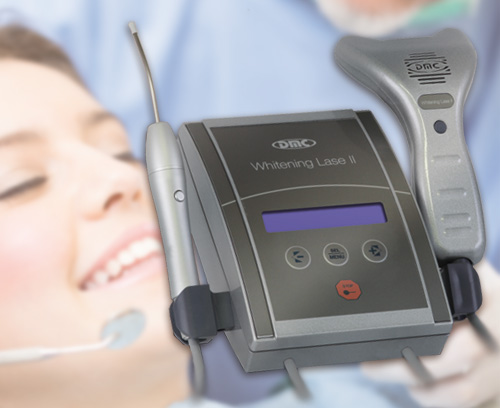

  • Tecnología médica
  • Salud
  • Medición
  • Control y regulación
  • Tecnologías de calefacción y climatización
  • Versiones
  • Accesorios
  • Modificaciones específicas del cliente

Seleccione la versión, el tamaño o los tamaños que desee o haga clic en el botón “Seleccionar todos los productos” al final de la lista de productos.

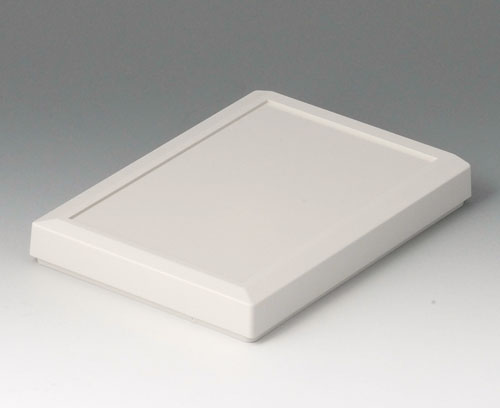

B4013617 Cover S

B4013617

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Cerrar

B4013617

Cover S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x23mm
B4013621 Cover S

B4013621

Cover S Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Cerrar

B4013621

Cover S
Producto añadido a su lista
PC (UL 94 V-0)
transparent
130x180x23mm
B4013637 Cover S, convex

B4013637

Cover S, convex Suitable for DATEC-TERMINAL S. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4013637

Cover S, convex
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
130x180x28mm

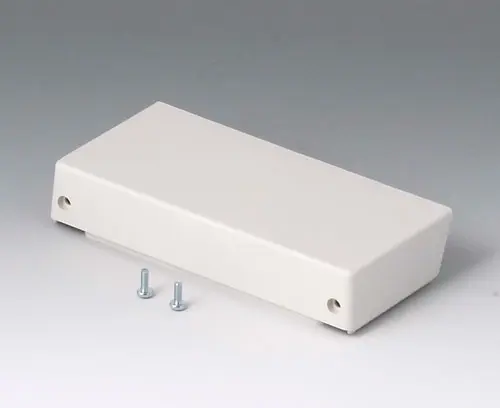

B4016417 Lid M closed, flat

B4016417

Lid M closed, flat Lid M closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Cerrar

B4016417

Lid M closed, flat
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
134x62x24mm
B4016457 Lid M closed, high

B4016457

Lid M closed, high Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Cerrar

B4016457

Lid M closed, high
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
134x67x38mm
B4016617 Cover M, flat

B4016617

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4016617

Cover M, flat
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x29mm

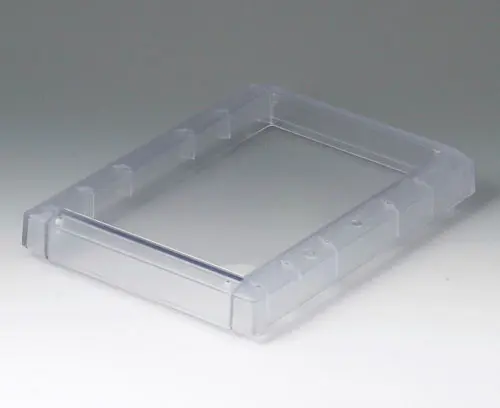

B4016621 Cover M, flat

B4016621

Cover M, flat Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4016621

Cover M, flat
Producto añadido a su lista
PC (UL 94 V-0)
transparent
168x220x29mm
B4016631 Cover M, convex

B4016631

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4016631

Cover M, convex
Producto añadido a su lista
PC (UL 94 V-0)
transparent
168x220x29mm
B4016637 Cover M, convex

B4016637

Cover M, convex Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4016637

Cover M, convex
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x29mm
B4016657 Cover M, high

B4016657

Cover M, high Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4016657

Cover M, high
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
168x220x50mm
B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Cerrar

B4016671

Cover strip M / L
Producto añadido a su lista
PC (UL 94 V-0)
transparent
B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Cerrar

B4016677

Cover strip M / L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
B4016917 Lid M with card slot, one piece

B4016917

Lid M with card slot, one piece Lid M with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

Cerrar

B4016917

Lid M with card slot, one piece
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
134x67x38mm
B4026617 Cover SL

B4026617

Cover SL Suitable for DATEC-TERMINAL SL. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Cerrar

B4026617

Cover SL
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
264x180x23mm
B4026621 Cover SL

B4026621

Cover SL Suitable for DATEC-TERMINAL S. For the protecting the electronic. With screw pillars for PCB fixing. Recessed area for protecting the membrane keyboard.

Supply 1 cover, assembly kit

Cerrar

B4026621

Cover SL
Producto añadido a su lista
PC (UL 94 V-0)
transparent
264x180x23mm
B4026637 Cover SL, convex

B4026637

Cover SL, convex Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4026637

Cover SL, convex
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
263x180x28mm
B4030417 Lid L closed, flat

B4030417

Lid L closed, flat Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Cerrar

B4030417

Lid L closed, flat
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
268x62x24mm

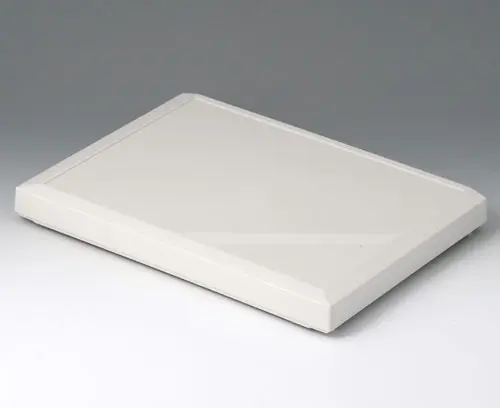

B4030617 Cover L, flat

B4030617

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4030617

Cover L, flat
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm
B4030621 Cover L, flat

B4030621

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4030621

Cover L, flat
Producto añadido a su lista
PC (UL 94 V-0)
transparent
302x220x29mm

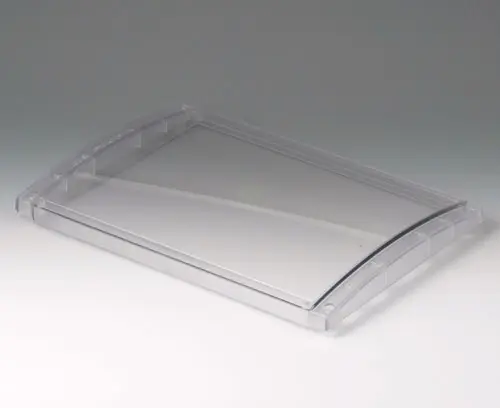

B4030631 Cover L, convex

B4030631

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4030631

Cover L, convex
Producto añadido a su lista
PC (UL 94 V-0)
transparent
302x220x29mm

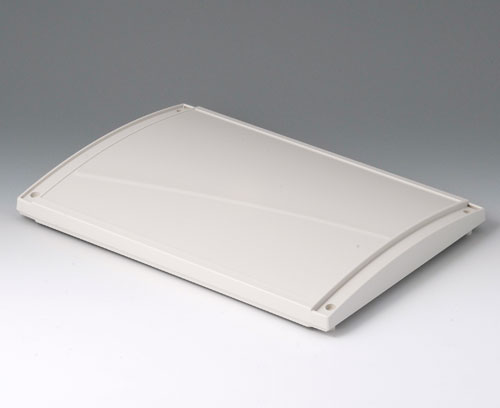

B4030637 Cover L, convex

B4030637

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4030637

Cover L, convex
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

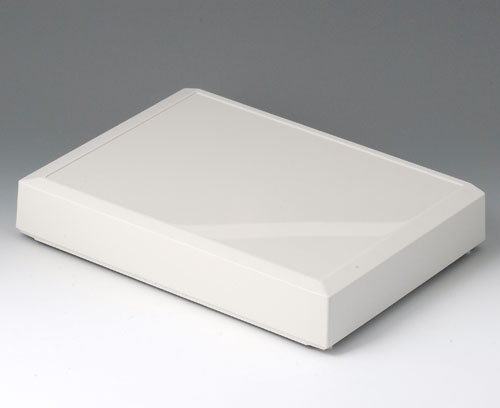

B4030657 Cover L, high

B4030657

Cover L, high Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Cerrar

B4030657

Cover L, high
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x50mm
B4030917 Lid L with card slot, one piece

B4030917

Lid L with card slot, one piece Lid L with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

Cerrar

B4030917

Lid L with card slot, one piece
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
268x67x38mm
B4113106 Front panel S

B4113106

Front panel S Front panel S for the mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

Cerrar

B4113106

Front panel S
Producto añadido a su lista
Aluminium
matt anodised
125,9x176x2mm

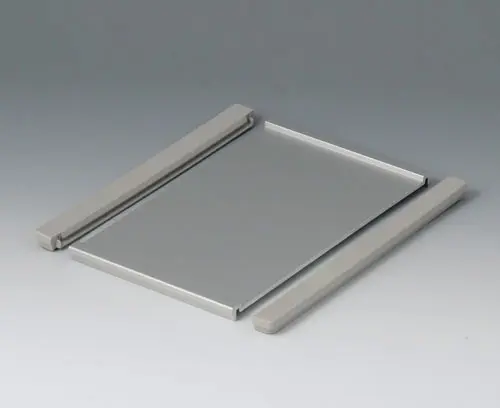

B4113126 Profile plate S

B4113126

Profile plate S Profile plate S for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Cerrar

B4113126

Profile plate S
Producto añadido a su lista
Aluminium
matt anodised
130x180x8mm
B4113147 Wall suspension element S

B4113147

Wall suspension element S Wall suspension element S for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

Cerrar

B4113147

Wall suspension element S
Producto añadido a su lista
Steel
galvanized
79x137x8mm
B4113671 Cover strip S / SL

B4113671

Cover strip S / SL For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Cerrar

B4113671

Cover strip S / SL
Producto añadido a su lista
PC (UL 94 V-0)
transparent
B4113677 Cover strip S / SL

B4113677

Cover strip S / SL For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Cerrar

B4113677

Cover strip S / SL
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
B4116106 Front panel MS

B4116106

Front panel MS Front panel MS for the mounting of all kinds of operating elements. When using cover, please refer to front panel MH (accessory).

Supply 1 front panel, 4 screws diameter 5.0 mm

Cerrar

B4116106

Front panel MS
Producto añadido a su lista
Aluminium
matt anodised
165,4x217,4x2mm
B4116116 Front panel MH

B4116116

Front panel MH Front panel MH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

Cerrar

B4116116

Front panel MH
Producto añadido a su lista
Aluminium
matt anodised
128x209x2mm
B4116126 Profile plate M

B4116126

Profile plate M Profile plate M for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Cerrar

B4116126

Profile plate M
Producto añadido a su lista
Aluminium
matt anodised
168x220x8mm
B4116136 Support plate L and M

B4116136

Support plate L and M Suitable for lid L (B4030917) and lid M (B4016917) with card slot, one piece. Support plate for installation of most popular types of card readers.

Supply 1 support plate, 2 screws diameter 2.5 mm

Cerrar

B4116136

Support plate L and M
Producto añadido a su lista
Aluminium
matt anodised
102x45x1mm

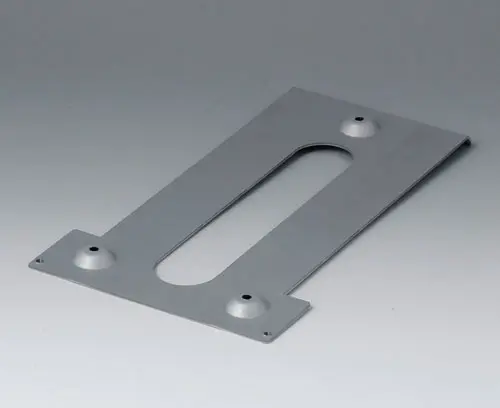

B4116147 Wall suspension element M

B4116147

Wall suspension element M Wall suspension element M for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

Cerrar

B4116147

Wall suspension element M
Producto añadido a su lista
Steel
galvanized
214x126x12mm
B4126106 Front panel SL

B4126106

Front panel SL Front panel SL for mounting of all kinds of operating elements.

Supply 1 front panel, 4 screws diameter 4.0 mm

Cerrar

B4126106

Front panel SL
Producto añadido a su lista
Aluminium
matt anodised
259,4x176x2mm
B4126126 Profile plate SL

B4126126

Profile plate SL Profile plate SL for the mounting of operating elements of all kinds. Especially designed for the use of membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Cerrar

B4126126

Profile plate SL
Producto añadido a su lista
Aluminium
matt anodised
263x180x8mm
B4126147 Wall suspension element SL

B4126147

Wall suspension element SL Wall suspension element SL for easy and secure fixing of the unit to a wall. The case is screwed down with the wall suspension element.

Supply 1 wall suspension element, 2 screws

Cerrar

B4126147

Wall suspension element SL
Producto añadido a su lista
Steel
galvanized
210x137x8mm

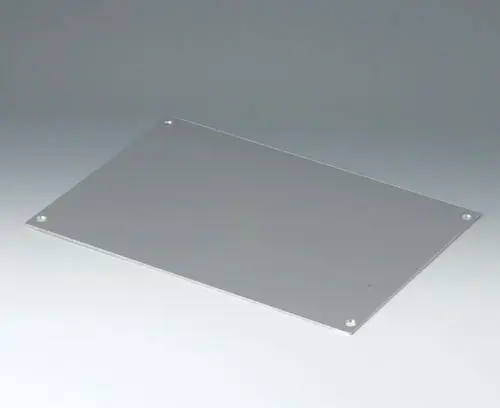

B4130106 Front panel LS

B4130106

Front panel LS Front panel LS for the mounting of all kinds of operating elements. When using cover, please refer to front panel LH (accessory).

Supply 1 front panel, 4 screws diameter 5.0 mm

Cerrar

B4130106

Front panel LS
Producto añadido a su lista
Aluminium
matt anodised
299,4x217,4x2mm
B4130116 Front panel LH

B4130116

Front panel LH Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

Cerrar

B4130116

Front panel LH
Producto añadido a su lista
Aluminium
matt anodised
262x209x2mm

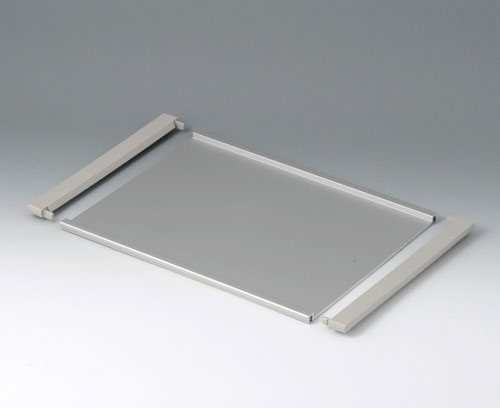

B4130126 Profile plate L

B4130126

Profile plate L Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

Cerrar

B4130126

Profile plate L
Producto añadido a su lista
Aluminium
matt anodised
302x220x8mm

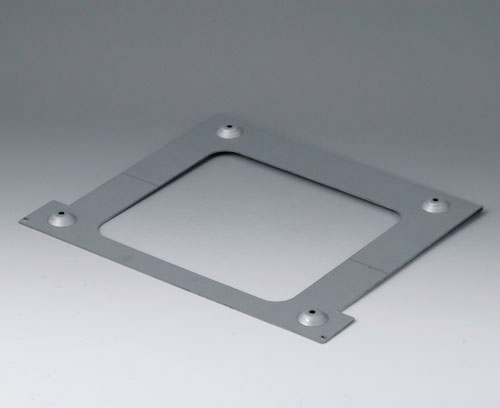

B4130147 Wall suspension element L

B4130147

Wall suspension element L Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

Cerrar

B4130147

Wall suspension element L
Producto añadido a su lista
Steel
galvanized
214x260x12mm

Opciones de productos para Datec-Terminal

¿Qué necesita en su producto personalizado? En caso necesario, le suministramos las cajas y botones giratorios listas para el montaje con todas las modificaciones y acabados precisos.
