A9092108 DIATEC XS
Scroll

A9092108

DIATEC XS

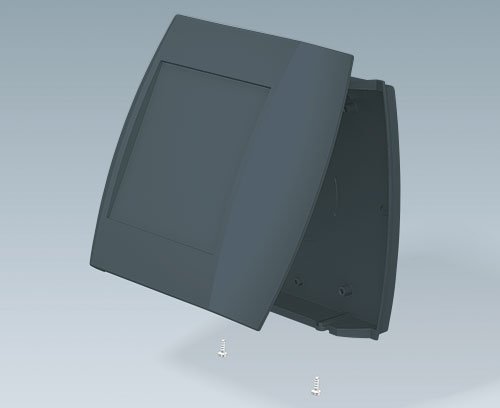

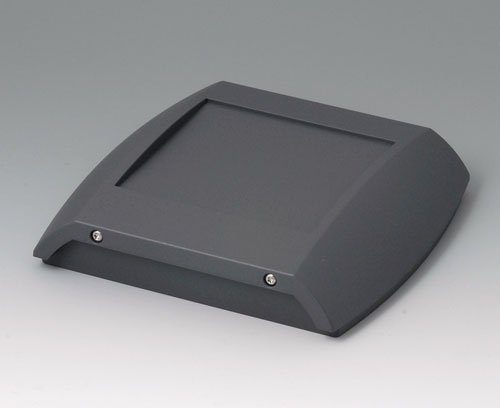

Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply

Top and bottom part, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9092108

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "battery"

A9190015 Set of battery clips, 2 x AA

A9190015

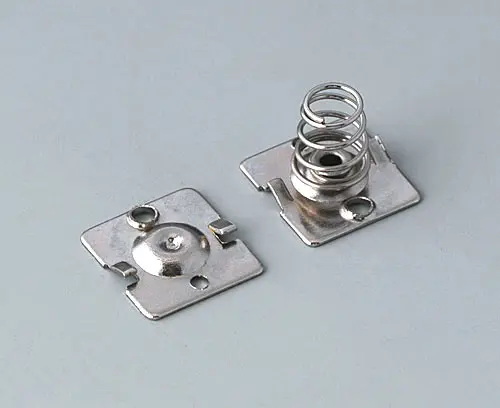

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

Cerrar

A9190015

Set of battery clips, 2 x AA
Producto añadido a su lista
Steel
nickel-plated

Accessory "wall/holder"

B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Cerrar

B1360048

Wall suspension elements
Producto añadido a su lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9207150

Anti-slide feet 6.5 x 2 mm
Producto añadido a su lista
transparent

Customising options for A9092108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
150 mm
Height
37 mm
Depth
155 mm
PCB length, base
120 mm
PCB width, base
115 mm
PCB length, top
127 mm
PCB width, top
115 mm
Keypad length
91,2 mm
Keypad width
91,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
134 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
