Caja atractiva con diseño plano

Las cajas DIATEC son un producto con gancho en el ámbito de la demótica y el trabajo. Son ideales para componentes de comunicación y de red.

  • Diseño moderno y plano para aplicaciones de sobremesa y pared.

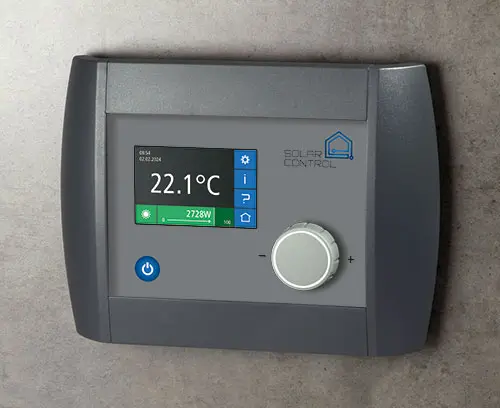

  • Interfaz central para teclados de membrana, pantallas táctiles, visores, etc.

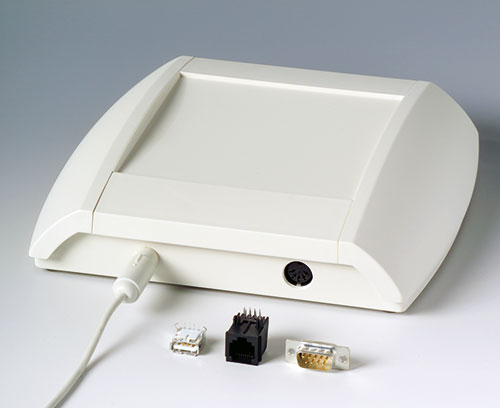

  • Área rebajado para la instalación y protección de interfaces, conectores, prensaestopas, etc.

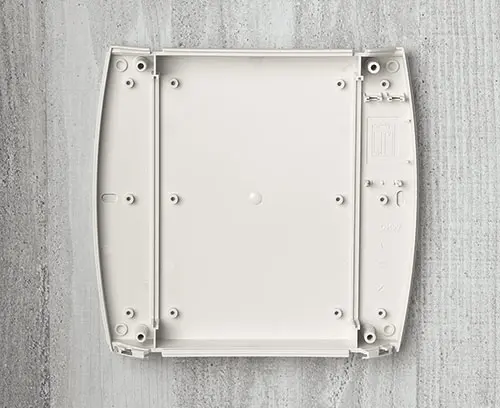

  • Montaje a pared sencillo y a ras; sujeción a través de agujeros longitudinales o en las esquinas de la caja.

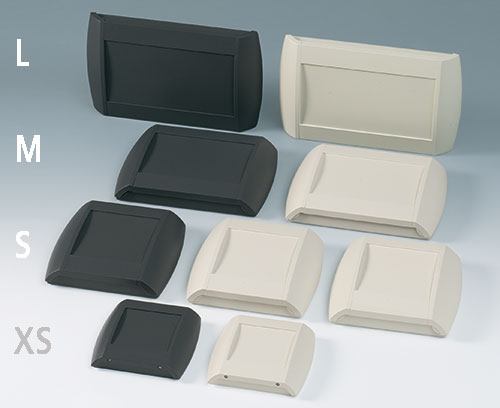

  • 4 tamaños, 2 colores

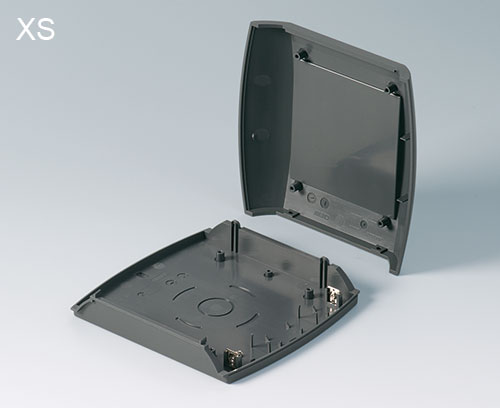

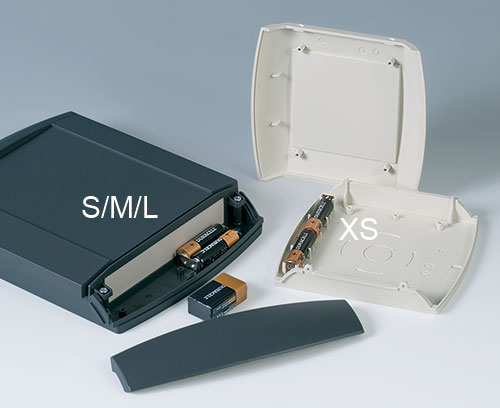

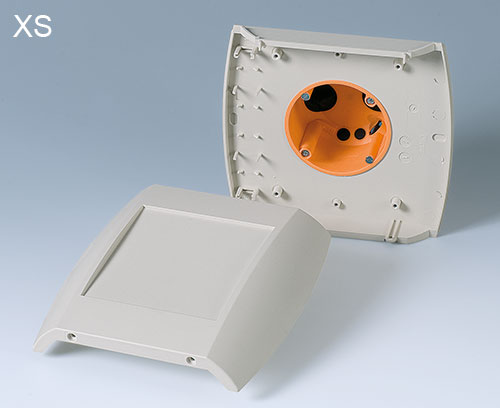

  • DIATEC XS: Caja de 2 partes, compuesta de parte superior e inferior, atornillada, compartimiento para 2 pilas AA integrado, agujeros de montaje preformado en la parte inferior.

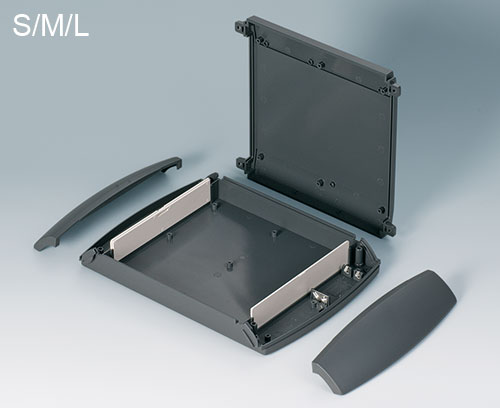

  • DIATEC S, M, L: Caja de 4 partes, compuesta de parte superior e inferior y dos cubiertas laterales para ocultar elementos de montaje; en caso necesario, las cubiertas laterales pueden asegurarse para evitar accesos no autorizados; compartimiento para 2 pilas AA ó 1 pila de 9 V integrado.

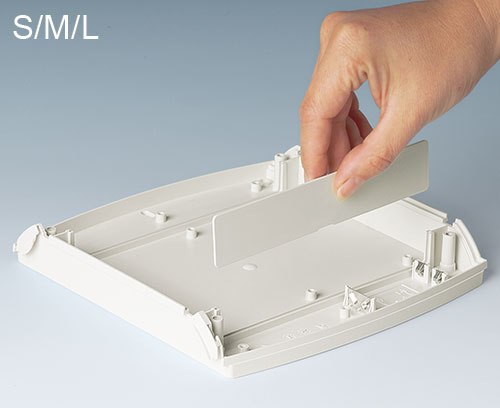

  • Paneles de separación (accesorios) sirven para distribuir el espacio, por ejemplo, para proteger contra el contacto al sistema electrónico durante un cambio de pilas (sólo para S, M y L).
  • Categoría de protección IP 40.
  • Tapa abisagrada del color de la caja en ABS, y translúcida o transparente en polycarbonato, para cubrir el panel de control (accesorio para S, M y L).
  • Torretas de fijación para placas de circuito y piezas de montaje
Crear PDF
  • Ejemplos de aplicación

Application fields

  • Periféricos informáticos e informática
  • IoT/IIoT
  • Sistemas de recopilación de datos en el puesto de trabajo
  • Instalaciones de vigilancia
  • Porteros automáticos
  • Dispositivos de control de acceso
  • Tecnologías de medición y regulación
  • Tecnologías de laboratorio y medicina
  • Selección de todos los artículos
  • Accesorios
  • Modificaciones específicas del cliente
A9092107 DIATEC XS

A9092107

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Cerrar

A9092107

DIATEC XS
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
150x37x155mm
IP 40
A9092108 DIATEC XS

A9092108

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Cerrar

A9092108

DIATEC XS
Producto añadido a su lista
ABS (UL 94 HB)
lava
150x37x155mm
IP 40
A9093107 DIATEC S

A9093107

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9093107

DIATEC S
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
210x48x200mm
IP 40
A9093108 DIATEC S

A9093108

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9093108

DIATEC S
Producto añadido a su lista
ABS (UL 94 HB)
lava
210x48x200mm
IP 40
A9094107 DIATEC M

A9094107

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9094107

DIATEC M
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
270x48x200mm
IP 40
A9094108 DIATEC M

A9094108

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9094108

DIATEC M
Producto añadido a su lista
ABS (UL 94 HB)
lava
270x48x200mm
IP 40
A9095107 DIATEC L

A9095107

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9095107

DIATEC L
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
330x48x200mm
IP 40
A9095108 DIATEC L

A9095108

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Cerrar

A9095108

DIATEC L
Producto añadido a su lista
ABS (UL 94 HB)
lava
330x48x200mm
IP 40
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Cerrar

A0399T10

Torx T10 screwdriver
Producto añadido a su lista
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Cerrar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Producto añadido a su lista
Steel
tin-plated

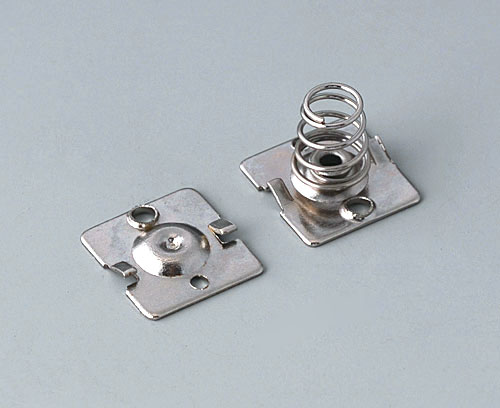

A9190015 Set of battery clips, 2 x AA
