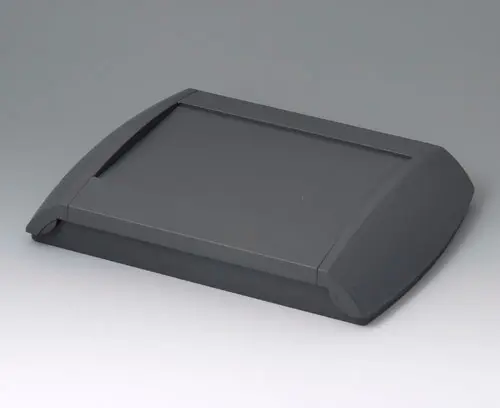

A9094108 DIATEC M
Scroll

A9094108

DIATEC M

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para A9094108

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Cerrar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Producto añadido a su lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Cerrar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Producto añadido a su lista
Steel
tin-plated

Accessory "protection"

A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Cerrar

A9194007

Slot-in panel
Producto añadido a su lista
ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm
A9194122 Hinged lid M

A9194122

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Cerrar

A9194122

Hinged lid M
Producto añadido a su lista
PC (UL 94 V-0)
translucent
A9194128 Hinged lid M

A9194128

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Cerrar

A9194128

Hinged lid M
Producto añadido a su lista
ABS (UL 94 HB)
lava
A9194132 Hinged lid M

A9194132

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Cerrar

A9194132

Hinged lid M
Producto añadido a su lista
PC (UL 94 V-0)
clear

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Cerrar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Producto añadido a su lista

Accessory

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Cerrar

A9212330

Anti-slide feet 12 x 3.5 mm
Producto añadido a su lista
transparent

Customising options for A9094108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Planos / Documentos
  • Ejemplos de aplicación
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 40
Color
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
270 mm
Height
48 mm
Depth
200 mm
PCB length, base
180 mm
PCB width, base
180 mm
PCB length, top
180 mm
PCB width, top
180 mm
Keypad length
127,6 mm
Keypad width
179,6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
412 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
