B4610207 SMART-CONTROL M, Vers. II
Scroll

B4610207

SMART-CONTROL M, Vers. II

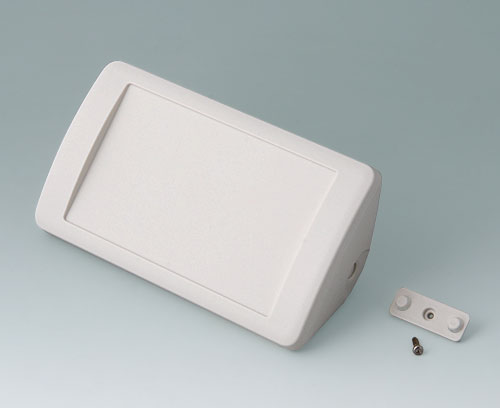

Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version

Case-top with recessed operating area

Supply

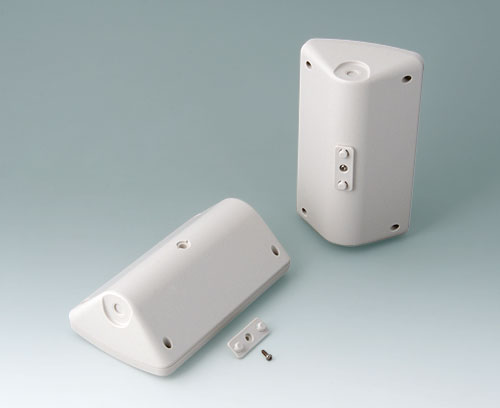

Top and bottom parts, assembly kit incl. universal adapter

Plano 2D en PDF
Vista en 3D en PDF
Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B4610207

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

Accessory "station"

B4705207 Desktop stand set

B4705207

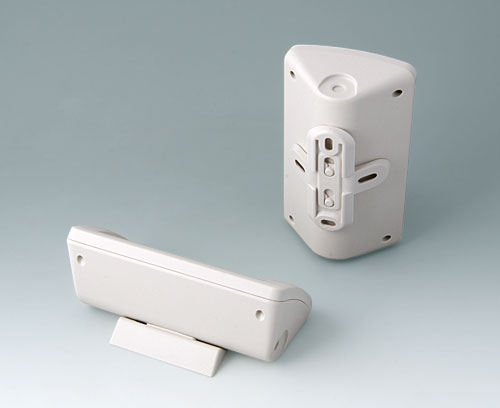

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Cerrar

B4705207

Desktop stand set
Producto añadido a su lista
ASA+PC (UL 94 V-0)

Accessory "protection"

B4710920 Seal M

B4710920

Seal M Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Cerrar

B4710920

Seal M
Producto añadido a su lista

Accessory "wall/holder"

B4705907 Wall suspension element

B4705907

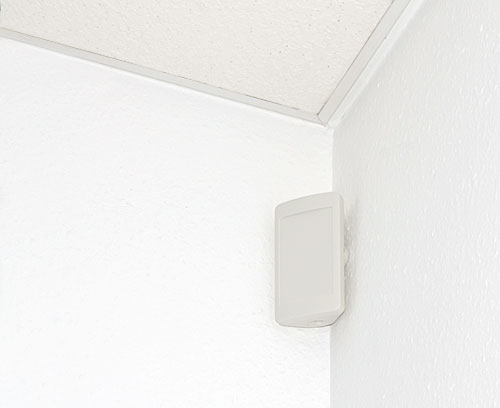

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).
