B4705907 Wall suspension element
Scroll

B4705907

Wall suspension element

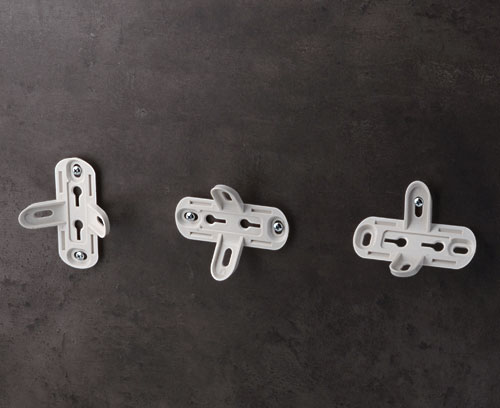

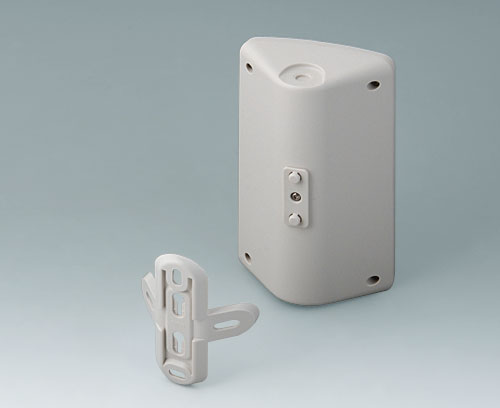

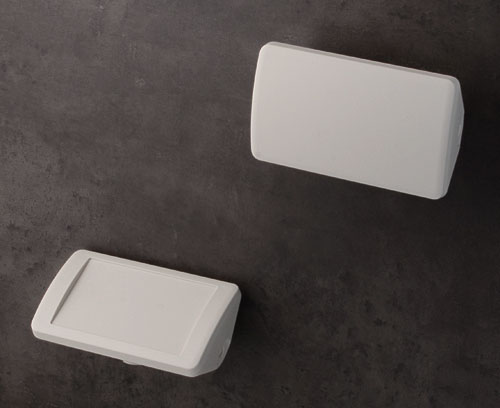

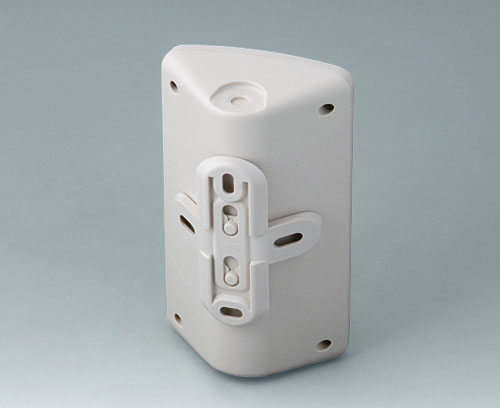

This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply

1 wall suspension element

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para B4705907

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
B4608107 SMART-CONTROL S, Vers. I

B4608107

SMART-CONTROL S, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Cerrar

B4608107

SMART-CONTROL S, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40

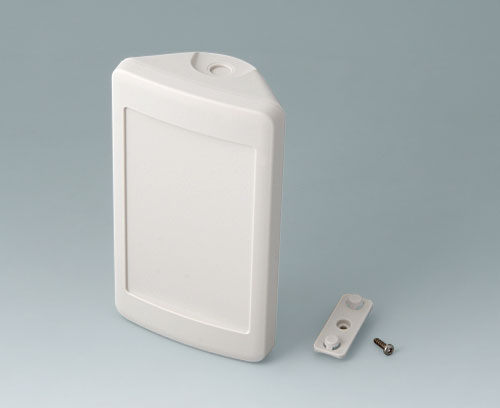

B4608207 SMART-CONTROL S, Vers. II

B4608207

SMART-CONTROL S, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Cerrar

B4608207

SMART-CONTROL S, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40

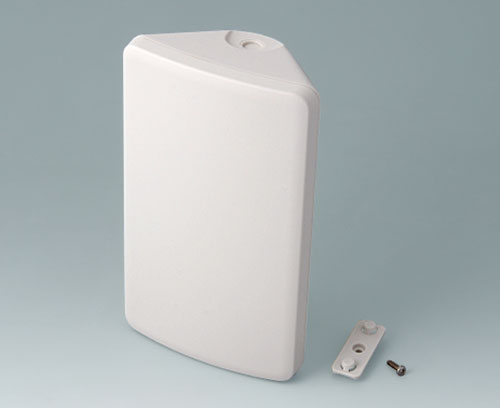

B4610107 SMART-CONTROL M, Vers. I

B4610107

SMART-CONTROL M, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Cerrar

B4610107

SMART-CONTROL M, Vers. I
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40

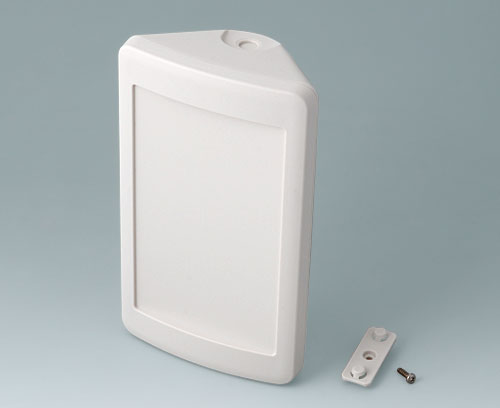

B4610207 SMART-CONTROL M, Vers. II

B4610207

SMART-CONTROL M, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Cerrar

B4610207

SMART-CONTROL M, Vers. II
Producto añadido a su lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40
  • Datos técnicos
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
