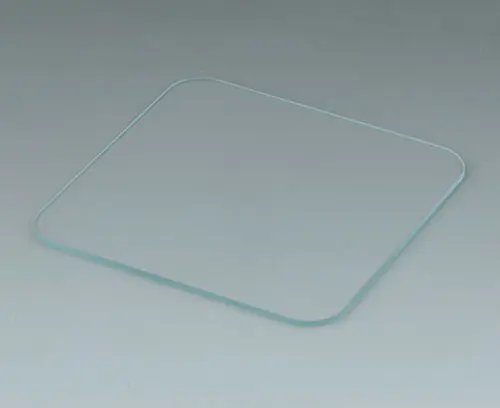

C6502013 Glass panel S84
Scroll

C6502013

Glass panel S84

Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply

1 glass panel, chemically hardened

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para C6502013

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Componentes adecuados
  • Modificaciones específicas del cliente

System components to complete

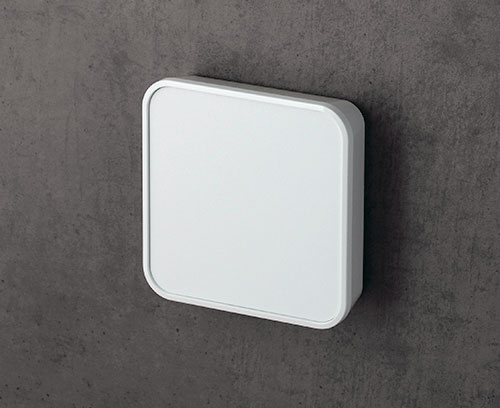

C6402107 SMART-PANEL S84

C6402107

SMART-PANEL S84 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Cerrar

C6402107

SMART-PANEL S84
Producto añadido a su lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
84x84x21,3mm
IP 40

Accessory

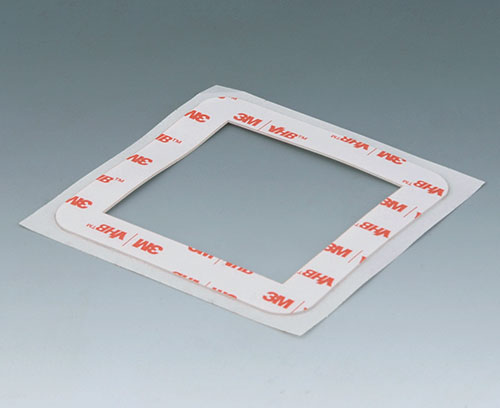

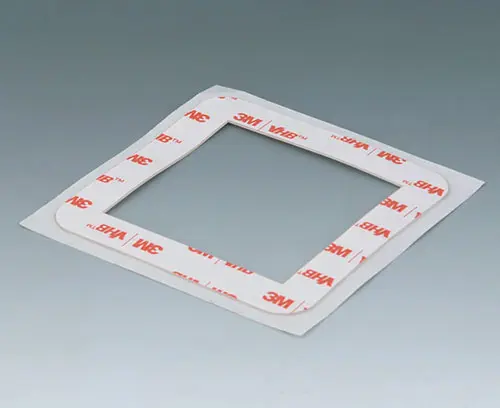

C6502012 Adhesive foil S84

C6502012

Adhesive foil S84 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Cerrar

C6502012

Adhesive foil S84
Producto añadido a su lista

Customising options for C6502013

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Datos técnicos
  • Purchasing Data
Material
Glass
Color
clear
Standards
RoHS compliant
REACH compliant
Length
78,75 mm
Width
78,75 mm
Height
1,6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
24 g
Customs tariff number
(OKW product)
70060010
Country of manufacture
Other country
