C6506012 Adhesive foil E155
Scroll

C6506012

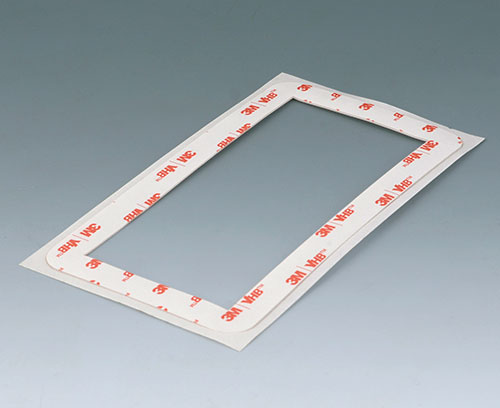

Adhesive foil E155

For secure mounting of the glass panel on the top part.

Supply

1 adhesive foil

Añadir a la cesta de la compra Añadir a la cesta de la compra Añadir a la cesta de la compra
Producto añadido a su lista
Continuar o abrir la cesta de la compra
Crear ficha de datos PDF

Cree su ficha de datos en PDF para C6506012

Seleccione la información del producto para su ficha de datos.

Cerrar
  • Utilizado para
C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Cerrar

C6406107

SMART-PANEL E155
Producto añadido a su lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
155x84x21,3mm
IP 40
C6506013 Glass panel E155

C6506013

Glass panel E155 Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply 1 glass panel, chemically hardened

Cerrar

C6506013

Glass panel E155
Producto añadido a su lista
Glass
clear
149,75x78,75x1,6mm
  • Datos técnicos
  • Purchasing Data
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
39199080
Country of manufacture
Germany
